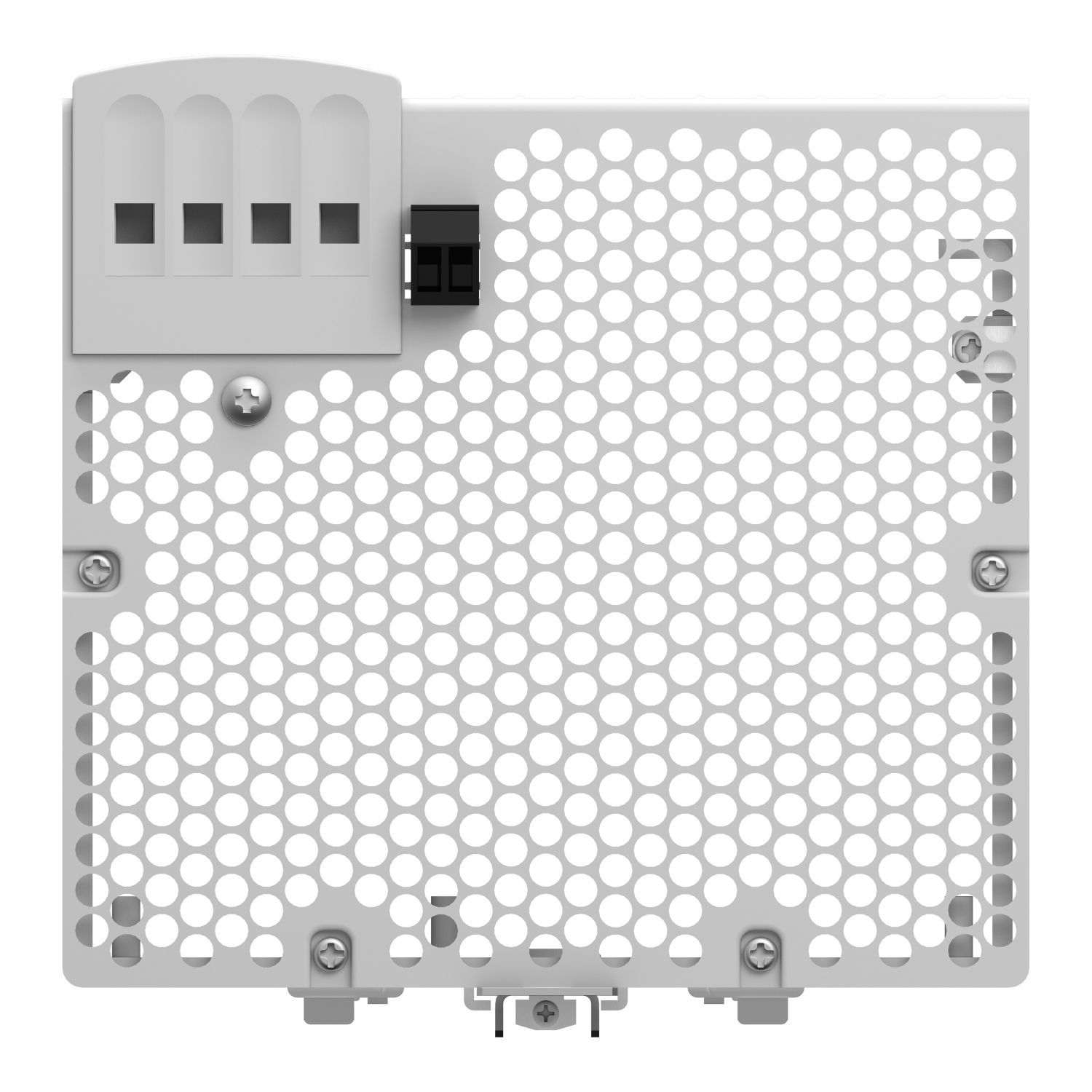

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

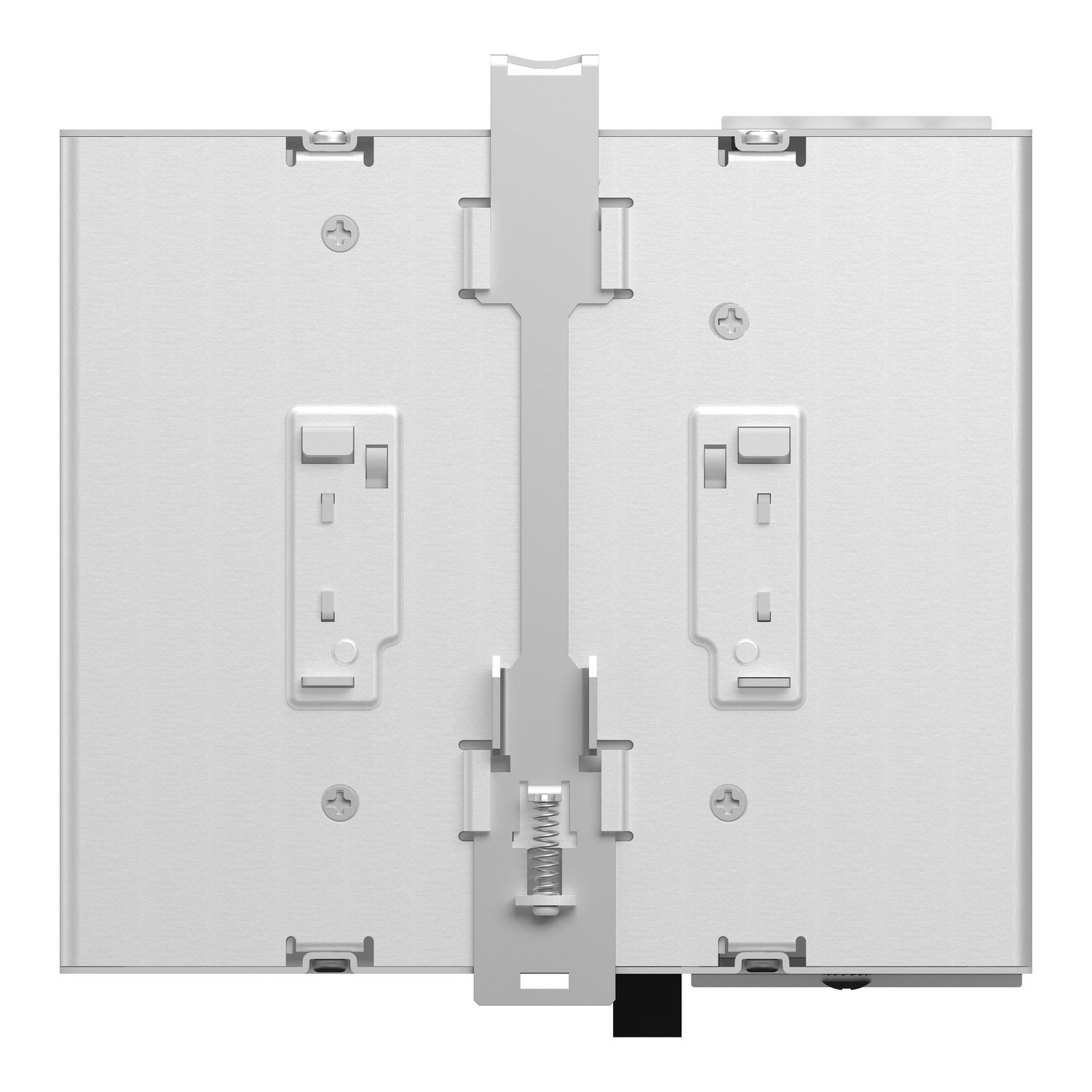

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

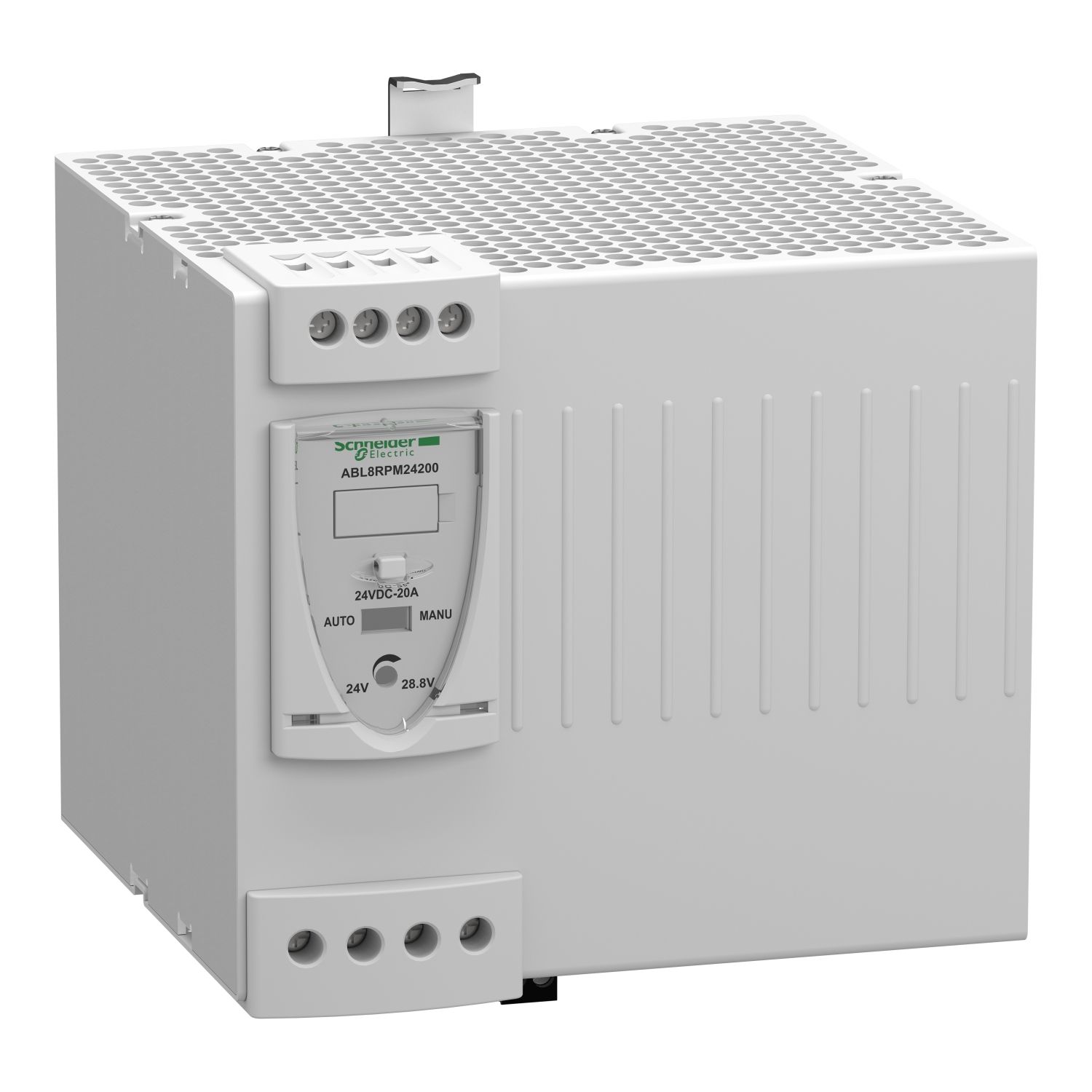

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

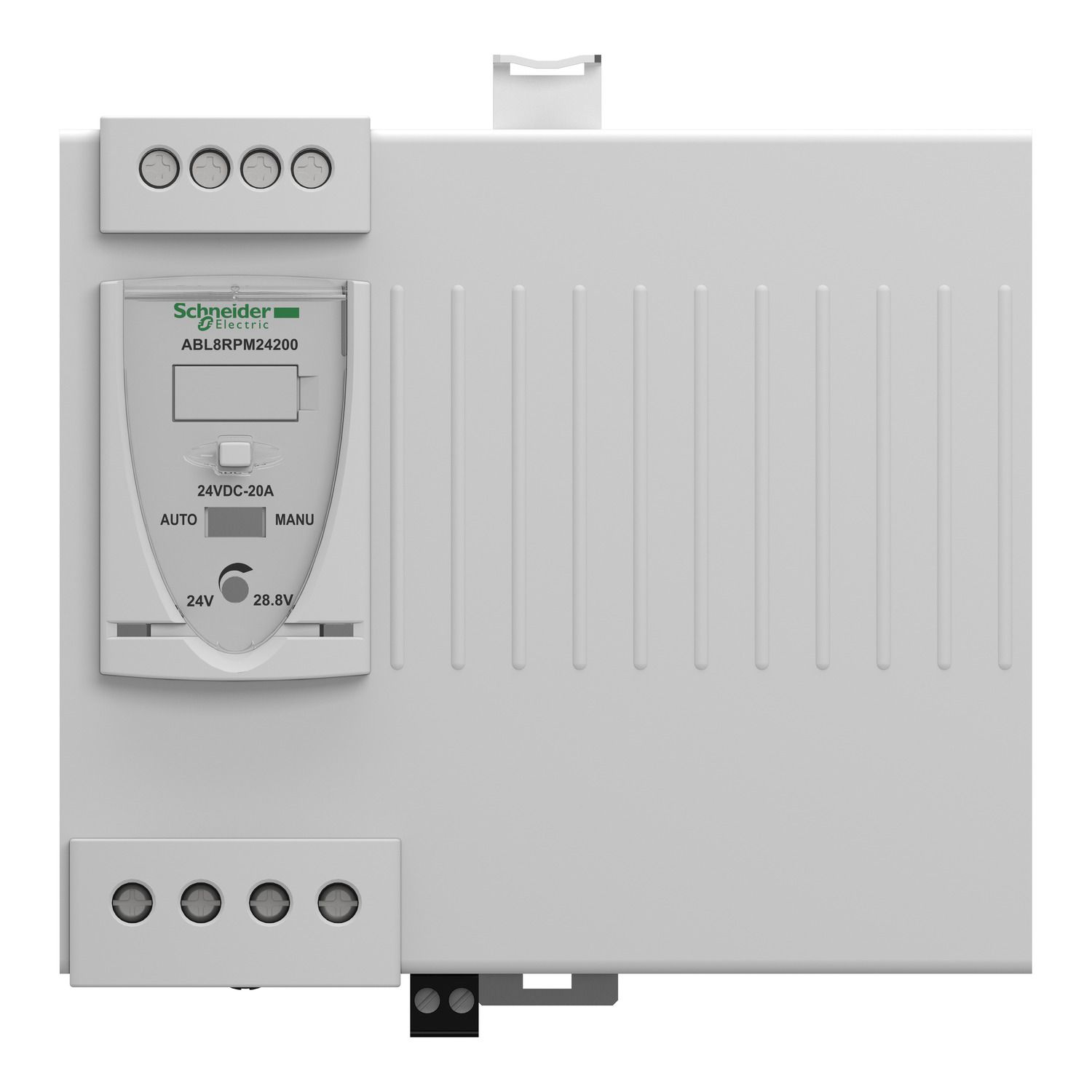

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

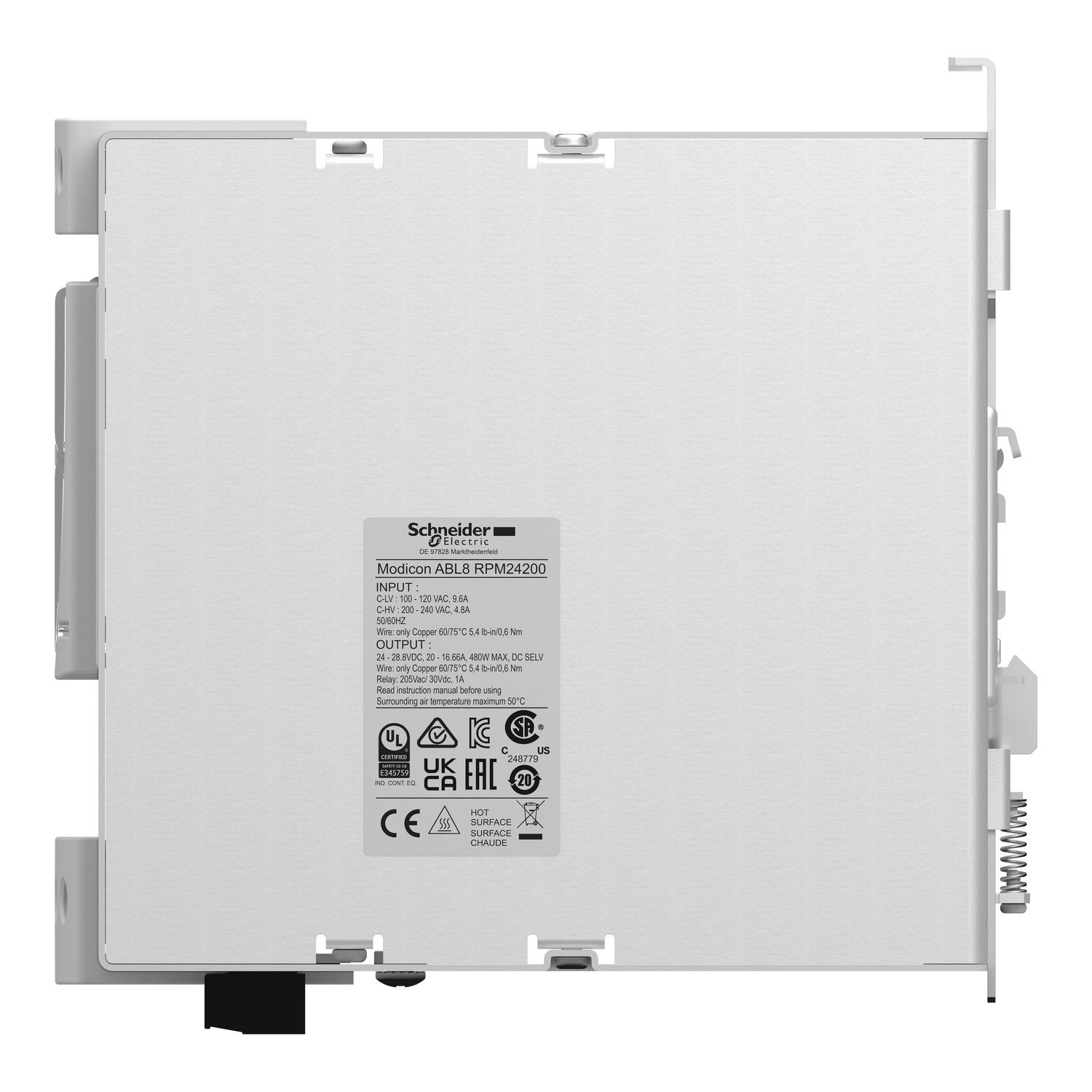

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

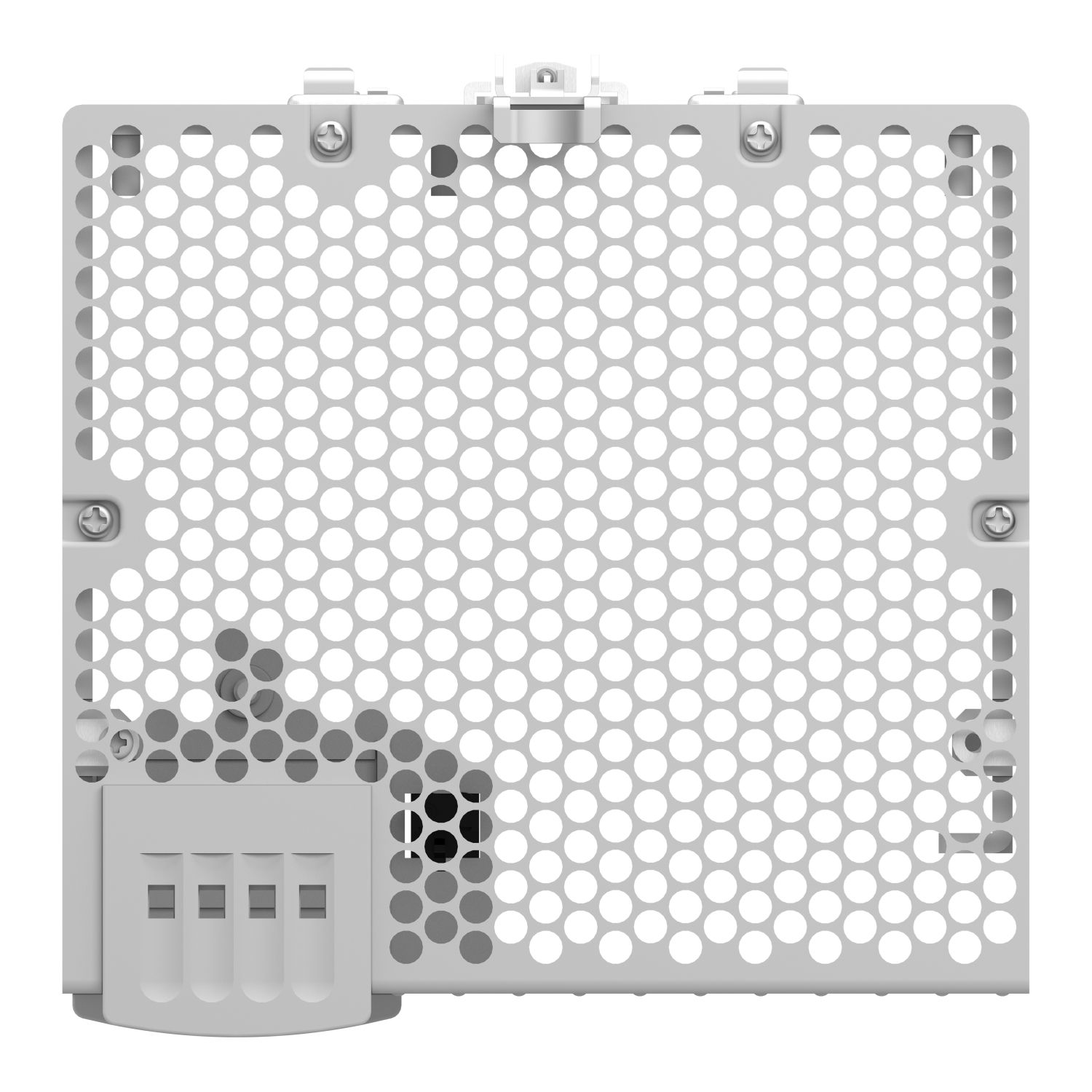

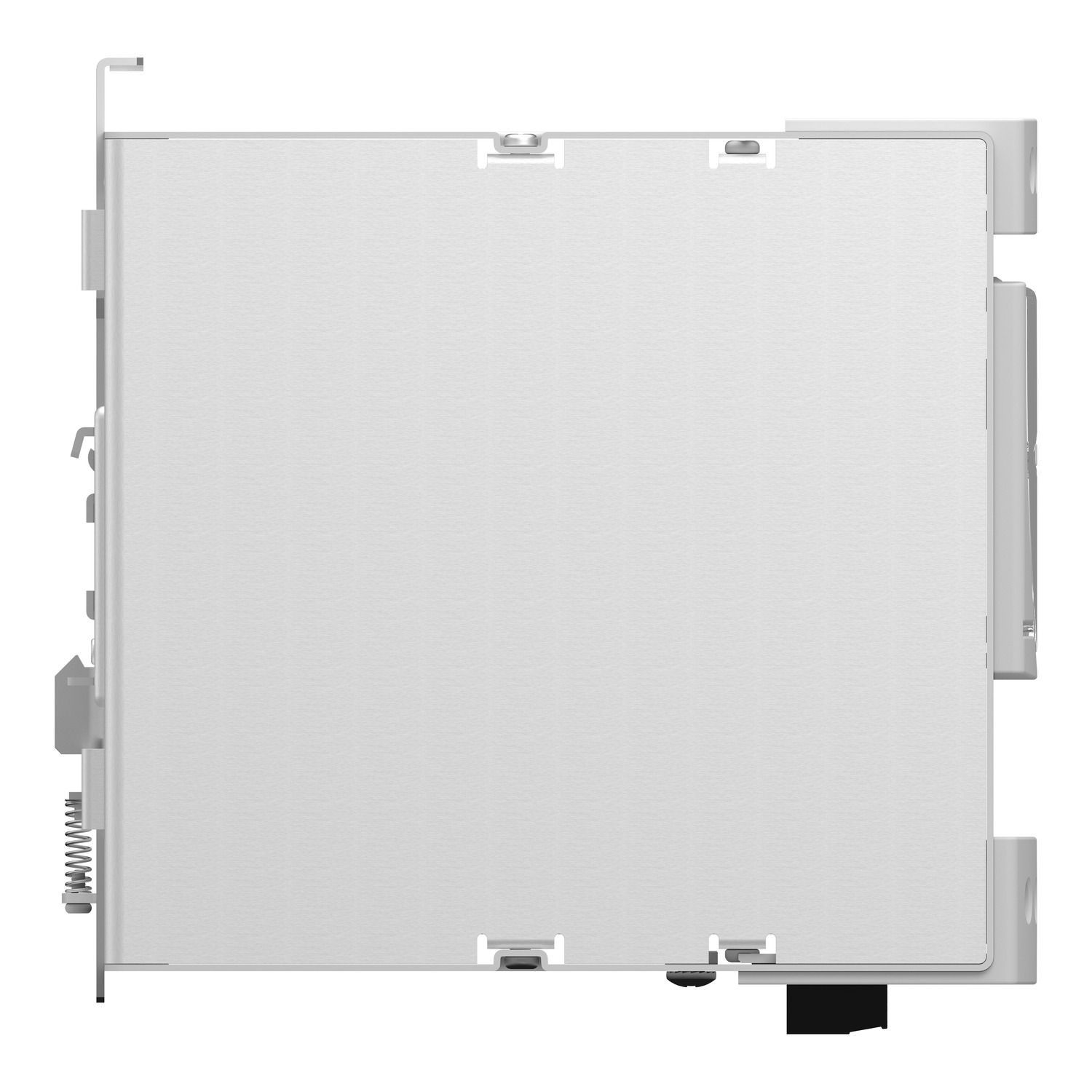

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A
SKU:

ABL8RPM24200

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A

$883.60
Available for Shipping : 14-Nov-2024
Product Selector
Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V, 24V, 20A
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Catalogue
Brochure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name Attribute value
Main
Rated power in W 480 W
Permissible temporary current boost 1.5 x In (for 4 s)
Input voltage 200...240 V AC phase to phase, terminal(s): L1-L2, 100...120 V AC single phase, terminal(s): N-L1
Output voltage 24 V DC
Range of product Modicon Power Supply
Power supply output current 20 A
Anti-harmonic filter low frequency harmonic currents
Power supply type regulated switch mode
Product or component type power supply
Complementary
Power factor 0.69 at 120 V AC, 0.68 at 240 V AC
Inrush current 30 A
Efficiency 88 %
Operating position vertical
Power dissipation in W 57.6 W
Marking CE
Connections - terminals screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Input voltage limits 170...264 V AC, 85...132 V AC
Status LED 1 LED (green, red and orange) output current, 1 LED (green and red) output voltage
Height 125 mm
Depth 145 mm
Width 146 mm
Mounting support 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
Output voltage limits 24...28.8 V adjustable
Output protection type thermal, protection technology: automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, against short-circuits, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual or automatic reset
Net weight 1.6 kg
Supply SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Dielectric strength 500 V with between output and ground, 3000 V with between input and output, 2500 V with between input and ground
Provided equipment power factor correction filter conforming to IEC 61000-3-2
Output coupling parallel, series
Environment
Compatibility code ABL8R
IP degree of protection IP10, IP20 conforming to IEC 60529
Product certifications UL, RCM, KC, EAC, cCSAus
Ambient air temperature for operation -25-50 °C without derating mounting position A < 2000 m, 50-60 °C with derating factor mounting position A < 2000 m
Operating altitude 2000 m
Environmental characteristic safety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-4, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-1
Standards EN/IEC 62368-1, UL 508, CSA C22.2 No 60950-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.084 cm
Package 1 Width 17.706 cm
Package 1 Length 17.786 cm
Package 1 Weight 2.82 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 17.6 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 73.5 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 101.52 kg

Related products

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

ABL8BBU24200
$960.50
View Detail

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS

ABL8BBU24400
$1,371.35
View Detail

Phaseo ABL7 ABL8, Buffer module, 24..28.8 V DC, 40 A, for power supply

ABL8BUF24400
$602.20
View Detail

Phaseo ABL7 ABL8, Converter module 30 W, 24..28.8 V DC, 5 V DC, 6 A, for regulated SMPS

ABL8DCC05060
$385.99
View Detail

Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

ABL8DCC12020
$385.99
View Detail

electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

ABL8PRP24100
$635.96
View Detail

Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A

BVS240XDPDR
$426.32
View Detail

Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A

BVS480XDPDR
$464.32
View Detail
