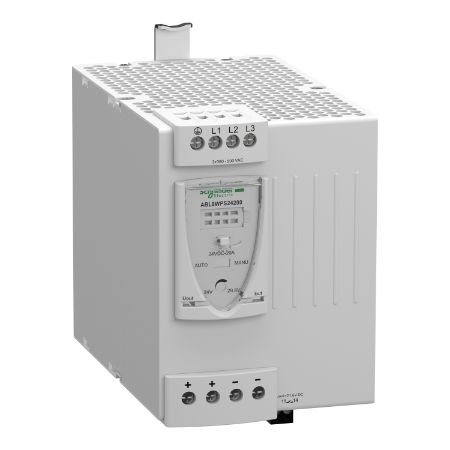

Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Picture of Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
SKU:

ABL8WPS24200

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A

$711.94
Product Selector
Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V AC, 24V, 20A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 16-Oct-2024
Image of product
End of life manual
Product environmental
Instruction sheet
Image of product
Catalogue
Declaration of conformity
Brochure
Image of product
Image of product
Image of product
Image of product
Product Page Link
Product Data Sheet
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs easily on DIN rail and is 95mm-wide. It is a power supply for industrial use, rail mounting. It conforms to CSA C22.2 No 60950-1 and UL 508. It is certified with CCSAus, EAC, UL and RCM. The GV2ME06 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute nameAttribute value
Main
Rated power in W480 W
Permissible temporary current boost1.5 x In (for 4 s)
Input voltage380...500 V AC three phase, terminal(s): L1, L2, L3
Output voltage24 V DC
Range of productModicon Power Supply
Power supply output current20 A
Anti-harmonic filterlow frequency harmonic currents
Power supply typeregulated switch mode
Product or component typepower supply
Complementary
Power factor0.65 at 24 V DC
Inrush current25 A
Efficiency92 %
Operating positionvertical
Power dissipation in W38.4 W
MarkingCE
Connections - terminalsscrew type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Input voltage limits320...550 V AC
Status LED1 LED (green, red and orange) output current, 1 LED (green and red) output voltage
Height143 mm
Depth160 mm
Width96 mm
Mounting support35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
Output voltage limits24...28.8 V adjustable
Output protection typethermal, protection technology: automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, against short-circuits, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual or automatic reset
Net weight1.6 kg
SupplySELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Dielectric strength500 V with between output and ground, 4000 V with between input and output, 3500 V with between input and ground
Provided equipmentpower factor correction filter conforming to IEC 61000-3-2
Output couplingparallel, series
Environment
Compatibility codeABL8W
IP degree of protectionIP20 conforming to IEC 60529
Product certificationsRCM, UL, EAC, cCSAus
Ambient air temperature for operation-25-50 °C without derating mounting position A < 2000 m, 50-60 °C with derating factor mounting position A < 2000 m
Operating altitude2000 m
Environmental characteristicsafety conforming to IEC 60950-1, safety conforming to EN 61204-4, EMC conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-4, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-1
StandardsEN/IEC 62368-1, UL 508, CSA C22.2 No 60950-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.882 cm
Package 1 Width15.928 cm
Package 1 Length18.442 cm
Package 1 Weight2.151 kg
Unit Type of Package 22
Number of Units in Package 23
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7 kg
Unit Type of Package 33
Number of Units in Package 345
Package 3 Height73.5 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight110.0 kg

Related products

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

ABL8BBU24200
$960.50
View Detail

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS

ABL8BBU24400
$1,371.35
View Detail

Phaseo ABL7 ABL8, Buffer module, 24..28.8 V DC, 40 A, for power supply

ABL8BUF24400
$602.20
View Detail

Phaseo ABL7 ABL8, Converter module 30 W, 24..28.8 V DC, 5 V DC, 6 A, for regulated SMPS

ABL8DCC05060
$385.99
View Detail

Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

ABL8DCC12020
$385.99
View Detail

electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

ABL8PRP24100
$635.96
View Detail

Phaseo ABL7 ABL8, Redundancy module, 40A, Regulated SMPS

ABL8RED24400
$446.95
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control

GV2ME06
$183.61
View Detail
