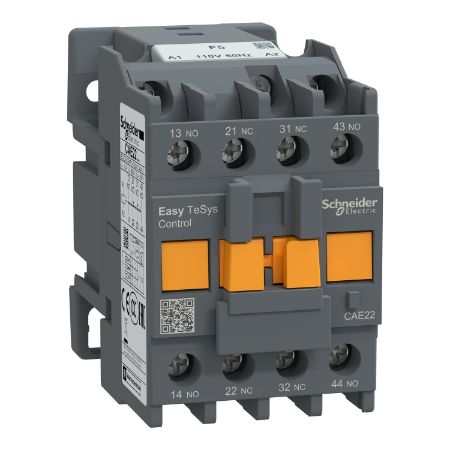

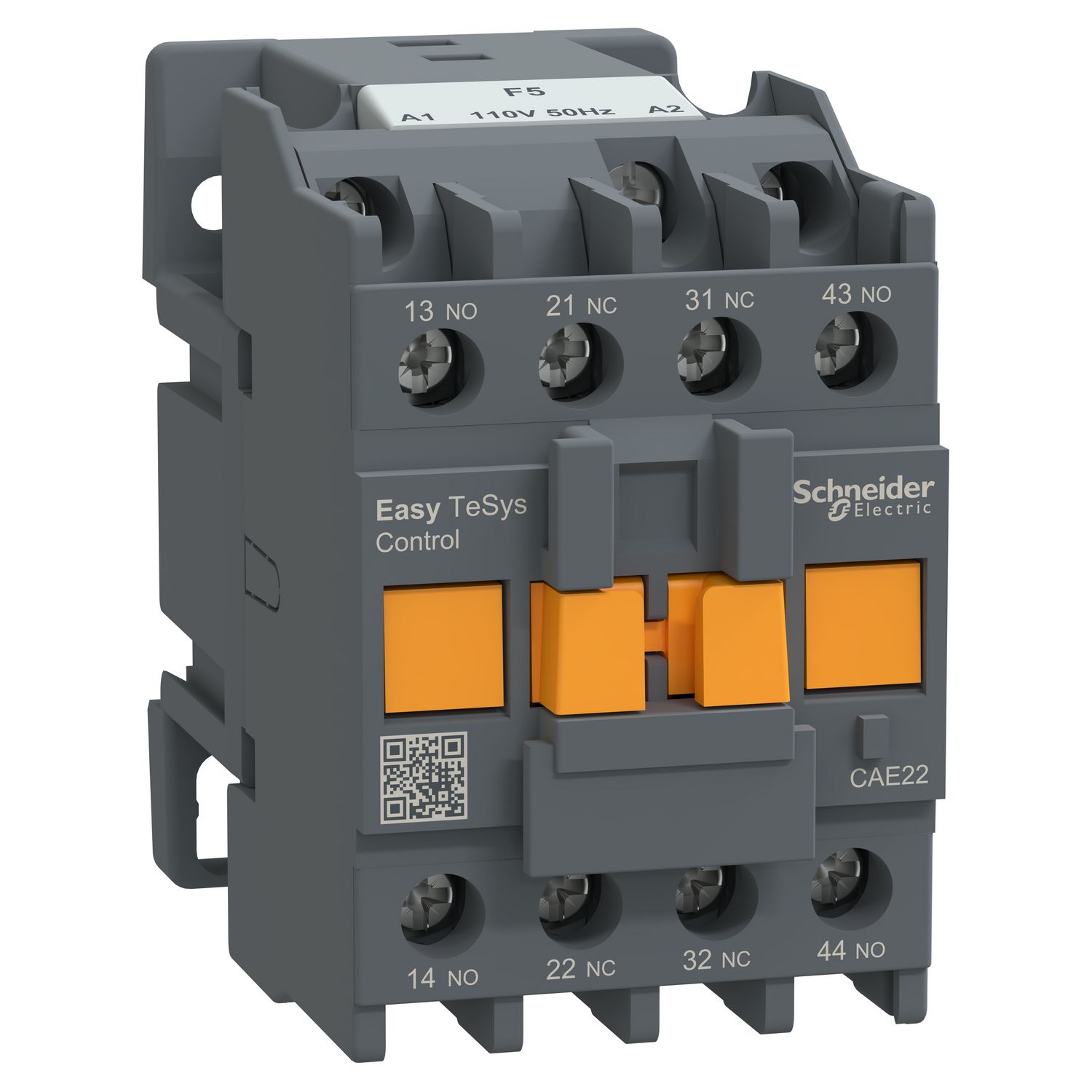

Picture of Control relay,Easy TeSys Control,CAE,2NO+2NC,<=690V,110V AC 50Hz coil
SKU:

CAE22F5

Control relay,Easy TeSys Control,CAE,2NO+2NC,<=690V,110V AC 50Hz coil

$37.56
Available for Shipping : 24-Nov-2024
Control relay,Easy TeSys Control,CAE,2NO+2NC,<=690V,110V AC 50Hz coil
  • Easy Tesys TVS Control Relays provide a cost-effective solution to a simple application
  • Same design as Easy Tesys TVS contactors
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact TVS control relay for utilization categories AC-15/AC-14 up to 10A/690V. It provides 4 instantaneous contacts (2NO+2NC), a 110V 50Hz AC coil, connections by screw clamp terminals. For demanding applications with standard operating rates until 3 cycles/second, it procures standard reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name CAE
Colour grey (RAL 7011)
Range Easy TeSys
Product or component type control relay
Contactor application control circuit
Range of product Easy TeSys Control Relay
Complementary
[Icw] rated short-time withstand current 140 A - 100 ms, 120 A - 500 ms
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Depth 80 mm
Width 45 mm
Operating time 6...17 ms coil de-energisation and NO closing, 4...12 ms coil de-energisation and NC opening, 12...22 ms coil energisation and NO closing, 4...19 ms coil energisation and NC opening
Hold-in power consumption in VA 8-8 VA 50 Hz (at 20 °C)
Mechanical durability 10 Mcycles
Tightening torque 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Maximum operating rate 180 cyc/mn
Minimum switching voltage 17 V
Utilisation category AC-14, AC-15
Connections - terminals screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end, screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Inrush power in VA 70-70 VA 50 Hz (at 20 °C)
Net weight 0.28 kg
Associated fuse rating 10 A gG at 690 V conforming to IEC 60947-5-1
Irms rated making capacity 140 A at 690 V AC conforming to IEC 60947-5-1
Insulation resistance > 10 MOhm
[Uc] control circuit voltage 110 V AC 50 Hz
Control circuit type AC at 50 Hz
Mounting support rail, plate
[Ith] conventional free air thermal current 10 A (at 40 °C)
Control circuit voltage limits drop-out: 0.3...0.6 Uc, operational: 0.85...1.1 Uc at 50 Hz
Height 74 mm
[Ue] rated operational voltage <= 690 V AC
Mechanical robustness vibrations control relay closed: 3 Gn, 5...300 Hz, vibrations control relay open: 1.5 Gn, 5...300 Hz, shocks control relay closed: 10 Gn for 11 ms, shocks control relay open: 7 Gn for 11 ms
Minimum switching current 5 mA
Non-overlap time 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Environment
Operating altitude 3000 m without derating
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -60-80 °C
Standards IEC 60947-5-1
Ambient air temperature for operation -20-70 °C
Product certifications GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.2 cm
Package 1 Width 7.5 cm
Package 1 Length 8.7 cm
Package 1 Weight 305 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 10080.32 g
Unit Type of Package 3 3
Number of Units in Package 3 576
Package 3 Height 115 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 179.32 kg
