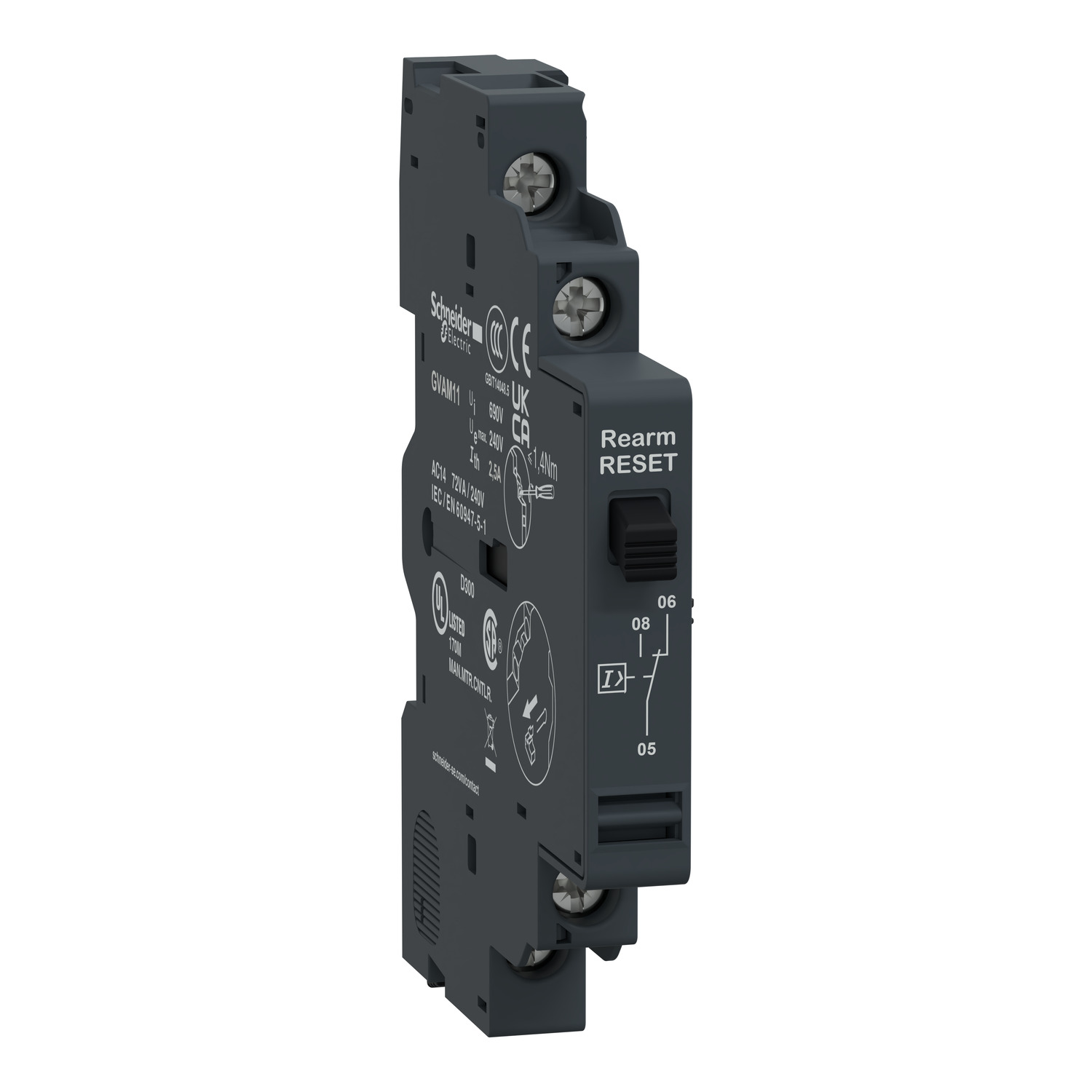

Picture of TeSys; TeSys Deca, MAN-STARTER SHORT CIR CONTACT 575VAC 1
SKU:

GVAM11

TeSys; TeSys Deca, MAN-STARTER SHORT CIR CONTACT 575VAC 1

$166.86
Available for Shipping : 25-Nov-2024
TeSys; TeSys Deca, MAN-STARTER SHORT CIR CONTACT 575VAC 1
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1C/O contact for short circuit signaling. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GVAM
Auxiliary contacts operation short-circuit signal 1 C/O
Product compatibility GV2LE, GV3P, GV2P, GV3L, GV2RT, GV2ME, GV2L
Pole contact composition 1 C/O
Mounting location left side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range compatibility TeSys GV3 GV3L circuit breaker, TeSys GV3 GV3P circuit breaker, TeSys
Range of product TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W 9 W at 60 V DC-13 - electrical durability: 1000 cycles, 24 W at 24 V DC-13 - electrical durability: 1000 cycles, 15 W at 48 V DC-13 - electrical durability: 1000 cycles, 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth 66 mm
Width 9.3 mm
Colour dark grey
Compatibility code GVAM
Mechanical durability 100000 cycles
Rated operational power in VA 72 VA at 230-240 V AC-14 - electrical durability: 1000 cycles at 0.3 A, 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles at 0.5 A, 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles at 1 A, 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles at 1.5 A
Tightening torque 1.4 N.m - on screw clamp terminals
Minimum switching voltage 17 V
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 690 V conforming to IEC 60947-1
Net weight 0.055 kg
Protection type gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage 24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current 2.5 A for fault signalling
Height 89 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.5 cm
Package 1 Width 7.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 39 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 10.0 cm
Package 2 Width 10.5 cm
Package 2 Length 15.3 cm
Package 2 Weight 440 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 2.944 kg
