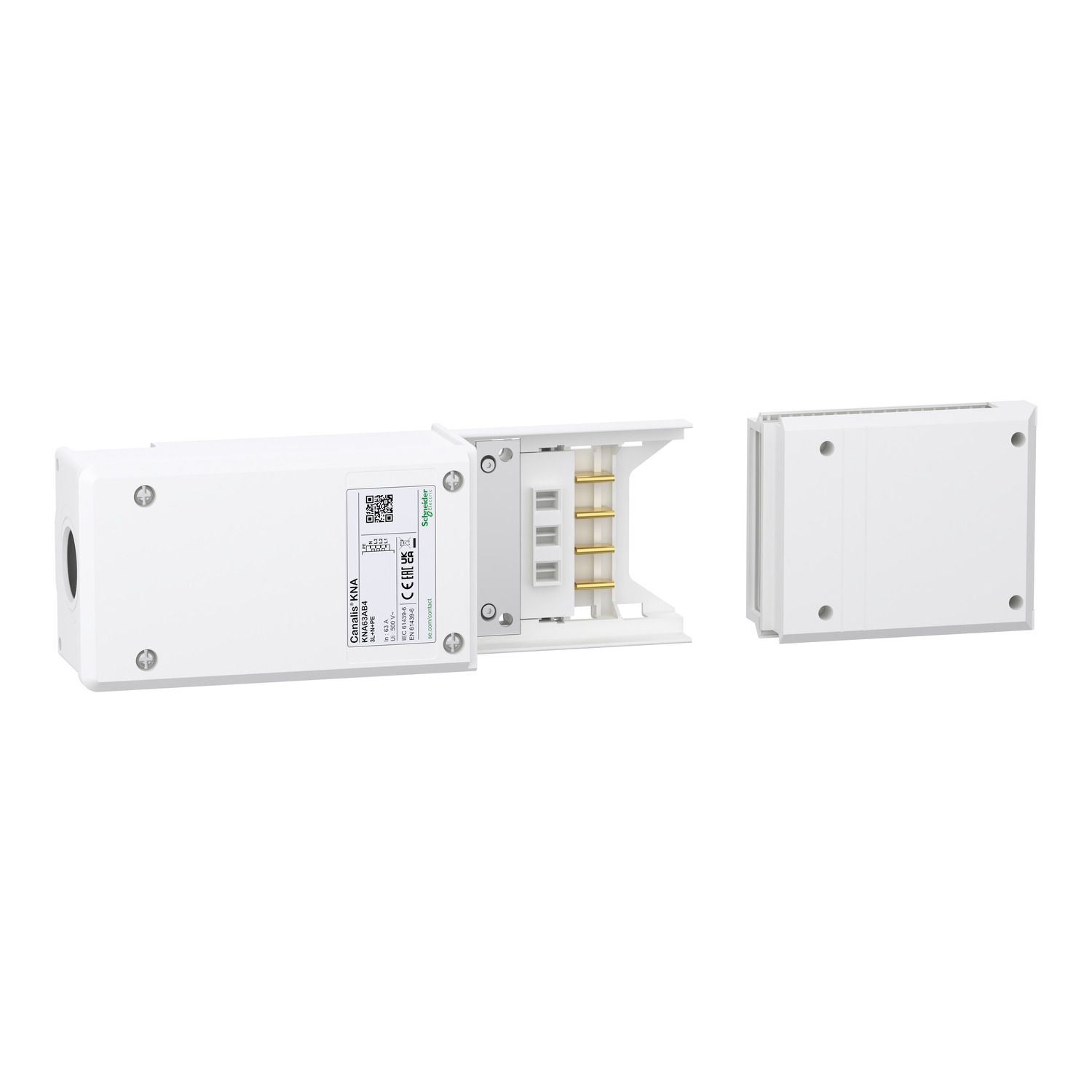

Picture of End feed unit, Canalis KNA, 40/63A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
SKU:

KNA63AB4

End feed unit, Canalis KNA, 40/63A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001

$136.24
Available for Shipping : 27-Feb-2025
End feed unit, Canalis KNA, 40/63A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
Canalis feed unit for KNA. The rated operational voltage is from 230VAC to 500VAC. The rated operational current is 40A and 63A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by clips on left or right side of trunking, connection by lug terminals. Designed with 1 circuit allowing. It provides end cover. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...500 V
Device short name KNA
Colour white (RAL 9001)
Protection type without protection
[Ie] rated operational current 63 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type without
Range Canalis
Material aluminium
Number of circuits 1
Product name KN
Product or component type feed unit
Product compatibility Canalis KNA busbar trunking 40-63 A
Range of product Canalis
Complementary
Depth 71 mm
Width 265 mm
Provided equipment end cover
Mounting mode by clips
Mounting location right, left
Net weight 580 g
Mounting support busbar
Connections - terminals terminal block for 25-25 mm² rigid, terminal block for 16-16 mm² flexible
Standards IEC 61439-6
Height 92 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 11.000 cm
Package 1 Length 29.900 cm
Package 1 Weight 650.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 37.400 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 29.818 kg
