SKU:

KNA63ABT4

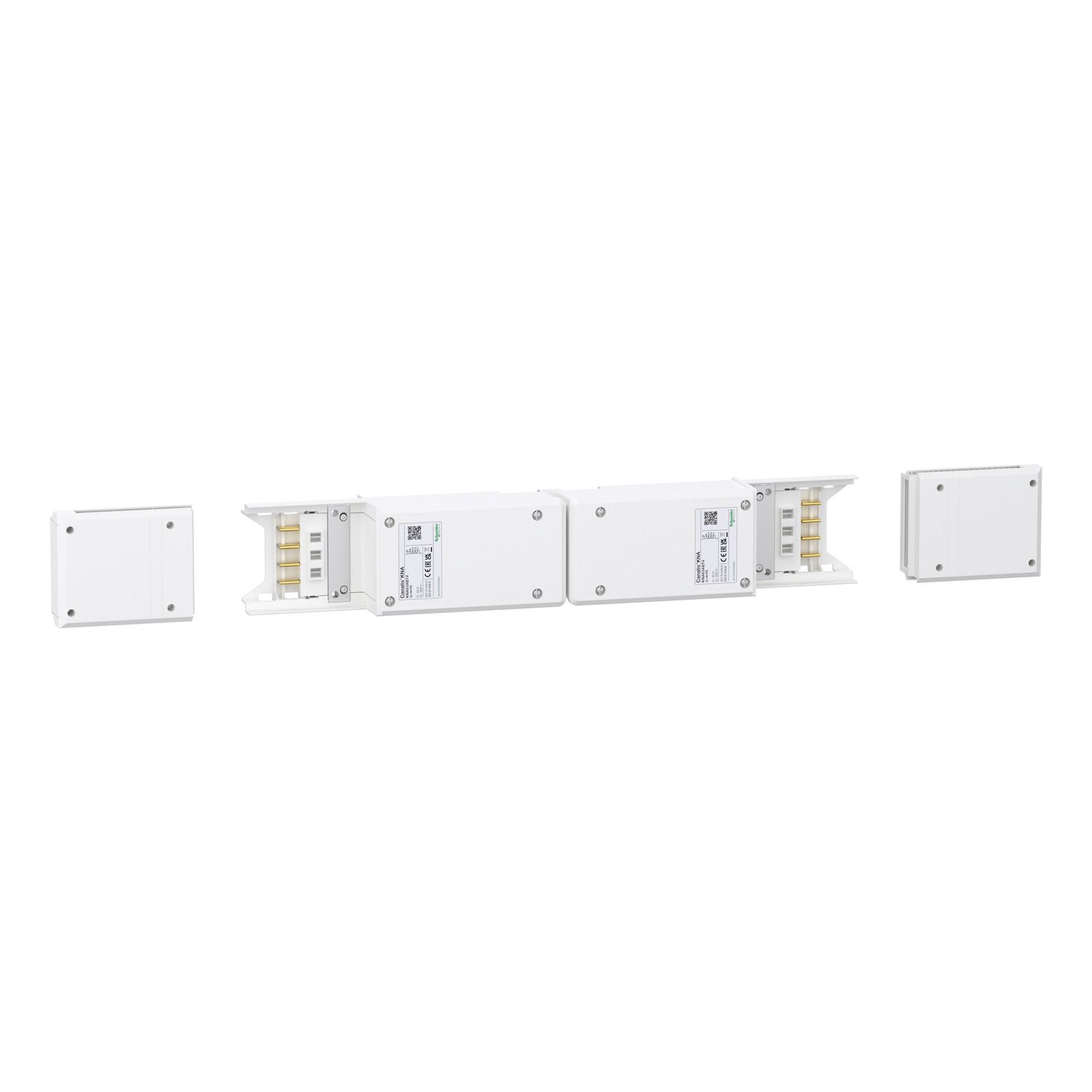

End feed unit, Canalis KNA, 40/63A, central mounting, polarity 3L+N+PE/3L+PEN, white RAL9001

$706.16

Qty:

Available for Shipping : 19-Feb-2025

End feed unit, Canalis KNA, 40/63A, central mounting, polarity 3L+N+PE/3L+PEN, white RAL9001

Manufacturer: Schneider Electric

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...500 V
Device short name	KNA
Colour	white (RAL 9001)
Protection type	without protection
[Ie] rated operational current	63 A
Busbar trunking polarity	L + N + PE, 3L + N + PE
Control type	without
Range	Canalis
Material	aluminium
Number of circuits	1
Product name	KN
Product or component type	feed unit
Product compatibility	Canalis KNA busbar trunking 40-63 A
Range of product	Canalis
Complementary
Depth	71 mm
Width	535 mm
Provided equipment	end cover
Mounting mode	by clips
Mounting location	central
Net weight	1.47 kg
Mounting support	busbar
Connections - terminals	terminal block for 25-25 mm² rigid, terminal block for 16-16 mm² flexible
Standards	IEC 61439-6
Height	92 mm
Environment
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.0 cm
Package 1 Width	14.0 cm
Package 1 Length	72.0 cm
Package 1 Weight	1.85 kg
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	40 cm
Package 2 Width	60 cm
Package 2 Length	80 cm
Package 2 Weight	28.6 kg
