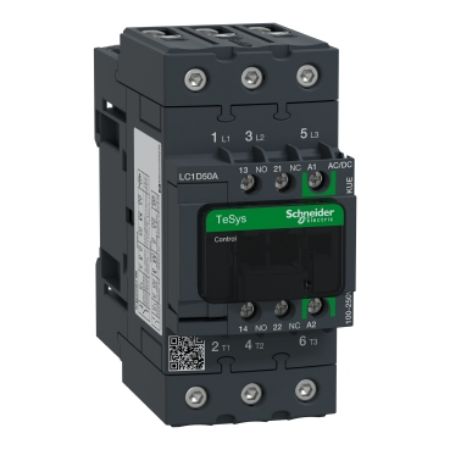

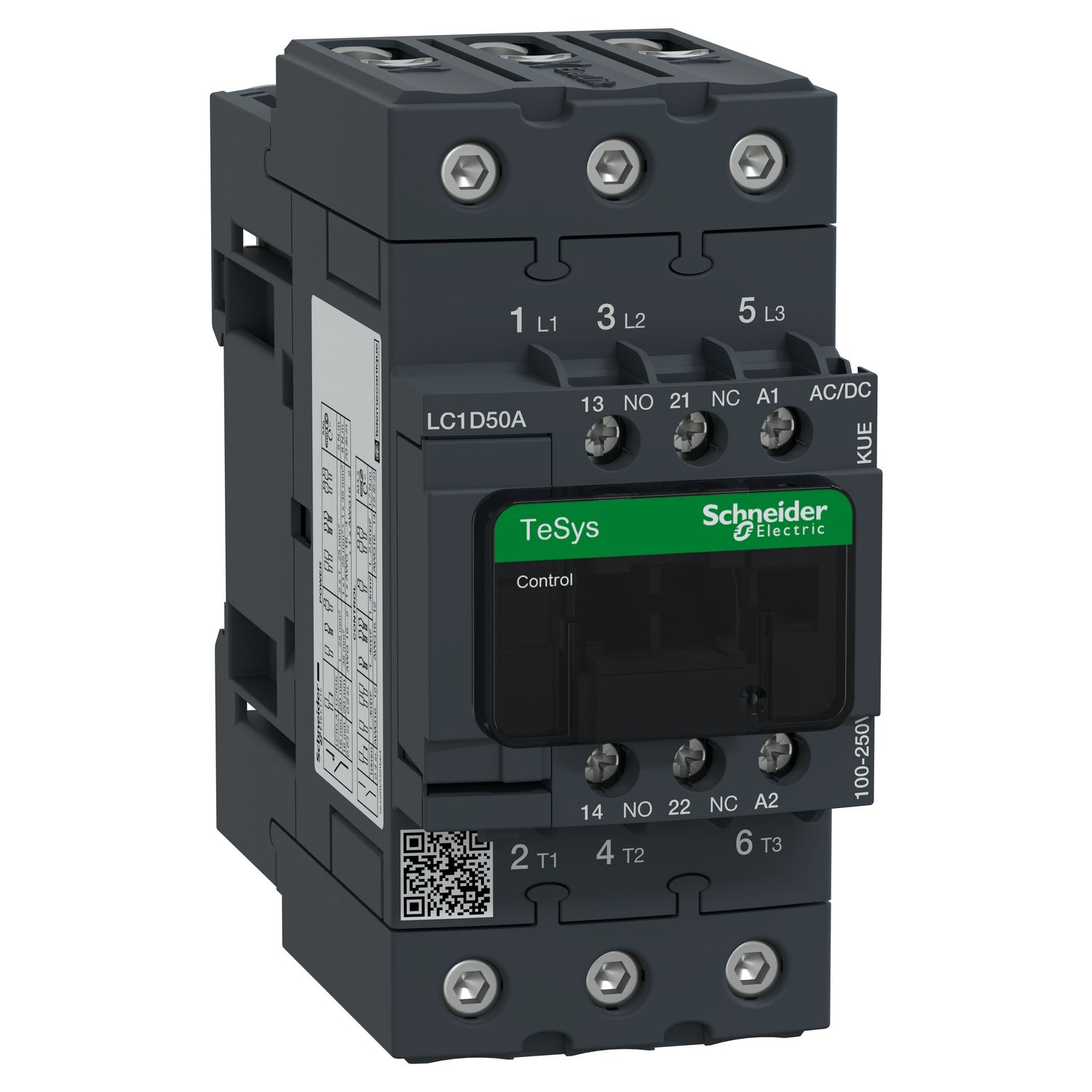

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 100 to 250VAC/DC coil, EverLink
SKU:

LC1D50AKUE

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 100 to 250VAC/DC coil, EverLink

Old price: $501.60 INC GST
$316.01 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 100 to 250VAC/DC coil, EverLink
  • Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Brochure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a low consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 50 A (at <60 °C) at <= 440 V AC-3e for power circuit, 50 A (at <60 °C) at <= 440 V AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC-1 for power circuit
Utilisation category AC-3e, AC-3, AC-1
[Uc] control circuit voltage 100...250 V DC, 100...250 V AC 50/60 Hz
Device short name LC1D
Range TeSys Deca, TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 1.8 Mcycles 42 A AC-3e at Ue <= 440 V, 0.5 Mcycles 80 A AC-1 at Ue <= 440 V, 1.8 Mcycles 42 A AC-3 at Ue <= 440 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 100 A gG at <= 690 V coordination type 2 for power circuit, 100 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type AC/DC at 50/60 Hz AC/DC electronic
Protective cover with
[Ui] rated insulation voltage signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology built-in bidirectional peak limiting
Inrush power in VA 18-18 VA 50/60 Hz (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole 3.7 W AC-3e, 3.7 W AC-3, 9.6 W AC-1
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 1.2-1.2 W at 50/60 Hz
[Icw] rated short-time withstand current 810 A 40 °C - 1 s for power circuit, 400 A 40 °C - 10 s for power circuit, 208 A 40 °C - 1 min for power circuit, 84 A 40 °C - 10 min for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Mechanical durability 6 Mcycles
Tightening torque control circuit: 1.7 N.m - with screwdriver pozidriv No 2, power circuit: 5 N.m - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 20...80 ms opening (date code >= 18011), 20...120 ms opening (date code >= 17221), 55...65 ms closing
Irms rated making capacity 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 900 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 900 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC/DC, 0.85...1.1 Uc (-40-60 °C):operational AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit, 80 A (at 60 °C) for power circuit
Motor power hp 40 hp at 575/600 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 15 hp at 230/240 V AC 60 Hz for 3 phases motors, 15 hp at 200/208 V AC 60 Hz for 3 phases motors, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors, 3 hp at 115 V AC 60 Hz for 1 phase motors
Motor power kW 33 kW at 660...690 V AC 50 Hz (AC-3e), 30 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 440 V AC 50 Hz (AC-3e), 25 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 380...400 V AC 50 Hz (AC-3e), 15 kW at 220...230 V AC 50 Hz (AC-3e), 33 kW at 660...690 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3), 30 kW at 440 V AC 50 Hz (AC-3), 25 kW at 415 V AC 50 Hz (AC-3), 22 kW at 380...400 V AC 50 Hz (AC-3), 15 kW at 220...230 V AC 50 Hz (AC-3)
Hold-in power consumption in VA 1.8-1.8 VA 50/60 Hz (at 20 °C)
Inrush power in W 14-14 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 1.2-1.2 W at 20 °C
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Height 122 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 0.997 kg
Product certifications UKCA, LROS (Lloyds register of shipping), DNV-GL, KC, UL, EAC, CSA, CCC
IP degree of protection IP20 front face conforming to IEC 60529
Depth 120 mm
Width 55 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.400 cm
Package 1 Width 13.900 cm
Package 1 Length 15.500 cm
Package 1 Weight 1.054 kg
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.780 kg
