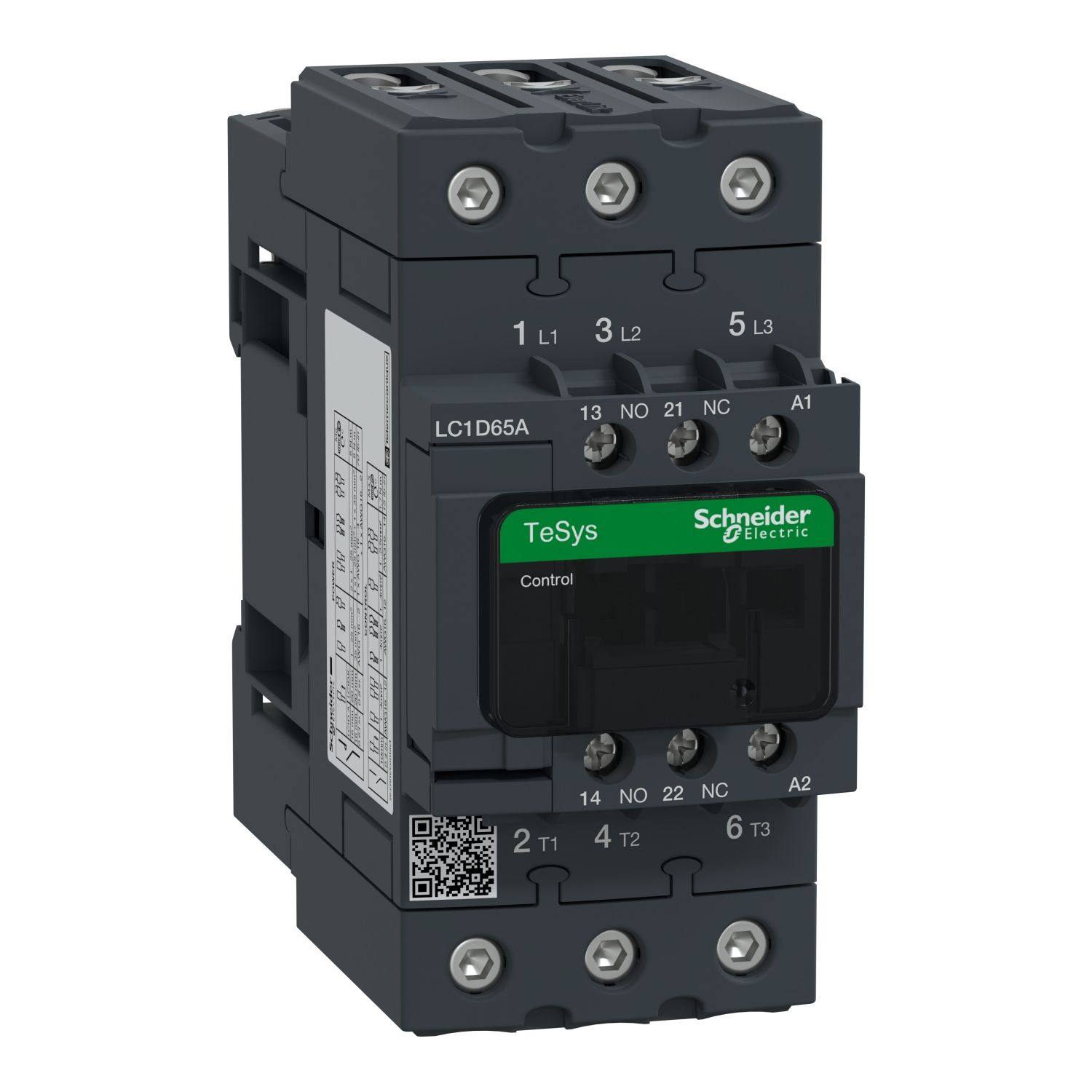

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 42VAC 50/60Hz coil
SKU:

LC1D65AD7

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 42VAC 50/60Hz coil

$523.39
Product Selector
TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 42VAC 50/60Hz coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
CAD
Catalogue
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It provides a 42V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Ie] rated operational current65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation categoryAC-3e, AC-3, AC-1, AC-4
[Uc] control circuit voltage42 V AC 50/60 Hz
Device short nameLC1D
RangeTeSys Deca, TeSys
Range of productTeSys Deca
Poles description3P
Product or component typecontactor
Contactor applicationresistive load, motor control
[Ue] rated operational voltagepower circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility codeLC1D
Electrical durability1.45 Mcycles 65 A AC-3e at Ue <= 440 V, 1.45 Mcycles 65 A AC-3 at Ue <= 440 V, 1.4 Mcycles 80 A AC-1 at Ue <= 440 V
Signalling circuit frequency25...400 Hz
Associated fuse rating125 A gG at <= 690 V coordination type 2 for power circuit, 125 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit typeAC at 50/60 Hz
Protective coverwith
[Ui] rated insulation voltagepower circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage categoryIII
Auxiliary contacts typetype mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technologywithout built-in suppressor module
Inrush power in VA160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition1 NO + 1 NC
Average impedance1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole6.3 W AC-3e, 6.3 W AC-3, 9.6 W AC-1
Minimum switching current5 mA for signalling circuit
Non-overlap time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation4-5 W at 50/60 Hz
[Icw] rated short-time withstand current140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 260 A 40 °C - 1 min for power circuit, 110 A 40 °C - 10 min for power circuit, 900 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit
Mechanical durability6 Mcycles
Tightening torquepower circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm
Minimum switching voltage17 V for signalling circuit
Operating time12...26 ms closing, 4...19 ms opening
Irms rated making capacity1000 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity1000 A at 440 V for power circuit conforming to IEC 60947
Pollution degree3
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current80 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp50 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 20 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 5 hp at 115 V AC 50/60 Hz for 1 phase motors, 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
Motor power kW37 kW at 660...690 V AC 50/60 Hz (AC-3e), 37 kW at 500 V AC 50/60 Hz (AC-3e), 30 kW at 380...400 V AC 50/60 Hz (AC-3e), 18.5 kW at 220...230 V AC 50/60 Hz (AC-3e), 37 kW at 660...690 V AC 50/60 Hz (AC-3), 37 kW at 500 V AC 50/60 Hz (AC-3), 30 kW at 380...400 V AC 50/60 Hz (AC-3), 18.5 kW at 220...230 V AC 50/60 Hz (AC-3), 11 kW at 400 V AC 50/60 Hz (AC-4)
Hold-in power consumption in VA15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate3600 cyc/h 60 °C
Connections - terminalspower circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition3 NO
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
Insulation resistance> 10 MOhm for signalling circuit
Contact compatibilityM2
Mounting supportplate, rail
Environment
Fire resistance850 °C conforming to IEC 60695-2-1
Mechanical robustnessshocks contactor open (10 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstandconforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
StandardsIEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height122 mm
Permissible ambient air temperature around the device60-70 °C with derating, -40-60 °C
Operating altitude0...3000 m
Net weight0.86 kg
Product certificationsGOST, UL, CSA, CCC
IP degree of protectionIP20 front face conforming to IEC 60529
Protective treatmentTH conforming to IEC 60068-2-30
Depth120 mm
Width55 mm
Flame retardanceV1 conforming to UL 94
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.2 cm
Package 1 Width13.7 cm
Package 1 Length15.2 cm
Package 1 Weight927.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.637 kg
