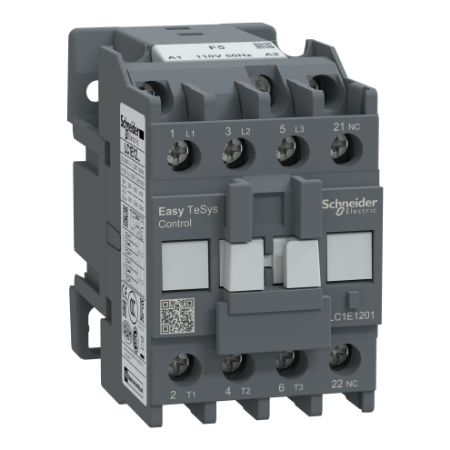

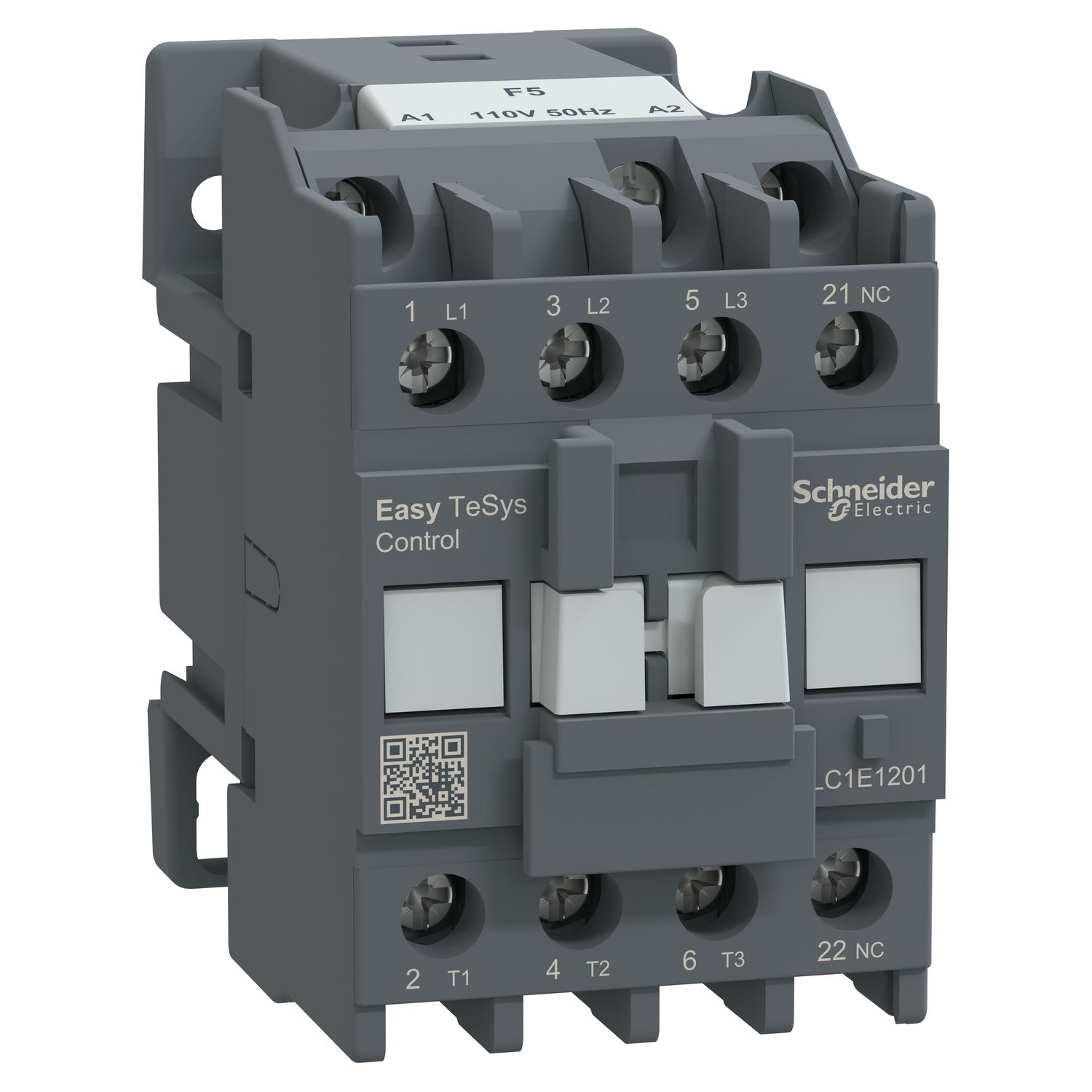

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,12A,110V AC coil,50Hz,1NC auxiliary contact
SKU:

LC1E1201F5

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,12A,110V AC coil,50Hz,1NC auxiliary contact

Please Contact Sales to buy this Product. click here
Product Selector
Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,12A,110V AC coil,50Hz,1NC auxiliary contact
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
End of life manual
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact TVS contactor 3 poles for motor applications up to 12A 5.5kW@440V. It provides a 110V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 3P
[Ie] rated operational current 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3, AC-1
Range Easy TeSys
Product or component type contactor
Contactor application motor control, resistive load
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 110 V AC 50 Hz
Complementary
Heat dissipation 2-3 W for control circuit
[Icw] rated short-time withstand current 30 A 40 °C - 600 s for power circuit, 61 A 40 °C - 60 s for power circuit, 105 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Motor power kW 7.5 kW at 660...690 V AC 50/60 Hz (AC-3), 7.5 kW at 500 V AC 50/60 Hz (AC-3), 5.5 kW at 440 V AC 50/60 Hz (AC-3), 5.5 kW at 415 V AC 50/60 Hz (AC-3), 5.5 kW at 380...400 V AC 50/60 Hz (AC-3), 3 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C), 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical durability 10000000 cycles
Electrical durability 300000 cycles AC-1, 1400000 cycles AC-3
Tightening torque control circuit: 1.2 N.m, power circuit: 1.2 N.m
Maximum operating rate 1800 cyc/h 60 °C
Minimum switching voltage 17 V for control circuit
Operating time 4...19 ms on opening, 12...22 ms on closing
Connections - terminals control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA 95-95 VA 60 Hz cos phi 0.75 (at 20 °C), 95-95 VA 50 Hz cos phi 0.75 (at 20 °C)
Associated fuse rating 25 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity 120 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 96 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50 Hz
Mounting support plate, DIN rail
Control circuit voltage limits 0.3...0.6 Uc (-5-55 °C):drop-out 50 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50 Hz
[Ith] conventional free air thermal current 25 A (at 55 °C) for power circuit
Auxiliary contact composition 1 NC
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 1.6 W AC-1, 0.36 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 80 mm
Width 45 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (7 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30
Net weight 0.3 kg
Standards IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Height 74 mm
Product certifications EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 7.500 cm
Package 1 Length 8.500 cm
Package 1 Weight 346.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.749 kg
Unit Type of Package 3 3
Number of Units in Package 3 576
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 211.984 kg
