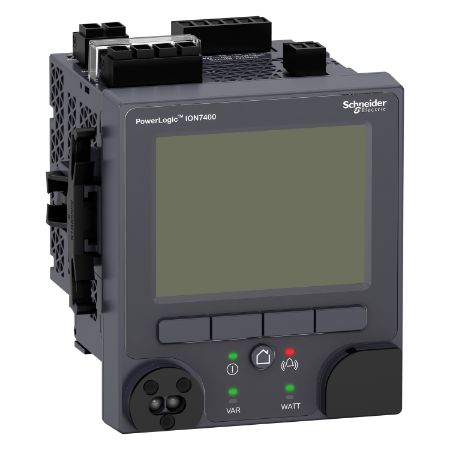

Picture of Power quality meter, PowerLogic ION7400, Standard, integrated display, 512 MB, 256 s/c, THD, RVC
SKU:

METSEION7400

Power quality meter, PowerLogic ION7400, Standard, integrated display, 512 MB, 256 s/c, THD, RVC

$11,827.20 INC GST
Available for Shipping : 12-May-2025
Product Selector
Power Quality Meter: PowerLogic ION7400 (METSEION7400)
  • Model: PowerLogic ION7400, Standard version with integrated display.
  • Memory: 512 MB, capable of storing 256 sets of data for enhanced analysis.
  • Has Total Harmonic Distortion (THD) and Root Voltage Correction (RVC) monitoring.
  • Provides fast access to critical energy, electrical network, and asset management information.
  • Delivers detailed power quality compliance reports and expert-level root cause analytics.
  • Includes forecasting capabilities to prevent system overloads, unbalances, or excessive peak demand.
  • Enhances energy efficiency and cost optimization by providing insights into energy consumption patterns.
  • Supports subbilling and cost allocation to promote energy-efficient behavior and reduce power factor penalties.
  • Facilitates participation in demand response or variable tariff programs (TOU, RTP).
  • Assists in maximizing capacity utilization through load studies and infrastructure expansion planning.
  • Patented ION Programming enables complete customization of alarms, calculations, and control functions.
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet

The PowerLogic ION7400 utility feeder power meters offer advanced features. These features are usually not found in compact meters. They offer high flexibility and usability, providing accurate 3-phase energy and power measurements with data logging capabilities. The Power Monitoring Expert software allows for in-depth data analysis, or you can share operational data with SCADA systems via various communication channels and protocols.

Certified by third-party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S), these meters are built for reliability. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, and Syslog protocol. You can enable or disable communication ports and manage up to 16 user-configurable accounts.

With 512 MB of memory, the ION7400 can support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. Events can be timestamped to within +/-1 ms using synchronization methods such as PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485), and network time set functions.

The meter also features 3 digital inputs and 1 digital output. I/O option modules include 2 relays and 6 digital inputs, or 2 analog outputs and 4 analog inputs. It operates within a wide control power range of 90-415 VAC / 110-415 VDC.

Designed for tough environments, it functions in temperatures from -25°C to +70°C, with a humidity range of 5% to 95% and an altitude of up to 3000 meters. The meter is panel-mountable (1/4 DIN) and includes an integrated display.
