SKU:

METSEION95040

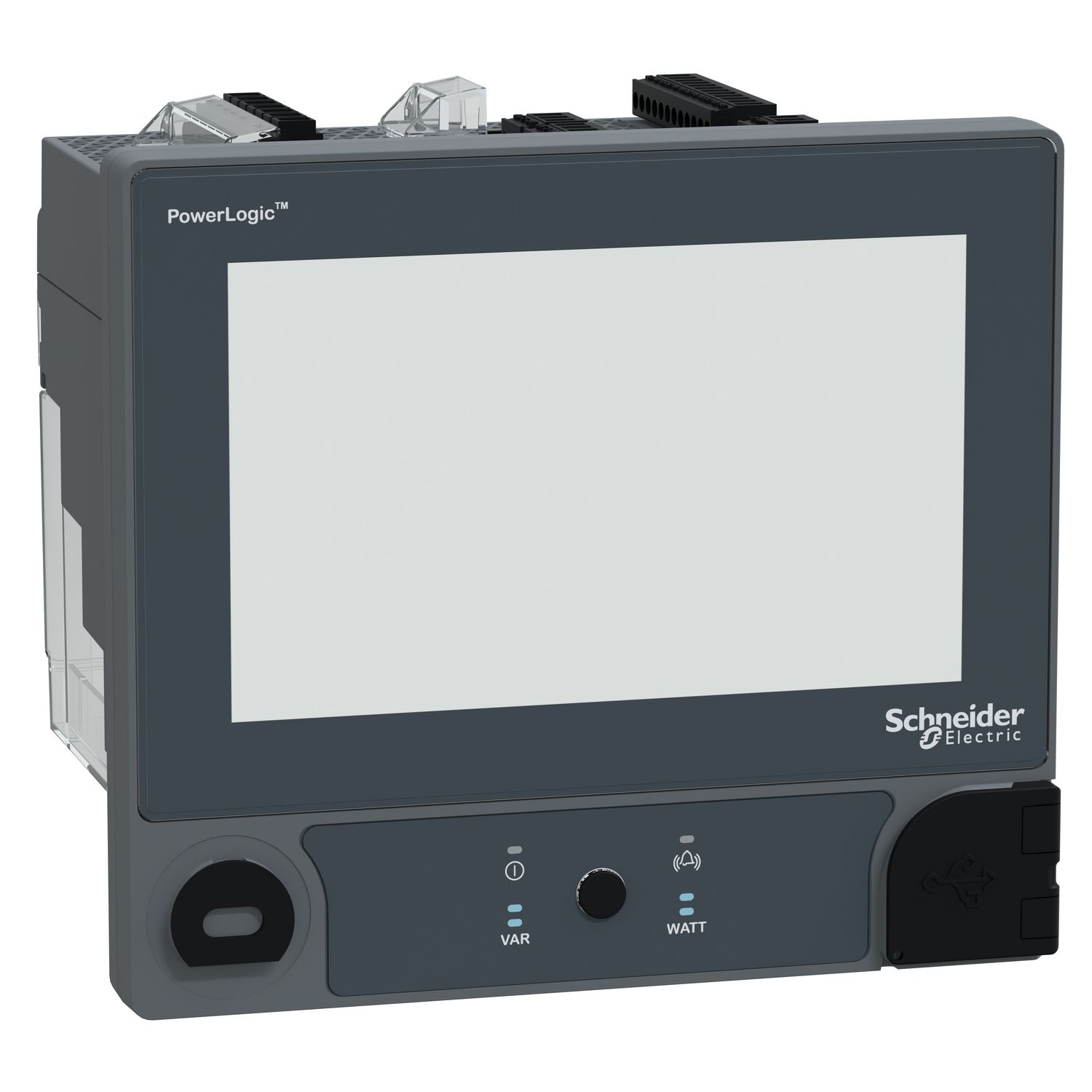

PowerLogic™ ION9000T meter, HSTC, DIN mount, 192 mm display, B2B adapter, HW kit

Please Contact Sales to buy this Product. click here

Product Selector

PowerLogic™ ION9000T meter, HSTC, DIN mount, 192 mm display, B2B adapter, HW kit

Fast access to timely, critical information for energy, electrical network, and asset management

Help operations personnel avoid downtime by making power quality understandable

Makes energy and power quality actionable to support your op and sustainability goals

More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics

High Speed Transient Capture unmasks hidden PQ phenomenon

Ensure energy efficiency and optimized costs by understanding how energy is being consumed

Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities

Support participation in demand response or variable tariff (TOU, RTP) programs

Maximize use of capacity by performing load studies and infrastructure expansion planning

Patented ION Programming allows for full alarm/calc customization, control and more

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 01-Nov-2024

Product environmental

Instruction sheet

Catalogue

User guide

Declaration of conformity

End of life manual

Product Page Link

Product Data Sheet

The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data. A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications. Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22). Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future. Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts. With 2GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms. 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules. Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Ability to capture high-speed impulsive and oscillatory transients as short as 100 ns and record both waveforms and 1/2-cycle RMS concurrently on any event. Voltage inputs of 100 to 690 V between phases; Current inputs of 1 A, 5 A; current class 2, 10, 20 A; Frequency of 20-450 Hz. Wide control power range of 90 to 480 VAC or 110 to 480 VDC. DIN rail mounting with remote display and panel mounting (with back to back adapter), plus 2 display options, further enhance the flexibility and adaptability of the ION9000.

Products specifications

Attribute name	Attribute value
Main
Metering type	calculated active and reactive energy (+/- W.h, +/- VAR.h), peak demand power PM, QM, SM, demand power P, Q, S, peak demand currents, demand current I1, I2, I3, I4, I5
Device short name	ION95040
Device application	high voltage, medium voltage, Net metering, WAGES metering, power monitoring
Provided equipment	mounting hardware, mounting instructions, remote display adapter, remote display
Range	PowerLogic
Product name	PowerLogic ION9000
Product or component type	energy and power quality meter
Complementary
Display type	colour touchscreen, remote LCD display
Web services	push historical data via mail, TLS 1.2, alarm notification by e-mail, NEMA motor derating curve, SEMI curve, ITIC (CBEMA) curve, pass/fail report for EN 50160, pass/fail report for IEEE 519, web page, viewing of captured waveform
Measurement accuracy	current +/- 0.1 %, voltage +/- 0.1 %
Electrical insulation class	class III conforming to EN/IEC 62052-11
Frequency measurement range	20-450 Hz
Communication service	SNMP, SMTP e-mail notification, EcoStruxure Power Events Analysis, energy report, power quality summary, compliant reports
Communication port protocol	DLMS, DNS, DHCP, Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s, IEC 61850, DNP3 TCP at 10/100 Mbit/s, ION TCP at 10/100 Mbit/s, Modbus TCP at 10/100 Mbit/s, DNP3 at 2400...115200 bps - 2-wire, ION at 2400...115200 bps - 2-wire, Modbus RTU at 2400...115200 bps - 2-wire
Type of measurement	harmonic distorsion (I THD & U THD), apparent energy, active and reactive energy, power factor per phase, power factor total, apparent power per phase, active and reactive power per phase, apparent power total, active and reactive power total, frequency, current, voltage, current sags and swells, voltage sags and swells
Memory capacity	2 GB
Height	160 mm
Power quality analysis	transient detection (100 ns), coincidence disturbance waveform capture, high-speed transient capture, half cycle data acquisition, dip, swell and transient, disturbance direction detection, up to the 127th harmonic with software, up to the 63rd harmonic, total harmonic distortion, total demand distortion, waveform capture, conforming to IEEE 519 compliance reporting, conforming to IEC 61000-4-30: class A compliance reporting, conforming to IEEE 519 harmonic limit, EN 50160 compliance checking
Communication port support	RS485 2 removable screw terminal block
[Us] rated supply voltage	110...480 V DC +/- 15 %, 90...120 V AC 400 Hz +/- 10 %, 90...480 V AC 45...66 Hz +/- 10 %
Maximum power consumption in VA	80 VA at 480 V AC
Accuracy class	class 0.5 power factor conforming to IEC 61557-12, class 0.1 active power conforming to IEC 61557-12, class 0.1 voltage conforming to IEC 61557-12, class 0.1 current conforming to IEC 61557-12, class 0.5S reactive energy conforming to IEC 62053-24, class 0.1 active energy conforming to ANSI C12.20, class 0.1 active energy conforming to IEC 61557-12, class 0.1S active energy conforming to IEC 62053-22
Depth	135.3 mm
Market segment	mining, energy, chemical, pharmaceutical, semiconductor, healthcare, data center
Width	160 mm
Analogue input type	external CT (impedance 0.3 mOhm)5 x , voltage (impedance 5 MOhm)
Isolation voltage	III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3
Cybersecurity	hardware metrology lock, enable/disable communication ports, port hardening, robust security logs, Syslog protocol support
[In] rated current	5 A, 1 A
Data recording	sequence of event recording, GPS synchronisation, data logs, user login/logout, power outage, configuration change, alarm logs, event logs, trending/forecasting, continuous logging or snapshot, user-definable data logs, min/max of instantaneous values, time stamping
Poles description	3P + N + E
Communication gateway	Ethernet/serial
Mounting support	door cut-out remote display, DIN rail meter device
Ethernet service	FTP/HTTP/HTTPS, Rapid Scanning Tree Protocol (RSTP), Device Profile Web Services (DPWS), DHCP client
Time synchronisation protocol	PTP, SNTP, NTP, IRIG-B, GPS
Number of inputs	8 digital 30 V AC/60 V DC
Measurement current	0.01-20 A
Tamperproof of settings	protected by sealable cover
Net weight	1.5 kg
Power consumption in VA	38 VA at 480 V AC
Display resolution	800 x 480 pixels
Port Ethernet	10/100BASE-TX 2 RJ45
Ride-through time	1200 ms 72 cycles at 60 Hz 480 V AC typical, 400 ms 24 cycles at 60 Hz 240 V AC typical, 100 ms 6 cycles at 60 Hz 120 V AC typical
Number of outputs	2 form C relay output, 4 digital
Sampling rate	1024 samples/cycle
Measurement voltage	10-10 kV AC transient, 100-690 V AC 42...69 Hz between phases, 57-400 V AC 42...69 Hz between phase and neutral
Network frequency	60 Hz, 50 Hz
Environment
IP degree of protection	IP30 rear: , IP65 front:
Relative humidity	5-95 %
Ambient air temperature for storage	-40-85 °C
Electromagnetic compatibility	surge withstand conforming to IEEE C37.90.1, surge withstand conforming to ANSI C37.90.1, conducted and radiated emissions class B conforming to ICES-003, conducted and radiated emissions class B conforming to FCC part 15, conducted and radiated emissions class B conforming to EN 55032, conducted and radiated emissions conforming to EN 55011, immunity to impulse waves conforming to IEC 61000-4-12, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579, immunity to magnetic fields at network frequency conforming to IEC 61000-4-8, immunity to conducted disturbances conforming to IEC 61000-4-6, surge immunity test conforming to IEC 61000-4-5, immunity to fast transients conforming to IEC 61000-4-4, immunity to radiated fields conforming to IEC 61000-4-3, electrostatic discharge immunity test conforming to IEC 61000-4-2, EMC immunity conforming to IEC 61000-6-5, EMC immunity conforming to IEC 61326-1, EMC immunity conforming to IEC 62052-11
Degree of protection	UL type 12, front
Standards	UL 61010-1, IEC 62586, IEC 62053-24, IEC 62053-23, IEC 62053-22, IEC 62052-31, IEC 62052-11, IEC 61850, IEC 61557-12, IEC 61326-1, IEC 61010-1, IEC 61000-4-30, IEC 61000-4-15, ANSI C37.90.1, ANSI C12.20
Ambient air temperature for operation	-25-70 °C
Installation category	III
Operating altitude	0...3000 m
Quality labels	ISO 14000, ISO 9001
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	29.5 cm
Package 1 Width	26.4 cm
Package 1 Length	37.8 cm
Package 1 Weight	3.6 kg
