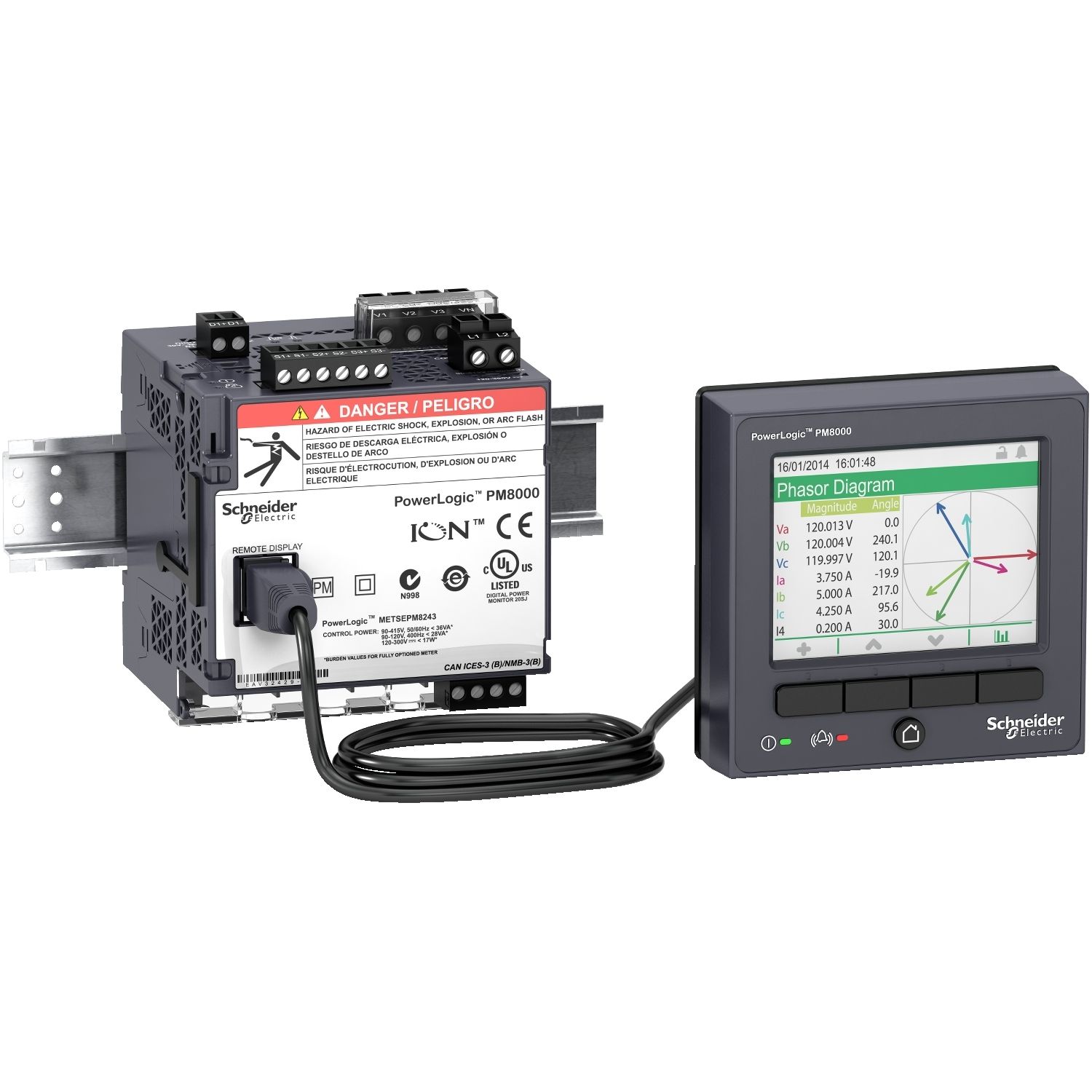

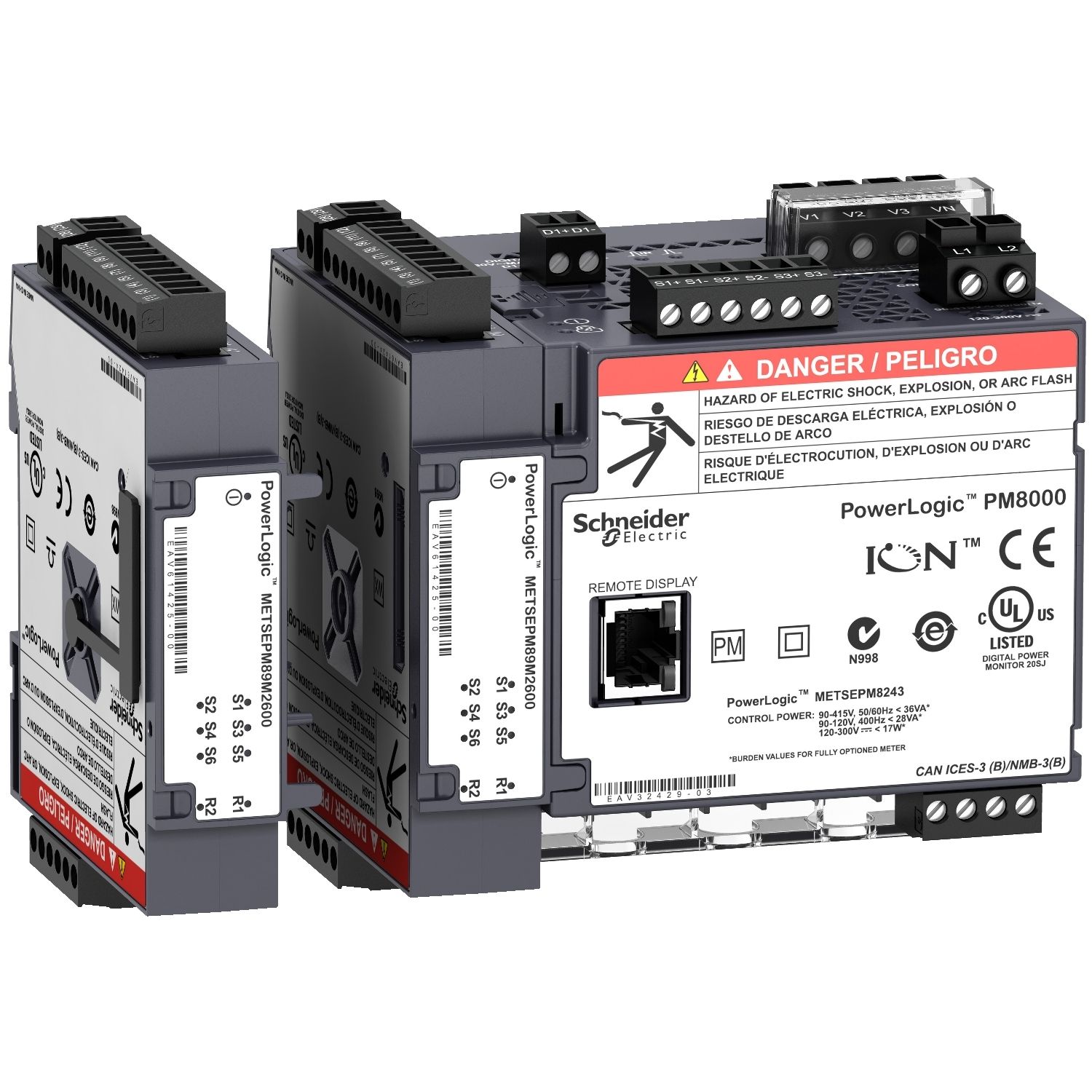

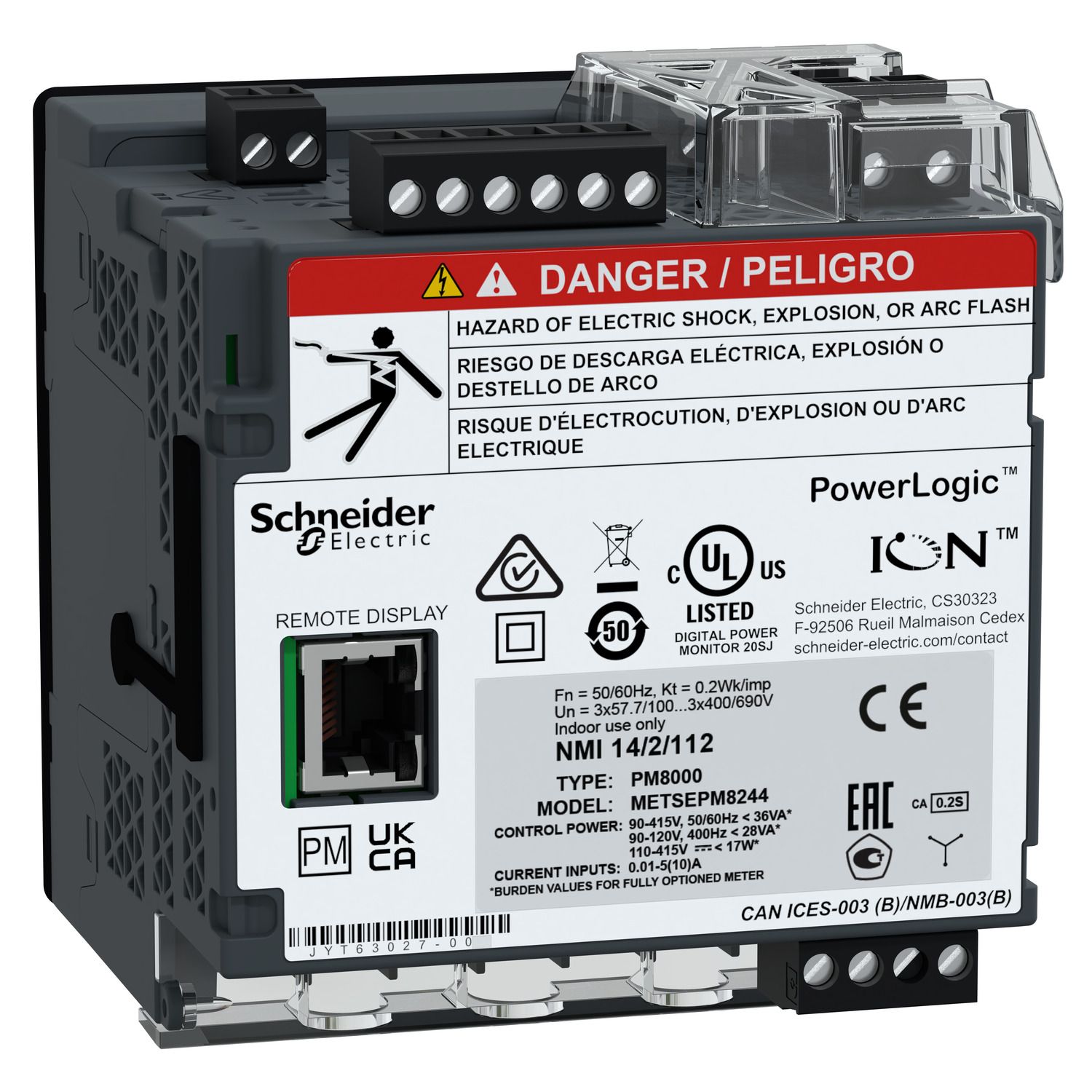

Power quality meter, PowerLogic PM8000, Standard, transducer and remote display, 512 MB, 256 s/c

Please Contact Sales to buy this Product. click here
Product Selector
Power quality meter, PowerLogic PM8000, Standard, transducer and remote display, 512 MB, 256 s/c
  • Fast access to timely, critical information for energy, electrical network, and asset management
  • Help operations personnel avoid downtime by making power quality understandable
  • Makes energy and power quality actionable to support your op and sustainability goals
  • More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
  • Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
  • Ensure energy efficiency and optimized costs by understanding how energy is being consumed
  • Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
  • Support participation in demand response or variable tariff (TOU, RTP) programs
  • Maximize use of capacity by performing load studies and infrastructure expansion planning
  • Patented ION Programming allows for full alarm/calc customization, control and more
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
End of life manual
Instruction sheet
User guide
Declaration of conformity
Catalogue
Image of product
Image of product
Product Page Link
Product Data Sheet
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting with remote display.

Products specifications

Attribute nameAttribute value
Main
Device short namePM8244
RangePowerLogic
Market segmentutility: sub feeder, industry network management: sub feeder, industry network management: main incomer, healthcare network management: sub feeder, healthcare network management: main incomer, data center network management: sub feeder, data center network management: main incomer, buildings multi-site network management: sub feeder, buildings multi-site network management: main incomer, buildings large building network management: sub feeder, buildings large building network management: main incomer, buildings medium building network management: main incomer, buildings small building network management: main incomer, buildings large building cost management: billing: sub feeder
Product namePowerLogic PM8000
Product or component typepower meter
Complementary
Device applicationpower monitoring, WAGES metering
Display typeremote LCD display
Web servicesHTTPS server, viewing of captured waveform (web), viewing of captured waveform (FTP), alarm notification by e-mail, web server, file upload/download via SFTP, file upload/download via FTP, customizable home page
Provided equipmentremote display
Measurement accuracyactive energy +/- 0.2 %, voltage +/- 0.1 %, current +/- 0.1 %
Mounting modeclip-on, flush-mounted
[Us] rated supply voltage110...415 V DC +/- 10 %, 90...415 V AC 45...65 Hz +/- 10 %
Information displayedharmonic distortion, energy consumption, power, frequency, current, voltage
Depth90.8 mm
Frequency measurement range42-69 Hz
Communication servicePTP time synchronization, DHCP, NTP time synchronization, RSTP support, SMTP e-mail notification
Communication port protocolRSTP 801.1d 2004, Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s, Modbus TCP/IP, IEC 61850, DNP3, ION at 115 kbauds - 2-wire, Modbus RTU at 115 kbauds - 2-wire
Type of measurementpower factor per phase, rms, apparent power per phase, rms, active and reactive power per phase, rms, power factor total, apparent power total, active and reactive power total, frequency, voltage, current
Product certificationsN998, cULus, CE
Memory capacity512 MB
Height90.5 mm
Power quality analysisrapid voltage change,  disturbance direction detection,  conforming to IEC 62586 power quality monitoring,  programmablity (logic and math functions), voltage sag and swell detection,  waveform capture, harmonic distortion,  up to the 63rd harmonic,  conforming to IEC 61000-4-30: class S power quality measurement,  conforming to IEEE 519: 2014 compliance report,  conforming to EN 50160: 2010 compliance report
Communication port supportscrew terminal block: RS485, ETHERNET
Installation categoryIII
Accuracy classclass 0.2 current conforming to IEC 61557-12, class 0.2 voltage conforming to IEC 61557-12, class 0.5 power factor conforming to IEC 61557-12, class 0.5S reactive energy conforming to IEC 62053-24, class 0.2 active power conforming to IEC 61557-12, class 0.2 active energy conforming to ANSI C12.20, class 0.2S active energy conforming to IEC 62053-22
Width90.5 mm
Analogue input typecurrent (impedance 0.3 mOhm), voltage (impedance 5 MOhm)
Isolation voltageIII347-600 V conforming to CSA C22.2 No 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III400-690 V conforming to IEC 61010-1:ed. 3
Cybersecurityenable/disable communication ports, robust security logs, port hardening, Syslog protocol support, password protection
[In] rated current1 A, 5 A, 10 A
Data recording50 data recorders, sag and swell logs, trending/forecasting, time stamping, data logs, waveform logs, GPS synchronisation, alarm logs, harmonics logs, min/max of instantaneous values, event logs, sequence of event recording
Poles description3P + N, 1P + N, 3P
Mounting supportframework remote display, DIN rail meter device
Measurement current50-10000 mA
Net weight528 g
Number of inputs3 digital 60 V DC, 3 digital 30 V AC
Display resolution320 x 240 pixels QVGA
Power consumption in VA18 VA at 415 V AC
Number of outputs1 pulse
StandardsIEC 61326-1, IEC 62586-2, IEEE 1588, IEC 61557-12, IEC 62052-11, IEC 62053-24, IEC 62053-22
Sampling rate256 samples/cycle
Measurement voltage100-690 V AC 42...69 Hz between phases, 57-400 V AC 42...69 Hz between phase and neutral
Network frequency60 Hz, 50 Hz
Communication network typeIPv6 (internet protocol)
Environment
Compatibility codePM8244
IP degree of protectionIP30 conforming to IEC 60529
Relative humidity5-95 %
Ambient air temperature for storage-40-85 °C
Electromagnetic compatibilitysurge withstand conforming to IEEE C37.90.1, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, conducted and radiated emissions conforming to ICES-003, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to EN 55022, immunity to impulse waves conforming to IEC 61000-4-12, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, magnetic field at power frequency conforming to IEC 61000-4-8, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2
Ambient air temperature for operation-25-70 °C
Operating altitude3000 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height14.0 cm
Package 1 Width14.0 cm
Package 1 Length37.0 cm
Package 1 Weight1.437 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight6.189 kg
Unit Type of Package 33
Number of Units in Package 38
Package 3 Height70.0 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight20.0 kg

Related products

PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs

METSEPM89M0024
Please Contact Sales to buy this Product. click here
View Detail

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

METSEPM89M2600
Please Contact Sales to buy this Product. click here
View Detail
Picture of PowerLogic PM8000 - Communication Module - Fiber-Ethernet module

PowerLogic PM8000 - Communication Module - Fiber-Ethernet module

METSEPMFIBER
Please Contact Sales to buy this Product. click here
View Detail
Picture of PowerLogic PM8000 - Communication Module - RS-485 4-wire module

PowerLogic PM8000 - Communication Module - RS-485 4-wire module

METSEPMRS4854W
Please Contact Sales to buy this Product. click here
View Detail
