METSEPM8243

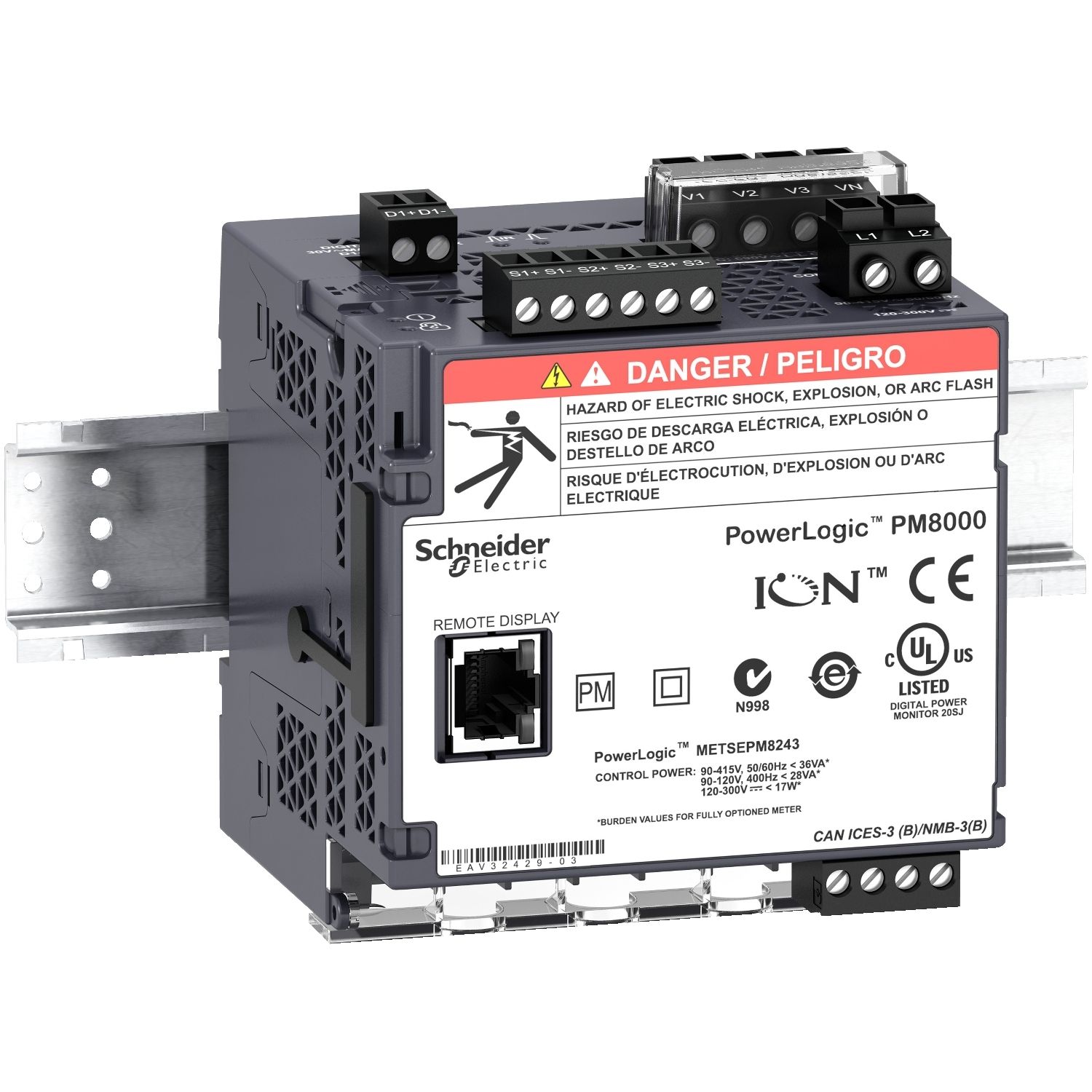

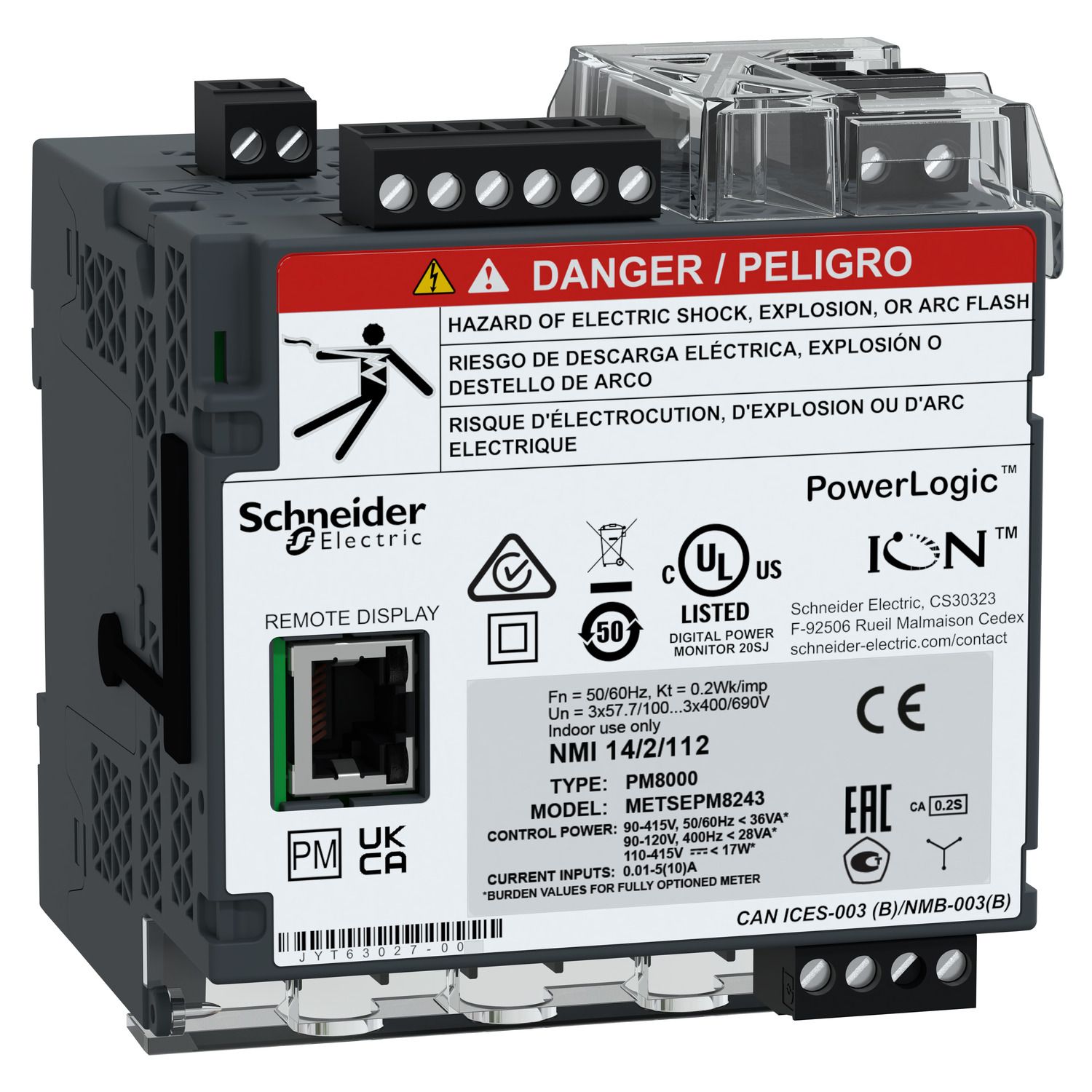

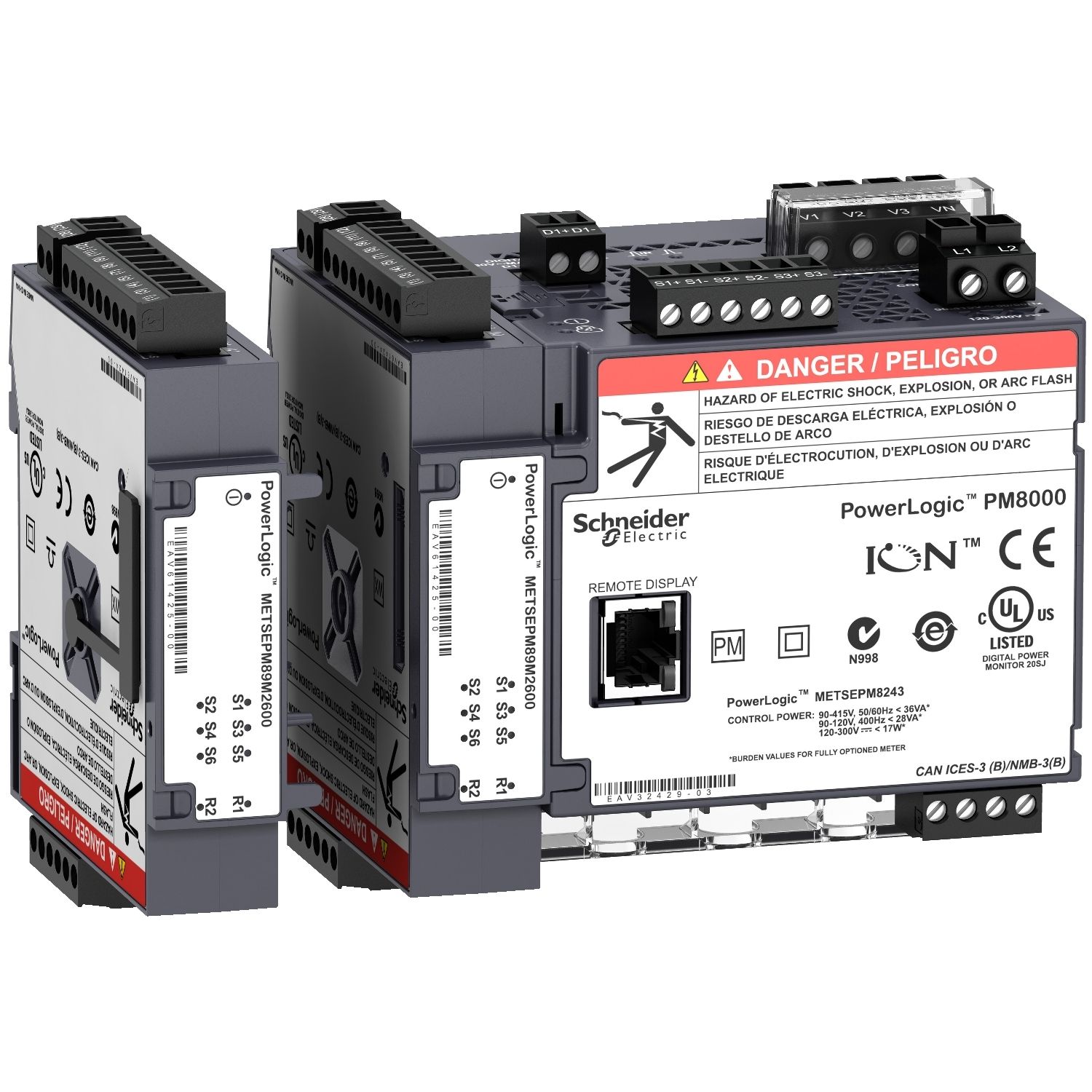

Power quality meter, PowerLogic PM8000, Standard, transducer, 512 MB, 256 s/c

$5,409.60
Available for Shipping : 02-Jan-2025
Product Selector
Power quality meter, PowerLogic PM8000, Standard, transducer, 512 MB, 256 s/c
  • Fast access to timely, critical information for energy, electrical network, and asset management
  • Help operations personnel avoid downtime by making power quality understandable
  • Makes energy and power quality actionable to support your op and sustainability goals
  • More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
  • Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
  • Ensure energy efficiency and optimized costs by understanding how energy is being consumed
  • Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
  • Support participation in demand response or variable tariff (TOU, RTP) programs
  • Maximize use of capacity by performing load studies and infrastructure expansion planning
  • Patented ION Programming allows for full alarm/calc customization, control and more
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
End of life manual
User guide
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting transducer (no display).

Products specifications

Attribute name Attribute value
Main
Device short name PM8243
Range PowerLogic
Market segment utility: sub feeder, industry network management: sub feeder, industry network management: main incomer, healthcare network management: sub feeder, healthcare network management: main incomer, data center network management: sub feeder, data center network management: main incomer, buildings multi-site network management: sub feeder, buildings multi-site network management: main incomer, buildings large building network management: sub feeder, buildings large building network management: main incomer, buildings medium building network management: main incomer, buildings small building network management: main incomer, buildings large building cost management: billing: sub feeder
Product name PowerLogic PM8000
Product or component type power meter
Complementary
Device application power monitoring, WAGES metering
Display type without display
Web services HTTPS server, viewing of captured waveform (web), viewing of captured waveform (FTP), alarm notification by e-mail, web server, file upload/download via SFTP, file upload/download via FTP, customizable home page
Measurement accuracy active energy +/- 0.2 %, voltage +/- 0.1 %, current +/- 0.1 %
Mounting mode clip-on
[Us] rated supply voltage 110...415 V DC +/- 10 %, 90...415 V AC 45...65 Hz +/- 10 %
Information displayed harmonic distortion, energy consumption, power, frequency, current, voltage
Depth 90.8 mm
Frequency measurement range 42-69 Hz
Communication service PTP time synchronization, NTP time synchronization, RSTP support, DHCP, SMTP e-mail notification
Communication port protocol RSTP 801.1d 2004, Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s, Modbus TCP/IP, IEC 61850, DNP3, ION at 115 kbauds - 2-wire, Modbus RTU at 115 kbauds - 2-wire
Type of measurement power factor per phase, rms, apparent power per phase, rms, active and reactive power per phase, rms, power factor total, apparent power total, active and reactive power total, frequency, voltage, current
Product certifications N998, cULus, CE
Memory capacity 512 MB
Height 90.5 mm
Power quality analysis rapid voltage change,  disturbance direction detection,  conforming to IEC 62586 power quality monitoring,  programmablity (logic and math functions), voltage sag and swell detection,  waveform capture, harmonic distortion,  up to the 63rd harmonic,  conforming to IEC 61000-4-30: class S power quality measurement,  conforming to IEEE 519: 2014 compliance report,  conforming to EN 50160: 2010 compliance report
Communication port support screw terminal block: RS485, ETHERNET
Installation category III
Accuracy class class 0.2 current conforming to IEC 61557-12, class 0.2 voltage conforming to IEC 61557-12, class 0.5 power factor conforming to IEC 61557-12, class 0.5S reactive energy conforming to IEC 62053-24, class 0.2 active power conforming to IEC 61557-12, class 0.2 active energy conforming to ANSI C12.20, class 0.2S active energy conforming to IEC 62053-22
Width 90.5 mm
Analogue input type current (impedance 0.3 mOhm), voltage (impedance 5 MOhm)
Isolation voltage III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III400-690 V conforming to IEC 61010-1:ed. 3
Cybersecurity Syslog protocol support, robust security logs, enable/disable communication ports, port hardening, password protection
[In] rated current 5 A, 10 A, 1 A
Data recording 50 data recorders, event logs, min/max of instantaneous values, sequence of event recording, alarm logs, waveform logs, trending/forecasting, data logs, time stamping, GPS synchronisation, sag and swell logs, harmonics logs
Poles description 3P, 3P + N, 1P + N
Mounting support DIN rail
Measurement current 50-10000 mA
Net weight 528 g
Number of inputs 3 digital 60 V DC, 3 digital 30 V AC
Power consumption in VA 18 VA at 415 V AC
Number of outputs 1 pulse
Standards IEC 61326-1, IEC 62586-2, IEEE 1588, IEC 62053-24, IEC 62053-22, IEC 62052-11, IEC 61557-12
Sampling rate 256 samples/cycle
Measurement voltage 100-690 V AC 42...69 Hz between phases, 57-400 V AC 42...69 Hz between phase and neutral
Network frequency 60 Hz, 50 Hz
Communication network type IPv6 (internet protocol)
Environment
Compatibility code PM8243
IP degree of protection IP30 conforming to IEC 60529
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility surge withstand conforming to IEEE C37.90.1, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, conducted and radiated emissions conforming to ICES-003, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to EN 55022, immunity to impulse waves conforming to IEC 61000-4-12, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, magnetic field at power frequency conforming to IEC 61000-4-8, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2
Ambient air temperature for operation -25-70 °C
Operating altitude 3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 14.0 cm
Package 1 Length 18.5 cm
Package 1 Weight 0.854 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.487 kg

Related products

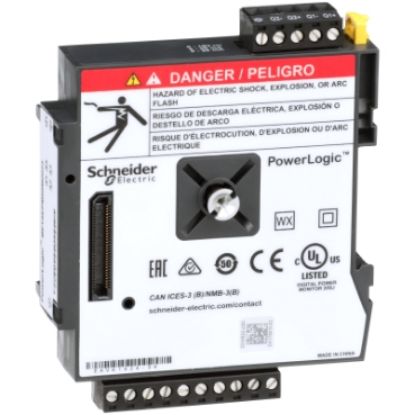

PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs

METSEPM89M0024
$811.20
View Detail

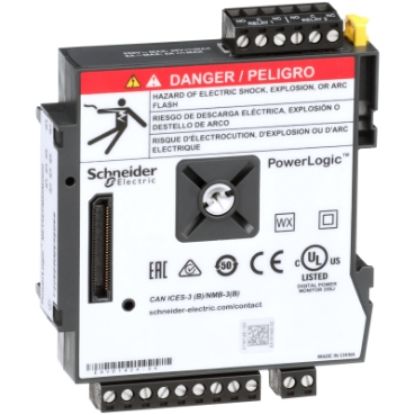

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

METSEPM89M2600
$679.20
View Detail

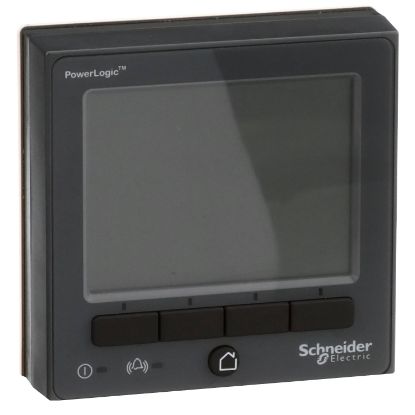

Picture of PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc

PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc

METSEPM89RD96
$1,526.40
View Detail

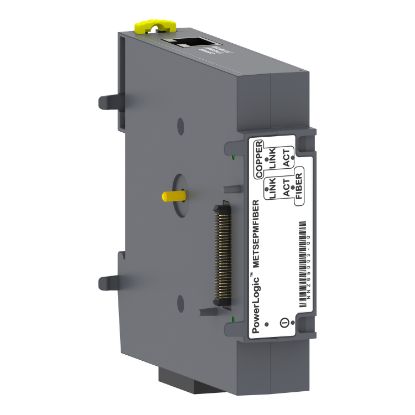

Picture of PowerLogic PM8000 - Communication Module - Fiber-Ethernet module

PowerLogic PM8000 - Communication Module - Fiber-Ethernet module

METSEPMFIBER
$1,233.60
View Detail

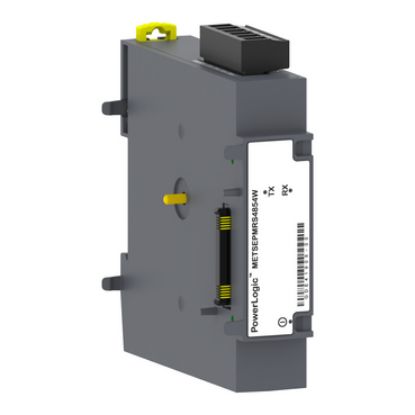

Picture of PowerLogic PM8000 - Communication Module - RS-485 4-wire module
