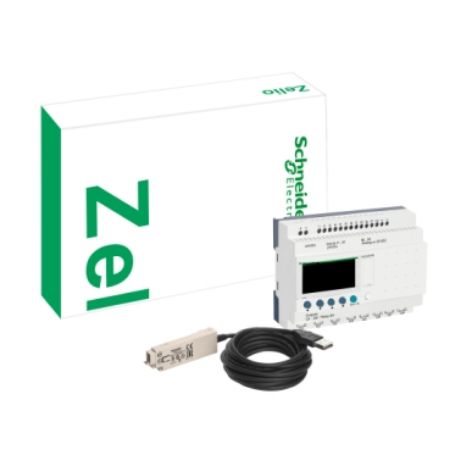

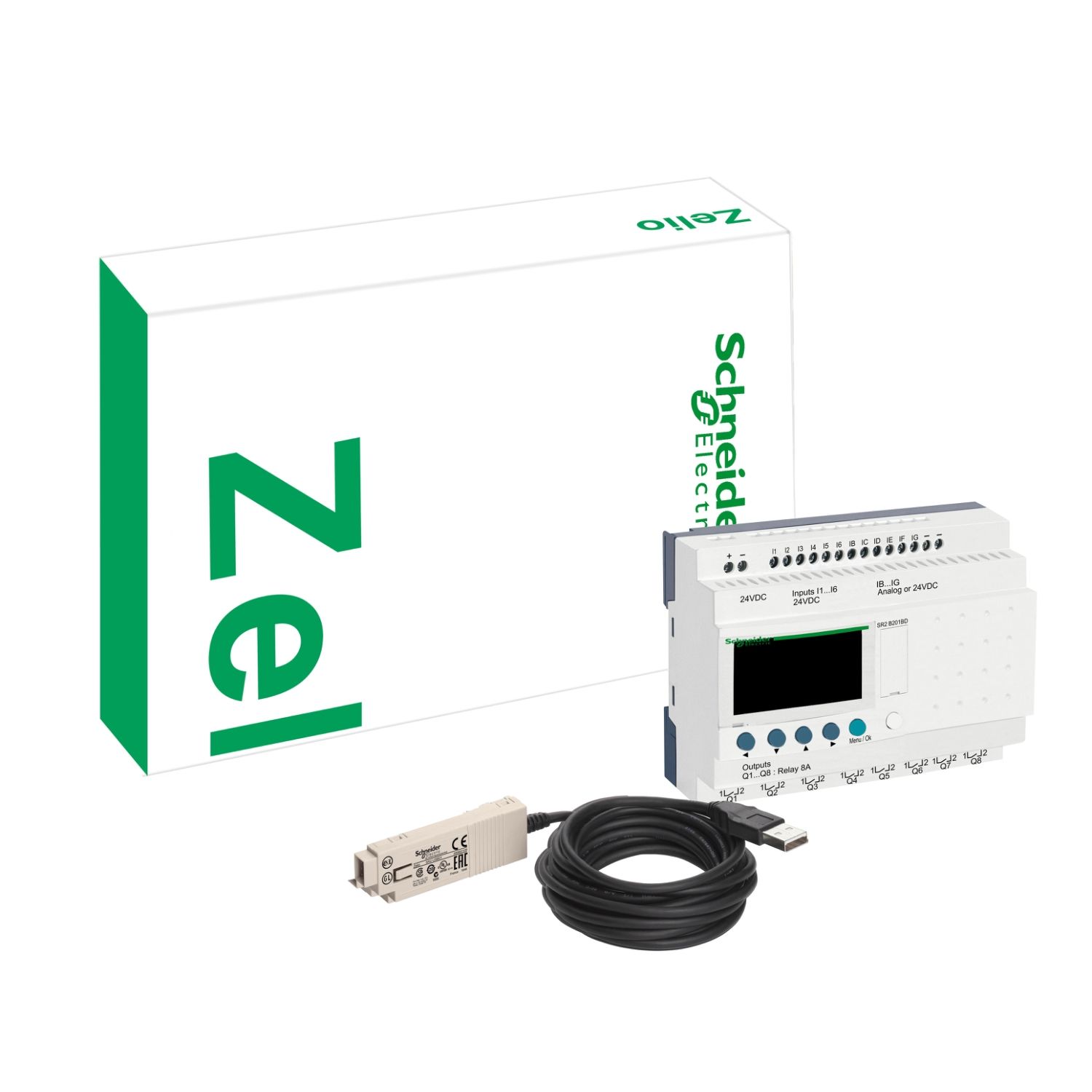

Zelio Logic, smart relay discovery pack, 10 I/O, 100...240 V AC

$526.32
Available for Shipping : 10-Dec-2024
Product Selector
Zelio Logic, smart relay discoveryÂť pack, 10 I/O, 100...240 V AC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Product environmental
End of life manual
User guide
Product Page Link
Product Data Sheet
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 10 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 100 to 240V AC and cycle time of 6ms to 90ms. It offers 6 discrete inputs with voltage of 100 to 240V AC and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Discrete input number 6
Product or component type modular discovery packs
Number of outputs 4 relay
Range of product Zelio Logic
Complementary
[Us] rated supply voltage 100...240 V
Checks program memory on each power up
Supply frequency 50/60 Hz
Kit composition cable PC SR2USB01 for connection to PC, SR3B101FU
Cycle time 6-90 ms
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Protection type against inversion of terminals (control instructions not executed)
Switching capacity in mA >= 10 mA at 12 V (relay output)
Isolation voltage 1780 V
Tightening torque 0.5 N.m
Maximum supply current 80 mA at 100 V (without extension), 80 mA at 100 V (with extensions), 40 mA at 240 V (with extensions), 30 mA at 240 V (without extension)
Mechanical durability 10000000 cycles for relay output
Overvoltage category III conforming to IEC 60664-1
Supply voltage limits 85-264 V
Current state 0 guaranteed <= 0.5 mA (discrete input)
Voltage state 1 guaranteed >= 79 V for discrete input
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Output voltage limits 24...250 V AC, 5...30 V DC (relay output)
Voltage state 0 guaranteed <= 40 V for discrete input
Input/output number 10
Local display with
Net weight 0.7 kg
Clock with
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed >= 0.17 mA (discrete input)
Discrete input current 0.6 mA
Power consumption in VA 7 VA without extension, 12 VA with extensions
Clock drift 6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Backup time 10 years at 25 °C
Discrete input voltage 100...240 V AC
Number or control scheme lines 0-200 with FBD programming, 120-120 with ladder programming
Output thermal current 8 A for all 4 outputs for relay output
Discrete input frequency 57...63 Hz, 47...53 Hz
Input impedance 350 kOhm for discrete input
Contacts type and composition NO for relay output
Environment
Operating altitude 2000 m
Maximum altitude transport 3048 m
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks 10 ms
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Standards IEC 60068-2-27 Ea, IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 61000-4-11, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 61000-4-2 level 3
Product certifications UL, CSA, GL, C-Tick, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 16.0 cm
Package 1 Length 24.0 cm
Package 1 Weight 485.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.326 kg

Related products

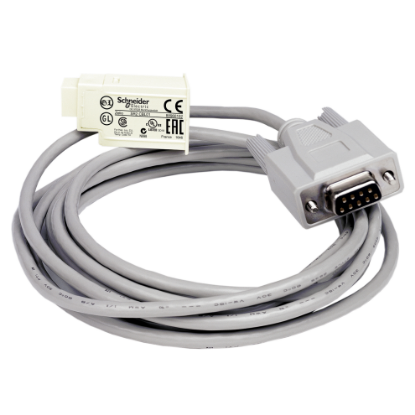

Picture of connecting cable, Zelio Logic SR2 SR3, SUB-D, 9 pin, PC, for smart relay, 3m

connecting cable, Zelio Logic SR2 SR3, SUB-D, 9 pin, PC, for smart relay, 3m

SR2CBL01
$169.97
View Detail

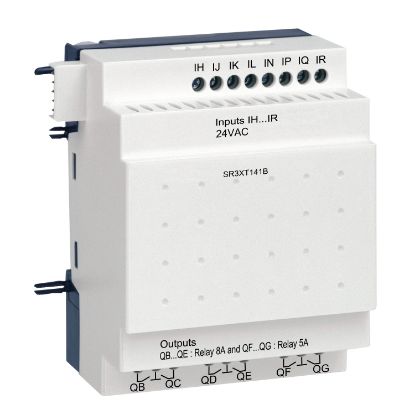

Picture of Zelio Logic, Discrete I/O extension module, 14 I/O, 24 V AC

Zelio Logic, Discrete I/O extension module, 14 I/O, 24 V AC

SR3XT141B
$265.76
View Detail
Picture of Zelio Logic, USB Cable to Connect SR and PC

Zelio Logic, USB Cable to Connect SR and PC

SR2USB01
$183.28
View Detail

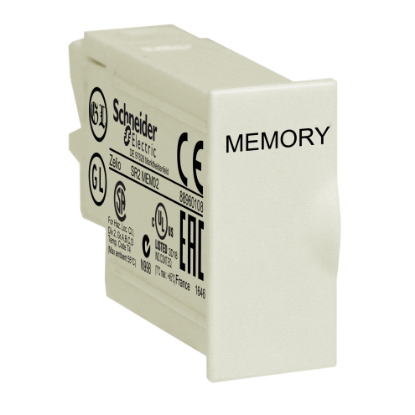

Picture of Zelio Logic, memory cartridge, for smart relay firmware, for v 3.0, EEPROM, Phaseo

Zelio Logic, memory cartridge, for smart relay firmware, for v 3.0, EEPROM, Phaseo

SR2MEM02
$61.06
View Detail

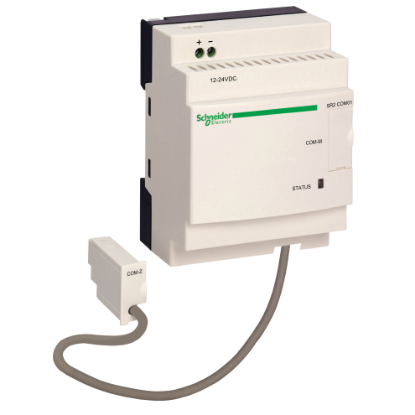

Picture of Zelio Logic, Modem communication interface, for smart relay

Zelio Logic, Modem communication interface, for smart relay

SR2COM01
$476.92
View Detail

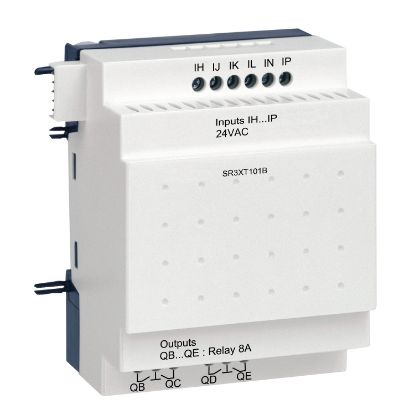

Picture of Zelio Logic, Discrete I/O extension module, 10 I/O, 24 V AC
