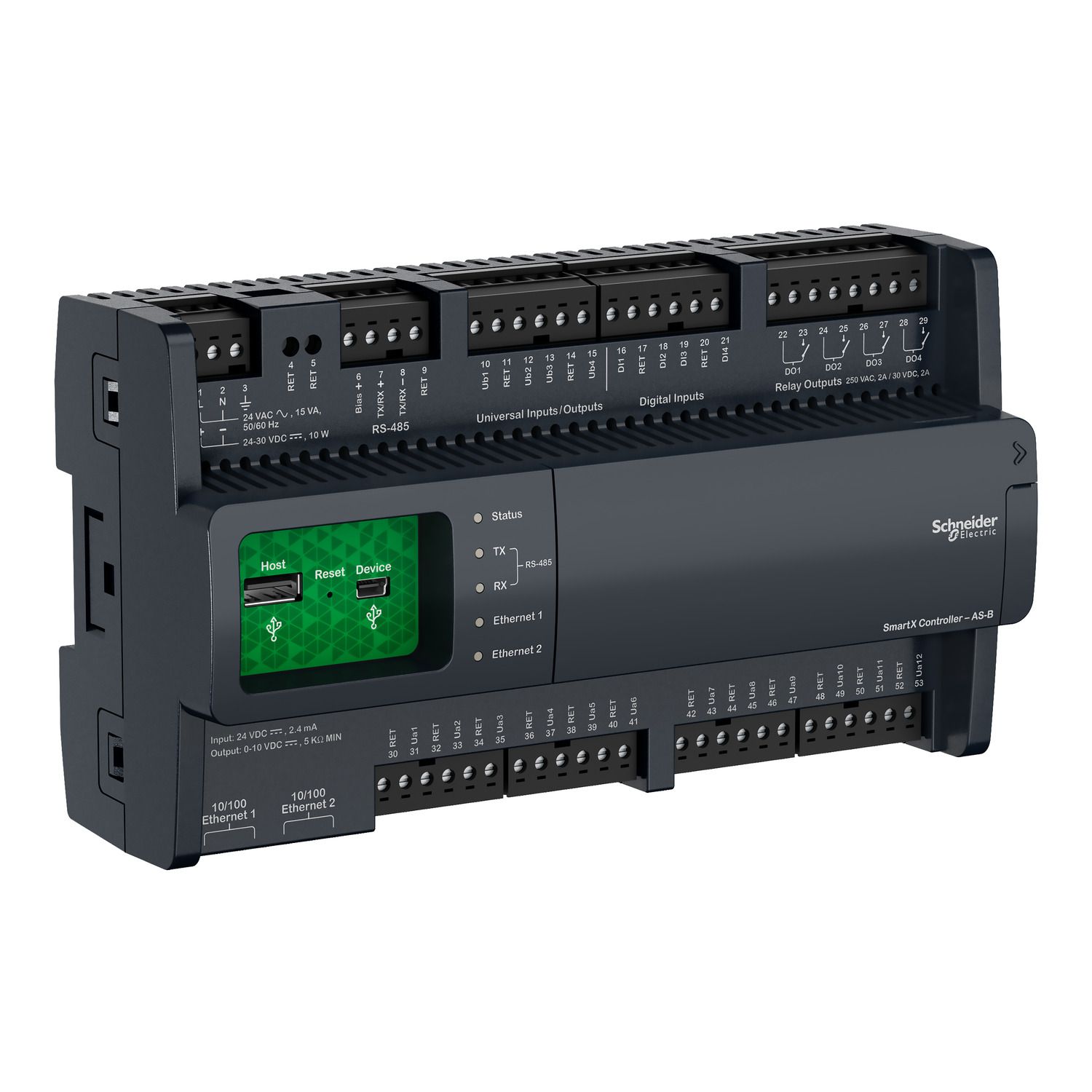

Picture of Automation server, SpaceLogic Plant Room Servers, AS-B-36H, 36 I/O points, BACnet, MS/TP, modbus, manual override, display
SKU:

SXWASB36H10001

Automation server, SpaceLogic Plant Room Servers, AS-B-36H, 36 I/O points, BACnet, MS/TP, modbus, manual override, display

Please Contact Sales to buy this Product. click here
Automation server, SpaceLogic Plant Room Servers, AS-B-36H, 36 I/O points, BACnet, MS/TP, modbus, manual override, display
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
CAD
End of life manual
Product environmental
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic AS-B server is at the core of an EcoStruxure BMS. It performs functionality, such as control logic, trend logging and alarm supervision. It provides built-in I/O, and supports communication and connectivity to the field buses. It is a powerful device with built-in power supply and I/O, which makes it suitable for control applications at the plant room level of a BMS. The SpaceLogic AS-B server can act as a standalone server or controller using its built-in I/O and also monitor and manage field bus devices. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. The AS-B-36H model features 36 I/O points with a versatile mix of I/O points, a display for output override and a variety of connectivity options. It supports the SpaceLogic IP-IO modules for I/O expansion and the SpaceLogic Zigbee Adapter for Zigbee wireless connectivity. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Available spare parts are terminal blocks (SXWASBCON10001) and an installer kit (SXWASBINS10001). Available spare parts are the AS-B connector kit (SXWASBCON10001) and AS-B installer kit (SXWASBINS10001).

Products specifications

Attribute nameAttribute value
Main
Memory type2 GB flash, 256 MB FRAM
Height114 mm
Depth64 mm
RangeEcoStruxure Building Operation
Input/output type28 universal I/O
Product or component typecontroller system
Display resolution128 x 64 pixels
Power consumption in W10 W
Communication serviceModbus TCP server, Modbus TCP client, SMTPS e-mail notification, SNMP network management, SMTP e-mail notification
Ambient air temperature for operation0-50 °C
Number of outputs4 triac, 4 relay
[Us] rated supply voltage21...33 V DC, 19...29 V AC
Network frequency50 Hz, 60 Hz
Product certificationsRCM, CE, cULus, FCC part 15 class B, BTL, ICES-003
Complementary
Integrated connection typeUSB type mini B, USB 2.0 type A
Processor nameSpear 320s
Flame retardanceUL94V0-5VB
Communication port protocolHTTP RJ45, HTTPS RJ45, Modbus TCP slave RS485, Modbus TCP master RS485, BACnet
StandardsFCC CFR 47 part 15, UL 916
Mounting supportDIN rail
Switching frequency25 Hz
Electrical connectionterminal with a manual overide switch, plug-in sub-base
Product brandSchneider Electric
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.8 cm
Package 1 Width11.5 cm
Package 1 Length20.0 cm
Package 1 Weight490.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight6.569 kg

Related products

Picture of Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

SXWRPV4A10001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Controller, SpaceLogic RP-V, RP-V-5A, BACnet/IP, 5 points, 2 universal inputs, 3 digital outputs

Controller, SpaceLogic RP-V, RP-V-5A, BACnet/IP, 5 points, 2 universal inputs, 3 digital outputs

SXWRPV5A10001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Web services, EcoStruxure Building Operation, consume for 1 Enterprise Server

Web services, EcoStruxure Building Operation, consume for 1 Enterprise Server

SXWSWEWSX00001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Web services, EcoStruxure Building Operation, serve and consume for 1 Enterprise Server

Web services, EcoStruxure Building Operation, serve and consume for 1 Enterprise Server

SXWSWEWSX00002
Please Contact Sales to buy this Product. click here
View Detail
Picture of Web services, EcoStruxure Building Operation, serve, consume and historical trend log data for 1 Enterprise Server

Web services, EcoStruxure Building Operation, serve, consume and historical trend log data for 1 Enterprise Server

SXWSWEWSX00003
Please Contact Sales to buy this Product. click here
View Detail
Picture of Web services, EcoStruxure Building Operation, generic consume for 1 Enterprise Server

Web services, EcoStruxure Building Operation, generic consume for 1 Enterprise Server

SXWSWGWSX00001
Please Contact Sales to buy this Product. click here
View Detail
Picture of License, EcoStruxure Building Operation, allows SpaceLogic server to publish data and subscribe to an MQTT broker

License, EcoStruxure Building Operation, allows SpaceLogic server to publish data and subscribe to an MQTT broker

SXWSWMQTTXRW01
Please Contact Sales to buy this Product. click here
View Detail

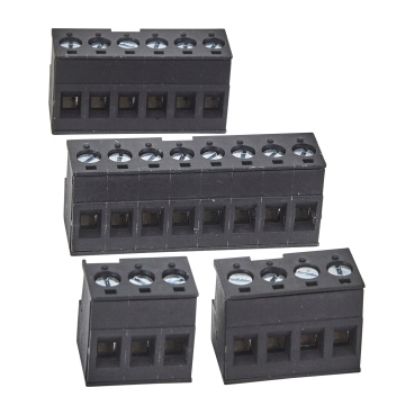

Picture of Terminal block, SpaceLogic Controller Automation Server, for AS-B
