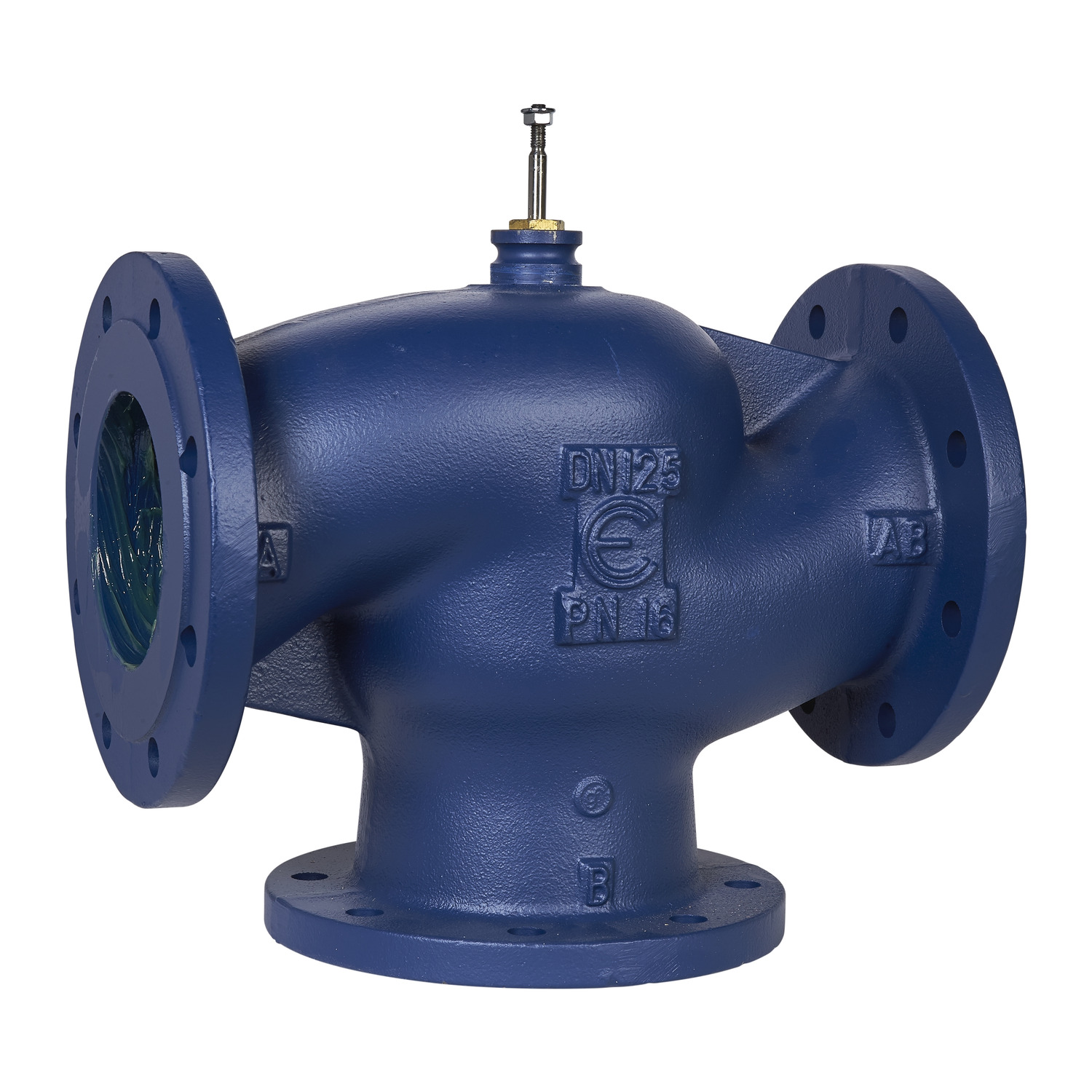

Picture of VG311F Globe Valve, 3-Way, DN150, Flanged, Kvs 300 m³/h, Cast Iron Body and Seat, Brass Plug.
SKU:

VG311F-150C

VG311F Globe Valve, 3-Way, DN150, Flanged, Kvs 300 m³/h, Cast Iron Body and Seat, Brass Plug.

$5,385.82
Availability: Please contact our sales team on 1300 724 622.
VG311F Globe Valve, 3-Way, DN150, Flanged, Kvs 300 m³/h, Cast Iron Body and Seat, Brass Plug.
  • Large 3-Way Mixing Valve suitable on a wide range of media solutions including 50% Glycol
  • Can also be used for diverting applications under low pressure conditions
  • U bolt mounting accepts M800/ M1500 / M3000 actuators for flexible and quick configuration
  • Cast Iron integrated seat, bronze plug and EPDM seals for dependable service
  • Service gland kit prolongs the life expectancy of the installation
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
End of life manual
Product Page Link
Product Data Sheet
The globe valve VG311F is a large 3-way globe mixing valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for media with a very high rangeability

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-150 °C
Body material grey cast iron GG-25
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.03 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN150 (ISO 7005-2)
Seat material Port B: grey cast iron GG-25, Port A: grey cast iron GG-25
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material CB491K bronze
Valve product series VG311F
Flow coefficient 300 kvs, 173.43 cv
Stem flow action Stem up closes A and opens B to AB
Valve configuration 3-Way
Stem movement linear
Pressure fluid max delta P normal life 29 psi
Valve type globe
Valve model VG311F-150C 300M SU00
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 45 mm
Stem material stainless steel AISI 303
Pipe size 150 mm
Pressure class PN16
Body size 150 mm (6 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 46.0 cm
Package 1 Width 28.5 cm
Package 1 Length 48.0 cm
Package 1 Weight 60.0 kg
