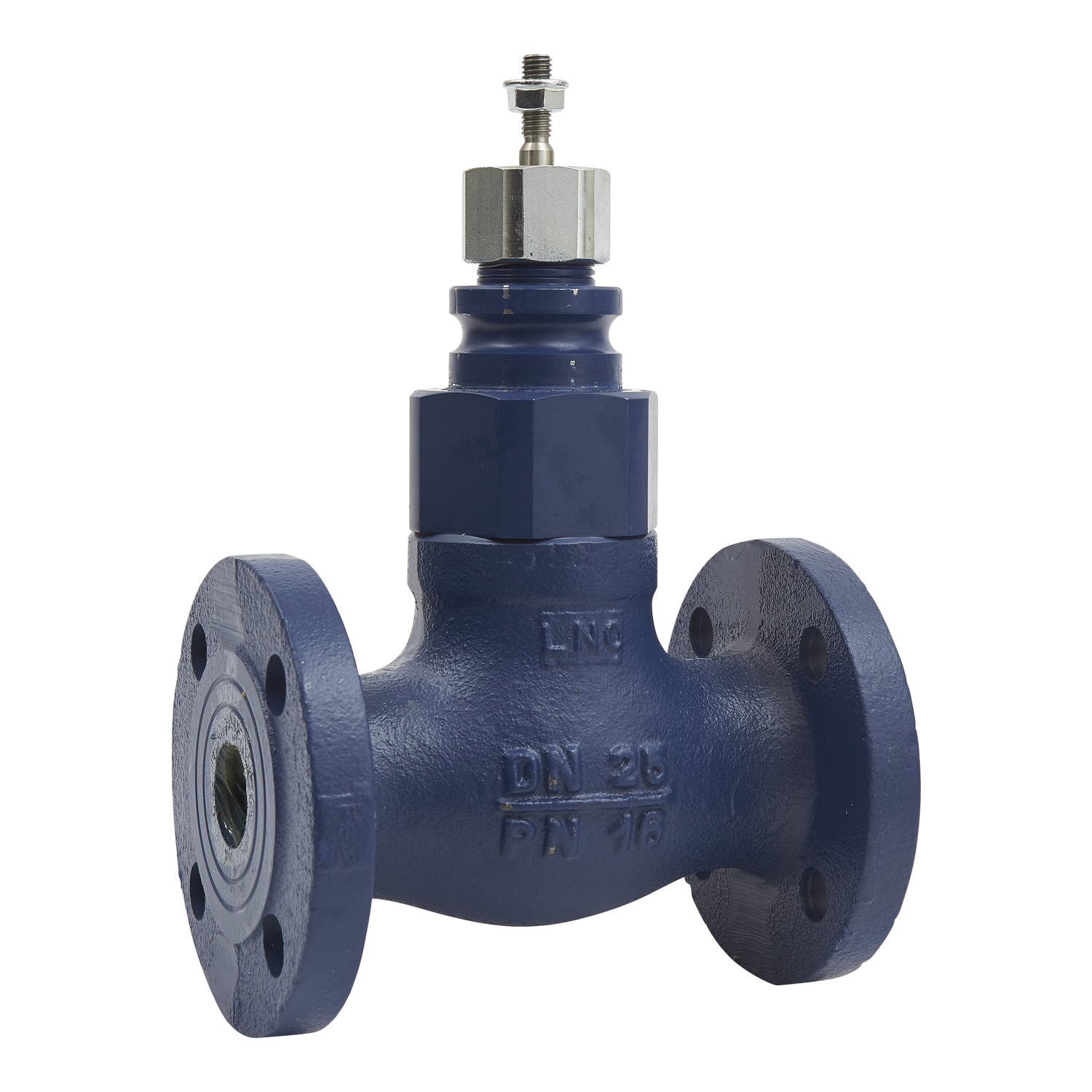

Picture of VGS211F Globe valve for steam up to 200°C, 2-Way, flanged, DN25, Kvs 10 m³/h, stainless steel trim, stem down closed
SKU:

VGS211F-25CS

VGS211F Globe valve for steam up to 200°C, 2-Way, flanged, DN25, Kvs 10 m³/h, stainless steel trim, stem down closed

$2,446.27
Available for Shipping : 10-Dec-2024
VGS211F Globe valve for steam up to 200°C, 2-Way, flanged, DN25, Kvs 10 m³/h, stainless steel trim, stem down closed
  • Flanged Steam Valve with Full Stainless Trim and PTFE seals for 200 °C service duty.
  • Also suitable for hot and chilled liquid media
  • Quick U bolt mounting for M400, M800, M1500, M3000, M700 SR and MG900 SR actuators
  • Spring loaded PTFE stem seals provides a long leak-free service life
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The globe valve VGS211F-CS is a 2-way globe valve designed for steam applications such as heating, cooling and air handling applications. The valve uses a stainless steel plug for steam up, hot water, chill water, and water with antifreeze additives Stainless Steel plug and seat provides a high pressure differential capability and a low leakage.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-200 °C
Body material grey cast iron GG-25
Saturated steam temperature -10-200 °C
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.02 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN25 (ISO 7005-2)
Seat material Port A: stainless steel AISI 303
Medium compatibility Glycol 50 %, Glycol 30 %, Glycol 25 %, Water, Steam
Control valve rangeability greater than 35:1
Plug material stainless steel AISI 303
Valve product series VGS211F
Flow coefficient 10 kvs, 11.56 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 87 psi
Valve type globe
Valve model VGS211F-25CS 10M SD00
Packing material PTFE (polytetrafluoroethylene)
Valve connection type flanged
Stem seal material PTFE (polytetrafluoroethylene)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 16.5 mm
Stem material stainless steel AISI 303
Pipe size 25 mm
Pressure class PN16
Body size 25 mm (1 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.0 cm
Package 1 Width 20.0 cm
Package 1 Length 16.0 cm
Package 1 Weight 5.9 kg
