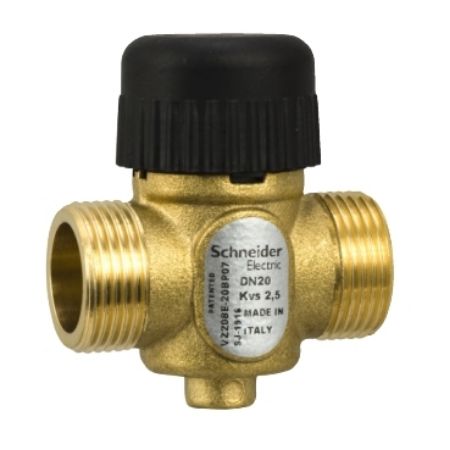

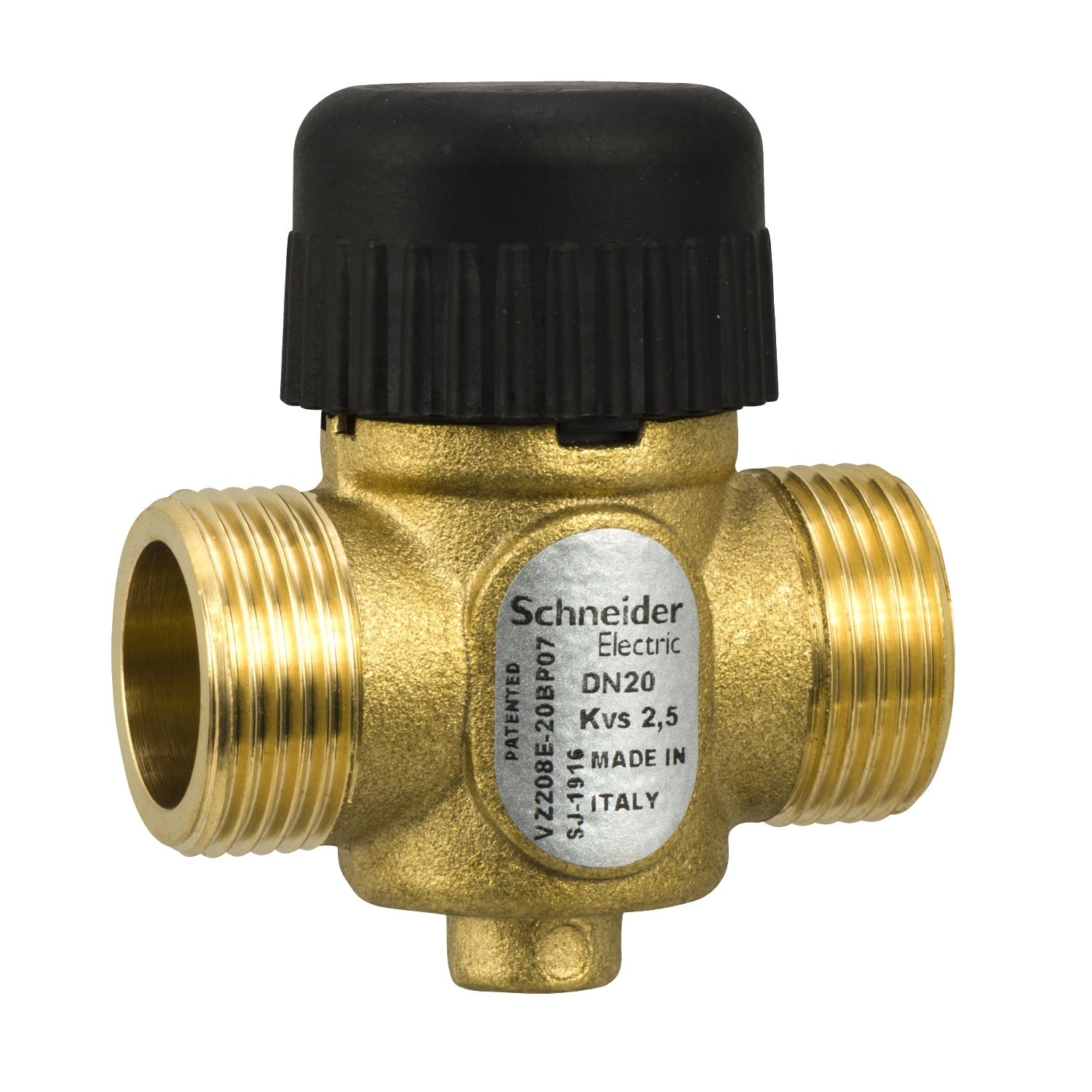

Picture of VZ208EZone valve, 2-Way, PN16, DN20, G3/4 external thread, Kvs 2.5 m³/h, 2.5mm stroke
SKU:

VZ208E-20BP07

VZ208EZone valve, 2-Way, PN16, DN20, G3/4 external thread, Kvs 2.5 m³/h, 2.5mm stroke

$81.70
Available for Shipping : 10-Dec-2024
VZ208EZone valve, 2-Way, PN16, DN20, G3/4 external thread, Kvs 2.5 m³/h, 2.5mm stroke
  • Compact design zone valve
  • For use with MP140 thermal actuators - low cost and silent operation
  • On/Off control with a soft seat for tight close off
  • External thread allows ease of mounting in any orientation and a simple disassembly
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
End of life manual
Catalogue
Product Page Link
Product Data Sheet
The VZ28 is a short stroke and small linear zone valve designed for control of hot and chilled water. The valve is used with a thermo-electric actuators type MZ14. The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. It is a BSP male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Multipacks are not available. Two-way valve, Normally closed without actuator fitted. Pressure class PN16, stroke 2.5 mm. It is recommended to fit a strainer upstream of the valve to increase reliability and to follow water treatment guidelines as detailed in VDI 235. Valves should be installed in the return pipe to reduce exposure to media temperature extremes.

Products specifications

Attribute name Attribute value
Main
Device application terminal unit, chilled ceiling, fan coil unit
Body material brass
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size G 3/4A
Medium compatibility Glycol 50 %, Water, Glycol 30 %, Glycol 25 %
Pressure fluid max delta P quiet service 9 psi
Flow coefficient 2.89 cv, 2.5 kvs
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 22 psi
Valve type zone
Valve connection type G External
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic uncharacterized
Trim material brass
Stem material stainless steel AISI 303
Pipe size 20 mm
Pressure class PN16
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 6.6 cm
Package 1 Length 9.7 cm
Package 1 Weight 170.0 g
