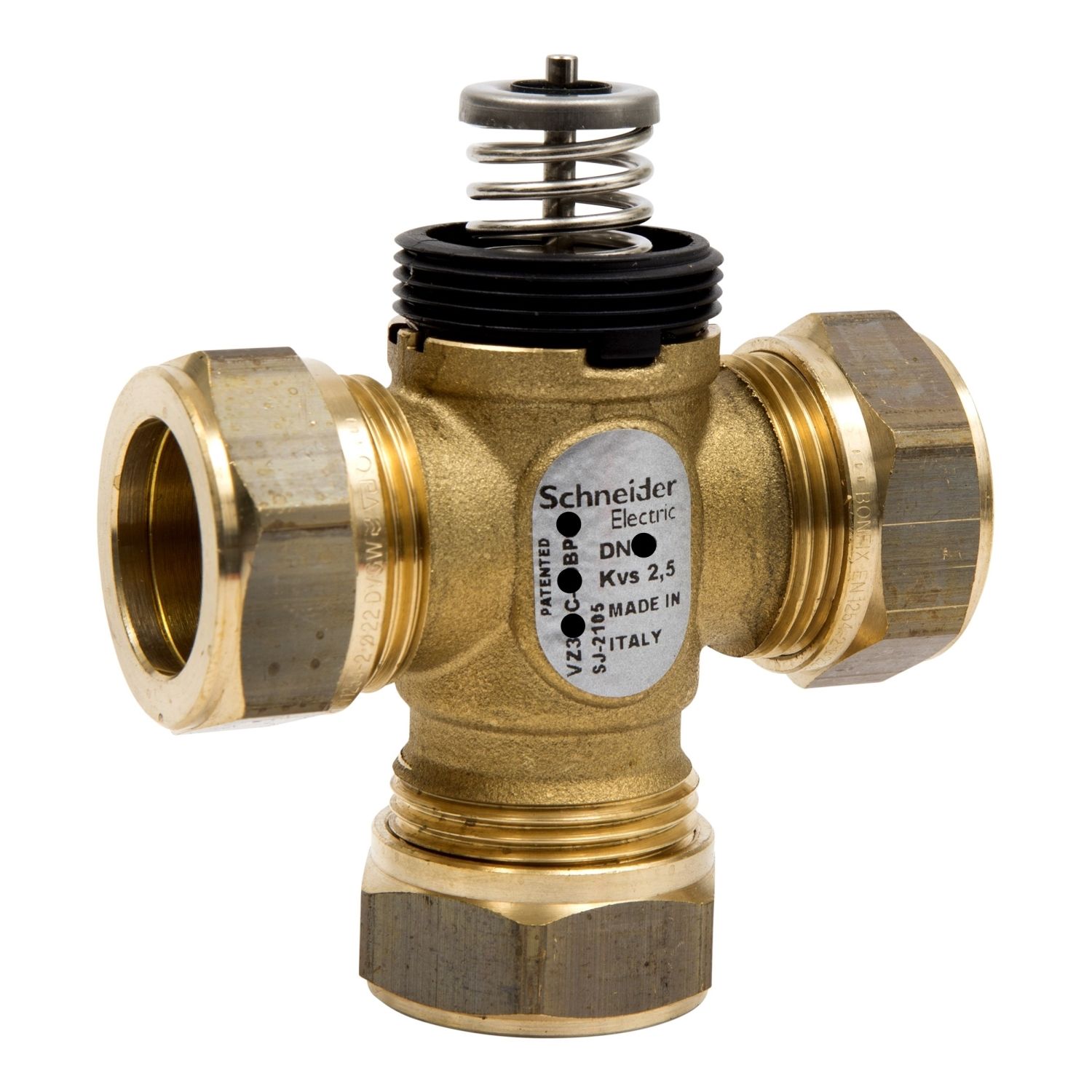

Zone Valve, 15mm, 3-Way, Compression, Brass, 1kvs

Please Contact Sales to buy this Product. click here
Zone Valve, 15mm, 3-Way, Compression, Brass, 1kvs
  • Compact design zone valve
  • For use with MP140 thermal actuators - low cost and silent operation
  • On/Off control with a soft seat for tight close off
  • Integrated compression end connections save the need for additional fittings
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 27-Oct-2024
Instruction sheet
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
The VZ38C is a small linear three-way zone valve used for the control of hot or chilled water in terminal units. It is designed to be used with the MZ14 family of thermal actuators. The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. 15mm Compression connection Three-way valve, Normally closed (A-AB) without actuator fitted. DN15, Kvs: 1. m³/h Pressure class PN16, stroke 2.5 mm, Normally closed (A-Ab). It is recommended to fit a strainer upstream of the valve to increase reliability and to follow water treatment guidelines as detailed in VDI 235. Valves should be installed in the return pipe to reduce exposure to media temperature extremes.

Products specifications

Attribute nameAttribute value
Main
Device applicationterminal unit, chilled ceiling, fan coil unit
Body materialbrass
Seating seal materialPort A:EPDM (ethylene propylene diene monomer)
Seat leakagePort A: Class IV-S1 (0.005 %)
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Medium compatibilityGlycol 50 %, Water, Glycol 30 %, Glycol 25 %
Pressure fluid max delta P quiet service9 psi
Flow coefficient1.16 cv, 1 kvs
Valve configuration3-Way
Stem movementlinear
Pressure fluid max delta P normal life37 psi
Valve typezone
Valve connection typecompression
Stem seal materialEPDM (ethylene propylene diene monomer)
Flow characteristicuncharacterized
Trim materialbrass
Stem materialstainless steel AISI 303
Flow coefficient B to AB0.8 kvs, 0.92 cv
Pipe size15 mm
Pressure classPN16
Body size15 mm (1/2 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.3 cm
Package 1 Width6.6 cm
Package 1 Length9.7 cm
Package 1 Weight230.0 g

Related products

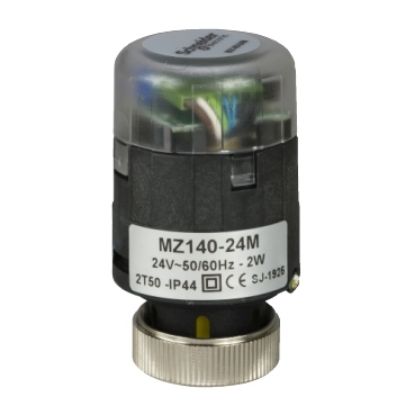

Picture of MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24Vac, 140N, IP41...IP44

MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24Vac, 140N, IP41...IP44

MZ140-24M
Please Contact Sales to buy this Product. click here
View Detail

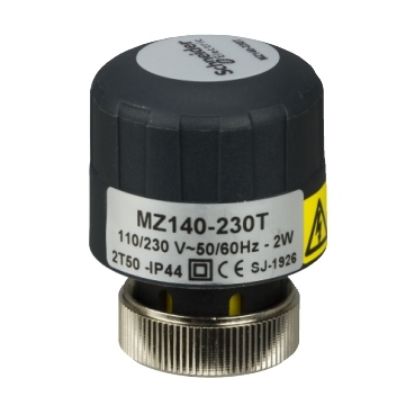

Picture of MZ140 Thermal Zone Valve Actuator, 2-Position, Normally closed, 110-230Vac, 140N, IP44
