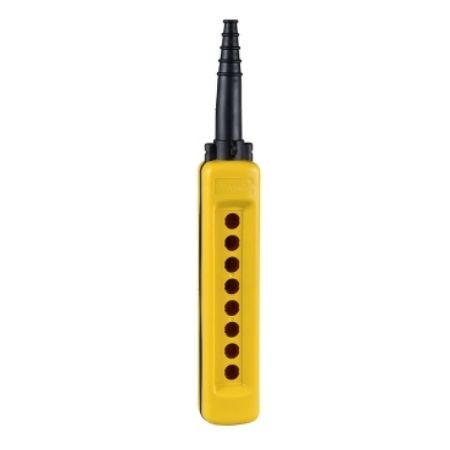

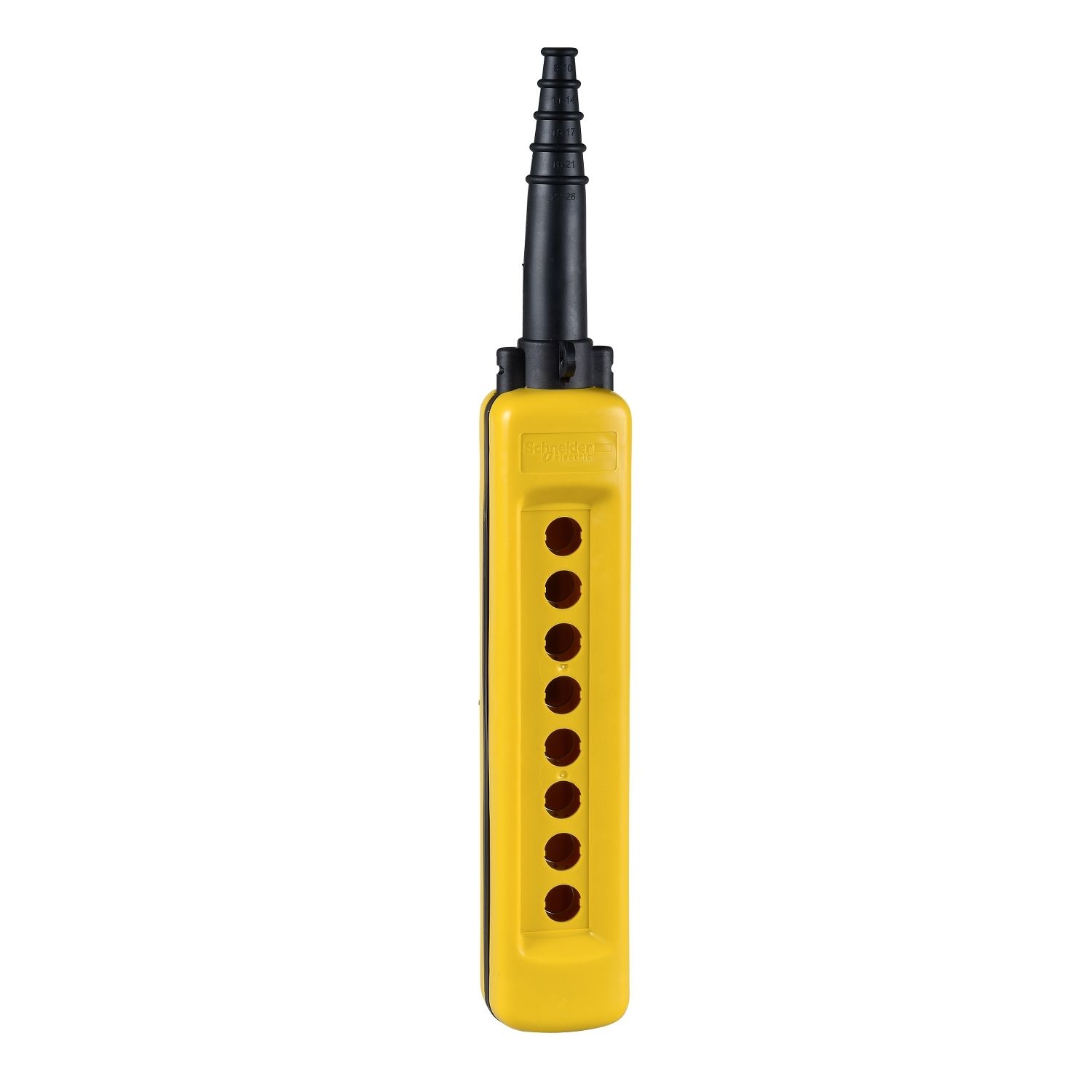

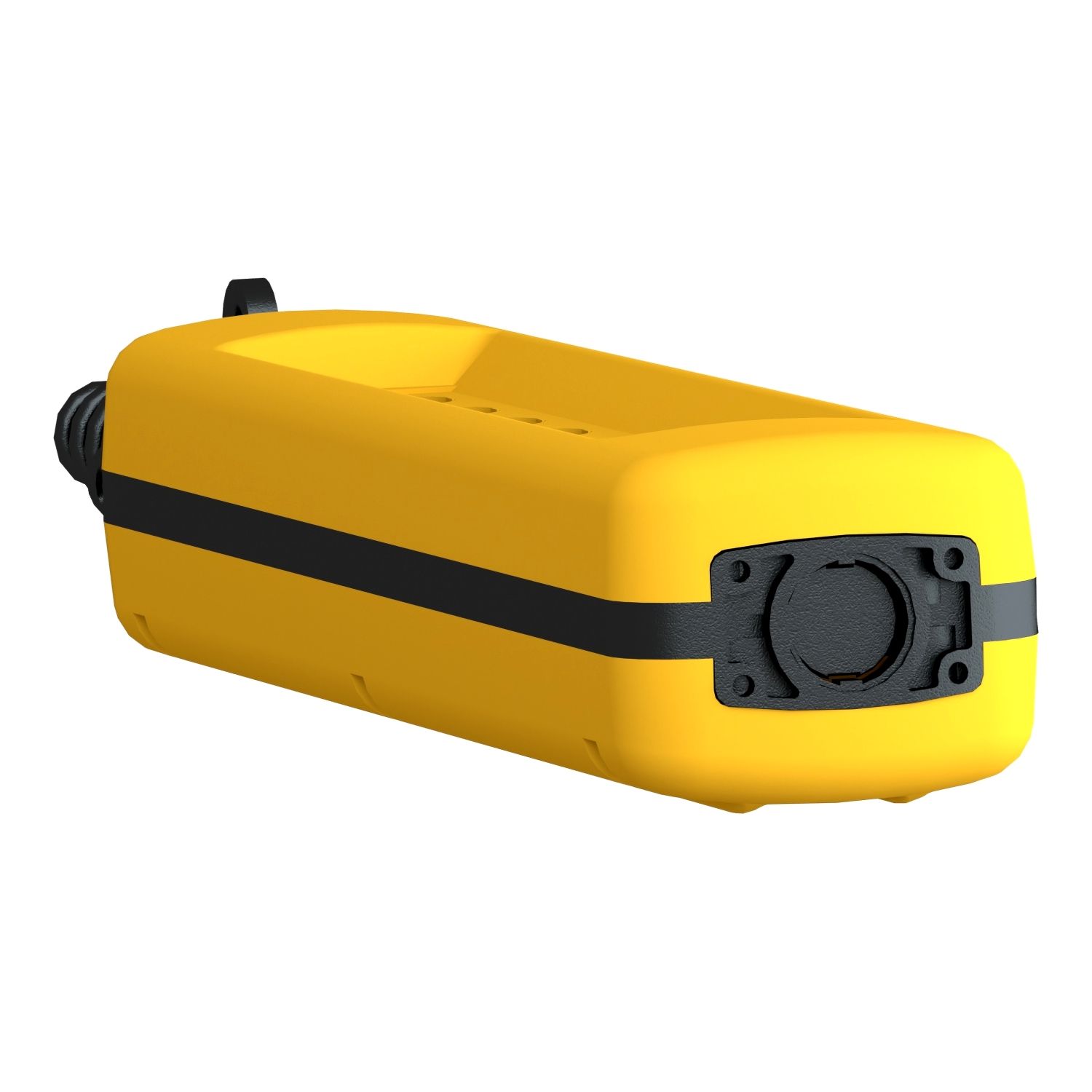

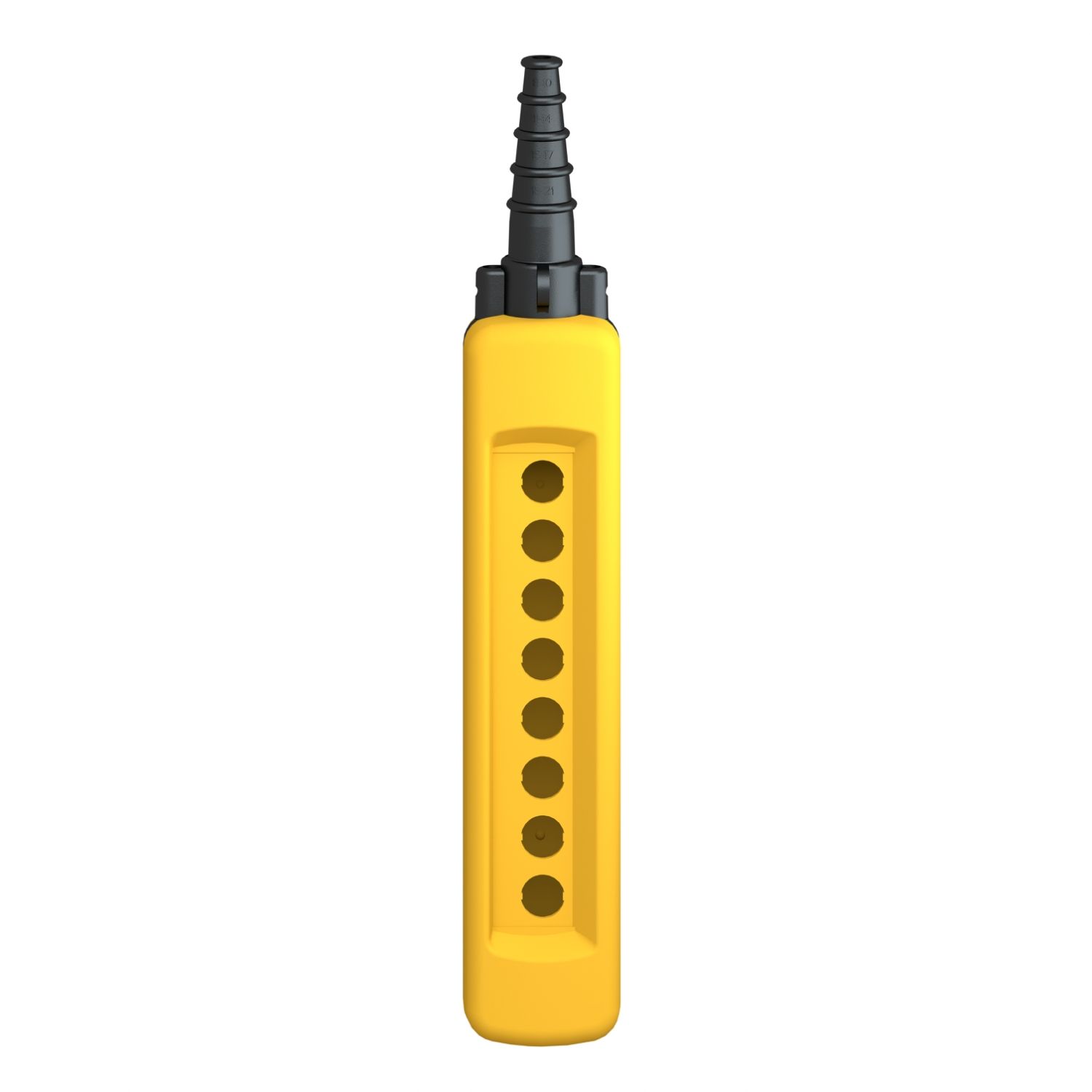

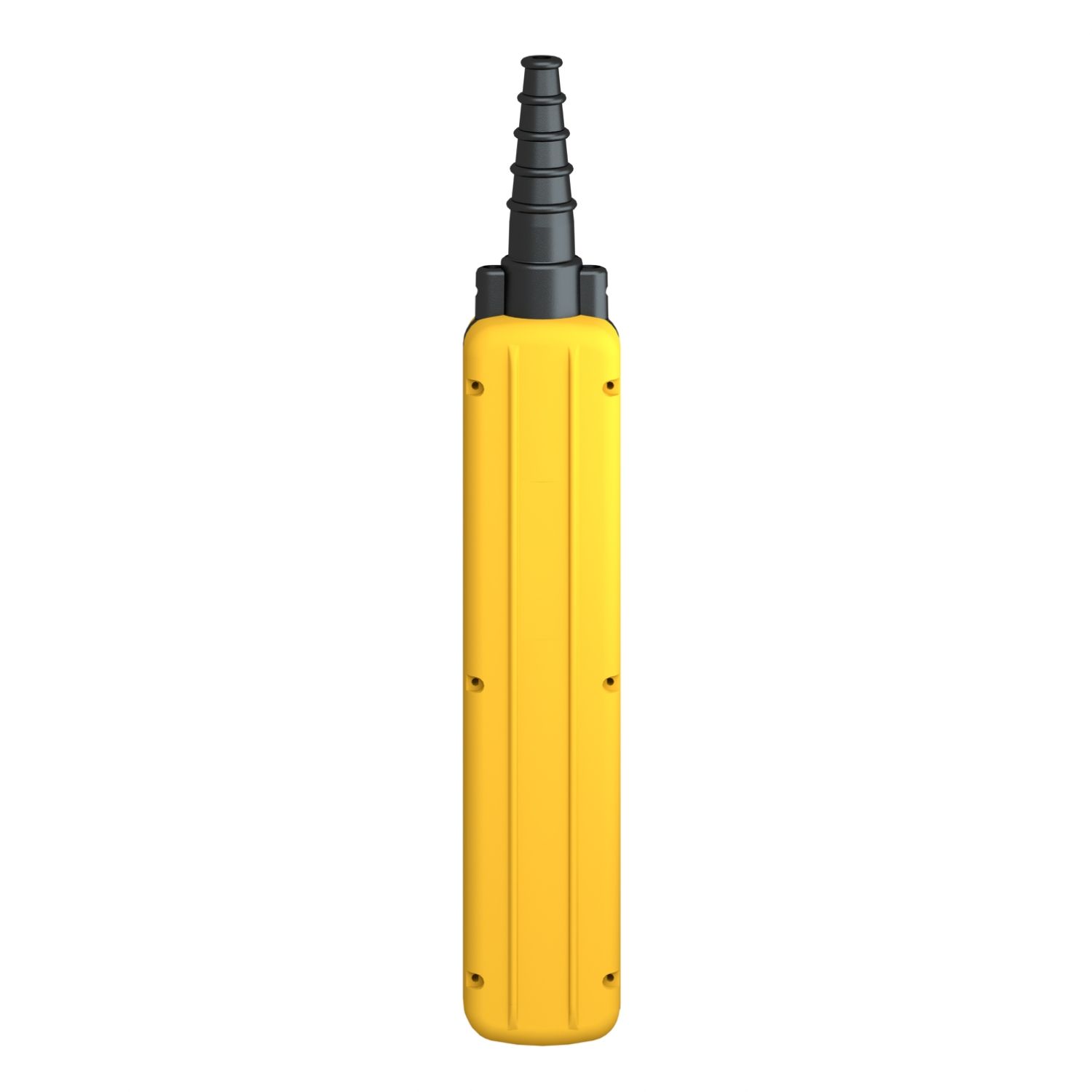

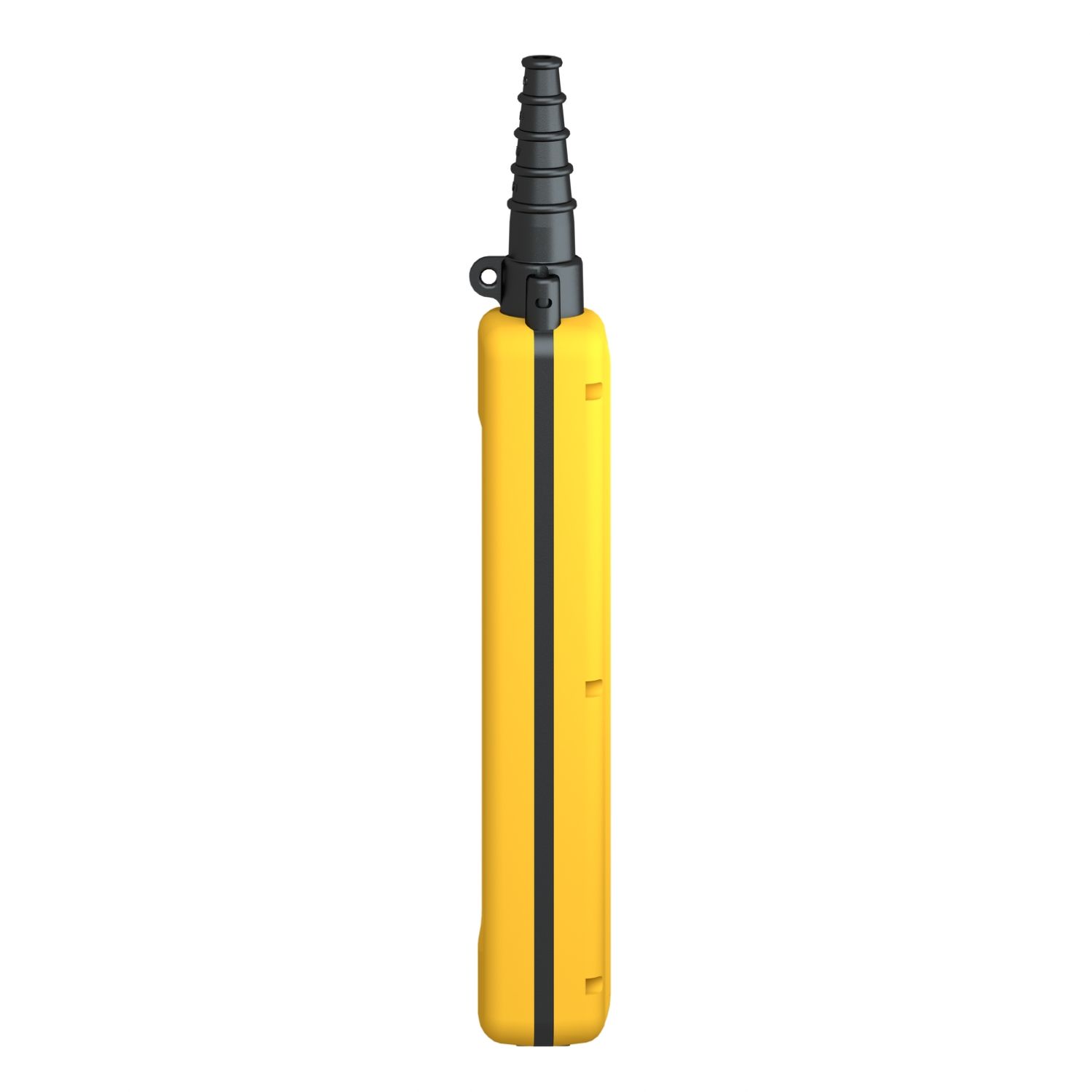

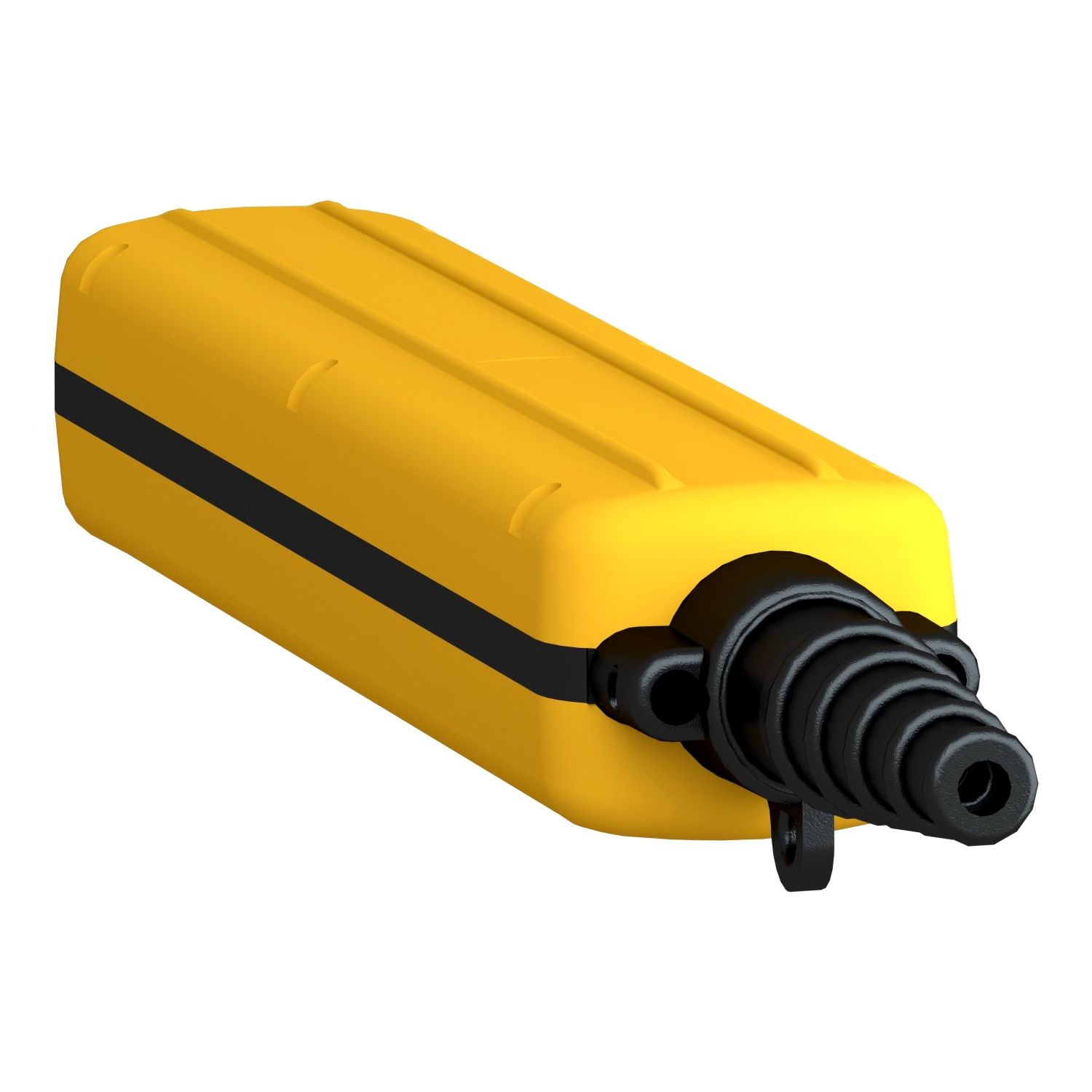

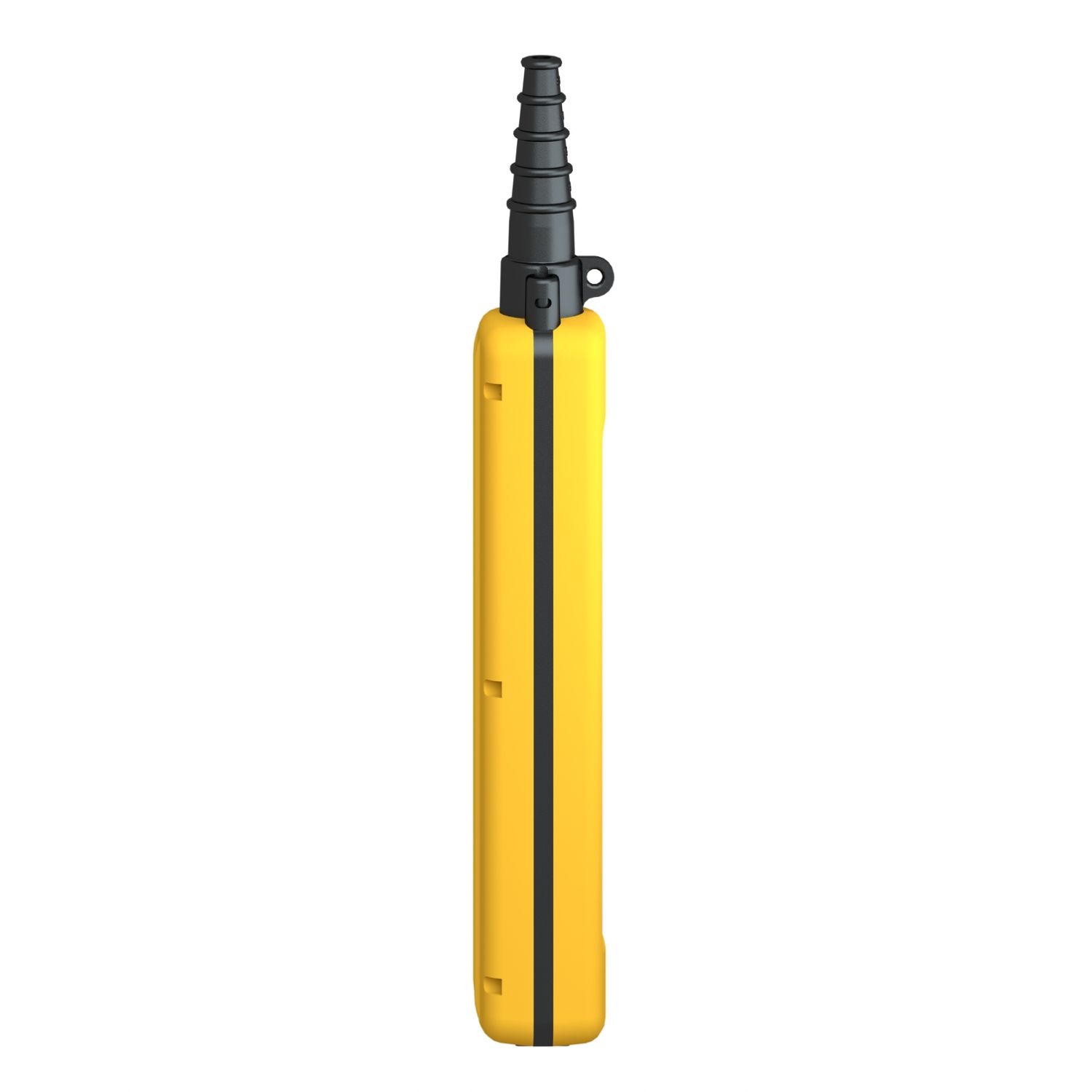

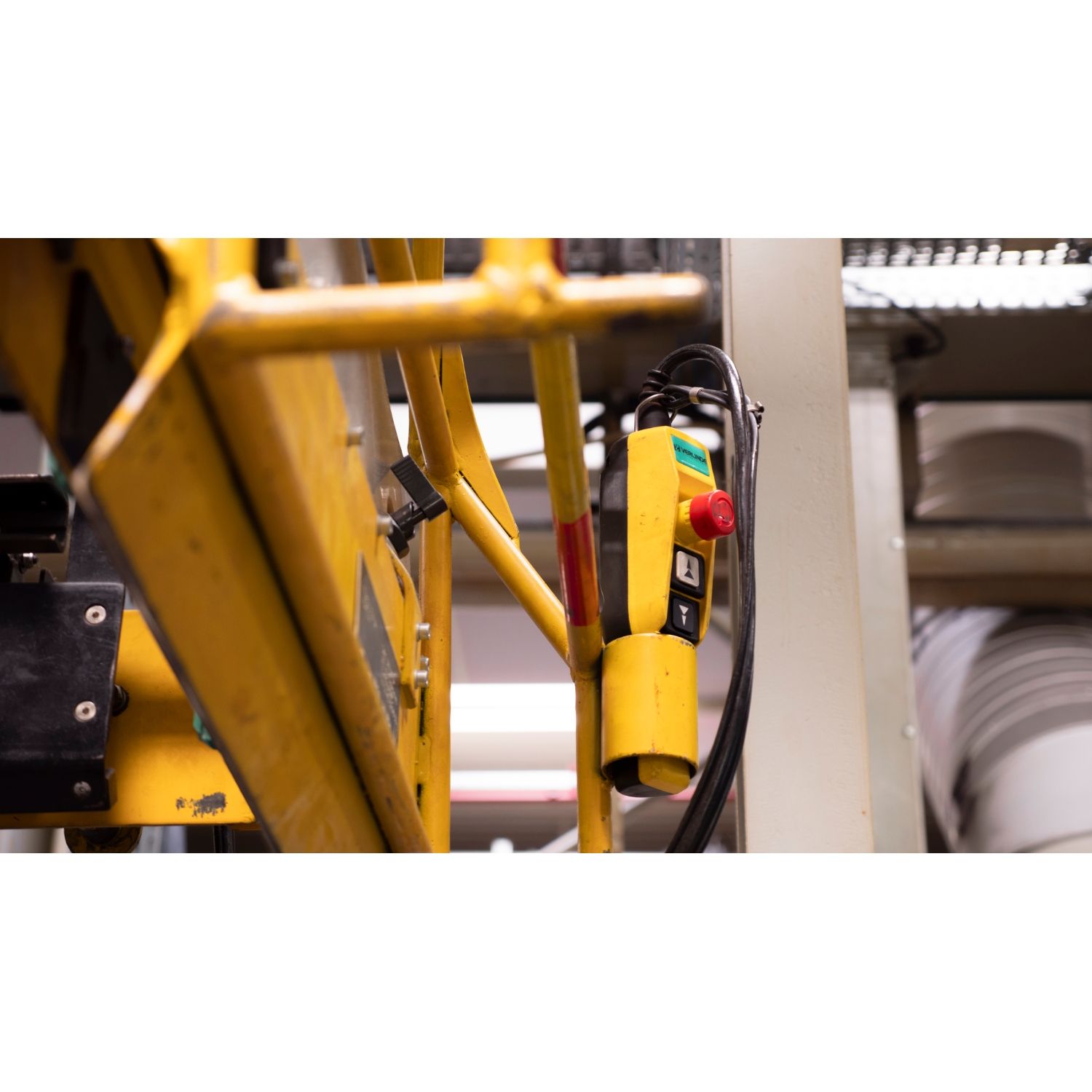

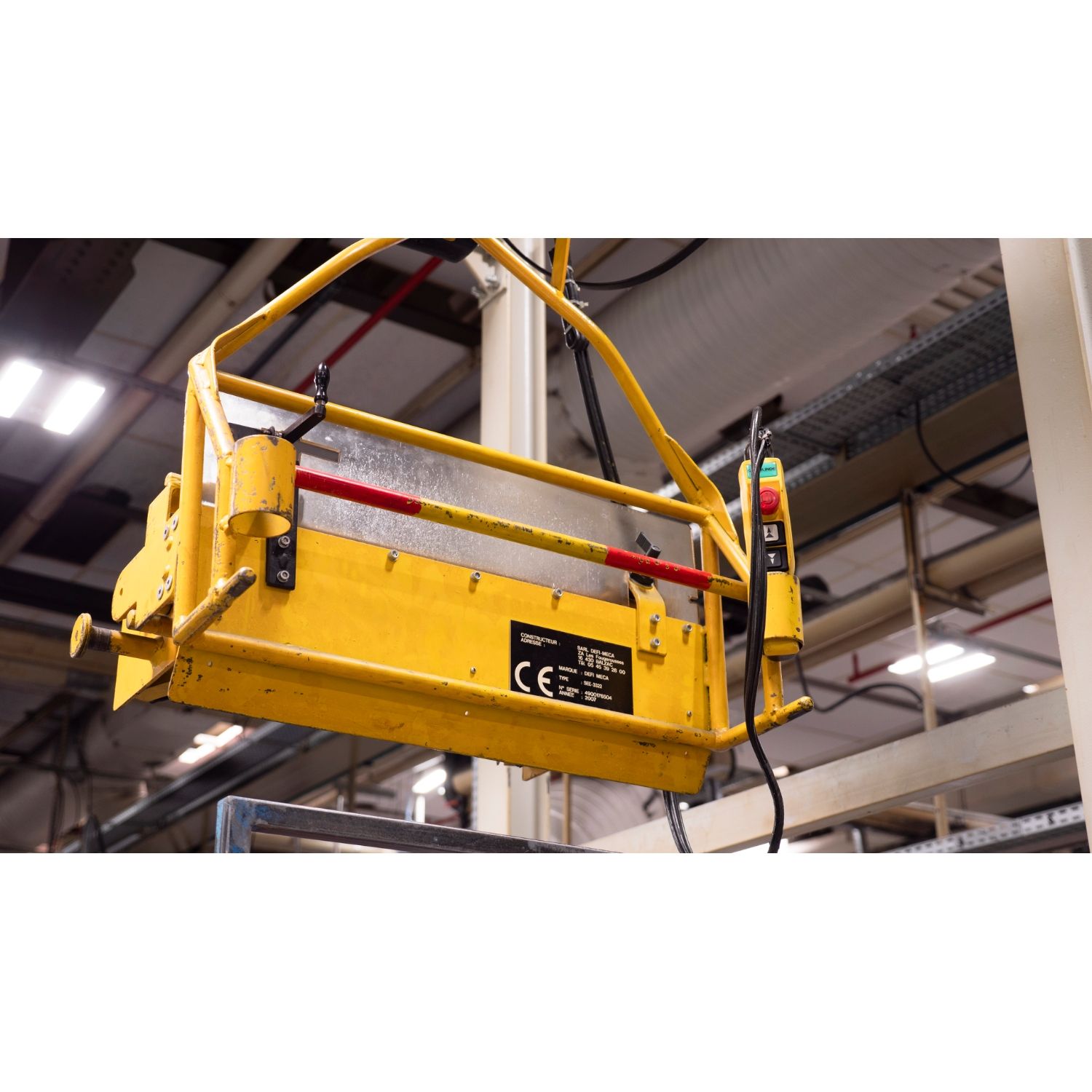

Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs
SKU:

XACA08

Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs

$253.33
Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XAC, empty pendant control station has 8 cut-out for 8 push buttons / 8 functions for controlling of operation in machines. This 8 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It can be retrofitted with all 22mm push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short nameXACA
Range of productHarmony XAC
Product or component typependant control station
Complementary
Protective treatmentTH
Electrical circuit typecontrol circuit
Mechanical durability1000000 cycles
Control station colouryellow
Ambient air temperature for storage-40-70 °C
Number of cut-out8 cut-outs
Control station typedouble insulated
Vertical operator cut-out centre30 mm
IP degree of protectionIP65 conforming to IEC 60529
Enclosure typeempty enclosure
Shock resistance100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation-25-70 °C
Guard railwithout
IK degree of protectionIK08 conforming to EN 50102
Enclosure materialpolypropylene
Overvoltage categoryclass II conforming to IEC 61140
Net weight0.77 kg
Vibration resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cable entryrubber sleeve with stepped entry 8-26 mm
StandardsEN/IEC 60204-32, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certificationsCCC, GOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width8.500 cm
Package 1 Length56.700 cm
Package 1 Weight841.000 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight46.640 kg
