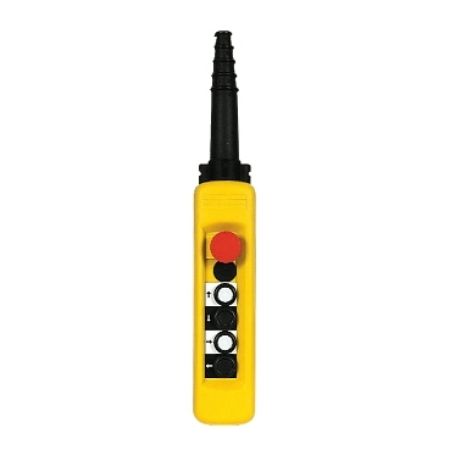

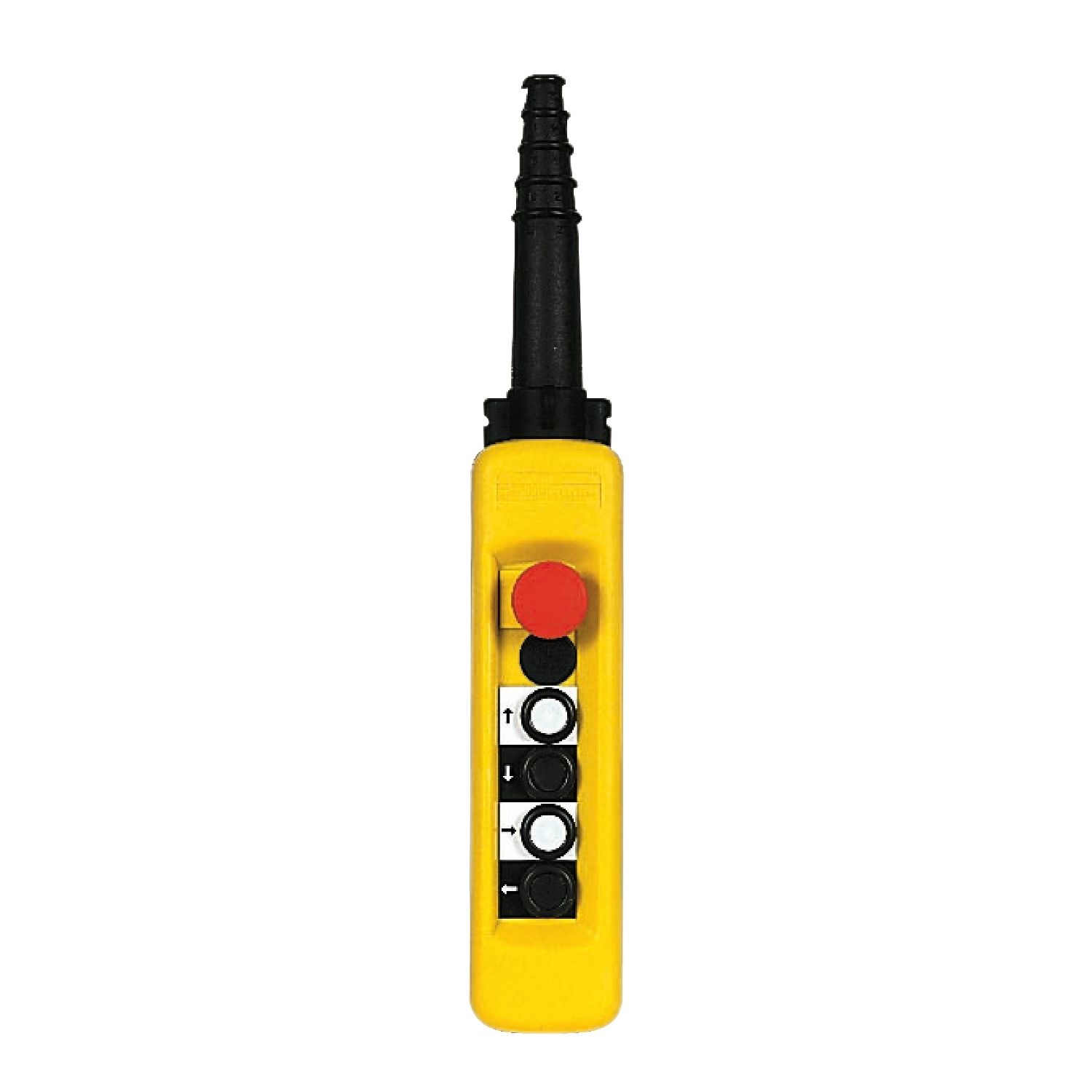

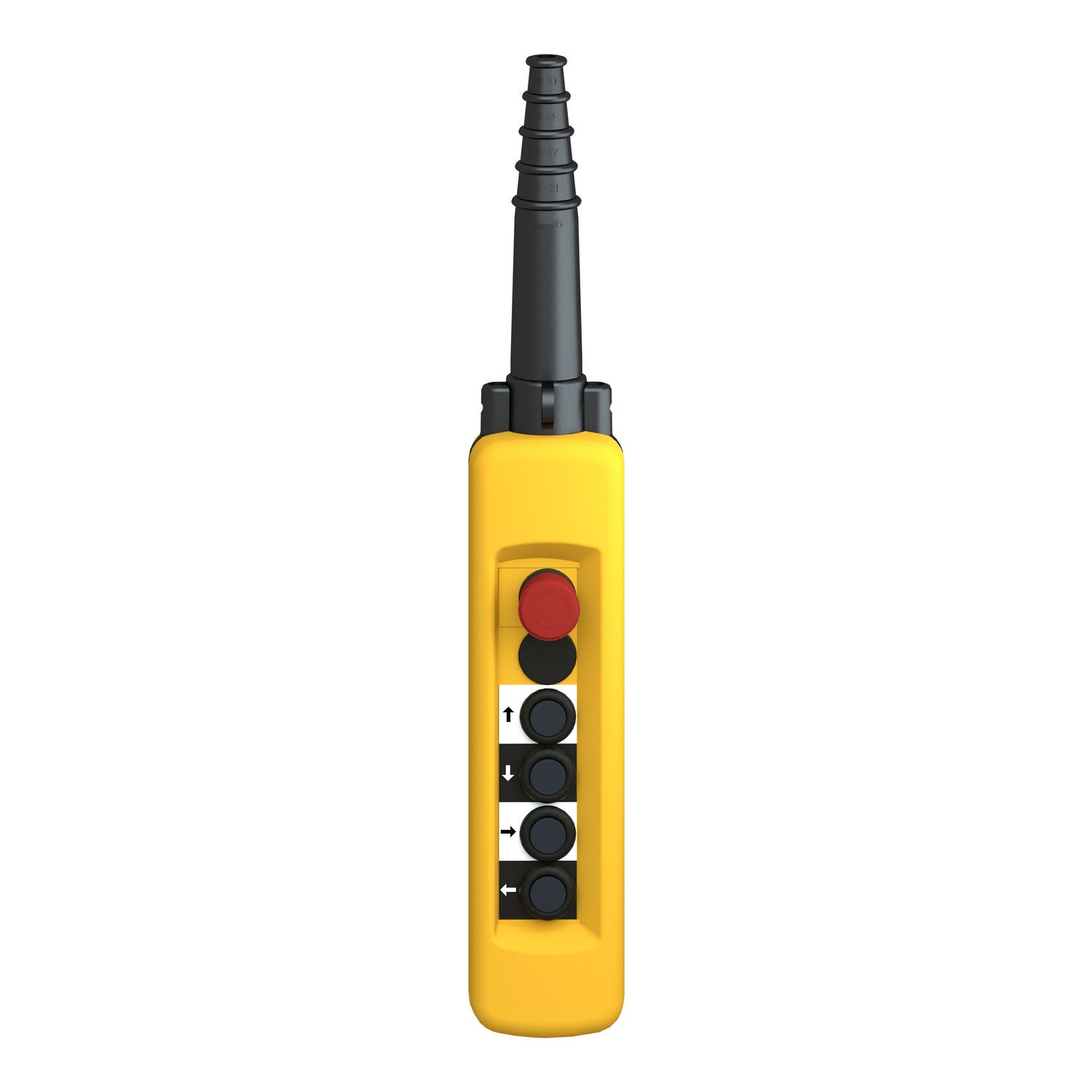

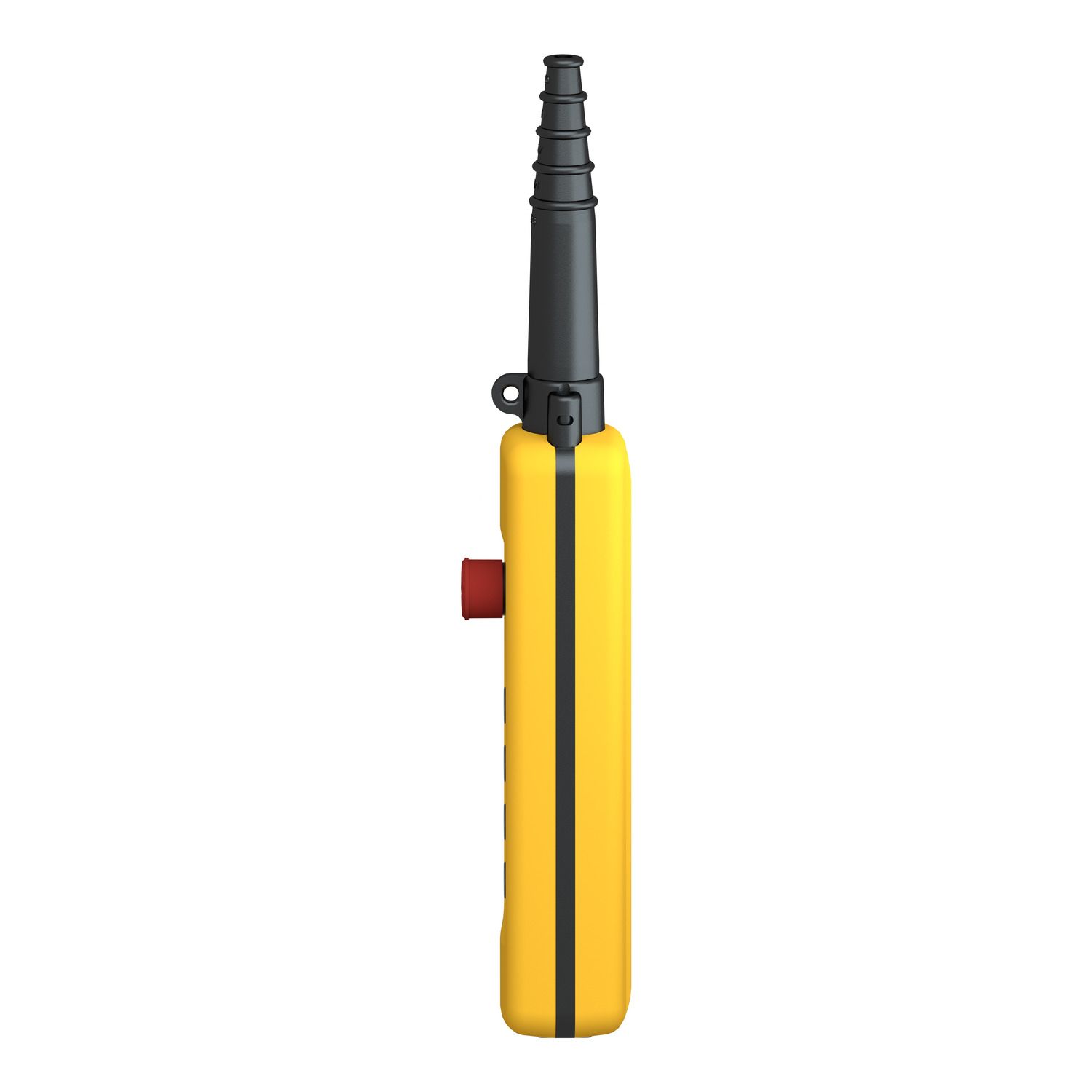

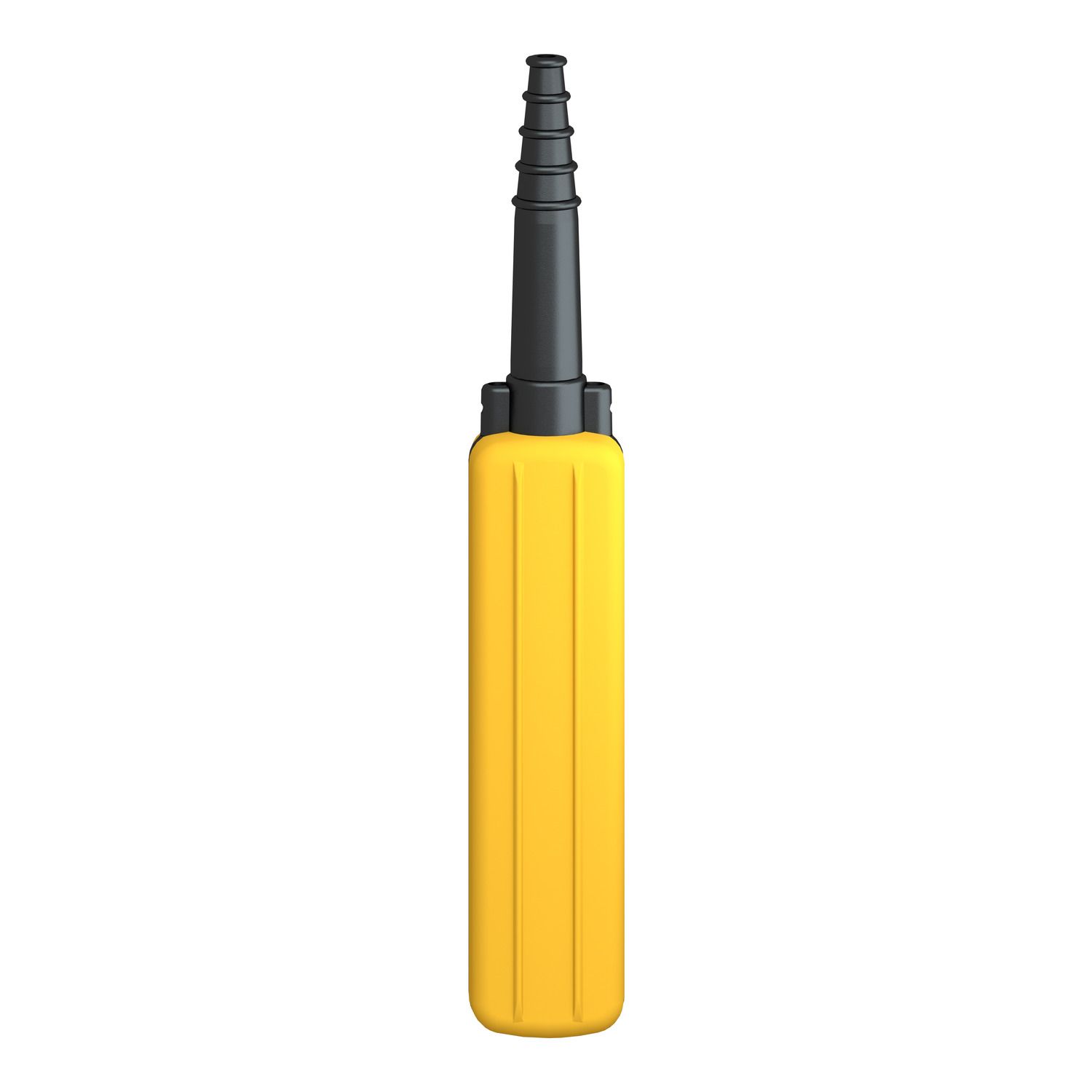

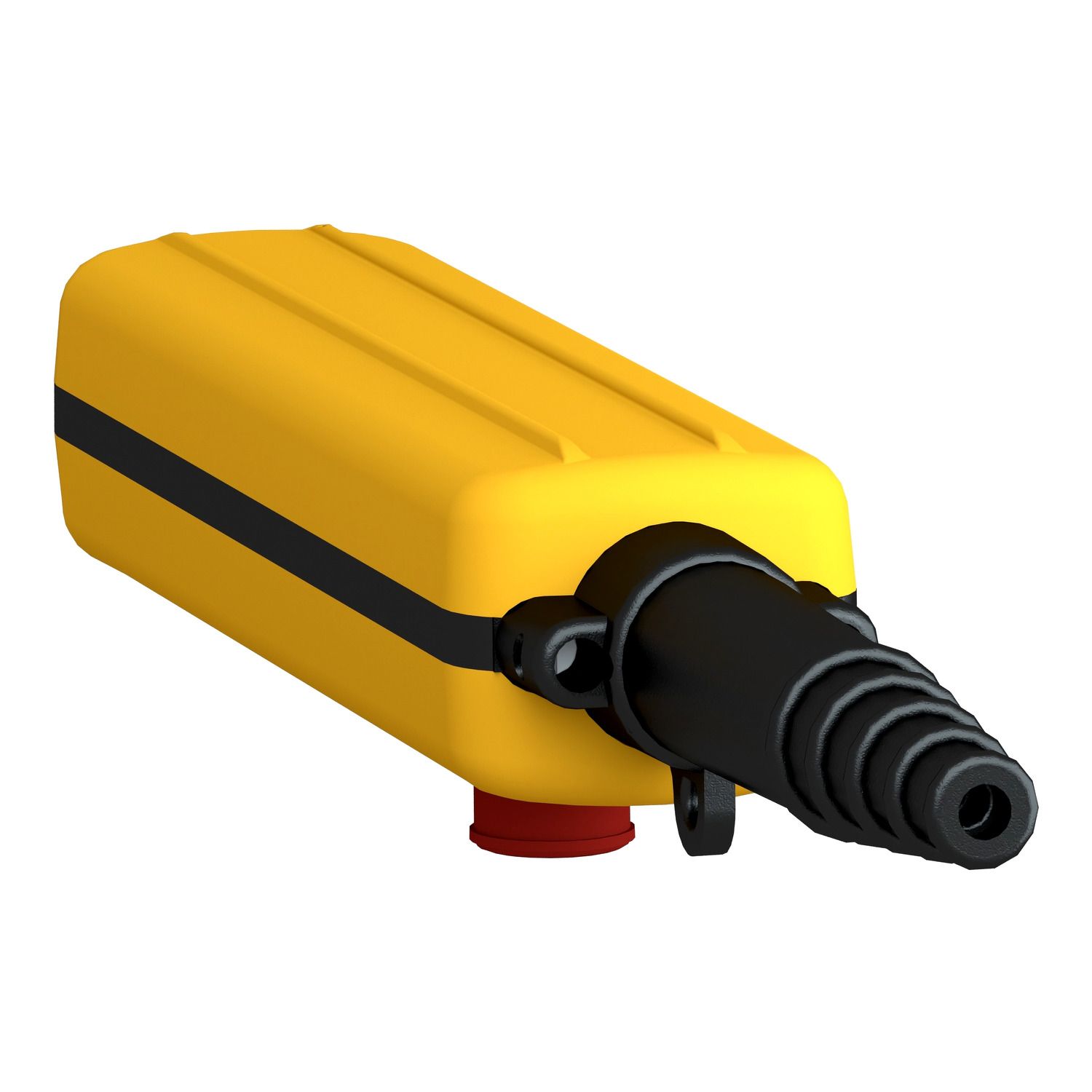

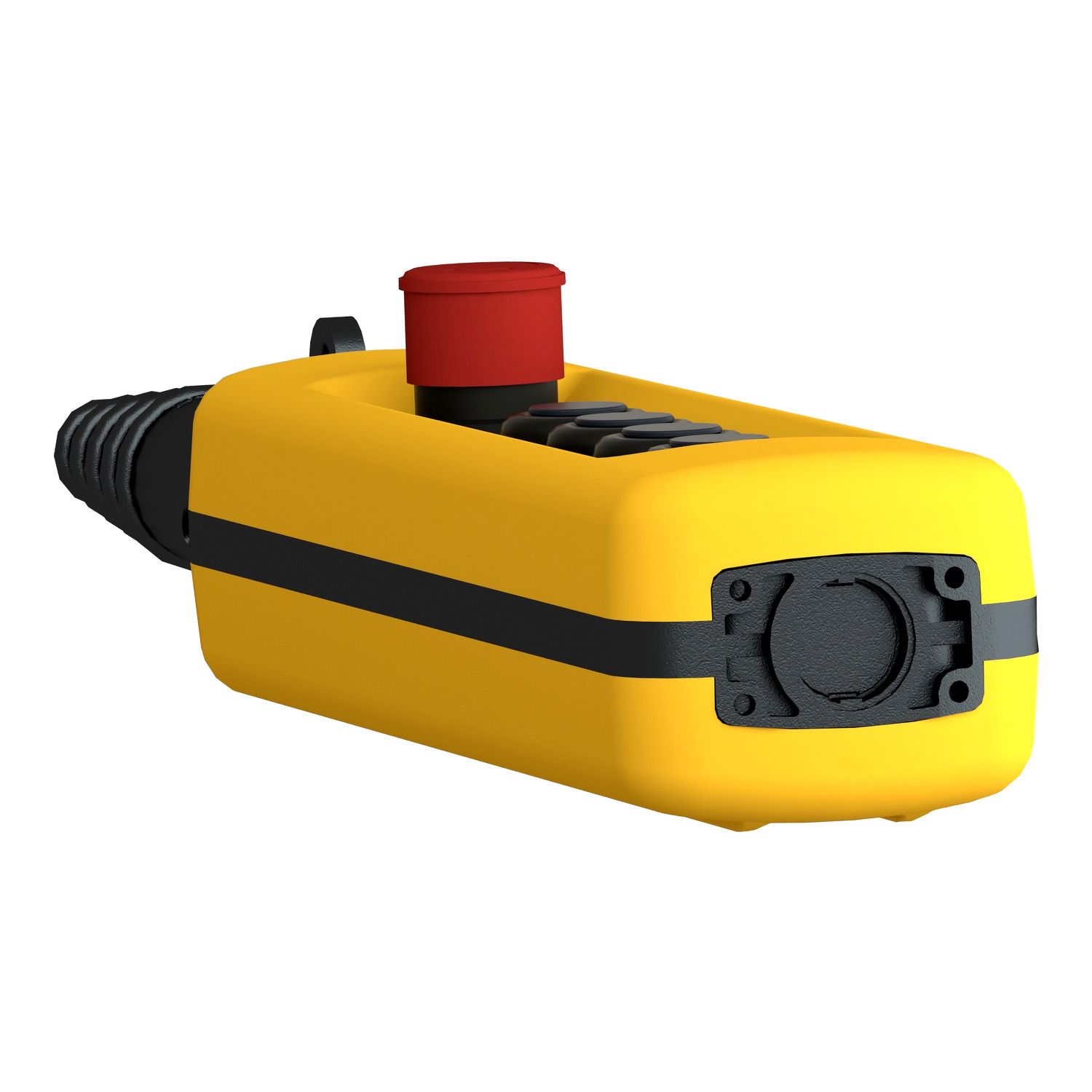

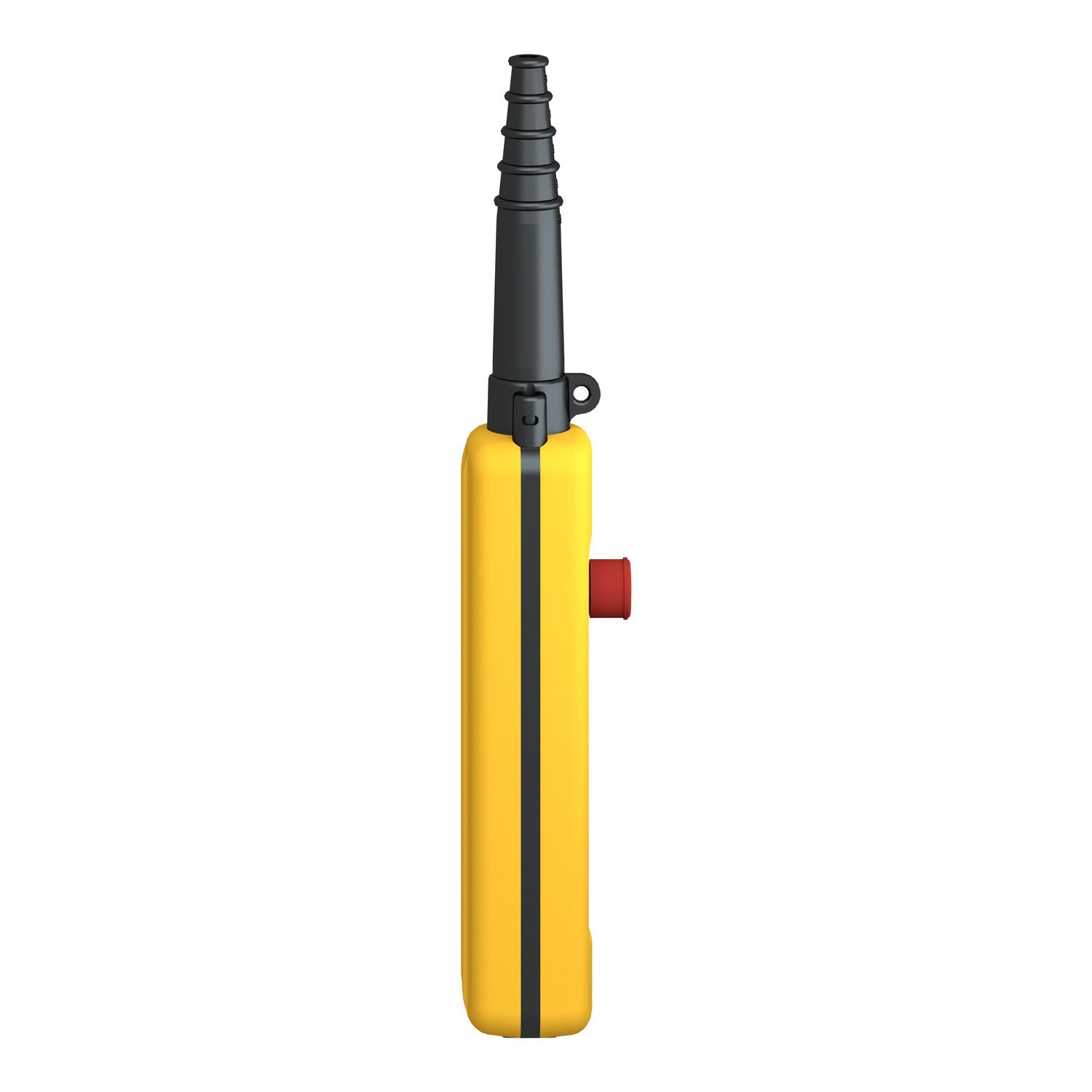

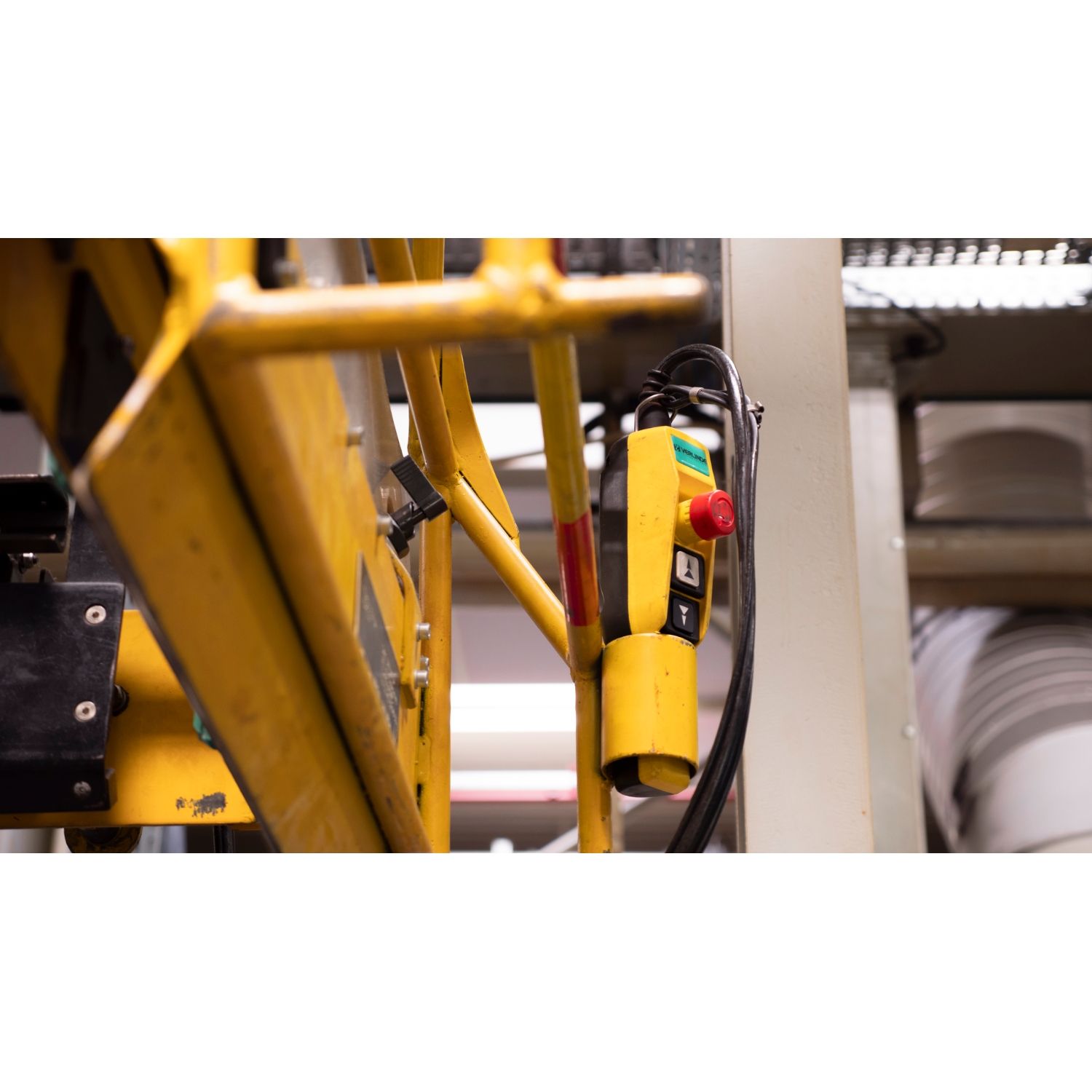

Picture of Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons with 1NO, 1 emergency stop NC
SKU:

XACA4713

Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons with 1NO, 1 emergency stop NC

$502.08
Available for Shipping : 28-Nov-2024
Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons with 1NO, 1 emergency stop NC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise", "lower", "left", "right" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Range of product Harmony XAC
Product or component type pendant control station
Complementary
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Electrical circuit type control circuit
Operating force 8-8 N emergency stop, 10-10 N push-button
Mechanical durability 1000000 cycles
Control station colour yellow
Contact operation slow-break
Ambient air temperature for storage -40-70 °C
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
Product compatibility ZB2BE102 for emergency stop, ZB2BE101 for each direction
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to EN 50102
Control station application control of single speed hoist motor
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Control button type stop push-button Ø 40 mm 1 NC latching, third push-button 1 NO right, slow, fourth push-button 1 NO left, slow, second push-button 1 NO lower, slow, first push-button 1 NO raise, slow
Mechanical interlocking with mechanical interlocking between pairs
Overvoltage category class II conforming to IEC 61140
Control station composition 4 push-buttons + 1 emergency stop
[Ui] rated insulation voltage 600 V (pollution degree 3)
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.8 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cable entry rubber sleeve with stepped entry 8-26 mm
Standards EN/IEC 60204-32, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Terminals description ISO n°1 (13-14)NO
Terminals description ISO n°2 (11-12)NC
Terminal identifier (13-14)NO, (11-12)NC
Product certifications CCC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 51.9 cm
Package 1 Length 11.3 cm
Package 1 Weight 794.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 73.5 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 36.82 kg
