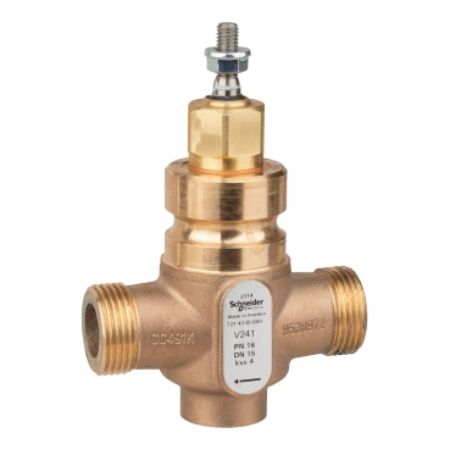

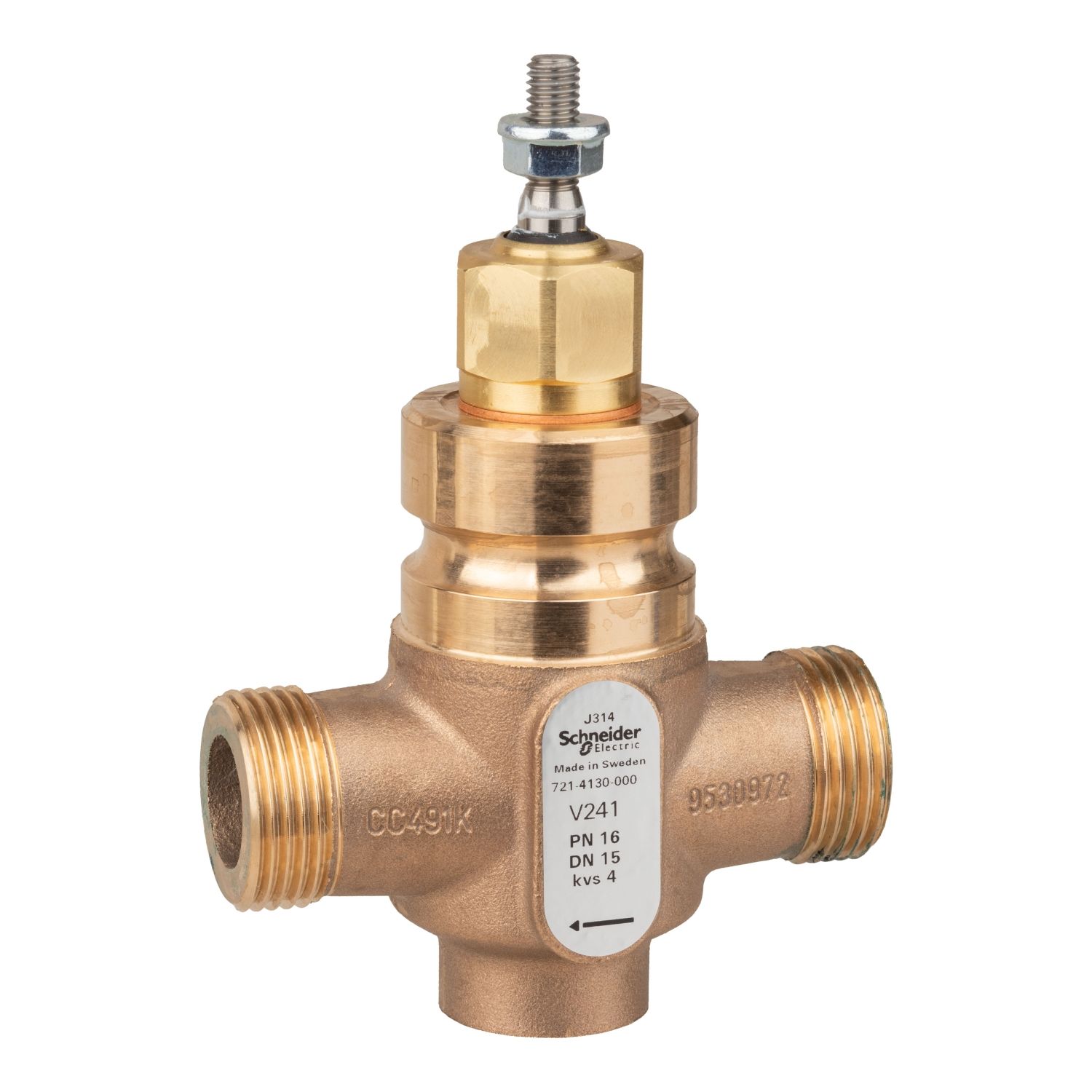

Picture of Venta V241 Globe Valve, 2-Way, PN16, G 1 External Thread, DN15, Kvs 4.0, Bronze Body, Stainless Trim, Stem Up Closed.
SKU:

7214130000

Venta V241 Globe Valve, 2-Way, PN16, G 1 External Thread, DN15, Kvs 4.0, Bronze Body, Stainless Trim, Stem Up Closed.

Please Contact Sales to buy this Product. click here
Venta V241 Globe Valve, 2-Way, PN16, G 1 External Thread, DN15, Kvs 4.0, Bronze Body, Stainless Trim, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very service long life
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN15, G External thread, Flow capacity, Kvs: 4 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1 External (Male) Connection.

Products specifications

Attribute nameAttribute value
Main
Operating fluid temperature-20-150 °C
Body materialbronze Rg5
Seat leakagePort A: Less than 0.02 % of kvs
Seat materialPort A: stainless steel AISI 303
Seating seal materialPort A:metal to metal
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Valve connection sizeG 1B
Valve product rangeVenta
Plug materialstainless steel AISI 303
Stem movementlinear
Valve typeglobe
Valve modelV241/15/4.0
Packing materialEPDM (ethylene propylene diene monomer)
Valve connection typeG External
Flow characteristicequal percentage
Pipe size15 mm
Pressure classPN16
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeabilitygreater than 50:1
Valve product seriesV241
Flow coefficient4 kvs, 4.62 cv
Stem flow actionStem up closed
Valve configuration2-Way
Pressure fluid max delta P normal life87 psi
Stem seal materialEPDM (ethylene propylene diene monomer)
Trim materialstainless steel
Stroke length20 mm
Stem materialstainless steel AISI 303
Body size15 mm (1/2 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.200 cm
Package 1 Width10.200 cm
Package 1 Length6.500 cm
Package 1 Weight491.000 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height15 cm
Package 2 Width15 cm
Package 2 Length40 cm
Package 2 Weight5.110 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height45.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight175.520 kg
