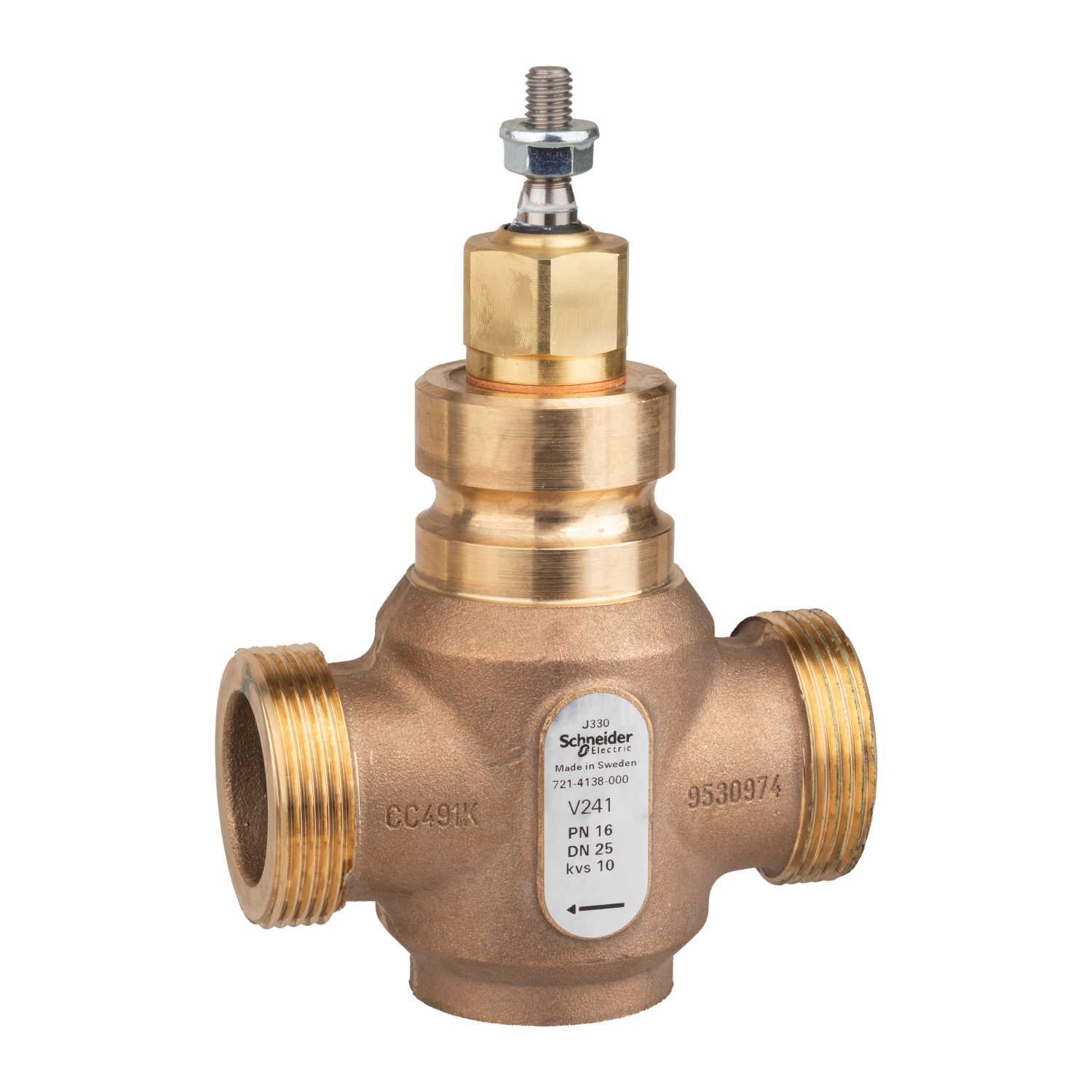

Picture of Venta V241 Globe Valve, 2-Way, PN16, G 1-1/2 External Thread, DN25, Kvs 10, Bronze Body, Stainless Trim, Stem Up Closed.
SKU:

7214138000

Venta V241 Globe Valve, 2-Way, PN16, G 1-1/2 External Thread, DN25, Kvs 10, Bronze Body, Stainless Trim, Stem Up Closed.

Please Contact Sales to buy this Product. click here
Venta V241 Globe Valve, 2-Way, PN16, G 1-1/2 External Thread, DN25, Kvs 10, Bronze Body, Stainless Trim, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very service long life
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN25, G External, Flow capacity, Kvs: 1 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1-1/4 External (Male) Connection.

Products specifications

Attribute nameAttribute value
Main
Operating fluid temperature-20-150 °C
Body materialbronze Rg5
Seating seal materialPort A:metal to metal
Seat leakagePort A: Less than 0.02 % of kvs
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Valve connection sizeG 1-1/2B
Seat materialPort A: stainless steel AISI 303
Valve product rangeVenta
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeabilitygreater than 100:1
Plug materialstainless steel AISI 303
Valve product seriesV241
Flow coefficient10 kvs, 11.56 cv
Stem flow actionStem up closed
Valve configuration2-Way
Stem movementlinear
Pressure fluid max delta P normal life87 psi
Valve typeglobe
Valve modelV241/25/10
Packing materialEPDM (ethylene propylene diene monomer)
Valve connection typeG External
Stem seal materialEPDM (ethylene propylene diene monomer)
Flow characteristicequal percentage
Trim materialstainless steel
Stroke length20 mm
Stem materialstainless steel AISI 303
Pipe size25 mm
Pressure classPN16
Body size25 mm (1 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.0 cm
Package 1 Width11.5 cm
Package 1 Length17.5 cm
Package 1 Weight1.315 kg
