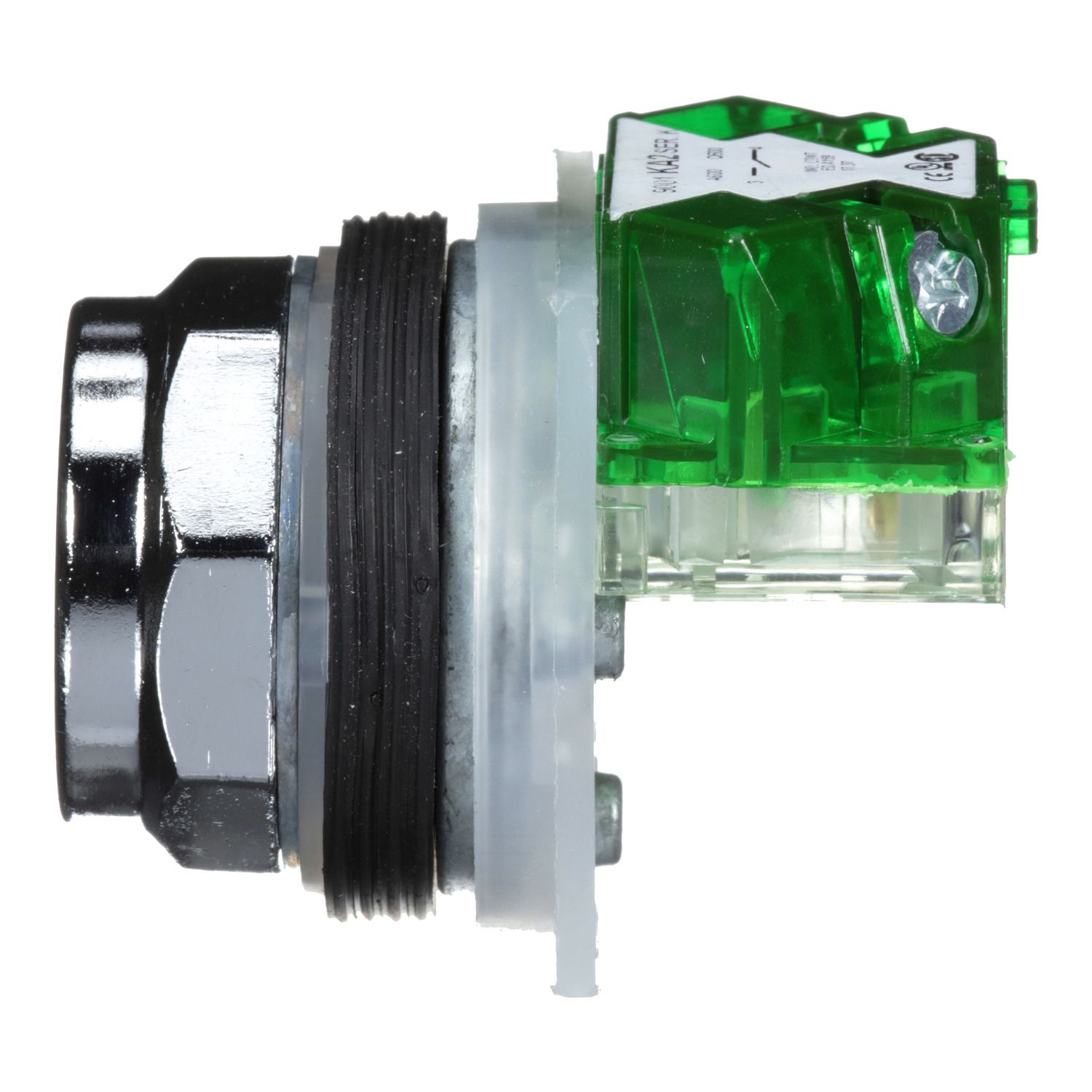

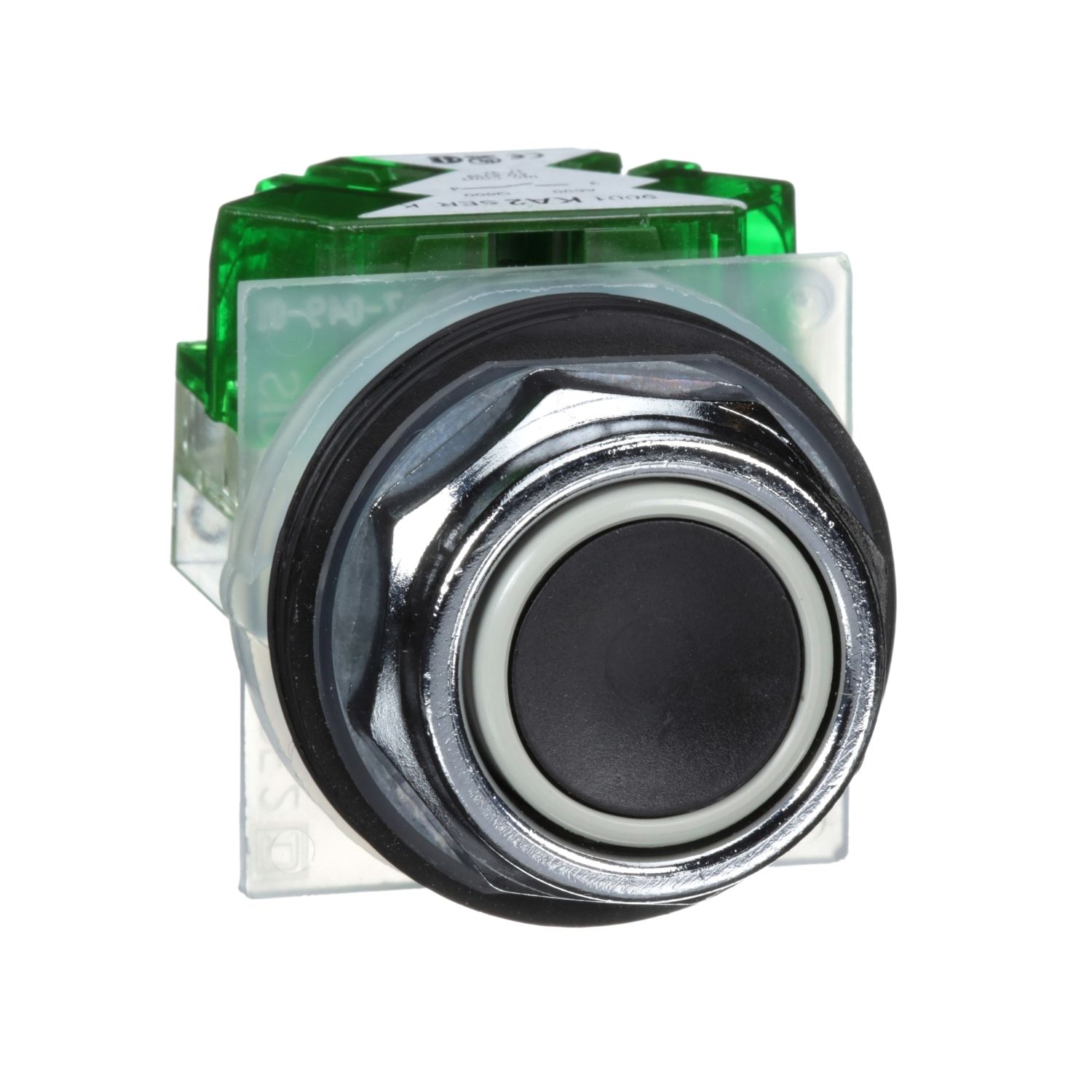

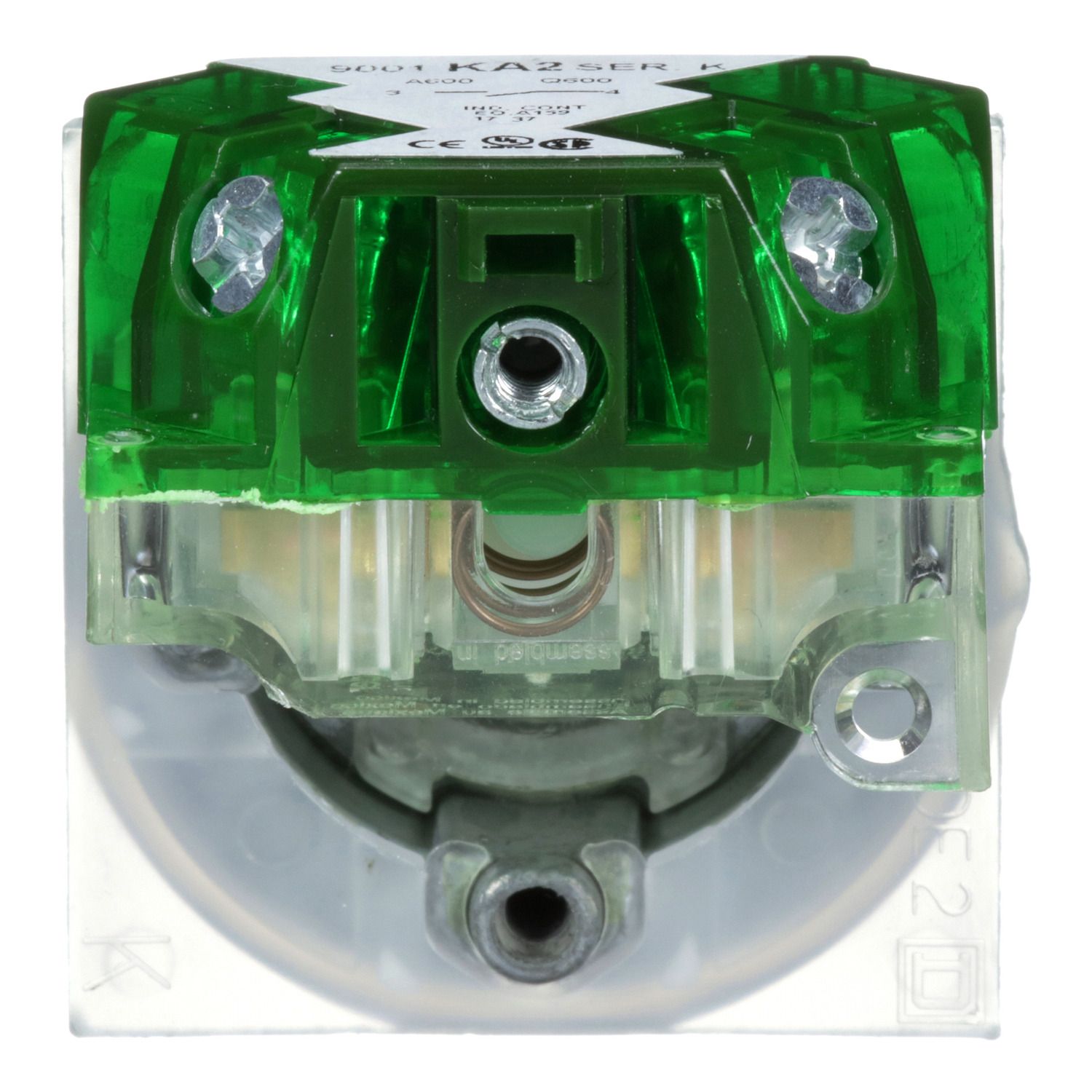

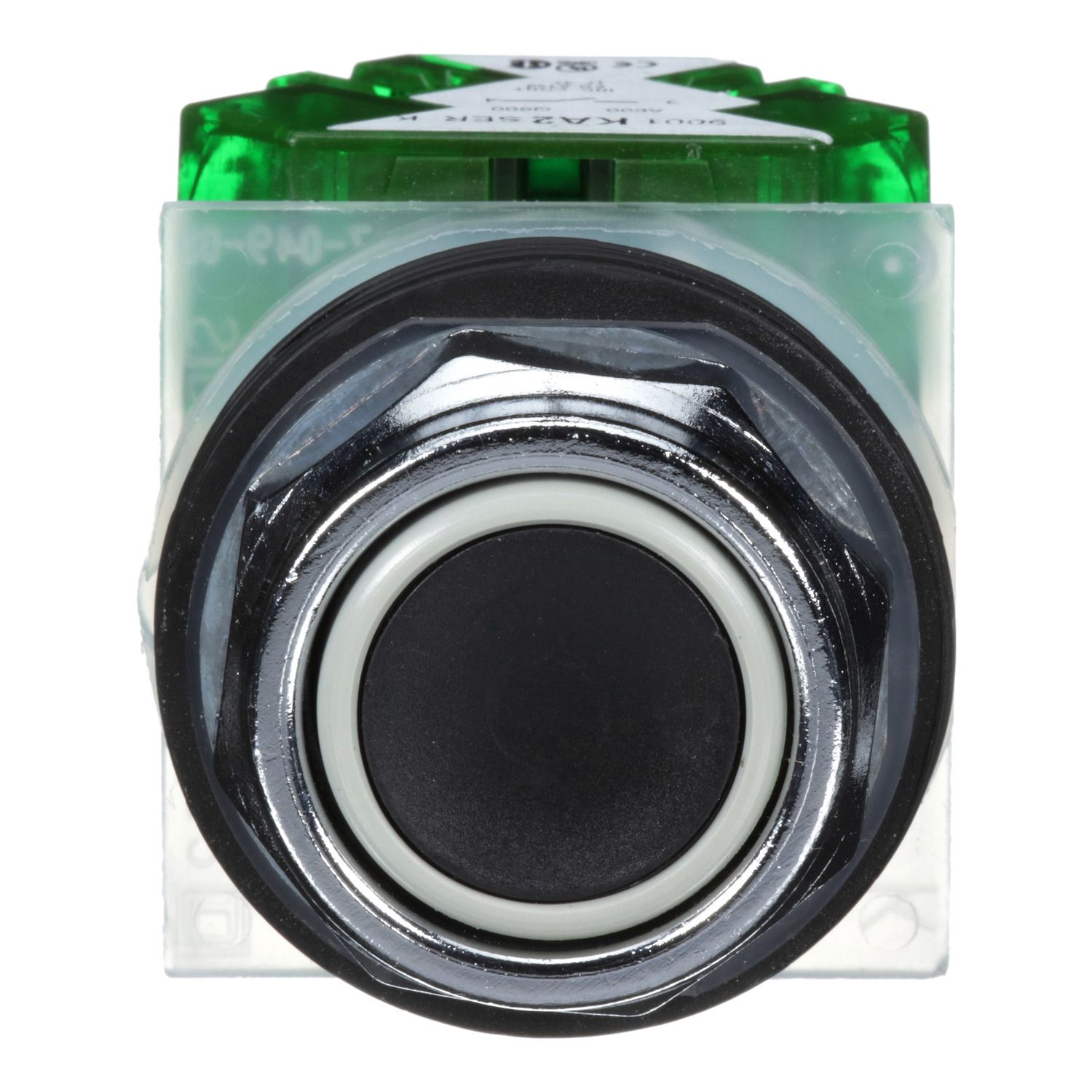

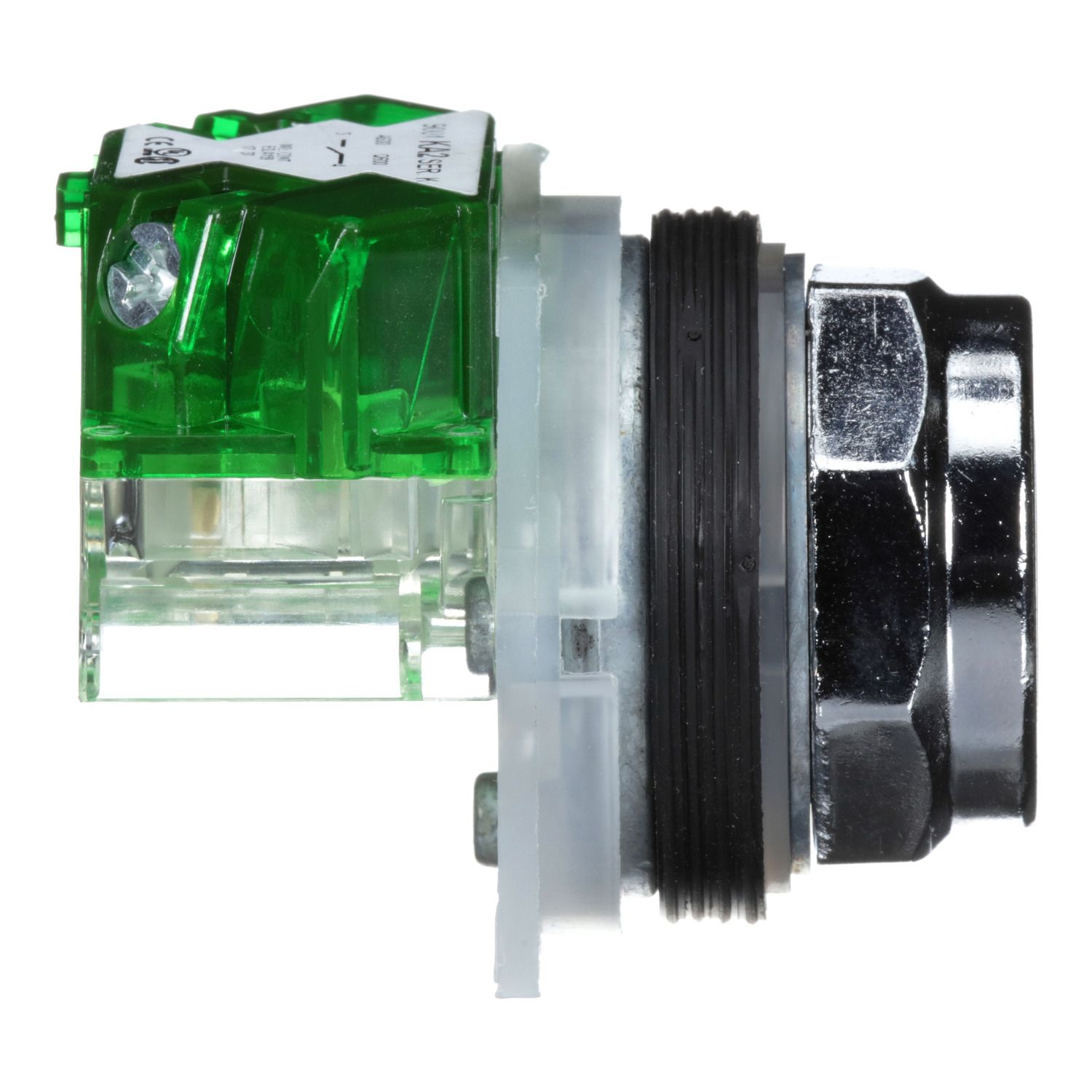

Picture of Push button, Harmony 9001K, metal, flush, black, 30mm, spring return, 1NO
SKU:

9001KR1BH5

Push button, Harmony 9001K, metal, flush, black, 30mm, spring return, 1NO

$64.00
Available for Shipping : 24-Nov-2024
Product Selector
Push button, Harmony 9001K, metal, flush, black, 30mm, spring return, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This black push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 1 x NO contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features spring return flush push. It weighs 121g and its dimensions are, 48mm wide, 45mm high, 56mm deep. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile black flush, unmarked
Product or component type push-button
Type of operator spring return
Range of product Harmony 9001K
Operator additional information metal guard
Complementary
CAD overall depth 56 mm
Shape of screw head cross slotted
CAD overall width 48 mm
Tightening torque 0.8-0.8 N.m conforming to IEC 60947-1
Operating position any position
Type of operator spring return
Compatibility code 9001K
Mechanical durability 5000000 cycles
Contact operation standard
Connections - terminals screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
[Ie] rated operational current 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
Bezel material metal
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 NO
[Icm] rated short-circuit making capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Device presentation complete product
CAD overall height 45 mm
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Size 30 mm
Net weight 0.121 kg
Cap/operator or lens colour black
Shape of signaling unit head octagonal
Rated breaking capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current 10 A
Operator profile flush
Mounting diameter 30 mm
Positive opening without
Contacts material silver alloy contacts
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-1, JIS C 852, UL 508, CSA C22.2 No 14, EN/IEC 60947-1
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 5.8 cm
Package 1 Length 5.0 cm
Package 1 Weight 123.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.128 kg

Related products

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

9001KA1
$64.00
View Detail

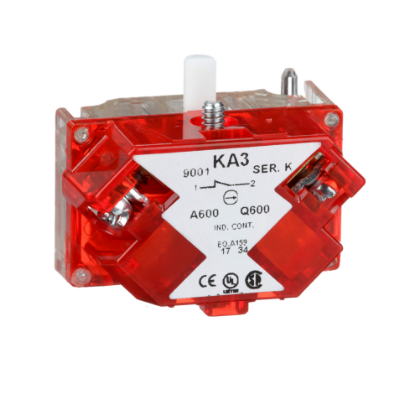

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

9001KA3
$46.01
View Detail
Picture of Padlocking device, Harmony 9001K, Harmony 9001SK, 30mm, for illuminated push button

Padlocking device, Harmony 9001K, Harmony 9001SK, 30mm, for illuminated push button

9001K62
$95.98
View Detail

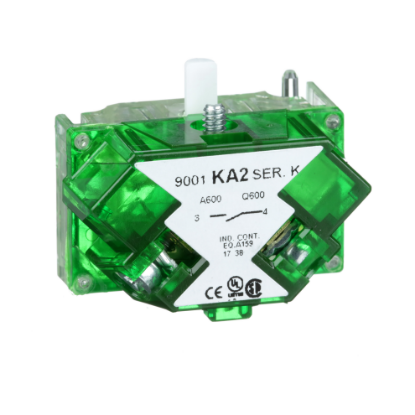

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

9001KA2
$46.01
View Detail

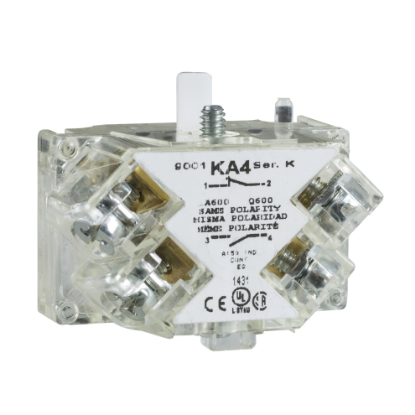

Picture of Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

9001KA4
$58.91
View Detail

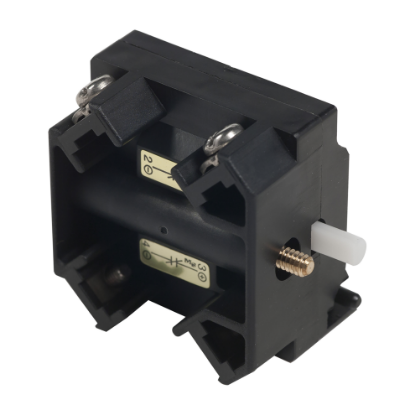

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

9001KA41
$83.15
View Detail

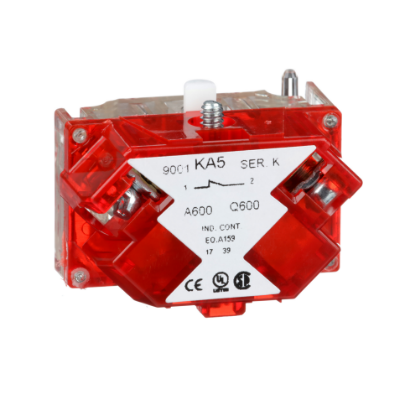

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

9001KA5
$46.01
View Detail

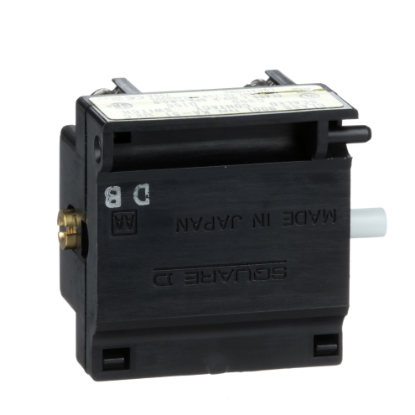

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO
