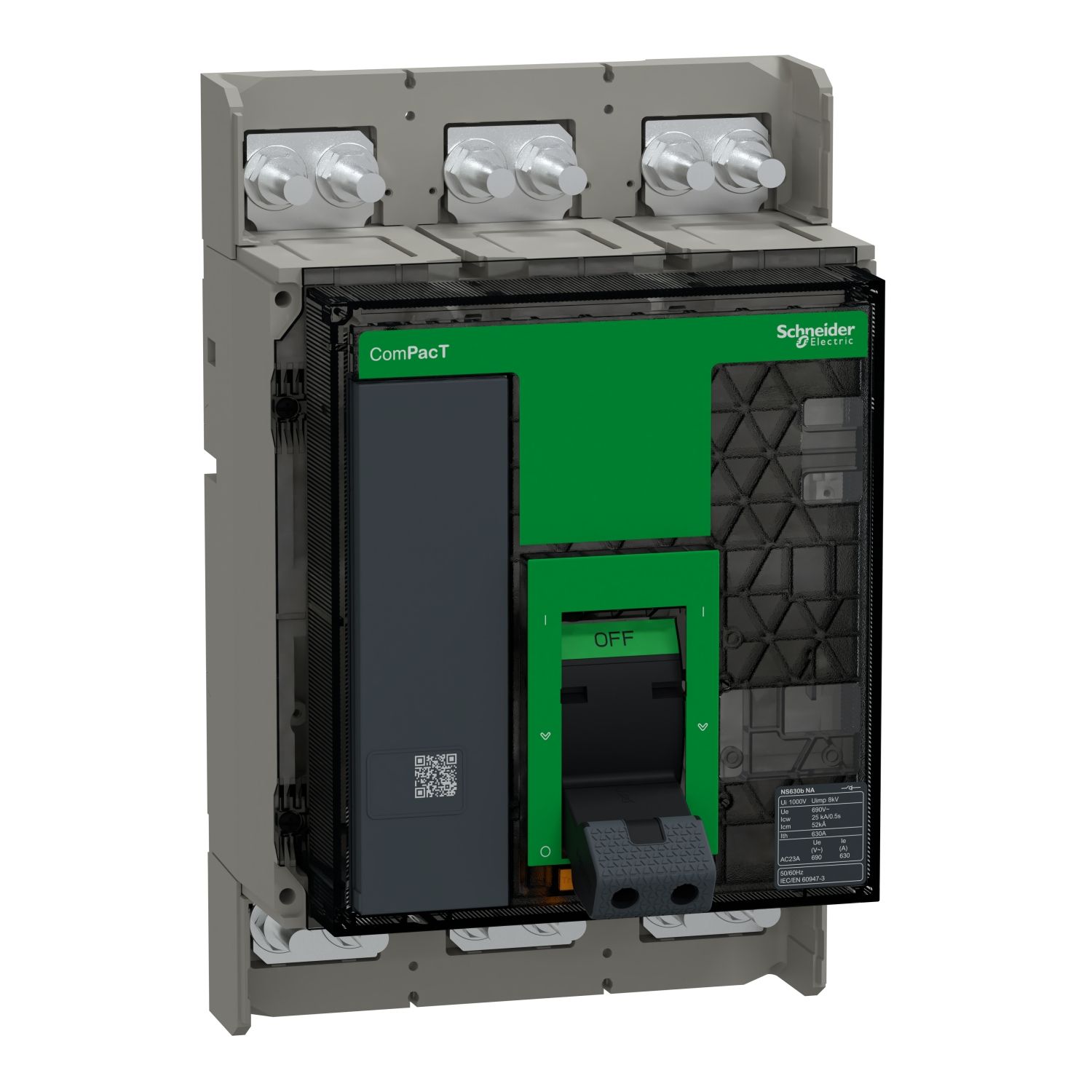

Switch disconnector, ComPacT NS630b NA, 3P, fixed, manually operated, 630A

$4,019.57
Available for Shipping : 08-Dec-2024
Product Selector
Switch disconnector, ComPacT NS630b NA, 3P, fixed, manually operated, 630A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
User guide
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This switch disconnector is part of the new generation of ComPacT NS630bNA to NS1600NA range. ComPacT NS new generation keeps the same performances and comes with a new design and a new ergonomic toggle. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS630bNA is a complete 3 poles switch disconnector used to control and isolate electrical distribution circuits. This device is a fixed version, front connected and manually operated. The operational voltage is 690VAC 50/60Hz. The operational current (Ie) is 630A (AC23A), and the conventional thermal current (Ith) is 630A at 60°C. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to IEC 60947-3
Network type AC
Range ComPacT
Range of product ComPacT NS630b...1600 new generation
Poles description 3P
Product name ComPacT NS new generation
Product or component type switch disconnector
Breaking capacity code NA
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
Compatibility code NS630b
[Ie] rated operational current AC-23A: 630 A AC 50/60 Hz 660/690 V, AC-23A: 630 A AC 50/60 Hz 500/525 V, AC-23A: 630 A AC 50/60 Hz 440/480 V, AC-23A: 630 A AC 50/60 Hz 380/415 V, AC-23A: 630 A AC 50/60 Hz 220/240 V
Electrical durability 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Downside connection front
Height 210 mm
Mechanical durability 10000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
Net weight 14 kg
[Icw] rated short-time withstand current 4 kA during 20 s conforming to IEC 60947-3, 25 kA during 0.5 s conforming to IEC 60947-3
Mounting mode fixed
Upside connection front
Control type manually operated
[Ith] conventional free air thermal current 630 A at 60 °C
Connection pitch 70 mm
Depth 147 mm
Width 327 mm
[Icm] rated short-circuit making capacity 52 kA 690 V AC at 50/60 Hz
Visible break no
Contact position indicator yes
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Product certifications IECEE CB Scheme
Pollution degree 3 conforming to IEC 60947-3
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Standards IEC 60947-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 11.870 kg
