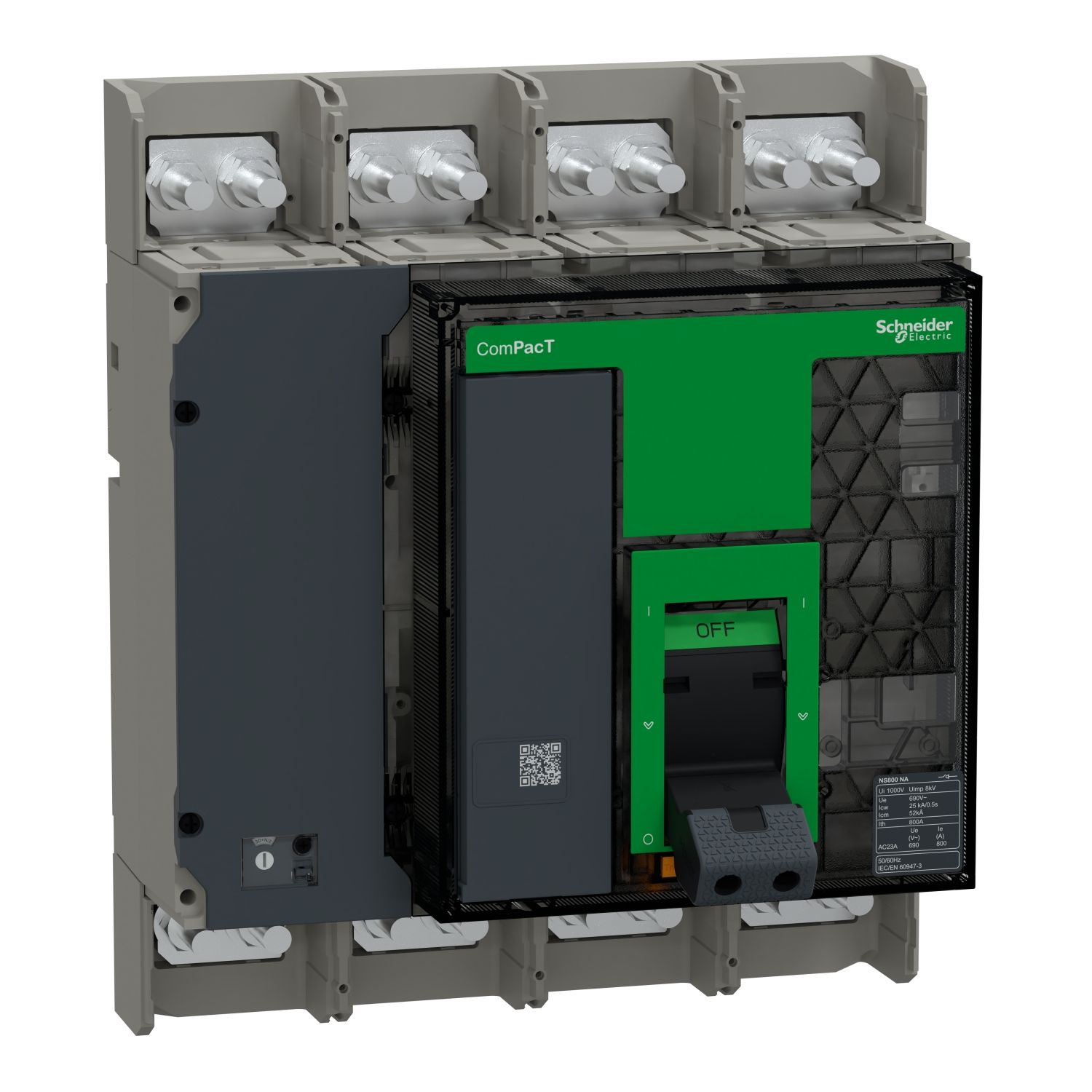

Picture of Switch disconnector, ComPacT NS800 NA, 4P, fixed, manually operated, 800A
SKU:

C080S4NAFM

Switch disconnector, ComPacT NS800 NA, 4P, fixed, manually operated, 800A

Please Contact Sales to buy this Product. click here
Product Selector
Switch disconnector, ComPacT NS800 NA, 4P, fixed, manually operated, 800A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Oct-2024
Catalogue
User guide
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This switch disconnector is part of the new generation of ComPacT NS630bNA to NS1600NA range. ComPacT NS new generation keeps the same performances and comes with a new design and a new ergonomic toggle. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS800NA is a complete 4 poles switch disconnector used to control and isolate electrical distribution circuits. This device is a fixed version, front connected and manually operated. The operational voltage is 690VAC 50/60Hz. The operational current (Ie) is 800A (AC23A), and the conventional thermal current (Ith) is 800A at 60°C. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 280mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Suitability for isolationyes conforming to IEC 60947-3
Network typeAC
RangeComPacT
Range of productComPacT NS630b...1600 new generation
Poles description4P
Product nameComPacT NS new generation
Product or component typeswitch disconnector
Breaking capacity codeNA
Complementary
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-3
Compatibility codeNS800
[Ie] rated operational currentAC-23A: 800 A AC 50/60 Hz 660/690 V, AC-23A: 800 A AC 50/60 Hz 500/525 V, AC-23A: 800 A AC 50/60 Hz 440/480 V, AC-23A: 800 A AC 50/60 Hz 380/415 V, AC-23A: 800 A AC 50/60 Hz 220/240 V
Electrical durability2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Downside connectionfront
Height280 mm
Mechanical durability10000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-3
Net weight18 kg
[Icw] rated short-time withstand current4 kA during 20 s conforming to IEC 60947-3, 25 kA during 0.5 s conforming to IEC 60947-3
Mounting modefixed
Upside connectionfront
Control typemanually operated
[Ith] conventional free air thermal current800 A at 60 °C
Connection pitch70 mm
Depth147 mm
Width327 mm
[Icm] rated short-circuit making capacity52 kA 690 V AC at 50/60 Hz
Visible breakno
Contact position indicatoryes
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency50/60 Hz
Environment
Ambient air temperature for storage-50-85 °C
Product certificationsIECEE CB Scheme
Pollution degree3 conforming to IEC 60947-3
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to EN 50102
StandardsIEC 60947-3
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height30.000 cm
Package 1 Width40.000 cm
Package 1 Length60.000 cm
Package 1 Weight15.241 kg
