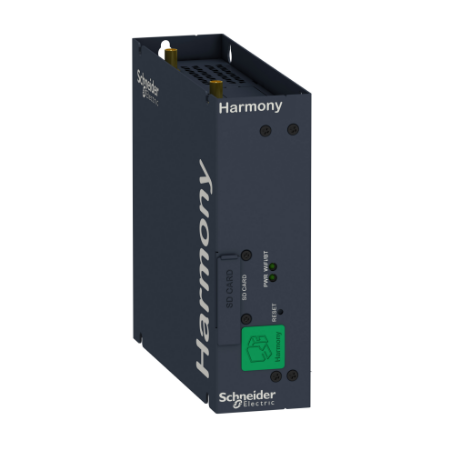

Picture of EV charge controller, EcoStruxure EV Charging Expert, 15 charging stations, dynamic charge management
SKU:

HMIBSCEA53D1EDS

EV charge controller, EcoStruxure EV Charging Expert, 15 charging stations, dynamic charge management

$5,367.96
Available for Shipping : 24-Nov-2024
Product Selector
EV charge controller, EcoStruxure EV Charging Expert, 15 charging stations, dynamic charge management
  • Peace of mind - continuity of service while providing controlled EV charging services
  • Cost effective - minimum infrastructure upgrade. On-peak/off-peak tariff settings
  • Connected offer - to embedded dashboard for supervision, to a CPO backend or to BMS
  • Upgradeable and scalable - to a higher level software license to adapt to your needs
  • Easy installation & commissioning - with a configuration assistant and specific features
  • Easy operation - with user access management and charging sessions data registering
  • Easy maintenance - with remote charging station control and logs data registering
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
System user guide
Catalogue
User guide
Product environmental
Brochure
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range EcoStruxure EV Charging Expert
Type of installation indoor
Product name EcoStruxure EV Charging Expert
Product or component type EV charge controller
Complementary
Load type 30 charge points
Charge management dynamic
Device application to manage the overall energy allocated to each vehicle
Depth 46 mm
Width 157 mm
Mounting position horizontal/vertical
Input type energy meter
Software version JSON
Number of devices 15 charging stations
Mounting mode wall mount
Function available with time-of-use settings, without priority charging profile
Number of zones 2
Communication service via Modem, web server for OCPP 1.6
Communication interface modem to connect device to central management system, Ethernet RJ45 Cat.6 to connect device to charging station, Ethernet RJ45 to connect device to charging station
Net weight 1 kg
Total number of groups 2
Services commercial service plan0...50 °C
Electromagnetic compatibility conducted and radiated emissions class A conforming to EN 55022
Power consumption in W 16 W
Range compatibility EVlink EVlink City, EVlink EVlink parking, EVlink EVlink Smart Wallbox
Mounting support rail
Standards EN/IEC 61000-6-4, EN 55011, EN/IEC 61131-2
Height 150 mm
Targeted country all
[Us] rated supply voltage 12...24 V DC
Installed device meter device (to be ordered separately), modem 3G/4G (to be ordered separately)
Product certifications RCM, EAC, CE
Environment
Operating altitude 0...2000 m
IP degree of protection IP40
Ambient air temperature for storage -20-60 °C
Relative humidity 10-95 %
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 22.0 cm
Package 1 Length 32.5 cm
Package 1 Weight 1.408 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 9.244 kg

Related products

Picture of Acti9, IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID

Acti9, IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID

A9MEM3255
$767.36
View Detail

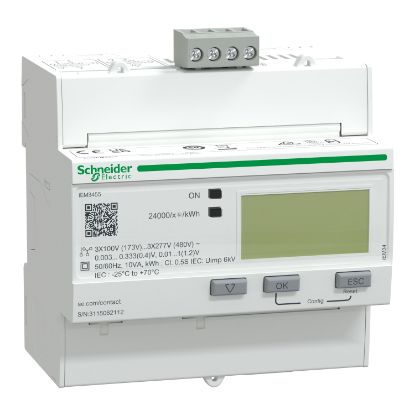

Picture of Acti9, IEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT

Acti9, IEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT

A9MEM3455
$792.47
View Detail

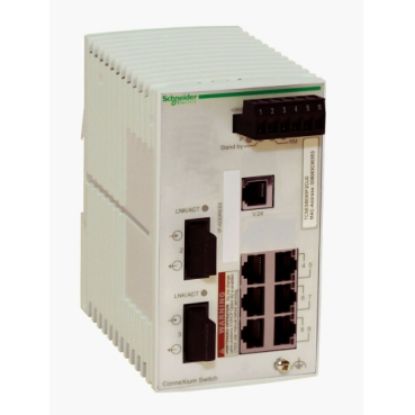

Picture of network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode
