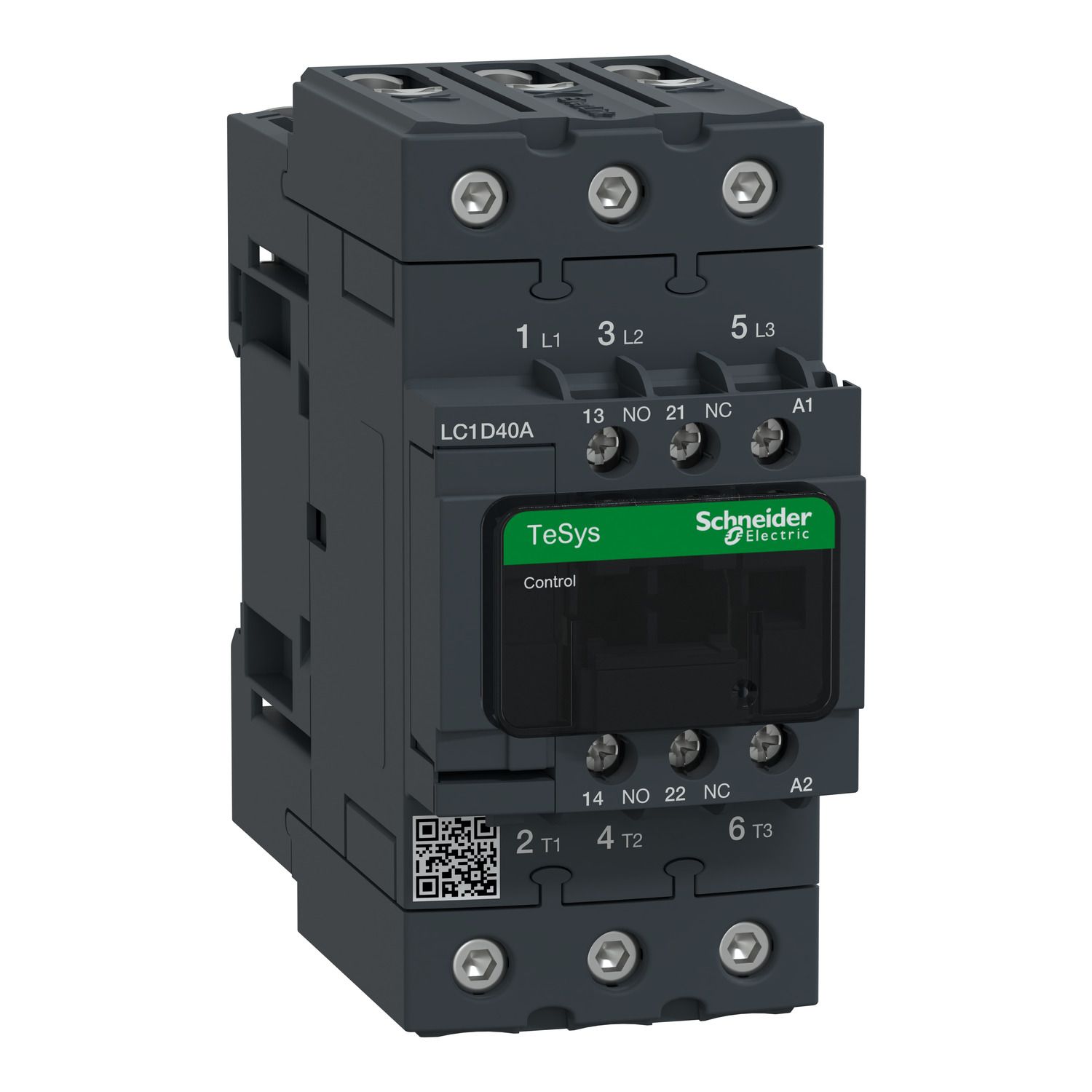

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 220VAC 50/60Hz coil
SKU:

LC1D40AM7

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 220VAC 50/60Hz coil

$366.01
Available for Shipping : 24-Nov-2024
Product Selector
TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 220VAC 50/60Hz coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
CAD
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3e, AC-3, AC-1, AC-4
[Uc] control circuit voltage 220 V AC 50/60 Hz
Device short name LC1D
Range TeSys Deca, TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 1.5 Mcycles 40 A AC-3e at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V, 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type AC at 50/60 Hz standard
Protective cover with
[Ui] rated insulation voltage power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in suppressor module
Inrush power in VA 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole 2.4 W AC-3e, 5.4 W AC-1, 2.4 W AC-3
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 4-5 W at 50/60 Hz
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit
Mechanical durability 6 Mcycles
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 12...26 ms closing, 4...19 ms opening
Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp 30 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 3 hp at 115 V AC 50/60 Hz for 1 phase motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
Motor power kW 30 kW at 660...690 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 22 kW at 415...440 V AC 50/60 Hz (AC-3e), 11 kW at 220...230 V AC 50/60 Hz (AC-3e), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3e), 9 kW at 400 V AC 50/60 Hz (AC-4), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 22 kW at 415...440 V AC 50/60 Hz (AC-3), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Contact compatibility M2
Mounting support rail, plate
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor open (10 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 122 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 0.85 kg
Product certifications CSA, UL, GOST, CCC
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 120 mm
Width 55 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 13.5 cm
Package 1 Length 15.2 cm
Package 1 Weight 915.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.776 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 77.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 164.9 kg

Related products

Picture of TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

LAD8N02
$67.81
View Detail
Picture of TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

LAD8N11
$67.81
View Detail
Picture of TeSys, Auxiliary contact block, TeSys Deca, 2NO, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 2NO, side mounting, screw clamp terminals

LAD8N20
$67.73
View Detail

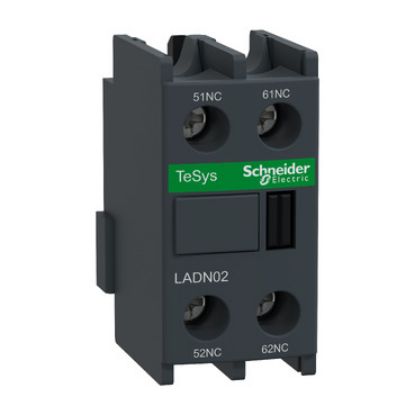

Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NC, front mounting, screw clamp terminals
