SKU:

NSYS3D121240DP

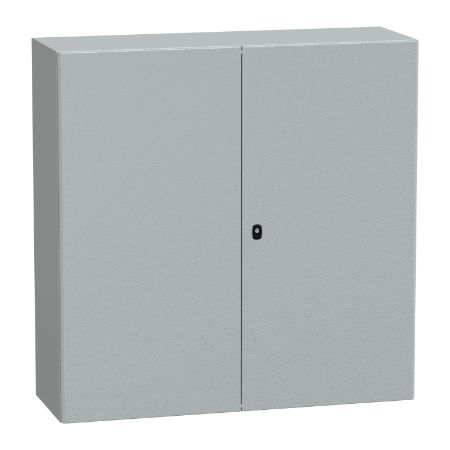

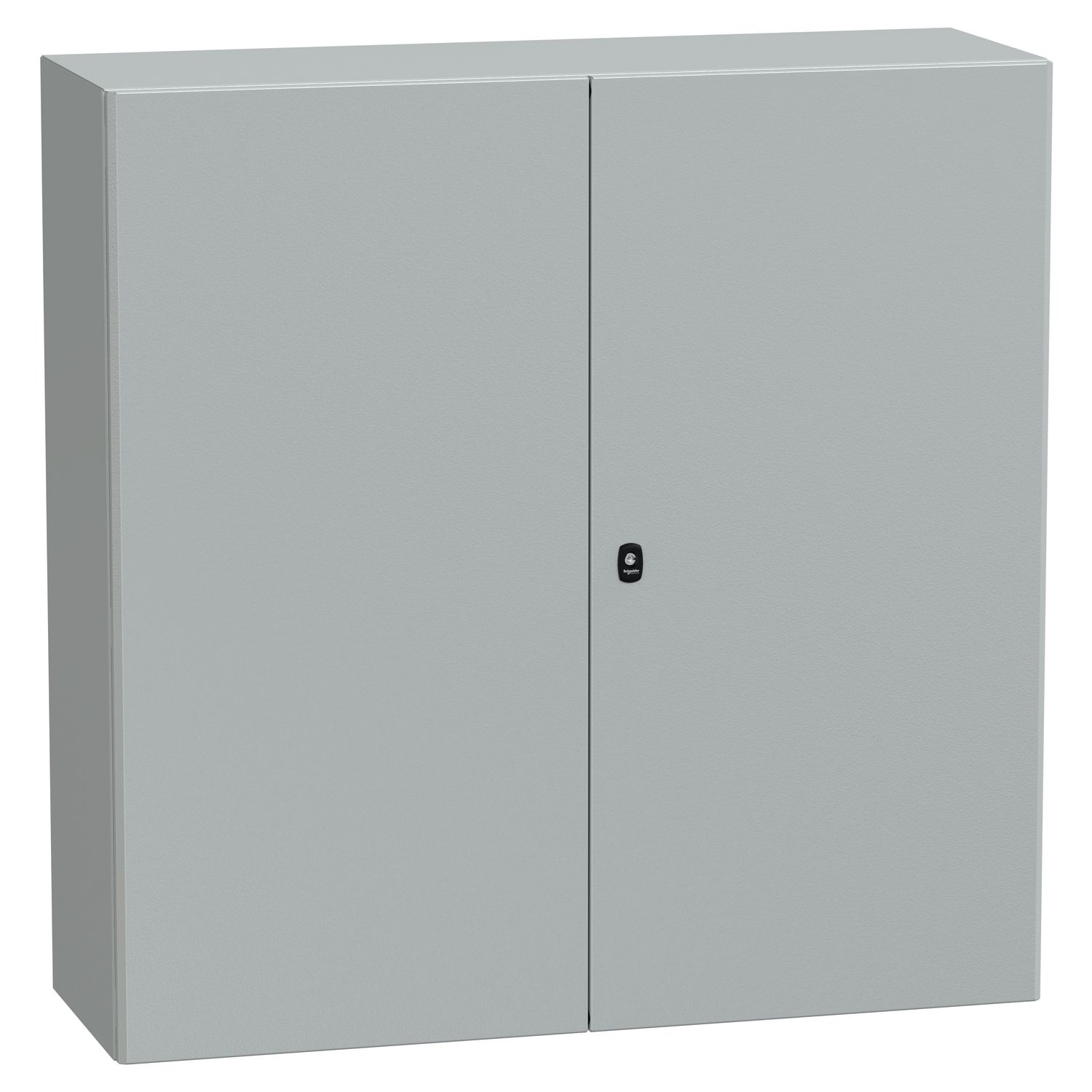

Spacial, Wall mounted steel enclosure, Spacial S3D, double plain door, with mounting plate, 1200x1200x400mm, IP55, IK10

$1,569.84
Available for Shipping : 18-Mar-2025
Spacial, Wall mounted steel enclosure, Spacial S3D, double plain door, with mounting plate, 1200x1200x400mm, IP55, IK10
Manufacturer: Schneider Electric
Spacial S3D wall mounted steel enclosure with plain door. 1199 x 1200 x 400 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Enclosure nominal width 1200 mm
Device application multi-purpose
Enclosure nominal depth 400 mm
Door type plain
Range Spacial
Enclosure nominal height 1200 mm
Device composition 1 mounting plate, 2 door with lock, 2 cable gland plate, 1 body
Product name Spacial S3D
Product or component type compact enclosure
Installation accessory type wall-mounting
Type of gland plate standard
Complementary
Colour enclosure: grey (RAL 7035)
Surface finish enclosure: epoxy-polyester powder
Material mounting plate: galvanised steel, enclosure: steel
Number of doors front face: 2 door(s)
Door opening side reversible (120 °)
Net weight 112 kg
Lock type 3 points lock, 3 mm double-bar
Variant particularity gutter-shaped front rail double sheet thickness, single piece body
Standards IEC 62208
Removable parts mounting plate by fixing element, cable gland plate by screws, door by hinges
Accessibility for operation front
Product certifications cUL, DNV, BV, GL, UL, LR
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 45.0 cm
Package 1 Width 122.0 cm
Package 1 Length 133.0 cm
Package 1 Weight 112.0 kg
