SKU:

SXWASPXXX10002

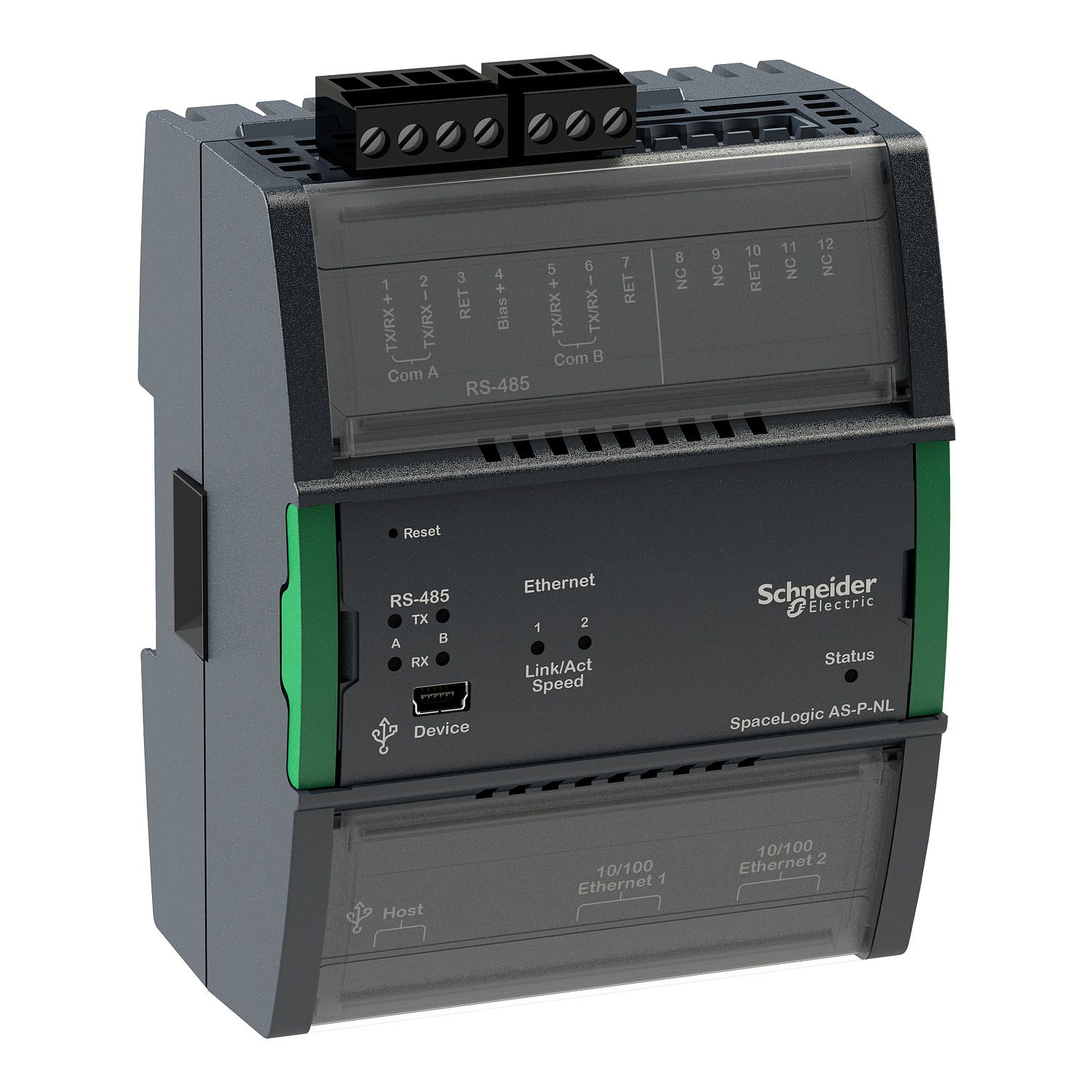

Automation server, SpaceLogic, AS-P-NL, 2 RS-485 ports, 2 10/100 ethernet ports

$8,422.38

Qty:

Available for Shipping : 24-Nov-2024

Automation server, SpaceLogic, AS-P-NL, 2 RS-485 ports, 2 10/100 ethernet ports

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

End of life manual

CAD

Instruction sheet

Product Page Link

Product Data Sheet

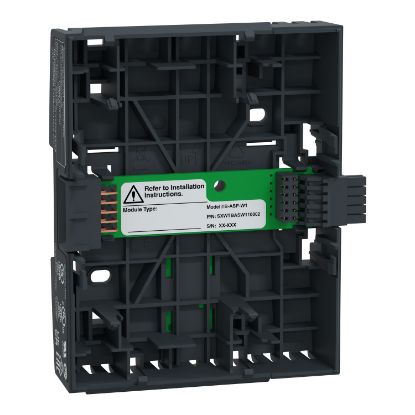

The SpaceLogic AS-P-NL server is at the core of an EcoStruxure BMS and performs key functionality. The server performs functionality such as control logic, trend logging and alarm supervision. It supports communication and connectivity to the I/O and field buses. The SpaceLogic AS-P server can act as a standalone server, control I/O modules, monitor and manage field bus devices. This model features two ethernet ports, two RS-485 ports, one I/O bus port, one USB device port and one USB host port. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94-5VB and the ingress protecton rating is IP20. A terminal base TB-ASP-W1 is required for each SpaceLogic AS-P.

Products specifications

Attribute name	Attribute value
Main
IP degree of protection	IP20
Device short name	AS-P-NL
Ambient air temperature for storage	-20-70 °C
Colour	black
Mounting mode	DIN rail mount
Flame retardance	UL94-5VB
Communication service	TLS 1.0
Standards	FCC part 15 Subpart B class B, EN 50491-5-2, EN 61000-6-3, EN 50491-1, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2
Backup time	10 days
Ambient air temperature for operation	0-50 °C
Height	114 mm
Communication port support	ETHERNET 10/100BASE-TX
[Us] rated supply voltage	24 V DC, 24 V AC
Number of port	2 RS485, 1 , connector type: USB host port type A, 1 , connector type: USB device port Mini-B, 2 , connector type: RJ45
Maximum number of connected devices	464
Depth	64 mm
Clock drift	+/- 52 s/month
Width	90 mm
Memory type	512 MB RAM, 4 GB flash
Net weight	0.321 kg
Product or component type	network controller
Power consumption in W	10 W
Network frequency	60 Hz, 50 Hz
Product certifications	RCM, UL listed, cUL listed, BTL B-BC
Complementary
Communication port protocol	TCP (Transmission Control Protocol), Modbus TCP serial line master or slave, HTTPS, HTTP, BACnet
Environment
Relative humidity	0-95 % (RH, non-condensing)

Model	AS-P-NL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.2 cm
Package 1 Width	5.7 cm
Package 1 Length	9.1 cm
Package 1 Weight	279.0 g
