SKU:

SXWRCF16B10001

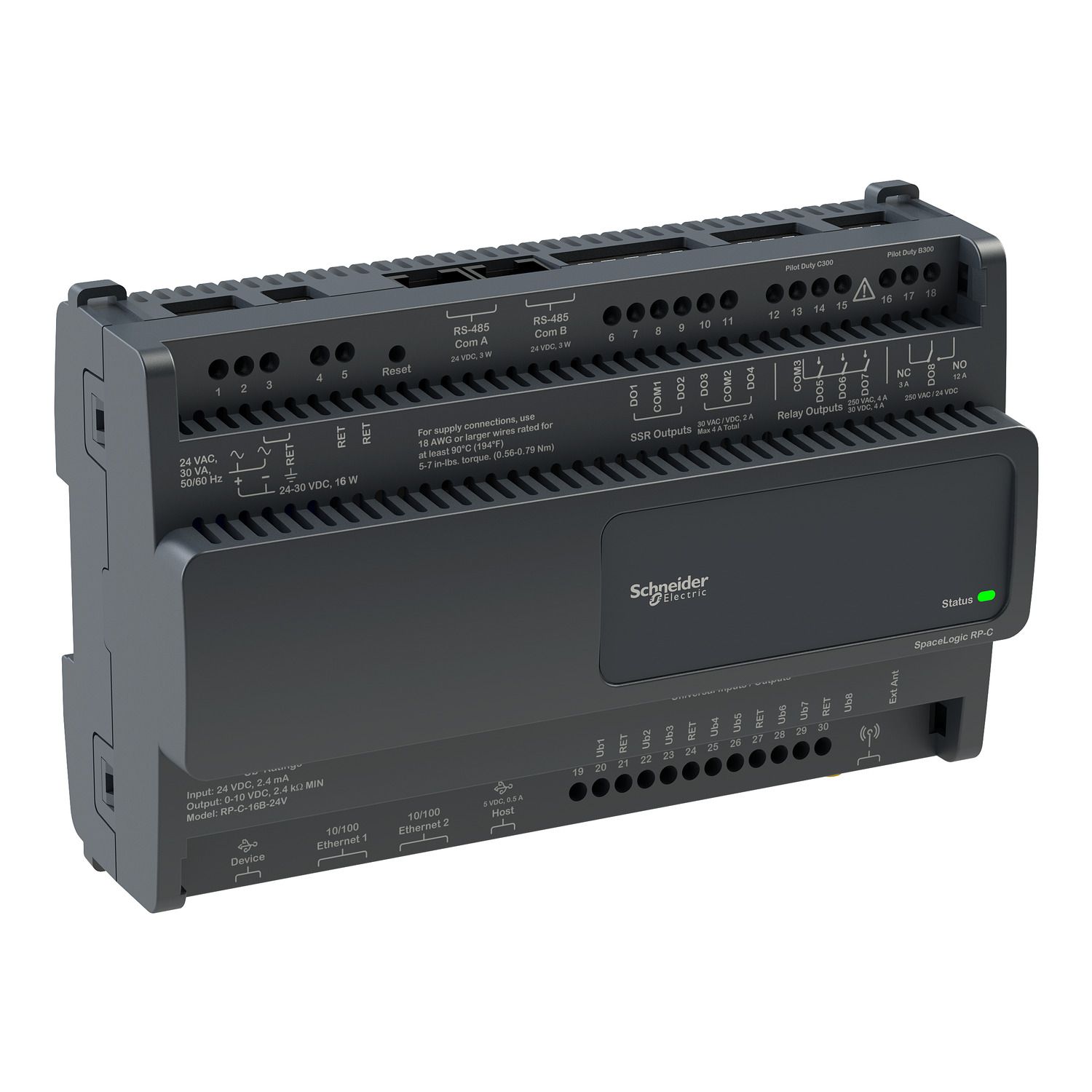

Room controller, SpaceLogic RP-C Pro, 16 points, 24 VAC/DC power supply

Please Contact Sales to buy this Product. click here

Room controller, SpaceLogic RP-C Pro, 16 points, 24 VAC/DC power supply

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 12-Oct-2024

Instruction sheet

Declaration of conformity

CAD

End of life manual

Product environmental

Product Page Link

Product Data Sheet

SpaceLogic RP-C Pro Controller is a high performance multi-room , BACnet IP field controller for Connected Room solutions applications. The RP-C Pro controller has greater memory space and faster processing capabliities for large room and luxury suite applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a AS-P, AS-B or an Enterprise Server as the parent server. The RP-C Pro features a wireless chip that allows the mobile commissioning application to connect directly to the controller. The RP-C-16B-24V has 8 universal I/O Type Ub, 4 solid-state relay outputs, 3 Form A relays and 1 high power relay outputs. Its dimensions are 164 mm (6.5 in.) in height, 181 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. Allows connection of up to 9 CRS extension modules per controller. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute name	Attribute value
Main
Number of port	1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protection	IP20
Device short name	RP-C-16B-F-24V
Device application	chilled beam, low voltage fan coil, HVAC
Clock drift	+/- 1 min/month
Width	180 mm
Input voltage	-0.5...24 V DC for universal input
Product weight	0.39 kg
Relative humidity	0-95 % RH, non-condensing
Power consumption in VA	30 VA
Ambient air temperature for storage	-20-70 °C
Colour	black
Mounting mode	panel-mounted, DIN rail mount
Memory type	128 kB FRAM, 64 MB flash, 128 MB internal
Function available	smart sensor input, programmable
Height	110 mm
Depth	64 mm
Range	SpaceLogic
Input/output type	8 universal I/O
Product or component type	field controller
Protection type	built-in by varistor, internal fuse
Number of outputs	4 solid-state relay output, 1 relay output, 3 form A relay output
Communication port support	ETHERNET 10/100BASE-TX
[Us] rated supply voltage	23...33 V DC, 24...30 V DC, 24 V AC +/- 15 %
Network frequency	60 Hz, 50 Hz
Product certifications	UL listed, cUL listed, RCM
Complementary
Analogue input type	configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...2 mA
Processor name	ARM Cortex-A7
Flame retardance	UL94-5VB
Product name	RP-C Pro
Backup time	7 days
Communication port protocol	BACnet MS/TP, Bluetooth 5.0 LE 2.4 GHz, BACnet IP
Standards	ETSI EN 300 328:v2.1.1, ETSI EN 300 328, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, UL 2043, FCC part 15 Subpart C class B, FCC part 15 Subpart A class B, EN 50491-5-2, EN 61000-6-3

Range	SpaceLogic
Model	RP-C-16B-F-24V
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.9 cm
Package 1 Width	14.0 cm
Package 1 Length	31.5 cm
Package 1 Weight	435.5 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	2.182 kg
