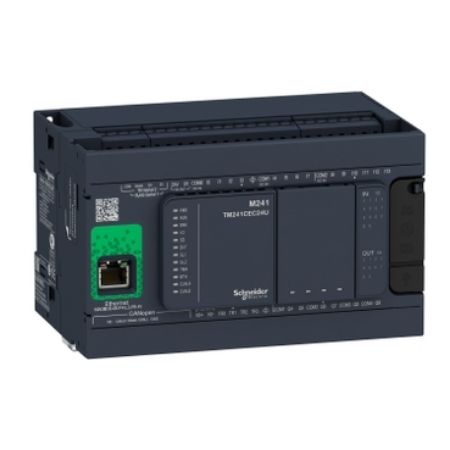

Picture of logic controller, Modicon M241, 24 IO, relay, Ethernet CAN master
SKU:

TM241CEC24R

logic controller, Modicon M241, 24 IO, relay, Ethernet CAN master

$978.79 INC GST
Available for Shipping : 23-Jan-2025
Product Selector
logic controller, Modicon M241, 24 IO, relay, Ethernet CAN master
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
CAD
End of life manual
Declaration of conformity
User guide
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 6 relay, 4 transistor, 4 fast outputs with transistor, ethernet CAN master relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Products specifications

Attribute name Attribute value
Main
Discrete input number 14 , discrete input 8 fast input conforming to IEC 61131-2 Type 1
[Us] rated supply voltage 100...240 V AC
Discrete output voltage 24 V DC for transistor output, 5...250 V AC for relay output, 5...125 V DC for relay output
Discrete output current 0.5 A for transistor output (TR0...TR3), 0.1 A for fast output (PTO mode) (TR0...TR3), 2 A for relay output (Q4...Q9)
Range of product Modicon M241
Discrete output type relay, transistor
Product or component type logic controller
Discrete output number 4 transistor 4 fast output, 6 relay
Complementary
Data storage equipment <= 16 GB SD card (optional)
Number of slave 63 CANopen:
Web services web server
Execution time for 1 KInstruction 0.7 ms for other instruction, 0.3 ms for event and periodic task
Surge withstand 1 kV transistor output common mode conforming to IEC 61000-4-5, 1 kV input common mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5
Control signal type single phase at 200 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), A/B at 100 kHz for fast input (HSC mode)
Supply voltage limits 85-264 V
Configurable filtering time 1 µs for fast input
Discrete I/O number 24
Communication port protocol non isolated serial link: Modbus master/slave
Accuracy +/- 1 % at 0.1-1 kHz for fast output, +/- 0.1 % at 0.02-0.1 kHz for fast output
Positioning functions PTO function 4 channel(s) (positioning frequency: 100 kHz)
Discrete output logic positive logic (source)
CANopen feature profile DS 301 V4.02, DR 303-1
Height 90 mm
Maximum cable distance between devices shielded cable: <3 m for fast output, unshielded cable: <50 m for output, shielded cable: <10 m for fast input, unshielded cable: <50 m for input
Discrete input current 5 mA for input
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Sensor power supply 24-24 V DC at 400 mA supplied by the controller
Integrated connection type CANopen J1939 with male SUB-D 9 connector, Ethernet with RJ45 connector, USB port with mini B USB 2.0 connector, non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface , non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface
Voltage state 1 guaranteed >= 15 V for input
Communication service DNS client, OPC UA server, web server (WebVisu & XWeb system), send and receive email from the controller based on TCP/UDP library, Ethernet/IP adapter, DHCP client, SQL client, FTP client/server, IEC VAR ACCESS, Modbus TCP client, Modbus TCP server, Modbus TCP slave device, SNMP client/server
Net weight 0.53 kg
Maximum number of I/O expansion module 14 (remote I/O-Architecture), 7 (local I/O-Architecture)
Reset time 12 s automatic reset fast output, 10 ms automatic reset output
Battery type BR2032 lithium non-rechargeable, battery life: 4 year(s)
Port Ethernet 10BASE-T/100BASE-TX - 1 port(s) copper cable
Discrete input voltage 24 V
Discrete input logic sink or source
Supply (serial 1)serial link supply: 5 V, <200 mA
Insulation non-insulated between supply and ground, between supply and internal logic at 500 V AC
Protection type without protection for relay output, reverse polarity protection for transistor output, short-circuit and overload protection with automatic reset for transistor output, short-circuit protection for transistor output
Realtime clock with
Maximum output frequency 100 kHz for fast output (PLS mode), 20 kHz for fast output (PWM mode), 1 kHz for transistor output
Memory capacity 64 MB for system memory RAM
Voltage state 0 guaranteed <= 5 V for input
Application structure 3 cyclic master tasks + 1 freewheeling task, 8 event tasks, 8 external event tasks, 4 cyclic master tasks
Backup time 2 years at 25 °C
Marking CE
Transmission rate 20 kbit/s for bus length of 2500-2500 m for CANopen, 50 kbit/s for bus length of 1000-1000 m for CANopen, 125 kbit/s for bus length of 500-500 m for CANopen, 250 kbit/s for bus length of 250-250 m for CANopen, 500 kbit/s for bus length of 100-100 m for CANopen, 800 kbit/s for bus length of 40-40 m for CANopen, 1000 kbit/s for bus length of 20-20 m for CANopen, 10/100 Mbit/s for Ethernet, 480 Mbit/s for bus length of 3-3 m for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Electrical connection removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm),  removable screw terminal blockfor inputs and outputs (pitch 5.08 mm)
Data backed up 128 MB built-in flash memory for backup of user programs
Counting input number 14 standard input at 1 kHz, 4 fast input (HSC mode) at 200 kHz
Depth 95 mm
Maximum number of connections 8 Modbus server, 16 Ethernet/IP device
Width 150 mm
Response time 50 µs turn-on, I0...I13 terminal(s) for input
Local signalling 1 LED (green) for CANopen error, 1 LED (green) for CANopen run, 1 LED (green) for Ethernet port activity, 1 LED per channel (green) for I/O state, 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for SL2, 1 LED (green) for SL1, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for I/O error (I/O), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR
Output voltage limits 277 V AC relay output, 30 V DC transistor output, 125 V DC relay output
Clock drift <= 60 s/month at 25-25 °C
Discrete input voltage type DC
Input impedance 4.7 kOhm for input
Network frequency 50/60 Hz
Environment
Resistance to fast transients 1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Ambient air temperature for storage -25-70 °C
Standards UL 508, Marine specification (LR, ABS, DNV, GL), IEC 61131-2:2007, CSA C22.2 No 213, CSA C22.2 No 142, ANSI/ISA 12-12-01
Immunity to microbreaks 10 ms
Resistance to conducted disturbances 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Operating altitude 0...2000 m
Storage altitude 0-3000 m
Product certifications LR, ABS, DNV-GL, UKCA, CE, cULus, RCM
IP degree of protection IP20 with protective cover in place
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for operation -10-55 °C (horizontal installation), -10-50 °C (vertical installation)
Pollution degree 2
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Electromagnetic emission radiated emissions - test level: 47 dBÎĽV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBÎĽV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBÎĽV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 73 dBÎĽV/m QP/60 dBÎĽV/m AV ( power lines) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBÎĽV/m QP/66 dBÎĽV/m AV ( power lines) at 0.15-0.5 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBÎĽV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
Vibration resistance 3 gn at 8.4-150 Hz on panel mounting, 3.5 mm at 5-8.4 Hz on panel mounting, 3 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on symmetrical rail
Shock resistance 15 gn for 11 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.335 cm
Package 1 Width 13.188 cm
Package 1 Length 18.727 cm
Package 1 Weight 780.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.06 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 75.0 cm
Package 3 Width 40.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 64.8 kg
