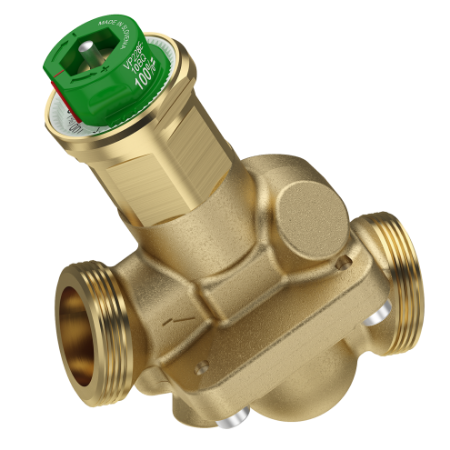

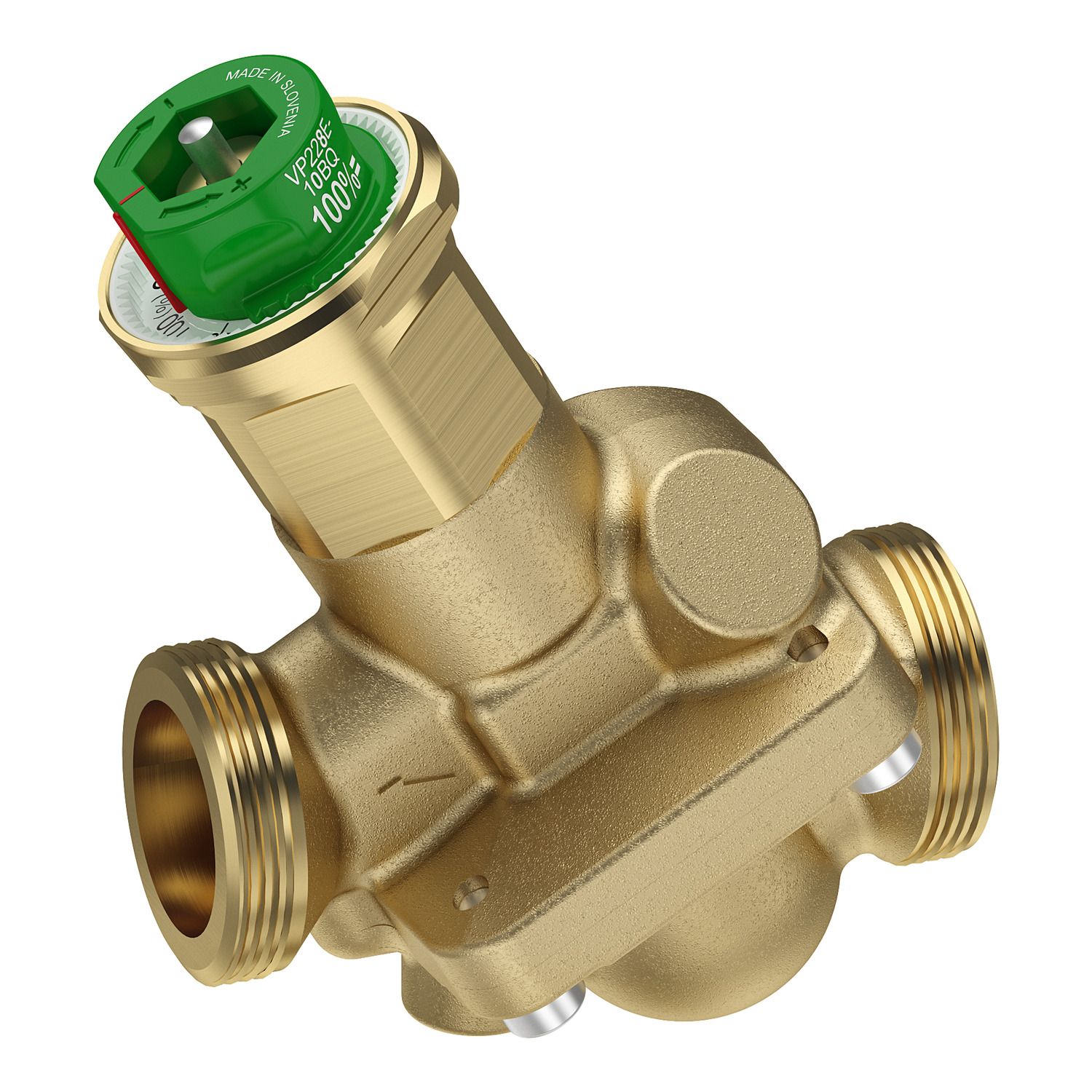

Picture of SpaceLogic VP228E PIBCV (PICV), 2-Way, PN16, DN10, G1/2 Ext. Thread, Low Flow: 0.03…0.15 m³/h (…0.042 l/s), No PT plugs.
SKU:

VP228E-10BQLNT

SpaceLogic VP228E PIBCV (PICV), 2-Way, PN16, DN10, G1/2 Ext. Thread, Low Flow: 0.03…0.15 m³/h (…0.042 l/s), No PT plugs.

Please Contact Sales to buy this Product. click here
SpaceLogic VP228E PIBCV (PICV), 2-Way, PN16, DN10, G1/2 Ext. Thread, Low Flow: 0.03…0.15 m³/h (…0.042 l/s), No PT plugs.
  • PIBCV provide best in class energy saving potential
  • Fully adjustable maximum flow rate to a simple % flow setting scale
  • Simple percentage (%) scale used in setting the flow rate
  • Precise and stable hydronic control, providing exceptional low flow control.
  • Mounts to the MP130, MP120, SP90, MP300 actuators platforms
  • This version without test plugs should not be mounted in the index circuit
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Instruction sheet
User guide
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
The VP228E is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN1, Threaded Valve G 1/2A. Low Flow.

Products specifications

Attribute nameAttribute value
Main
Device applicationterminal unit, radiation panel, fan coil unit
Operating fluid temperature-10-120 °C
Body materialCW602N brass
Seat leakagePort A: Class IV (0.01 %)
Product or component typevalve
Close-off pressure1600 kPa, 232 psi
Targeted regionAustralia., North America., Asia Pacific., Europe
Valve connection sizeG 1/2A
Seat materialPort A: brass
Valve product rangeSpaceLogic
Pressure allowable static16 bar, 200 psi up to 150 °F
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability1000:1
Accuracy setting knob5 %
Flow rate minimum (m³/h)0.03 m³/h
Valve product seriesVP228E
Material diaphragmEPDM (ethylene propylene diene monomer)
Pressure differential maximum (psi)58 psi
Pressure differential minimum (psi)2.32 psi
Valve configuration2-Way
Stem movementlinear
Flow rate nominal (lps)0.04 l/s
Flow rate minimum (lph)30 l/h
Pressure fluid max delta P normal life58 psi
Flow rate nominal (lph)150 l/h
Flow rate minimum (lps)0.008 l/s
Flow rate maximum (m³/h)0.18 m³/h
Flow rate maximum (gpm)0.79 gal(US)/min
Valve typepressure independent
Valve connection typeG External
Flow rate minimum (gpm)0.13 gal(US)/min
Stem seal materialEPDM (ethylene propylene diene monomer)
Flow characteristiclinear
Stroke length2.25 mm
Stem materialstainless steel
Flow rate nominal (gpm)0.66 gal(US)/min
Pipe size10 mm
Pressure differential minimum (kPa)16 kPa
Flow rate maximum (lph)180 l/h
Flow rate nominal (m³/h)0.15 m³/h
Flow rate maximum (lps)0.05 l/s
Pressure classANSI class 125, PN16
Pressure differential maximum (kPa)600 kPa
Body size10 mm (3/8 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.9 cm
Package 1 Width9.3 cm
Package 1 Length9.3 cm
Package 1 Weight380.0 g
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.673 kg
