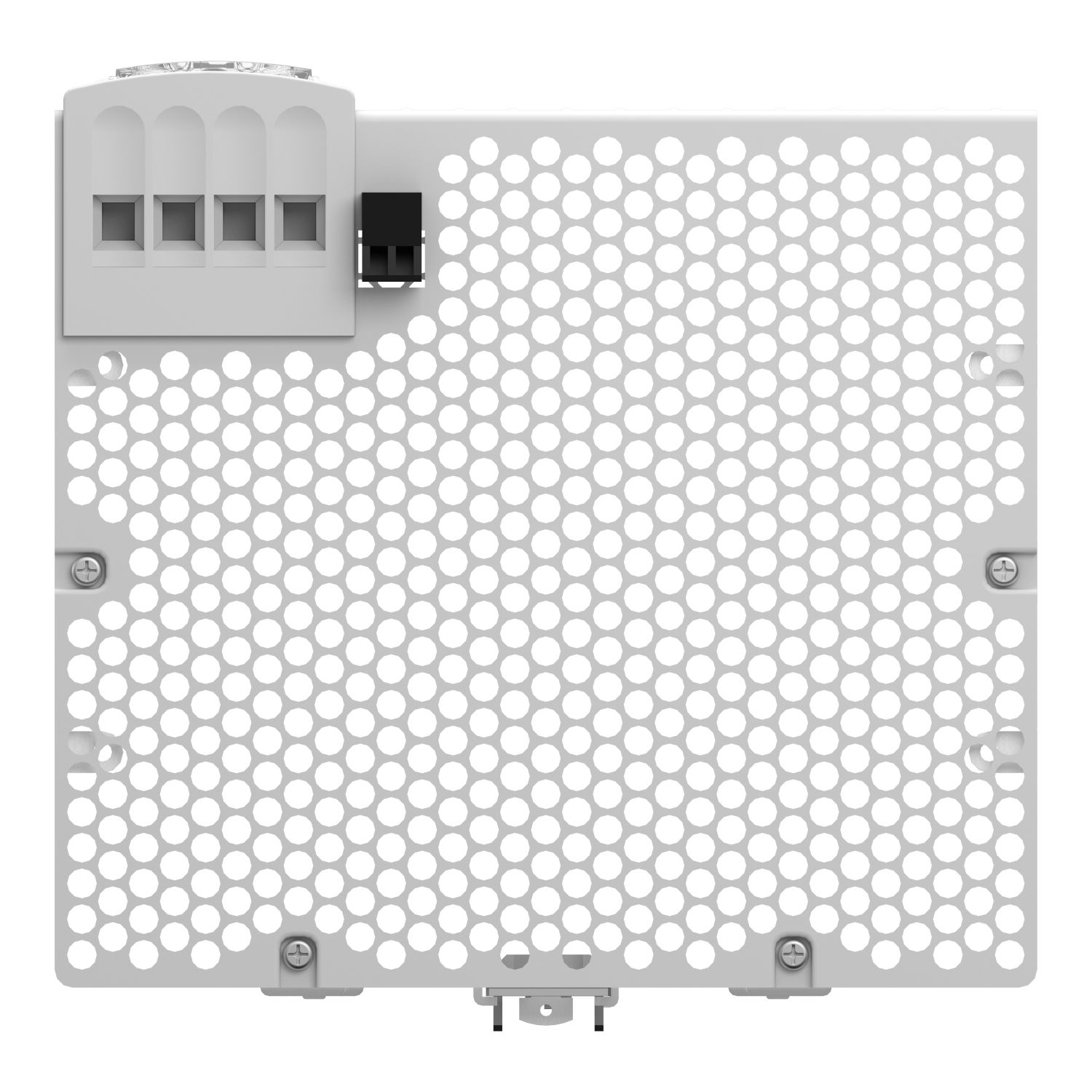

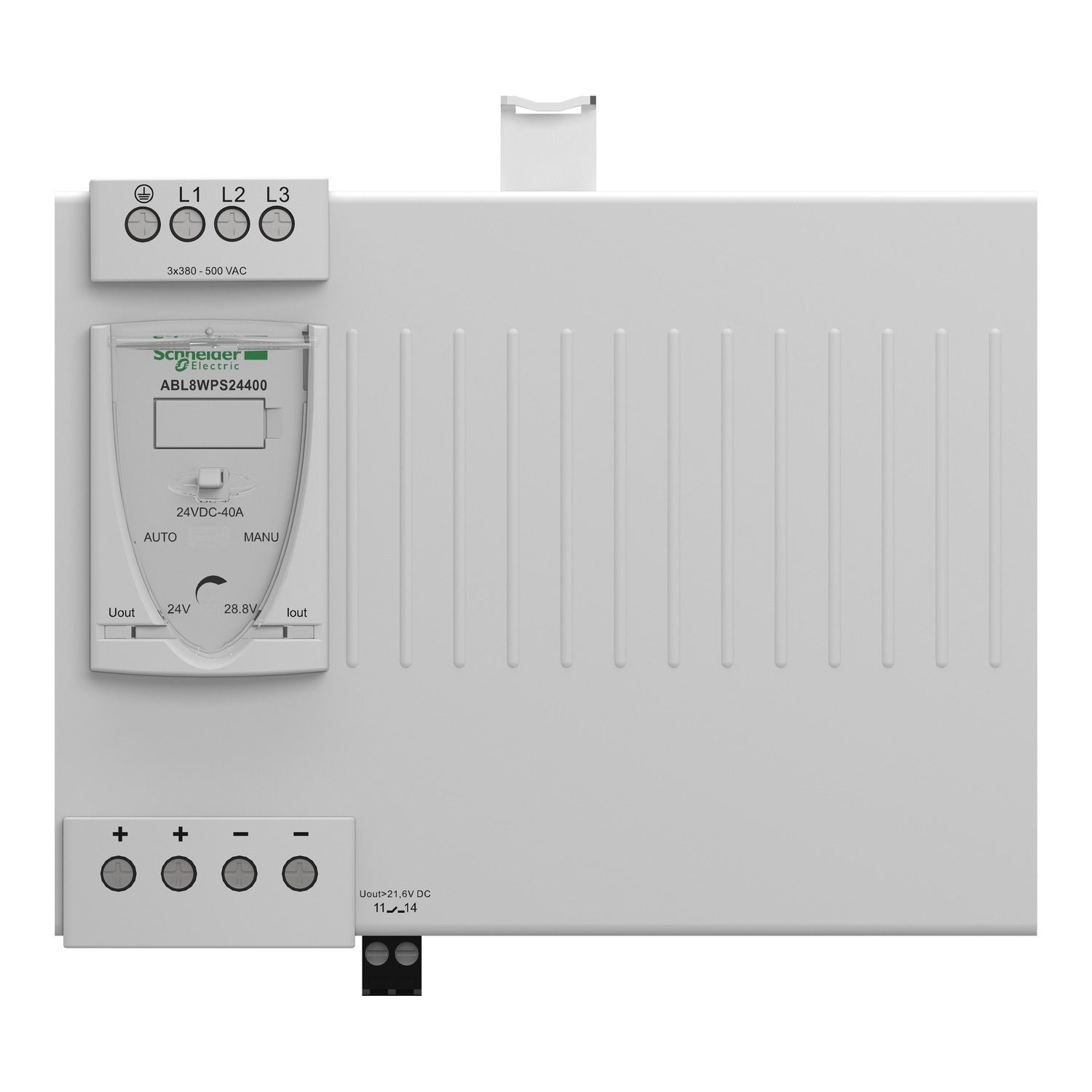

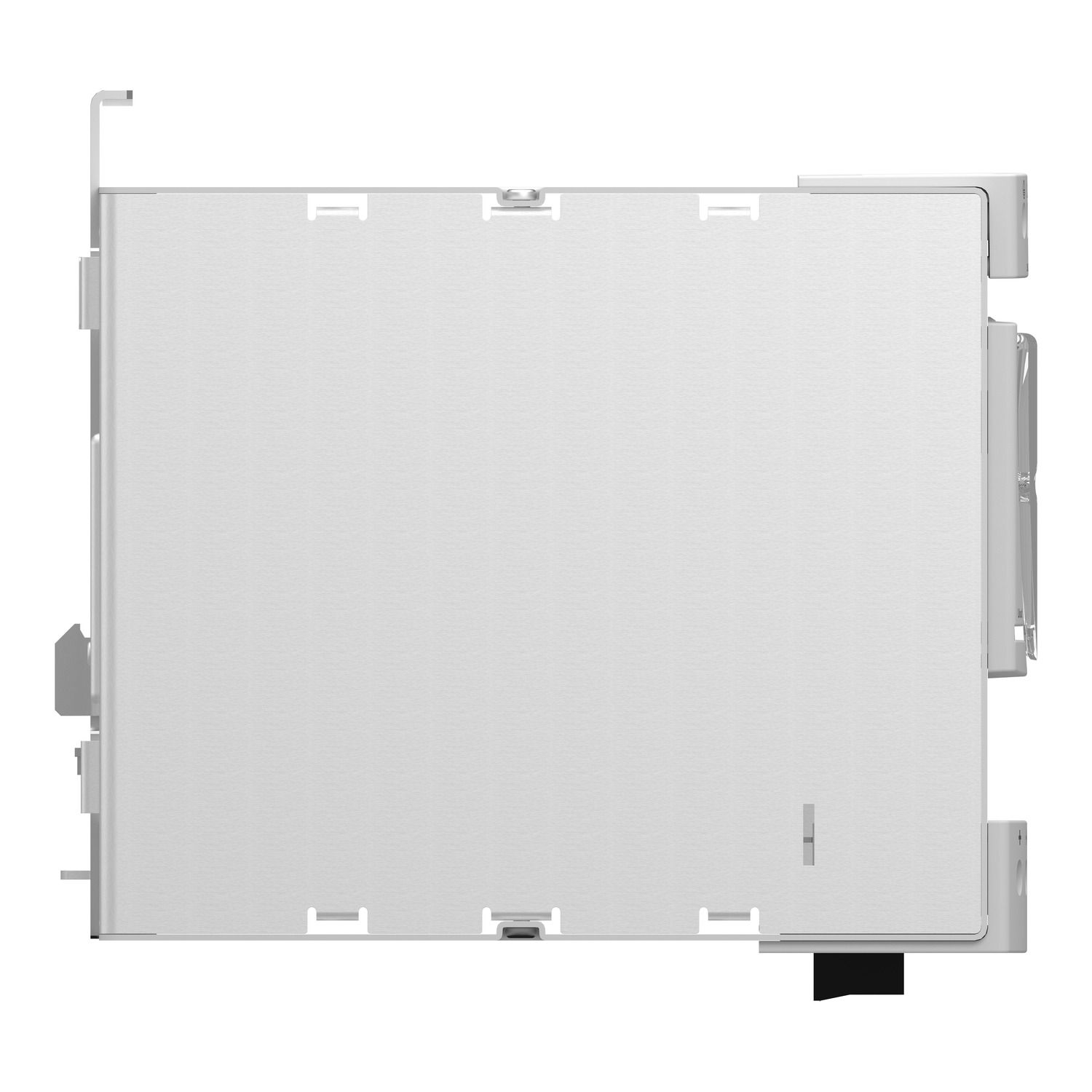

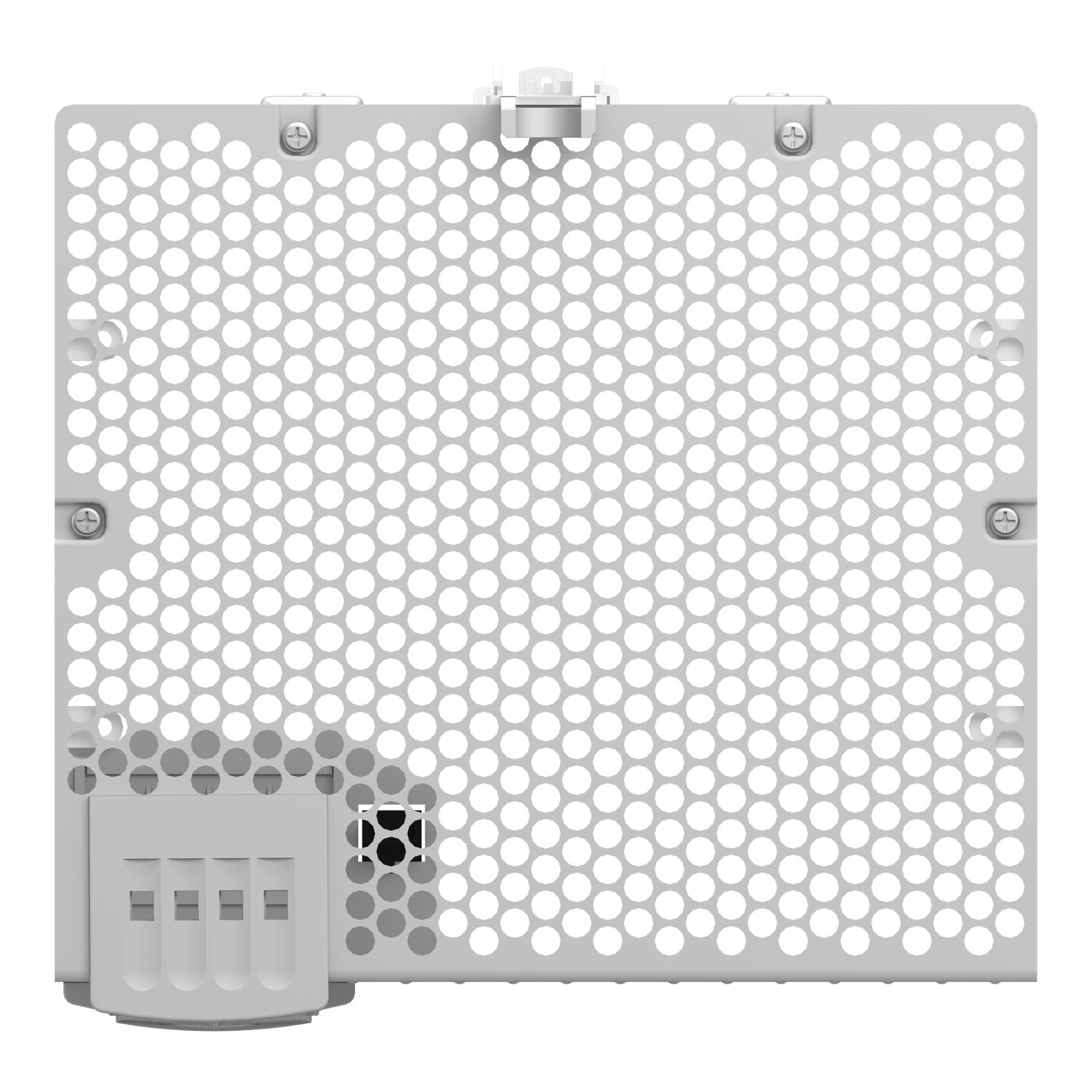

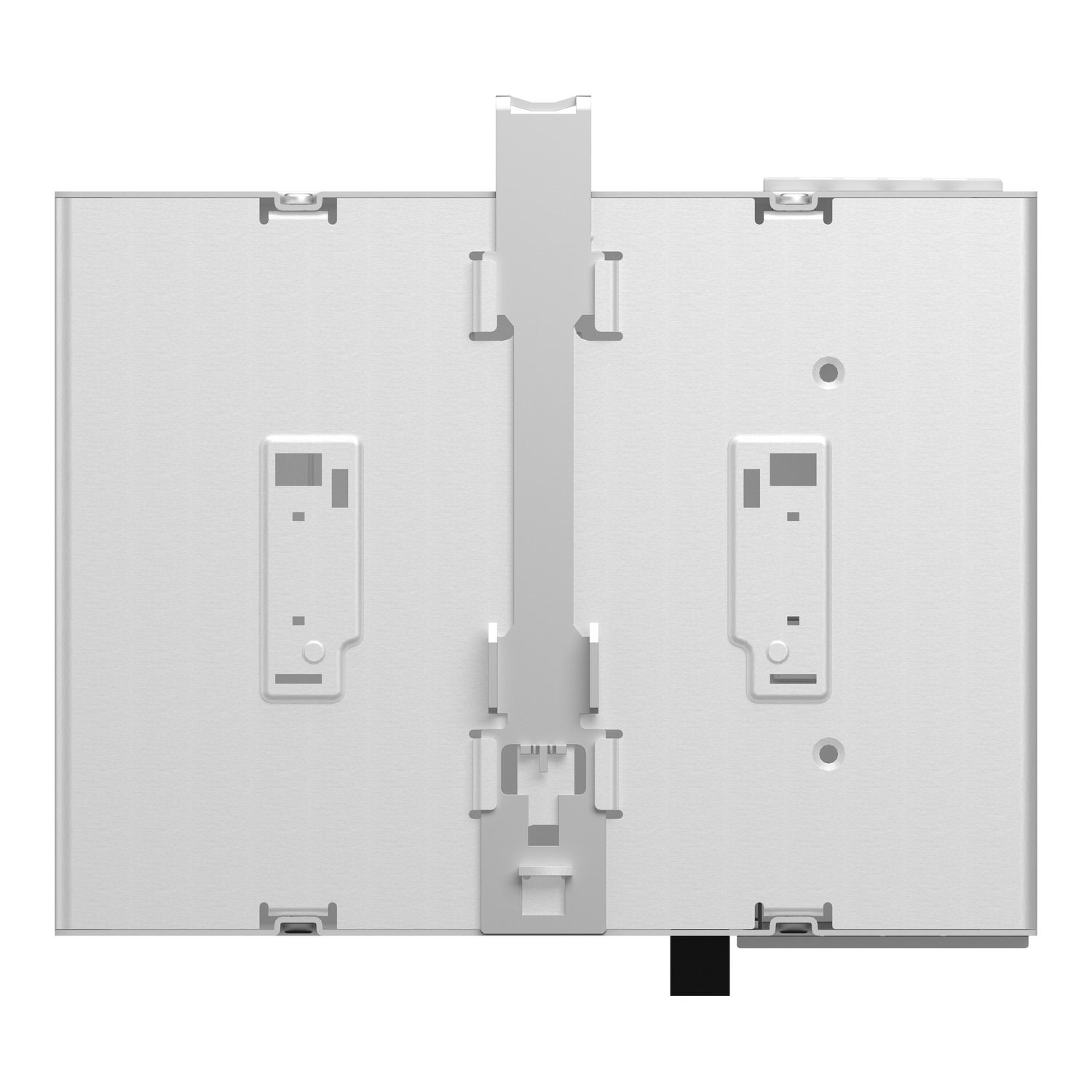

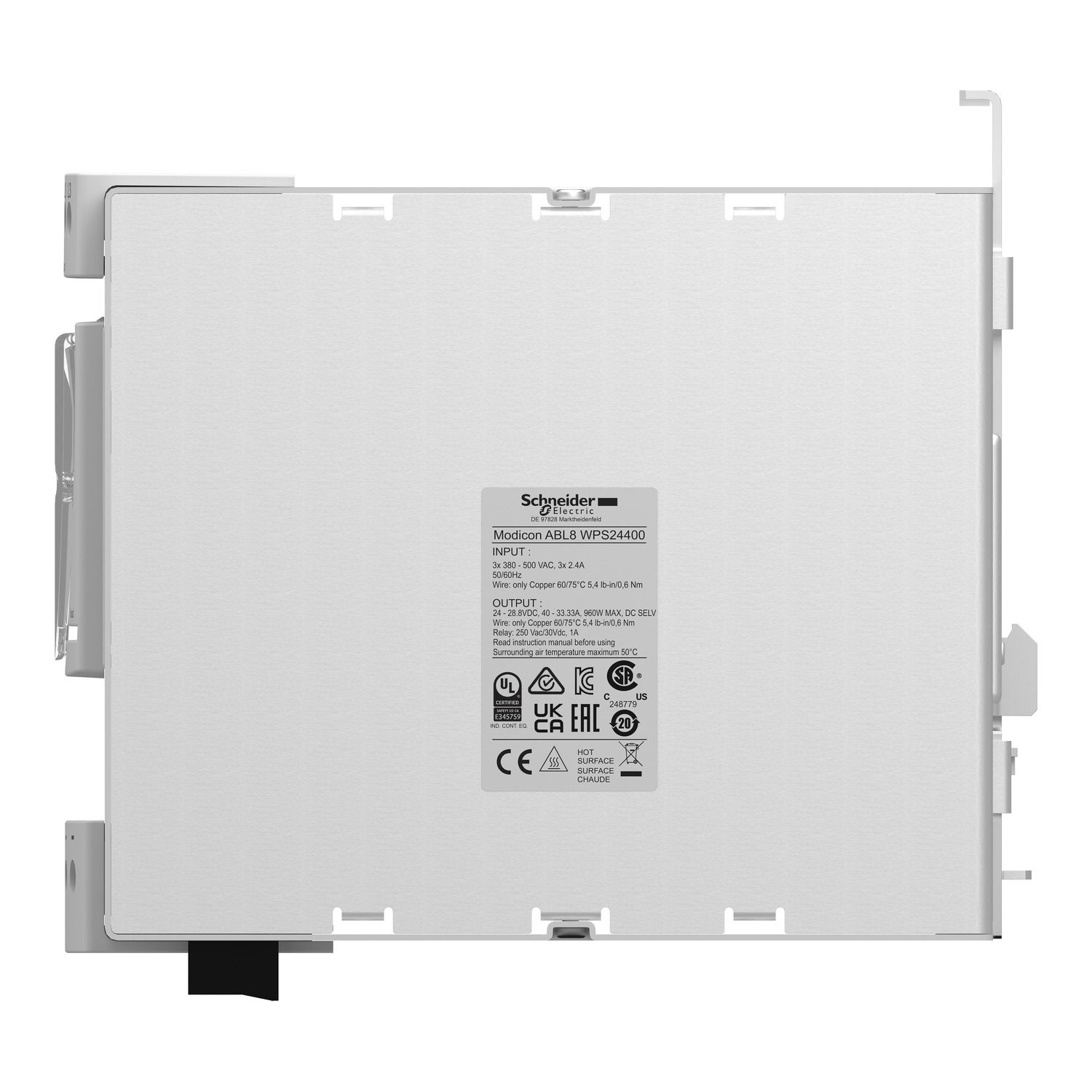

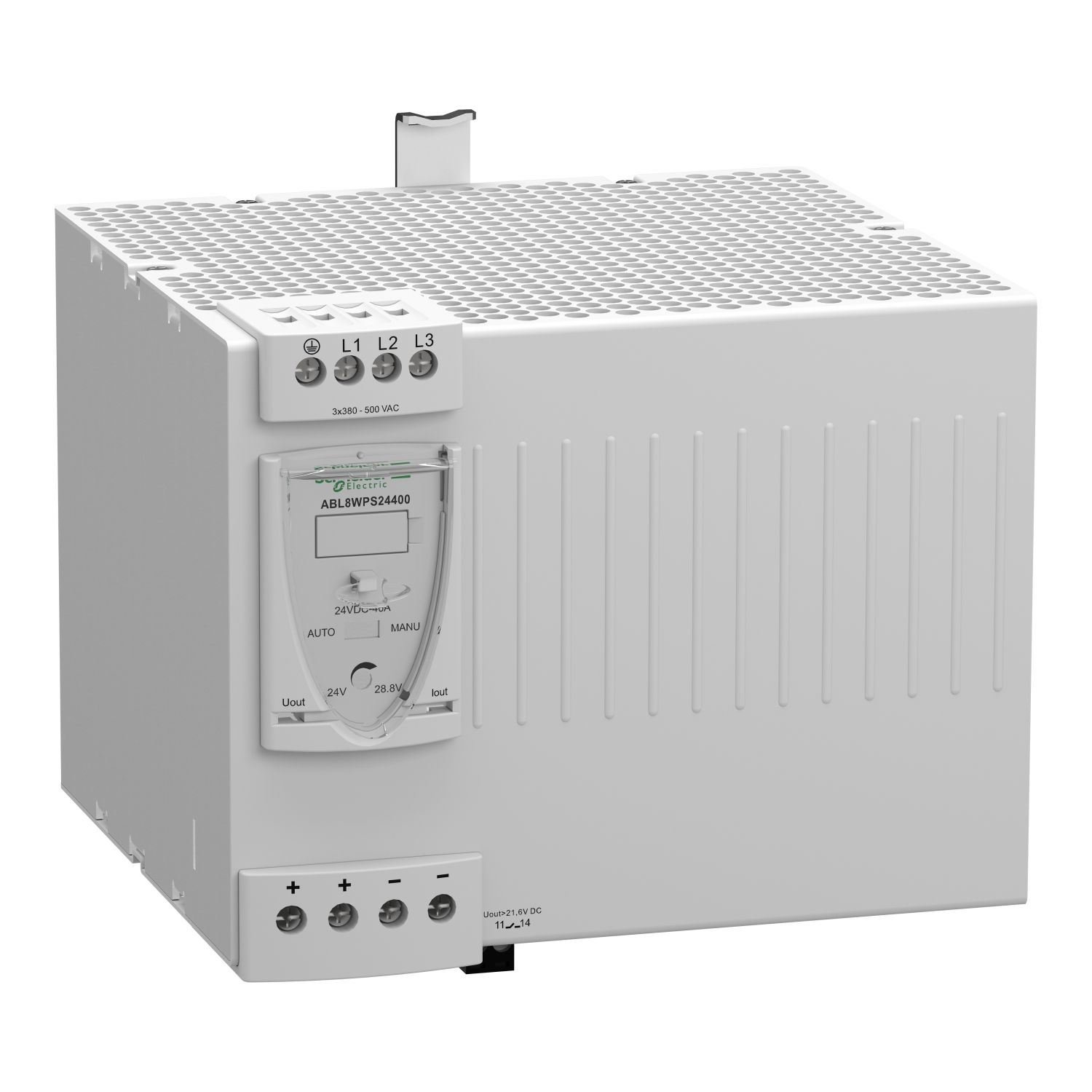

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V, 24V, 40A

$1,056.18

Qty:

Available for Shipping : 05-Dec-2024

Product Selector

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V, 24V, 40A

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

End of life manual

Product environmental

CAD

Catalogue

Brochure

Instruction sheet

Product Page Link

Product Data Sheet

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 40A at 24V DC and a rated power output of 960W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 165mm-wide. It weighs 2,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GV2ME07 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name	Attribute value
Main
Rated power in W	960 W
Permissible temporary current boost	1.5 x In (for 4 s)
Input voltage	380...500 V AC three phase, terminal(s): L1, L2, L3
Output voltage	24 V DC
Range of product	Modicon Power Supply
Power supply output current	40 A
Anti-harmonic filter	low frequency harmonic currents
Power supply type	regulated switch mode
Product or component type	power supply
Complementary
Power factor	0.85 at 24 V DC
Inrush current	25 A
Efficiency	92 %
Operating position	vertical
Power dissipation in W	76.8 W
Marking	CE
Connections - terminals	screw type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Input voltage limits	320...550 V AC
Status LED	1 LED (green, red and orange) output current, 1 LED (green and red) output voltage
Height	143 mm
Depth	160 mm
Width	166 mm
Mounting support	35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
Output voltage limits	24...28.8 V adjustable
Output protection type	thermal, protection technology: automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, against short-circuits, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual or automatic reset
Net weight	2.7 kg
Supply	SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Dielectric strength	500 V with between output and ground, 4000 V with between input and output, 3500 V with between input and ground
Provided equipment	power factor correction filter conforming to IEC 61000-3-2
Output coupling	series, parallel
Environment
Compatibility code	ABL8W
IP degree of protection	IP20 conforming to IEC 60529
Product certifications	RCM, UL, EAC, cCSAus
Ambient air temperature for operation	-25-50 °C without derating mounting position A < 2000 m, 50-60 °C with derating factor mounting position A < 2000 m
Operating altitude	2000 m
Environmental characteristic	safety conforming to IEC 60950-1, safety conforming to EN 61204-4, EMC conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-4, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-1
Standards	EN/IEC 62368-1, UL 508, CSA C22.2 No 60950-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.969 cm
Package 1 Width	18.691 cm
Package 1 Length	19.668 cm
Package 1 Weight	3.35 kg
Unit Type of Package 2	2
Number of Units in Package 2	22
Package 2 Height	73.5 cm
Package 2 Width	60.0 cm
Package 2 Length	80.0 cm
Package 2 Weight	80.0 kg
