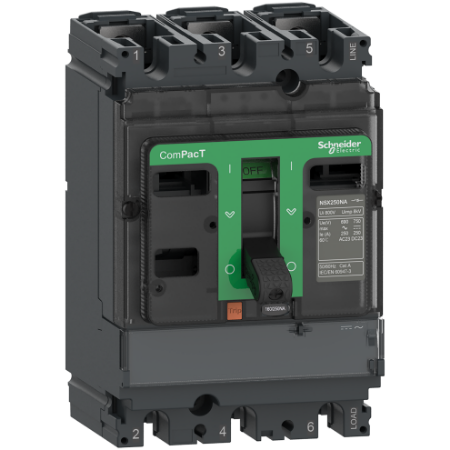

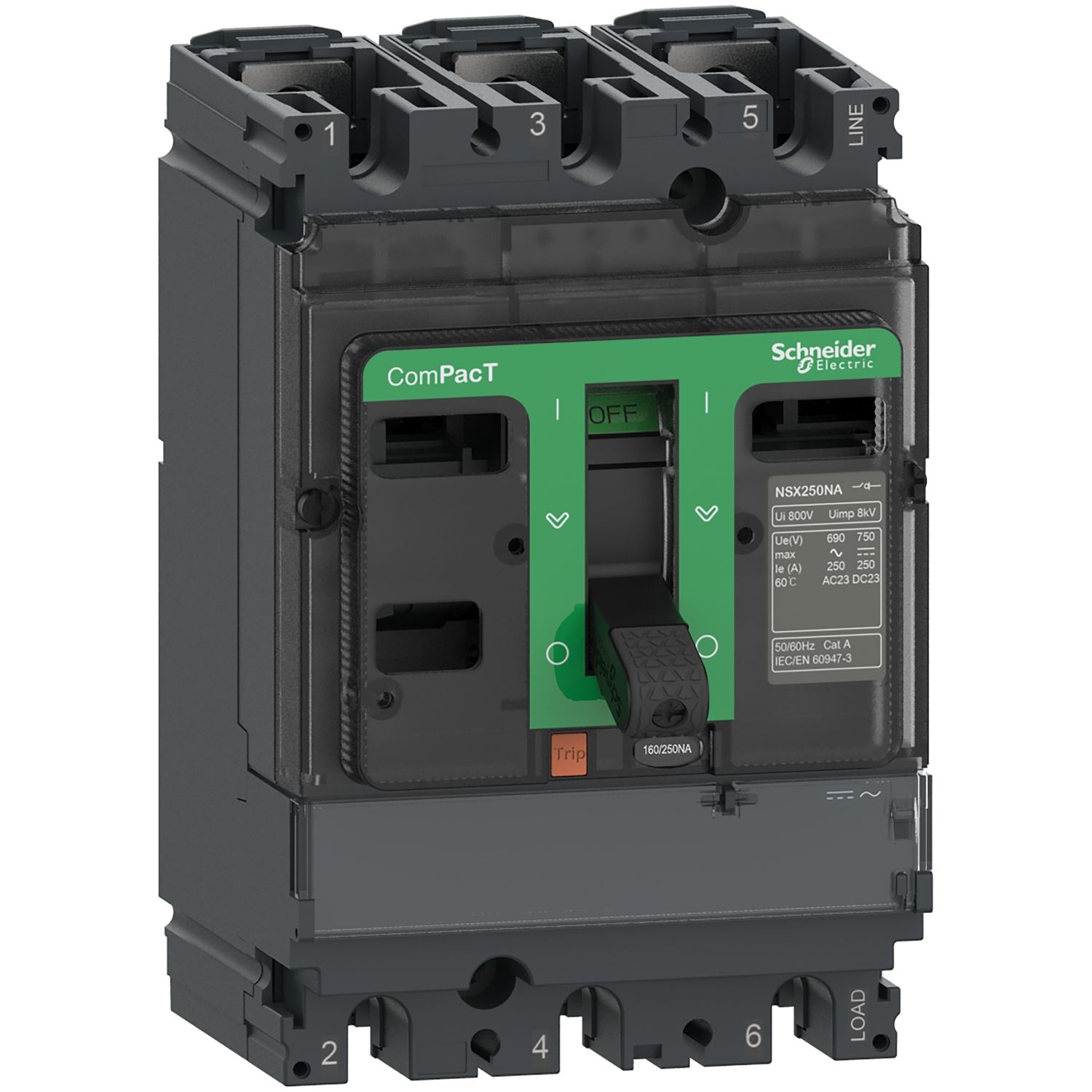

Picture of Switch disconnector, ComPacT NSX100NA, 2 poles, fixed, thermal current Ith 100A
SKU:

C102100S

Switch disconnector, ComPacT NSX100NA, 2 poles, fixed, thermal current Ith 100A

$556.25
Product Selector
Switch disconnector, ComPacT NSX100NA, 2 poles, fixed, thermal current Ith 100A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Dec-2024
Product environmental
End of life manual
User guide
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This ComPacT NSX100NA is a complete 2 poles switch disconnector. It is used to control and isolate electrical distribution circuits and it requires an upstream protection. The operational current is 100A at 415VAC 50/60Hz for AC22A and AC23A utilization categories. The operational voltage is 690VAC 50/60Hz. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimensions for this 2 poles version are 105mm x 161mm x 86mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational currentDC-23A: 100 A DC 750 V 3 poles in series, DC-22A: 100 A DC 750 V 3 poles in series, DC-23A: 100 A DC 500 V 2 poles in series, DC-23A: 100 A DC 250 V 1 pole, DC-22A: 100 A DC 500 V 2 poles in series, DC-22A: 100 A DC 250 V 1 pole, AC-23A: 100 A AC 50/60 Hz 220...690 V, AC-22A: 100 A AC 50/60 Hz 220...690 V
Suitability for isolationyes conforming to EN/IEC 60947-3
[Ui] rated insulation voltage800 V AC 50/60 Hz
Utilisation categoryDC-23A, DC-22A, AC-23A, AC-22A
Network typeDC, AC
Device short nameNSX100NA
[Icw] rated short-time withstand current0.69 kA during 20 s, 1.8 kA during 3 s, 1.8 kA during 1 s
Mounting modefixed
Control typetoggle
RangeComPacT new generation
[Ith] conventional free air thermal current100 A at 50 °C
Range of productComPacT NSX100...250 new generation
[Ue] rated operational voltage250 V DC 1 pole, 500 V DC 2 poles in series, 750 V DC 3 poles in series, 690 V AC 50/60 Hz
Poles description2P
[Icm] rated short-circuit making capacity2.6 kA switch-disconnector alone, 330 kA with upstream protection circuit breaker
Product nameComPacT NSX new generation
Product or component typeswitch disconnector
Visible breakno
Breaking capacity codeNA
Contact position indicatoryes
[In] rated current100 A
Network frequency50/60 Hz
Complementary
Compatibility codeNSX100
Electrical durabilityDC-23A: 5000 cycles 500 V DC In (2 poles in series), DC-22A: 5000 cycles 500 V DC In (2 poles in series), DC-23A: 10000 cycles 250 V DC In/2 (1 pole), DC-22A: 10000 cycles 250 V DC In/2 (1 pole), AC-23A: 8000 cycles 690 V AC 50/60 Hz In, AC-22A: 8000 cycles 690 V AC 50/60 Hz In, AC-23A: 15000 cycles 690 V AC 50/60 Hz In/2, AC-22A: 15000 cycles 690 V AC 50/60 Hz In/2, AC-23A: 20000 cycles 440 V AC 50/60 Hz In, AC-22A: 20000 cycles 440 V AC 50/60 Hz In, AC-23A: 35000 cycles 440 V AC 50/60 Hz In/2, AC-22A: 35000 cycles 440 V AC 50/60 Hz In/2
Downside connectionfront
Height161 mm
Mechanical durability50000 cycles
Net weight1.8 kg
Product certificationsCCC, EAC, CE
Upside connectionfront
Connection pitch35 mm
Depth86 mm
Width105 mm
Mounting supportbackplate
StandardsEN/IEC 60947-3, EN/IEC 60947-1
Environment
Ambient air temperature for storage-50-85 °C
Electrical shock protection classclass II
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to IEC 62262
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height14.0 cm
Package 1 Width11.0 cm
Package 1 Length19.0 cm
Package 1 Weight1.724 kg
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight12.499 kg

Related products

Picture of Compact NSX <630, Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55

Compact NSX <630, Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55

LV429338
$328.69
View Detail

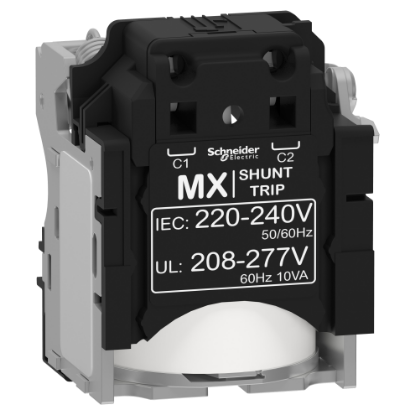

Picture of Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

LV429387
$355.15
View Detail
Picture of Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

LV429388
$355.15
View Detail
Picture of Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

LV429390
$355.15
View Detail

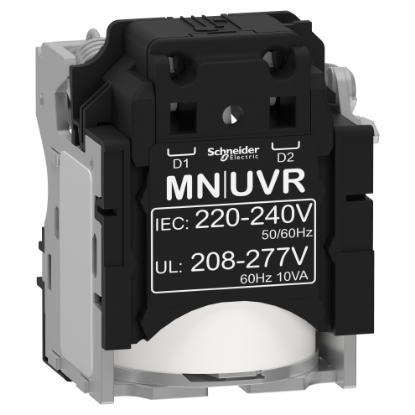

Picture of Undervoltage release MN, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections
