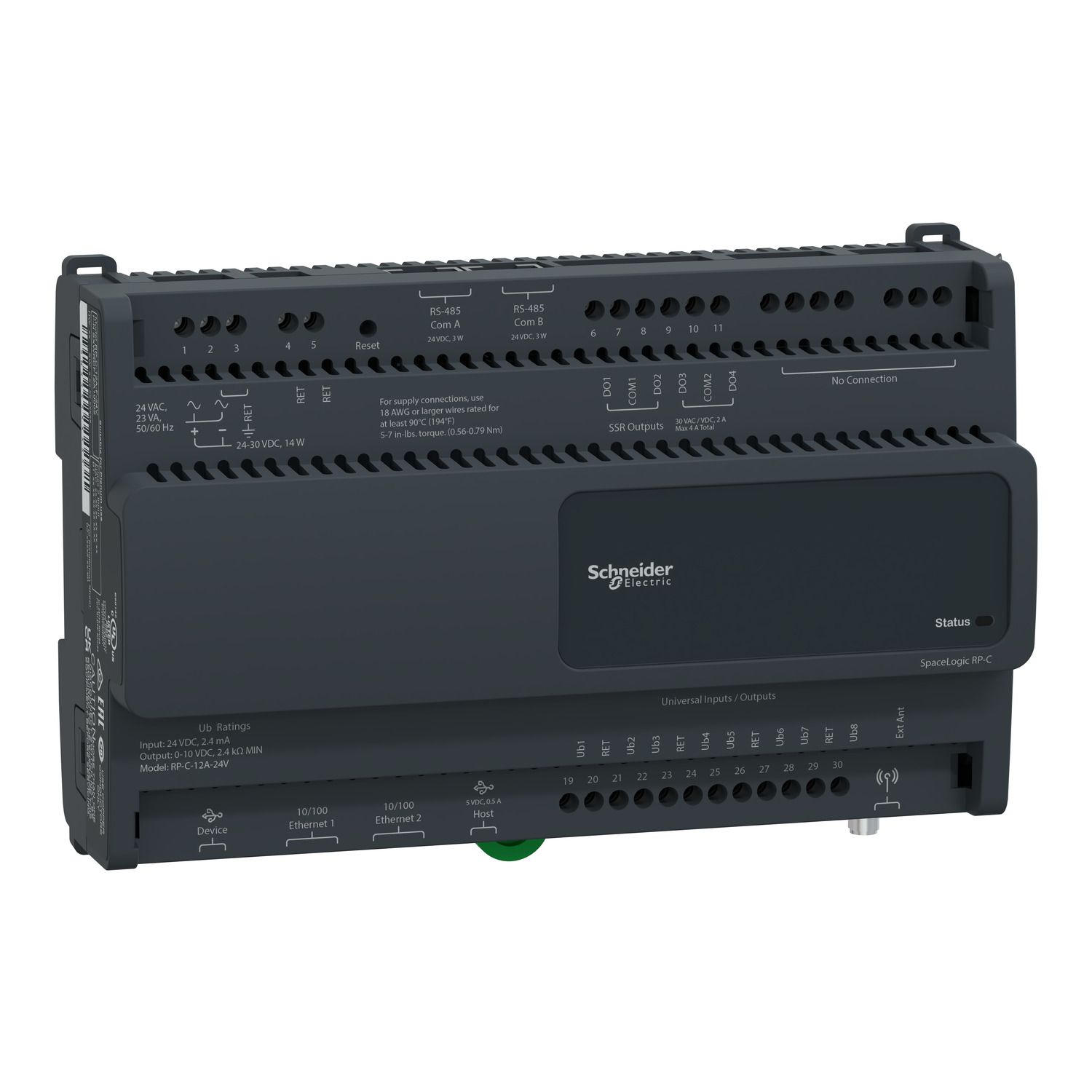

Picture of Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 4 solid state relay outputs
SKU:

SXWRCF12A10002

Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 4 solid state relay outputs

Please Contact Sales to buy this Product. click here
Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 4 solid state relay outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Declaration of conformity
CAD
End of life manual
Product environmental
Product Page Link
Product Data Sheet
SpaceLogic RP-C Controller is a room-purpose, fully programmable, BACnet IP field controller for HVAC and Connected Room solutions applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a AS-P, AS-B or an Enterprise Server as the parent server. The RP-C features a wireless chip that allows the mobile commissioning application to connect directly to the controller. The RP-C controller comes in three models with different I/O count. The RP-C-12A has 8 Universal I/O Type Ub and 4 solid-state relay outputs. Its dimensions are 164 mm (6.5 in.) in height, 181 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).
