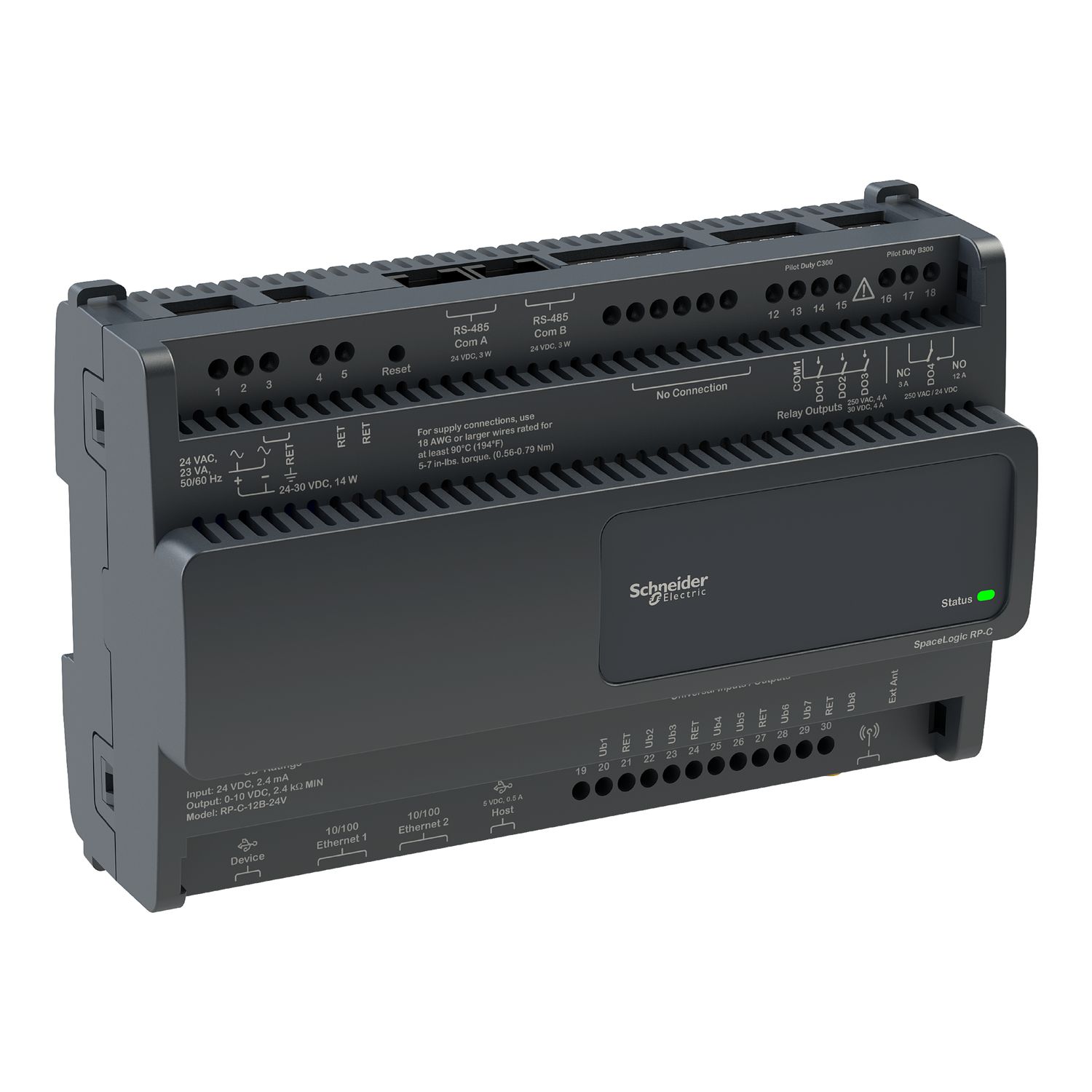

Picture of Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 3 low power relays, 1 Form C
SKU:

SXWRCF12B10002

Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 3 low power relays, 1 Form C

Please Contact Sales to buy this Product. click here
Controller, SpaceLogic RP-C, 12 points, 8 universal inputs/outputs type Ub, 3 low power relays, 1 Form C
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
CAD
Instruction sheet
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
SpaceLogic RP-C Controller is a room-purpose, fully programmable, BACnet IP field controller for HVAC and Connected Room solutions applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a AS-P, AS-B or an Enterprise Server as the parent server. The RP-C features a wireless chip that allows the mobile commissioning application to connect directly to the controller. The RP-C controller comes in three models with different I/O count. The RP-C-12B has 8 Universal I/O Type Ub, 3 Form A Relays and 1 high power relay outputs. Its dimensions are 164 mm (6.5 in.) in height, 181 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute nameAttribute value
Main
Number of port1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protectionIP20
Device short nameRP-C-12B-F-24V
Device applicationlow voltage rooftop, chilled beam, low voltage fan coil, HVAC
Clock drift+/- 1 min/month
Width180 mm
Input voltage-0.5...24 V DC for universal input
Product weight0.39 kg
Relative humidity0-95 % RH, non-condensing
Power consumption in VA23 VA
Ambient air temperature for storage-20-70 °C
Colourblack
Mounting modepanel-mounted, DIN rail mount
Memory type6 MB RAM, 128 kB backup
Function availablesmart sensor input, programmable
Input/output type8 universal I/O
Product or component typefield controller
Number of outputs1 relay output, 3 form A relay output
Communication port supportETHERNET 10/100BASE-TX
[Us] rated supply voltage23...33 V DC, 24...30 V DC, 24 V AC +/- 15 %
Network frequency60 Hz, 50 Hz
Product certificationsUL listed, cUL listed, RCM
Complementary
Flame retardanceUL94-5VB
Backup time7 days
Communication port protocolBACnet MS/TP, Bluetooth 5.0 LE 2.4 GHz, BACnet IP
StandardsETSI EN 300 328:v2.1.1, ETSI EN 300 328, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, UL 2043, FCC part 15 Subpart C class B, FCC part 15 Subpart A class B, EN 50491-5-2, EN 61000-6-3
ModelRP-C-12B-F-24V
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.7 cm
Package 1 Width12.5 cm
Package 1 Length18.5 cm
Package 1 Weight432 g
