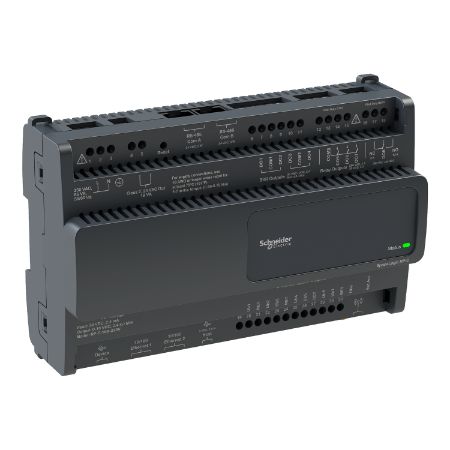

Picture of Controller, SpaceLogic RP-C, 16 points, 8 universal I/O, 4 solid-state relay, 3 form A relay, 1 form C high power relay
SKU:

SXWRCF16A10003

Controller, SpaceLogic RP-C, 16 points, 8 universal I/O, 4 solid-state relay, 3 form A relay, 1 form C high power relay

Please Contact Sales to buy this Product. click here
Controller, SpaceLogic RP-C, 16 points, 8 universal I/O, 4 solid-state relay, 3 form A relay, 1 form C high power relay
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
CAD
End of life manual
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
SpaceLogic RP-C Controller is a room-purpose, fully programmable, BACnet IP field controller for HVAC and Connected Room solutions applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a AS-P, AS-B or an Enterprise Server as the parent server. The RP-C features a wireless chip that allows the mobile commissioning application to connect directly to the controller. The RP-C controller comes in three models with different I/O count. The RP-C-16A has 8 universal I/O Type Ub, 4 solid-state relay outputs, 3 Form A relays and 1 high power relay outputs. Its dimensions are 164 mm (6.5 in.) in height, 181 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute nameAttribute value
Main
Device short nameRP-C-16A-F-230V
Device applicationchilled beam, low voltage fan coil, HVAC
[Us] rated supply voltage207...253 V AC
Discrete output voltage<= 30 V DC for solid state output, 24 V AC for solid state output, 24 V DC for voltage relay, 250 V AC for voltage relay, 30 V DC for control relay, 250 V AC for control relay, 0...10 V for output circuit
RangeEcoStruxure Building Operation
Discrete output current12 A for voltage relay (DO8), 4 A for control relay (DO5...DO7), 2 A for solid state output (DO1...DO4), 2 mA for load
Product nameSpaceLogic room purpose controller
Product or component typeprogrammable controllers
Discrete output number1 relay voltage circuit, 3 relay control circuit, 4 solid state
Product brandSchneider Electric
Complementary
Switching frequency25 Hz
Memory descriptioninternal data storage (FRAM) 128 kB, flash 48 MB, internal 6 MB
Maximum power consumption in VA65 VA
Insulationbetween power output and ground at 5000 V AC, between output and ground at 3000 V AC
Analogue input typeconfigurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...2 mA
Product compatibilitySmartX living space sensor, Linx Technologies antenna, Invensys (FD), Johnson Control, Honeywell, Satchwell, Balco, Continuum, I/NET, Xenta
Depth64 mm
Display typewithout display
Width180 mm
Realtime clockwith
Discrete input current2.4 mA
Temperature probe typePt 1000 - 50...150 °C, Ni 1000 - 50...150 °C, LG-Ni 1000 - 50...150 °C
Local signalling1 LED (green) for status
Mounting supportwall-mount, DIN rail
Absolute accuracy error+/- 0.5 °C for - 50...70 °C, +/- 0.01 mA plus + 0.4 % of reading for current, +/- 7 mV plus + 0.2 % of reading for voltage
Mechanical durability100000 cycles for voltage relay, 100000 cycles for control relay
Integrated connection typeRS485 room picto with bus connector, RS485 sensor with bus connector, port with USB host port type A connector, port with USB 2.0 type B connector and mini USB interface
Processor nameARM Cortex-A7
Function availablePWM
Topologyring, star, daisy chain
Input/output number8
Net weight472 g
MaterialABS/PC
Backup time7 days
Protection typebuilt-in by varistor, internal fuse
Communication port protocolBluetooth 5.0 LE - SMA, BACnet IP
Clock drift1 min/month at 25-25 °C
Maximum current per output common4 A at COM 1 + COM 2
Port Ethernet10/100BASE-TX 2 port
Communication serviceprogramming, RSTP (Ring topology support)
Discrete input voltage typeDC
Discrete input voltage0...10 V
Height110 mm
Electrical connectionSMA antenna with cable, 1 terminal(s),  screw terminals, 3 terminal(s) form C relays,  screw terminals, 3 terminal(s) power supply,  screw terminals, 10 terminal(s) output,  screw terminals, 12 terminal(s) for inputs and outputs
Input impedance47 Ohm for current circuit, 100 kOhm for voltage circuit
Network frequency60 Hz, 50 Hz
Cable length3 m for USB port
Environment
IP degree of protectionIP20
Relative humidity0-95 %, non-condensing
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94-5V
Electromagnetic compatibilityradiated emission conforming to EN 300-328, immunity to electromagnetic emissions conforming to EN 50491-5-3, immunity to electromagnetic emissions conforming to EN 61000-6-2, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation0-50 °C
Product certificationsEu.BAC, RCM, CE, cULus, BTL
Pollution degree2
StandardsEN 50491-3, EN 60730-2-11, EN 60730-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11 cm
Package 1 Width6.4 cm
Package 1 Length18 cm
Package 1 Weight800 g

Related products

Picture of SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room

SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room

HMIST6400SL
Please Contact Sales to buy this Product. click here
View Detail
Picture of Wireless Adapter, SpaceLogic, for the AS-P, AS-B and RP controllers

Wireless Adapter, SpaceLogic, for the AS-P, AS-B and RP controllers

SXWZBAUSB10001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Light expansion module, SpaceLogic RP Expansion Modules, 0-10 VDC, 4 Channel

Light expansion module, SpaceLogic RP Expansion Modules, 0-10 VDC, 4 Channel

SXWRE010410001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Light expansion module, SpaceLogic RP Expansion Modules, 0-10V lighting control, power distribution

Light expansion module, SpaceLogic RP Expansion Modules, 0-10V lighting control, power distribution

SXWRE0104PD10001
Please Contact Sales to buy this Product. click here
View Detail

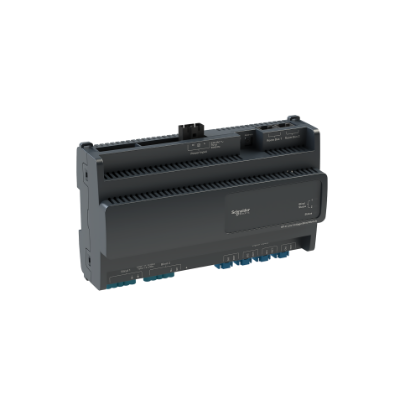

Picture of Blind output expansion module, SpaceLogic RP Expansion Modules, 2 channel, low voltage

Blind output expansion module, SpaceLogic RP Expansion Modules, 2 channel, low voltage

SXWREB2LVPD10001
Please Contact Sales to buy this Product. click here
View Detail

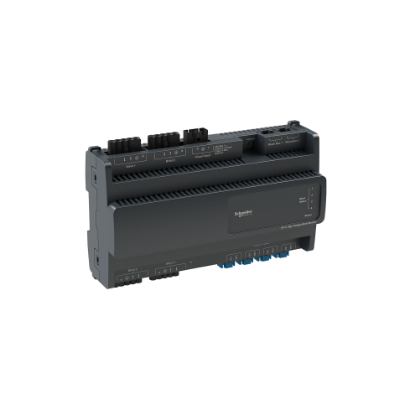

Picture of Output blind expansion module, SpaceLogic RP Expansion Modules, 4 channel, high voltage
