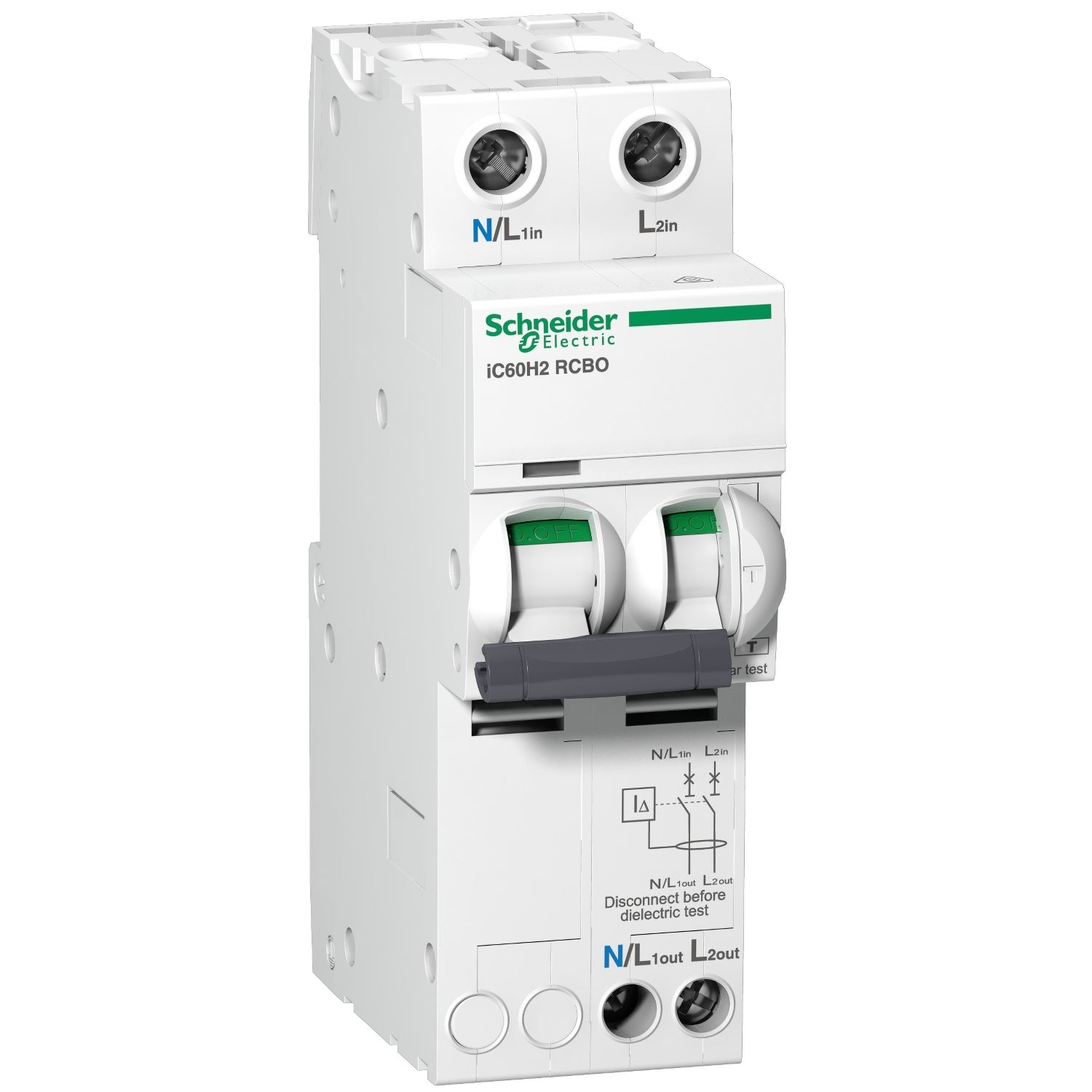

Acti9, IC60H2 - earth leakage circuit breaker - 2P - C curve - 16 A - 30 mA - 110 V

$171.42 INC GST
Available for Shipping : 06-May-2025
Product Selector
Acti9, IC60H2 - earth leakage circuit breaker - 2P - C curve - 16 A - 30 mA - 110 V
  • Protection of persons against electric shock by direct contact
  • Combine short-circuit and overload currents protection
  • One module width - Ideal for retrofit where space is limited
  • Additional protection in case of loss of the neutral
  • Indication of fault tripping by a dedicated window (Visi-Trip)
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 2P circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with AS/NZS 61009.1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 110VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 110mm x (D) 75.5mm. The weight is 332g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute name Attribute value
Main
Device short name iC60H2 RCBO
Breaking capacity 10000 A Icn at 110 V AC 50/60 Hz
Range Acti9
Earthing system IT, TT, TN
Curve code C
Range of product Acti9
Poles description 2P
Circuit breaker application distribution
Product name Acti9 iC60 RCBO
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
[In] rated current 16 A at 50 °C
Complementary
Tightening torque power circuit: 2-2 N.m bottom, power circuit: 3.5-3.5 N.m top
Provision for padlocking padlockable with padlock Ø 4 mm
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Mechanical durability 20000 cycles
Suitability for isolation yes
Electrical durability 5000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length power circuit: 14 mm for top connection, power circuit: 13 mm for bottom connection
Connections - terminals screw clamp terminal (bottom) 1-10 mm² flexible, screw clamp terminal (bottom) 1-16 mm² rigid without cable end, screw clamp terminal (top) 1-16 mm² flexible, screw clamp terminal (top) 1-25 mm² rigid without cable end
Comb busbar and distribution block compatibility NO
Earth-leakage protection class type A
Locking options description ON/OFF locking facilities
Earth-leakage protection integrated
Number of protected poles 1
[Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand
Residual current tripping technology voltage dependent
Height 110 mm
[Ics] rated service breaking capacity 7500 A at 110 V AC 50/60 Hz
[Ue] rated operational voltage 110 V AC 50/60 Hz
Trip unit technology thermal-magnetic
Depth 75.5 mm
Width 36 mm
Neutral position left
Local signalling ON/OFF indication
[Ui] rated insulation voltage 400 V AC 50/60 Hz
Earth-leakage protection time delay instantaneous
Net weight 332 g
Surge current 250 A
Limitation class 3
9 mm pitches 4
Device location in system outgoer
Breaking capacity code H2
Network type AC
Mounting support DIN rail
Contact position indicator yes
Network frequency 50 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -15-60 °C
Standards IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 9.5 cm
Package 1 Length 1.8 cm
Package 1 Weight 306.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.72 kg
Unit Type of Package 3 3
Number of Units in Package 3 864
Package 3 Height 70.0 cm
Package 3 Width 120.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 276.384 kg
