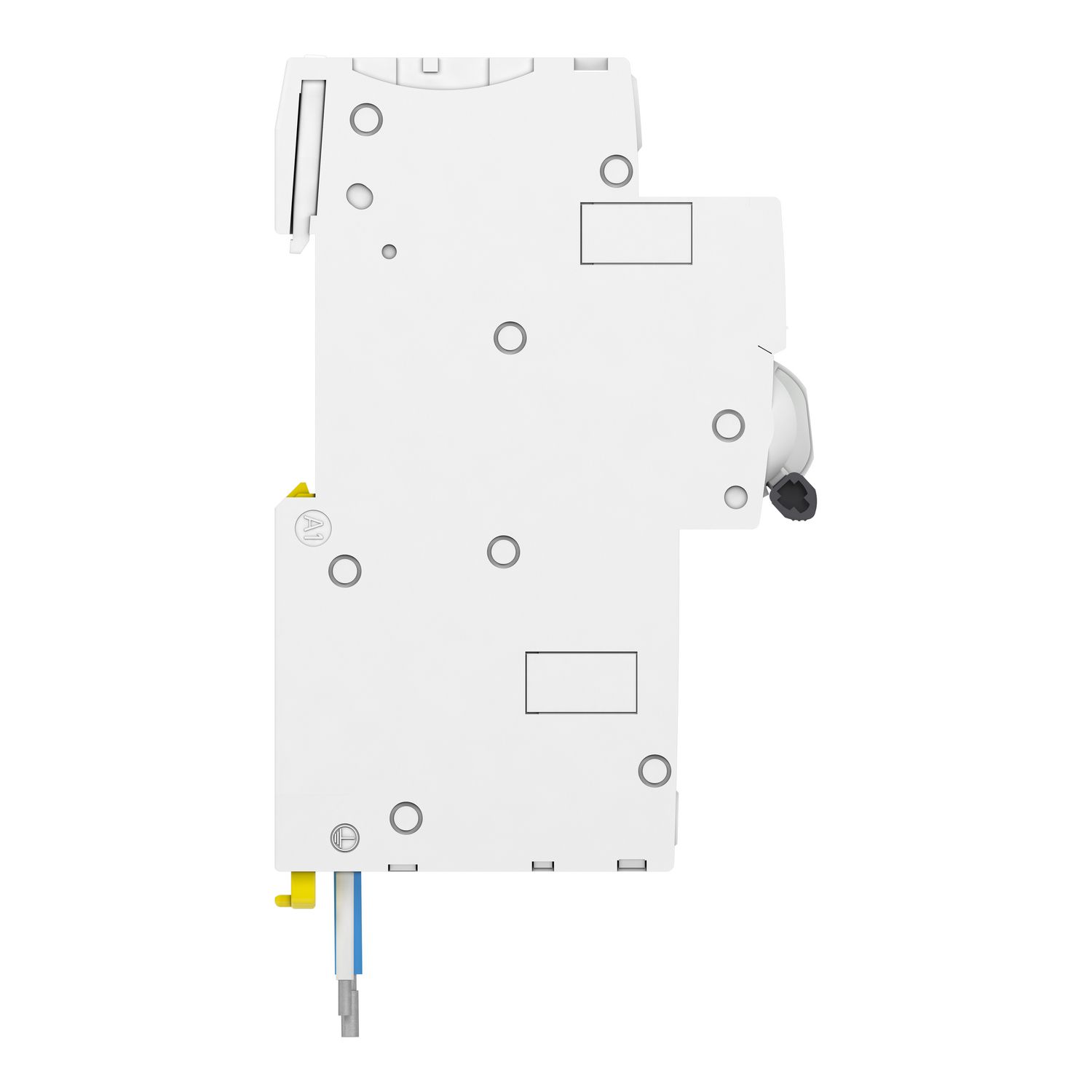

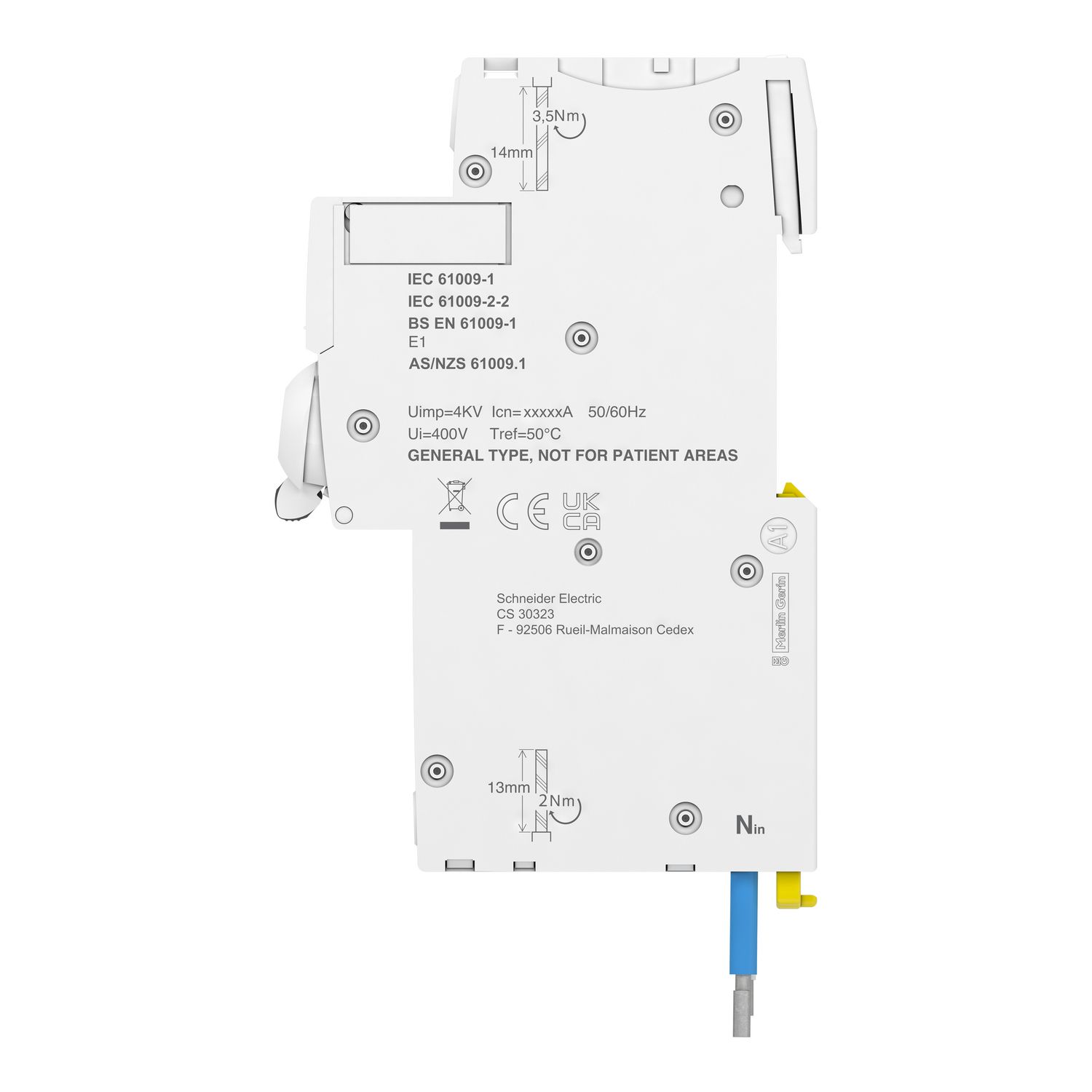

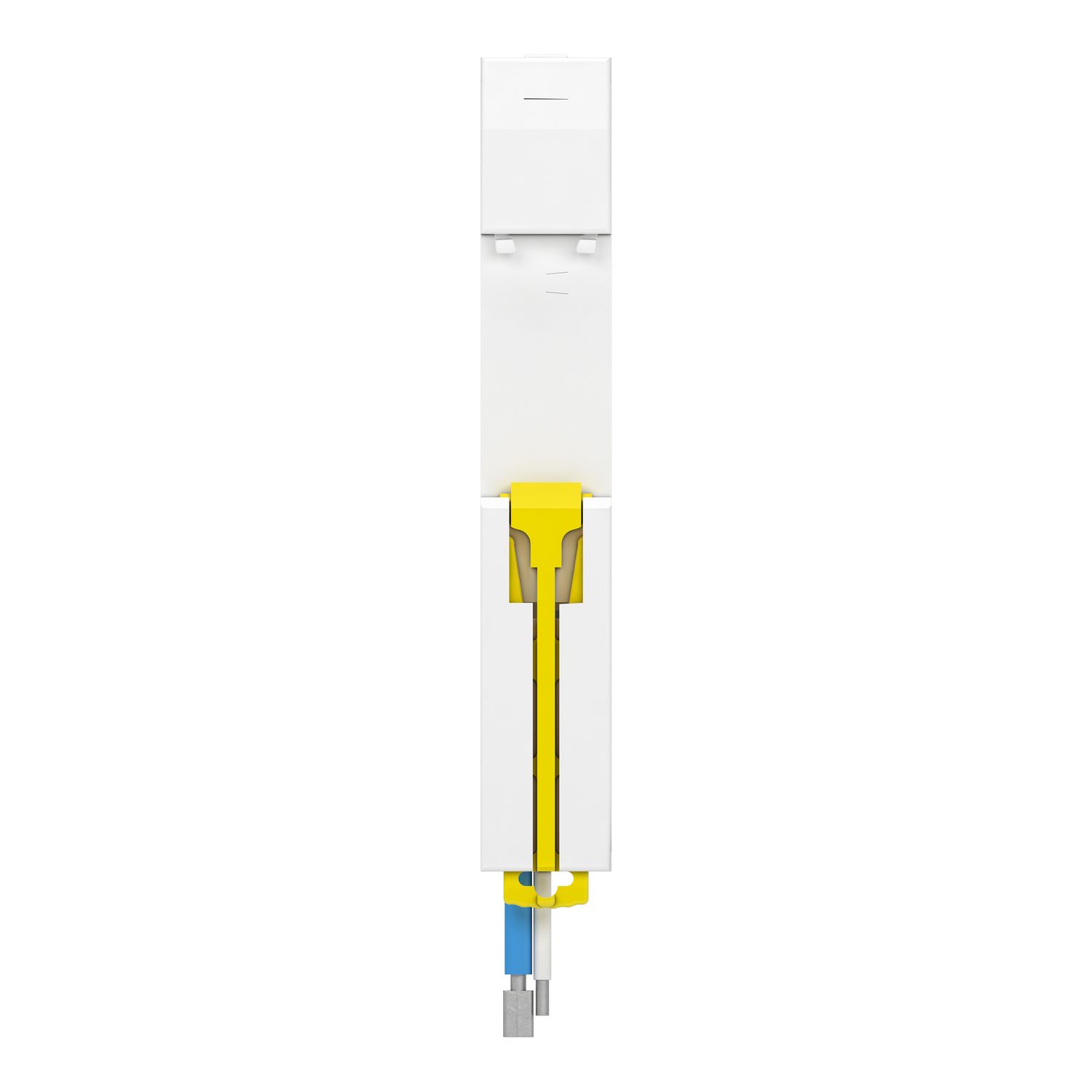

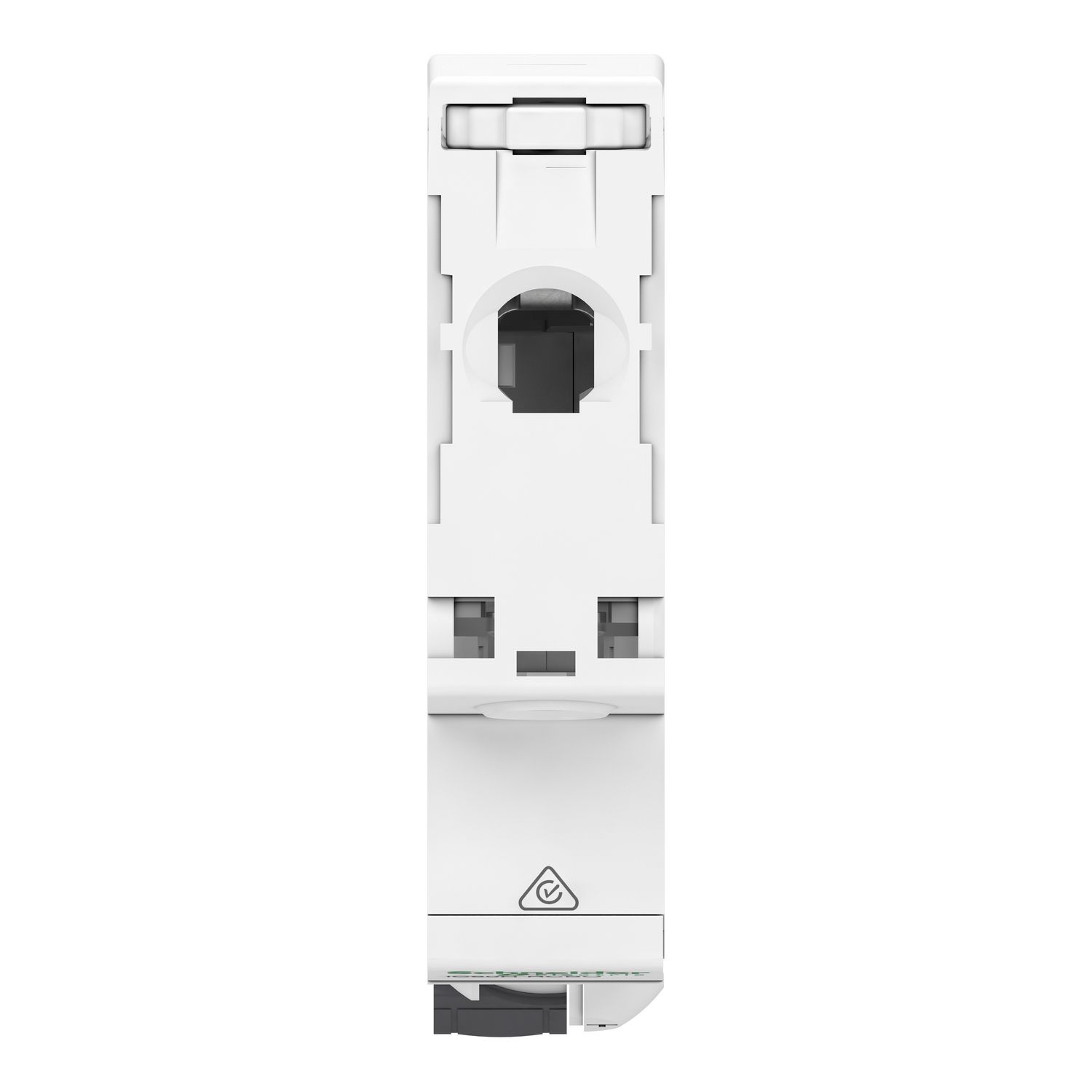

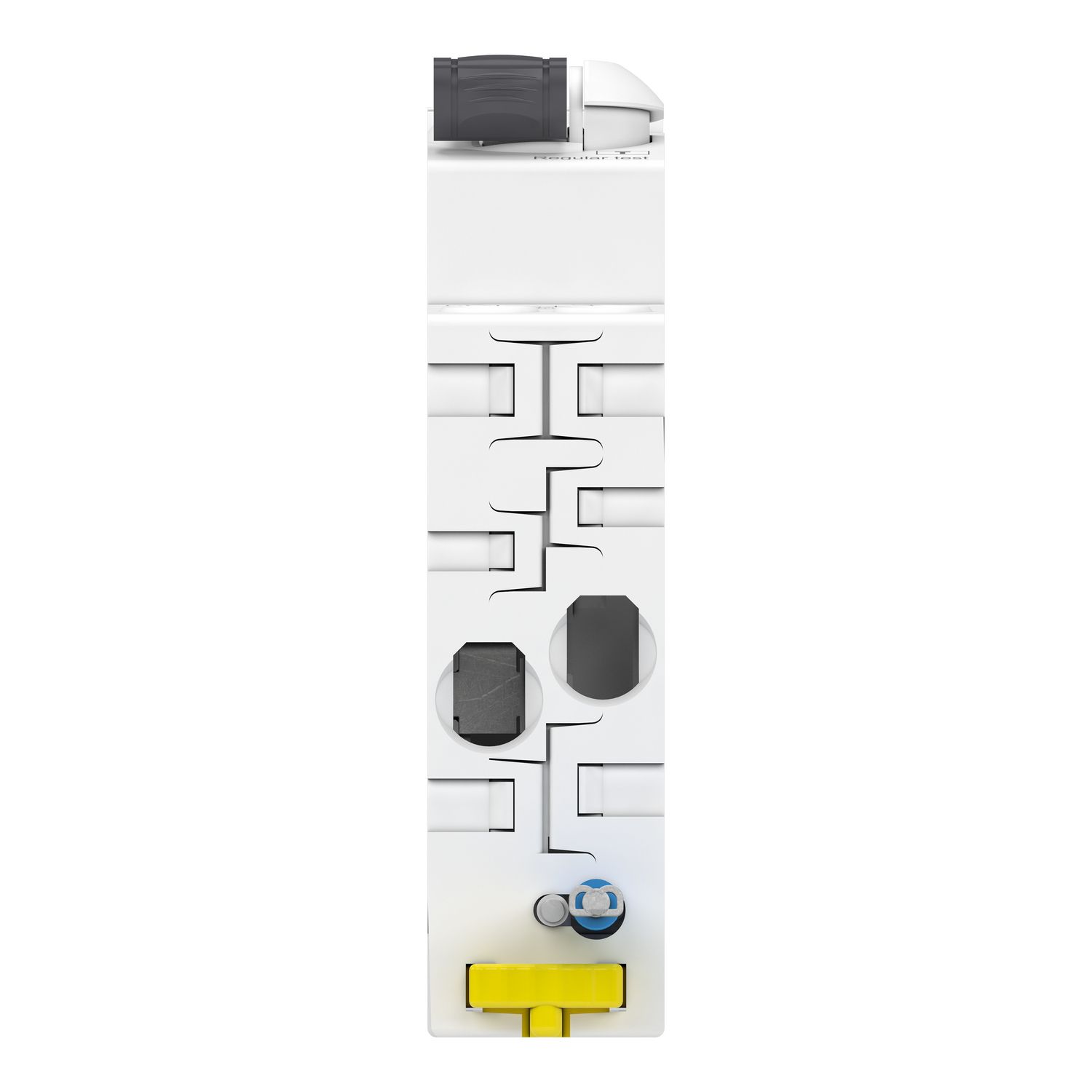

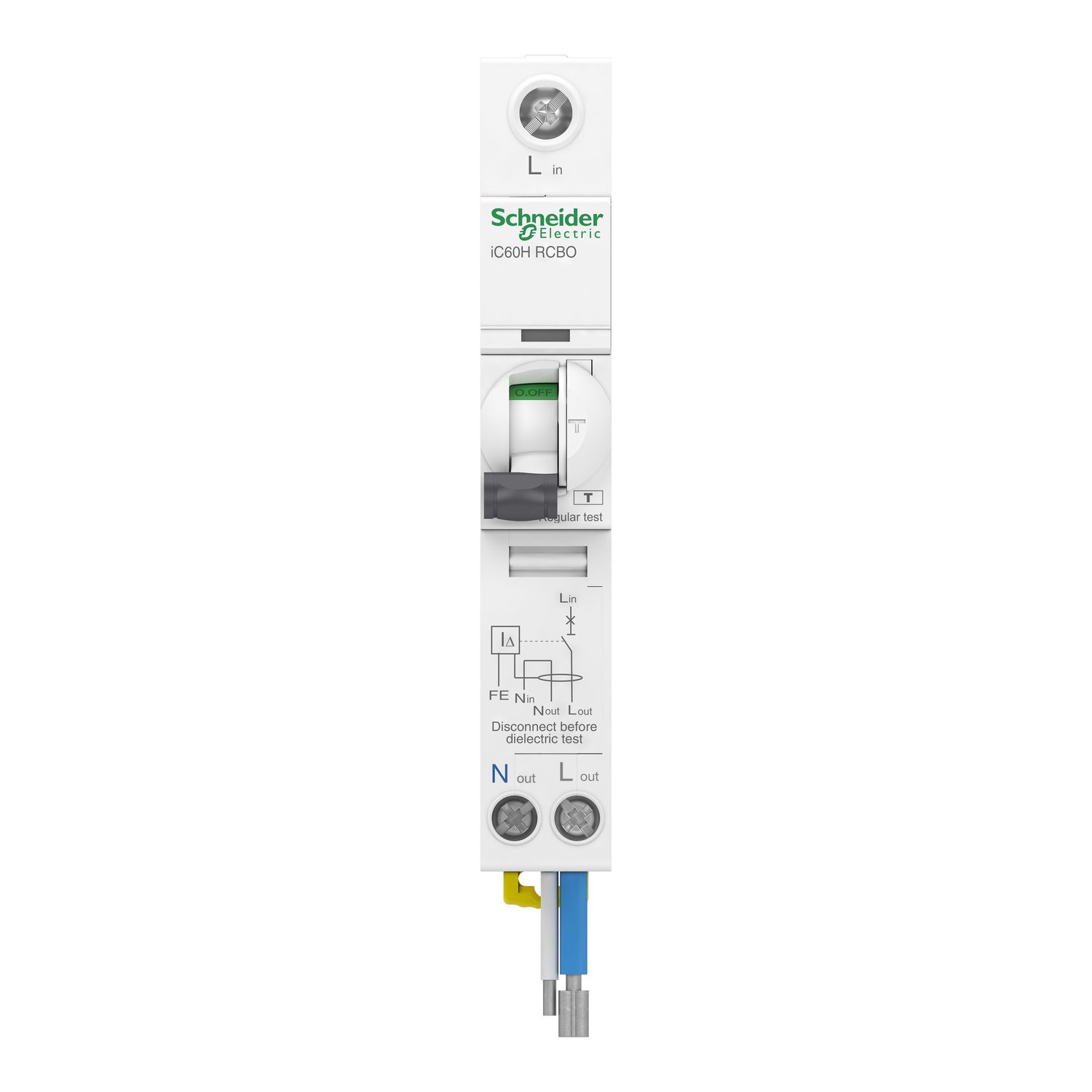

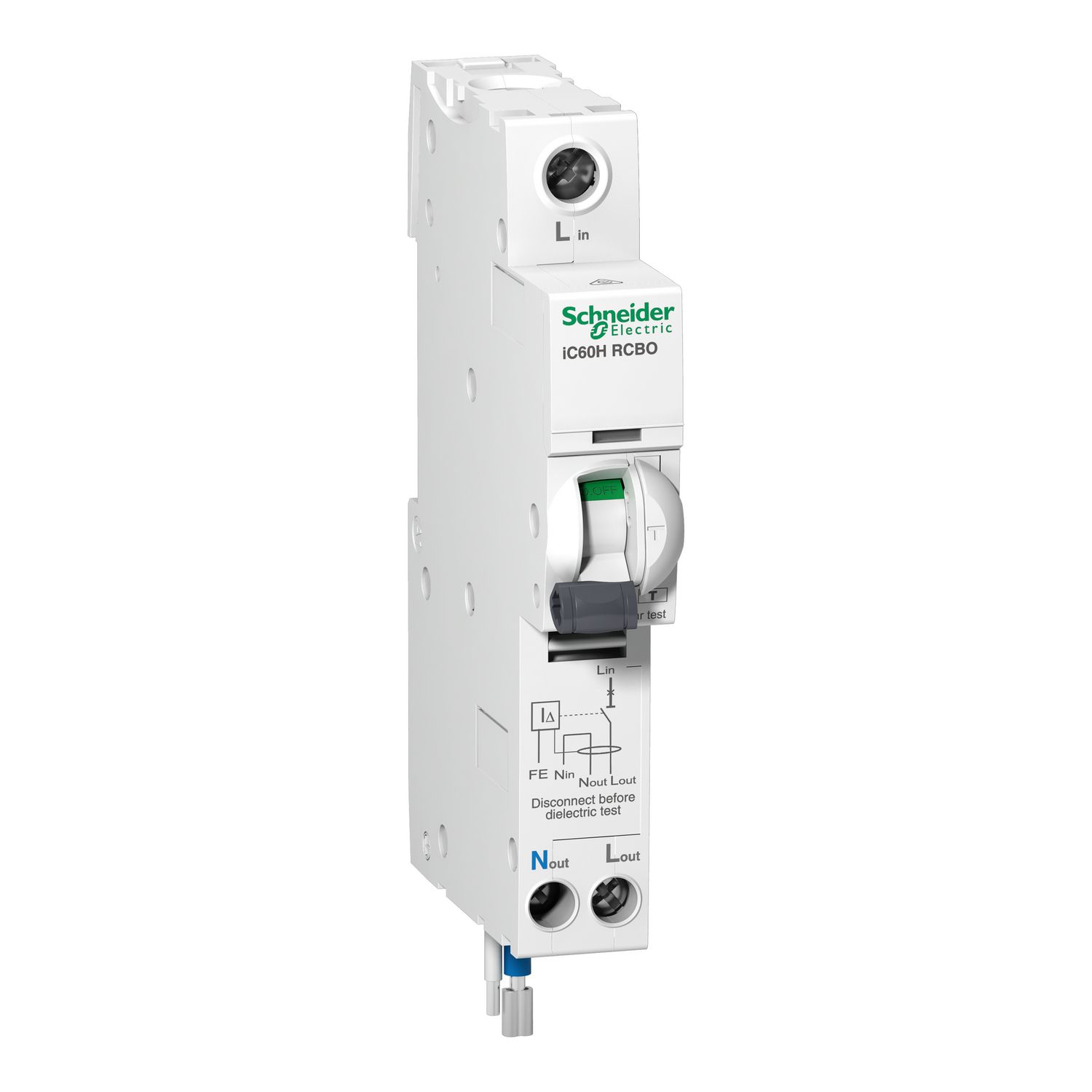

Picture of Acti9, IC60H - earth leakage circuit breaker - 1P + Ns - C curve - 32 A - 30 mA - 110 V
SKU:

A9D19832

Acti9, IC60H - earth leakage circuit breaker - 1P + Ns - C curve - 32 A - 30 mA - 110 V

$196.50
Product Selector
Acti9, IC60H - earth leakage circuit breaker - 1P + Ns - C curve - 32 A - 30 mA - 110 V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Declaration of conformity
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+Ns circuit breaker with 1 protected pole, 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with BS EN 61009-1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 110VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameiC60H RCBO
Breaking capacity10000 A Icn at 110 V AC 50/60 Hz
RangeActi9
Earthing systemTN
Curve codeC
Range of productActi9
Poles description1P + Ns
Circuit breaker applicationdistribution
Product nameActi9 iC60 RCBO
Product or component typeresidual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity30 mA
[In] rated current32 A at 50 °C
Complementary
Tightening torquepower circuit: 2-2 N.m bottom, power circuit: 3.5-3.5 N.m top
Provision for padlockingpadlockable with padlock Ø 4 mm
Colourwhite
[Uimp] rated impulse withstand voltage4 kV
Mechanical durability20000 cycles
Suitability for isolationyes
Electrical durability5000 cycles
Mounting modeclip-on
Control typetoggle
Wire stripping lengthpower circuit: 14 mm for top connection, power circuit: 13 mm for bottom connection
Connections - terminalsscrew clamp terminal (bottom) 1-10 mm² flexible, screw clamp terminal (bottom) 1-16 mm² rigid without cable end, screw clamp terminal (top) 1-16 mm² flexible, screw clamp terminal (top) 1-25 mm² rigid without cable end
Comb busbar and distribution block compatibilityNO
Earth-leakage protection classtype A
Locking options descriptionON/OFF locking facilities
Earth-leakage protectionintegrated
Number of protected poles1
[Icw] rated short-time withstand currentIcw: 250 A during 8/20 µs impulse withstand
Residual current tripping technologyvoltage dependent
Height110 mm
[Ics] rated service breaking capacity7500 A at 110 V AC 50/60 Hz
[Ue] rated operational voltage110 V AC 50/60 Hz
Trip unit technologythermal-magnetic
Depth77.5 mm
Width18 mm
Neutral positionleft
Local signallingON/OFF indication
[Ui] rated insulation voltage400 V AC 50/60 Hz
Earth-leakage protection time delayinstantaneous
Net weight205 g
Surge current250 A
Limitation class3
9 mm pitches2
Device location in systemoutgoer
Breaking capacity codeH
Network typeAC
Mounting supportDIN rail
Contact position indicatoryes
Network frequency50 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP20
Tropicalisation2
Ambient air temperature for operation-15-60 °C
StandardsAS/NZS 61009.1, IEC 61009-1, IEC 61009-2-2, BS EN 61009-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width9.5 cm
Package 1 Length1.8 cm
Package 1 Weight242.0 g
Unit Type of Package 22
Number of Units in Package 234
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight8.615 kg
Unit Type of Package 33
Number of Units in Package 31088
Package 3 Height80 cm
Package 3 Width120 cm
Package 3 Length70 cm
Package 3 Weight275.296 kg
