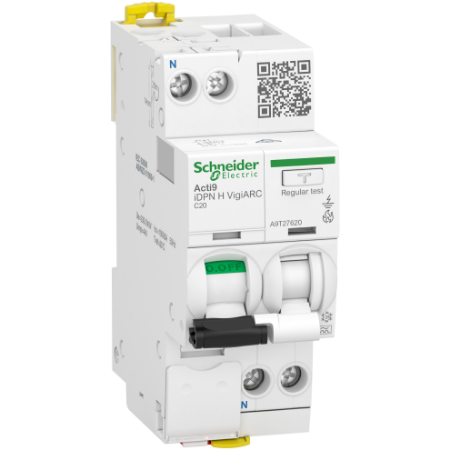

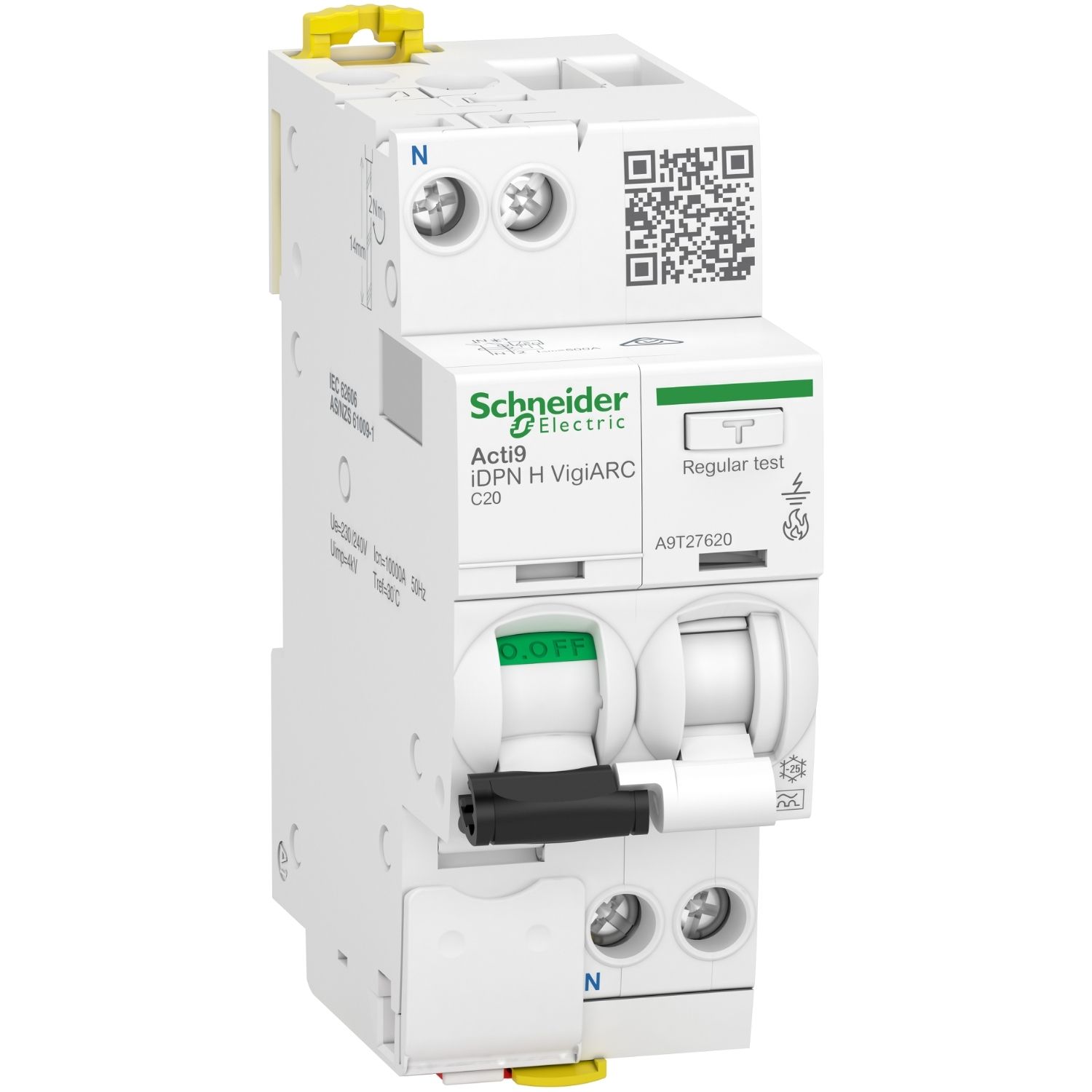

Picture of Acti9, Arc fault detection RCBO, Acti9 iDPN H VigiArc, 1P+N, 20 A, 10000 A, 30 mA, type A
SKU:

A9T27620

Acti9, Arc fault detection RCBO, Acti9 iDPN H VigiArc, 1P+N, 20 A, 10000 A, 30 mA, type A

$285.42
Available for Shipping : 24-Nov-2024
Acti9, Arc fault detection RCBO, Acti9 iDPN H VigiArc, 1P+N, 20 A, 10000 A, 30 mA, type A
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iDPN H is an arc fault detection circuit breaker. It is a 1P+N circuit breaker, rated current is 20 A and C tripping curve. As circuit breaker, its breaking capacity, according to AS/NZS 61009.1, is 7500 A at 240 VAC. It has an electrical endurance going up to 20000 cycles and mechanical endurance going up to 20000 cycles. It detects arc fault who comes from fire start and is constantly analyzing electric settings. It isolates involved circuit automatically before first flame appearance. It is particulary adapted for circuit protection where the fire start is the most important in domestic intallation (outdoors, rooms). The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 250 VAC. It has a Uimp rated impulse withstand voltage of 4 kV. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 36 mm x (H) 91 mm x (D) 75 mm. The product weight is 205 g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. This product complies with EN/IEC 62606 and IEC 60898-1 standard.
