SKU:

METSECT5DA100

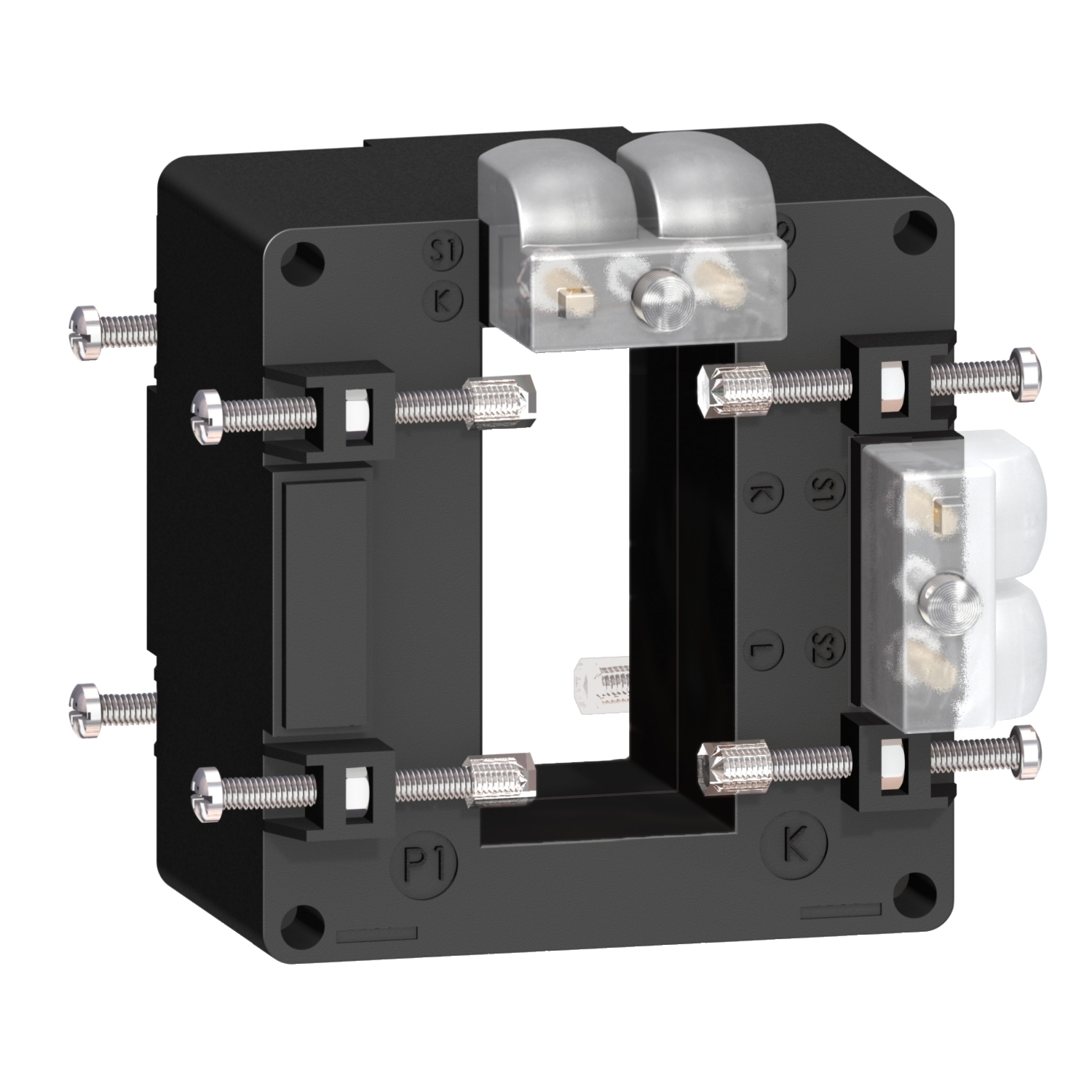

current transformer tropicalised 1000 5 double output for bars 32x65

$133.63

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

current transformer tropicalised 1000 5 double output for bars 32x65

Solid core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

multiple secondary terminal options for different mounting profile

compliance with IEC standard for current transformer

Current Transformers for vertical or horizontal bar

accessories for sturdy mounting in the system

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

This current transformer, tropicalised for busbar, has a line rated current of 1000 A and a secondary current rating of 5 A. This current transformer do have a 65 mm x 32 mm opening. Compatible with a single output for bar: 65 mm x 32 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 20 VA, class 0.5 at 15 VA
[In] rated current	1000 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar
Compatibility code	DA
Height	32 mm inner: , 94 mm outside:
Width	65 mm inner: , 90 mm outside:
Current transformer ratio	1000/5
Mounting mode	insulated locking screw
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	65 x 32
Sealing	with
Depth	87 mm total: , 40 mm frame:
Net weight	0.606 kg
[Ith] conventional free air thermal current	60 kA
[Ui] rated insulation voltage	3 kV
Mounting support	busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	IEC 61869-2, VDE 0414
Ambient air temperature for operation	-25-60 °C
Product certifications	EAC, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.3 cm
Package 1 Width	9.5 cm
Package 1 Length	10.1 cm
Package 1 Weight	564.0 g
Unit Type of Package 2	2
Number of Units in Package 2	16
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	9.143 kg
