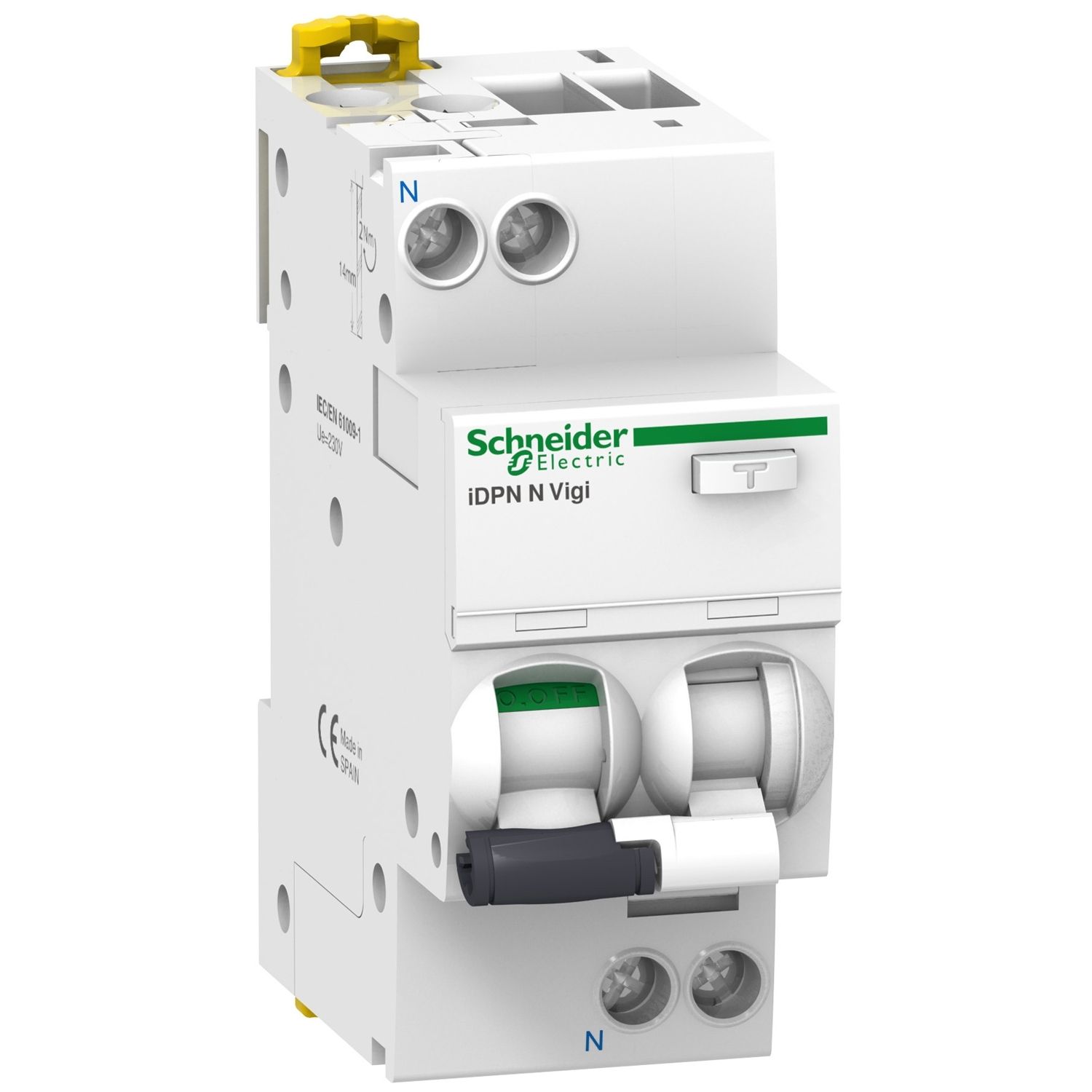

Picture of Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A-SI type, 30mA
SKU:

A9D33610

Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A-SI type, 30mA

$132.29
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A-SI type, 30mA
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It has 2P with 1 protected pole, 10A rated current and C tripping curve. This A-SI type device has 30mA sensibility. Breaking capacity at 230VAC is 6000A according to IEC 61009-1. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It brings safety and reliable solution for commercial and industrial applications. This product is compliant with EN/IEC 61009-2-1 standard. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute name Attribute value
Main
Device short name iDPN N Vigi
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Range Acti9
Earth-leakage protection class type A-SI (Super Immunised)
Number of protected poles 1
Curve code C
Range of product iDPN Vigi
Trip unit technology thermal-magnetic
Neutral position left
Poles description 1P + N
Earth-leakage protection time delay instantaneous
Product name Acti9 iDPN Vigi
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
Network type AC
[In] rated current 10 A
Complementary
Tightening torque 2-2 N.m top or bottom
Colour white
Connection pitch 9 mm between phase and neutral
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iDPN
Mechanical durability 20000 cycles
Rated breaking and making capacity Idm 6000 A at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Electrical durability 20000 cycles
Mounting mode clip-on
Residual current tripping technology voltage independent
Control type toggle
Wire stripping length 15 mm for top or bottom connection
Comb busbar and distribution block compatibility top or bottom: YES
Connections - terminals single terminal top or bottom 1-10 mm² flexible with ferrule, single terminal top or bottom 1-10 mm² flexible, single terminal top or bottom 1-16 mm² rigid
Locking options description padlocking device
Earth-leakage protection integrated
Height 85 mm
[Ics] rated service breaking capacity 6000 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Magnetic tripping limit 5...10 x In
[Ue] rated operational voltage 230 V AC 50 Hz
Depth 73 mm
Market segment residential, small commercial
Width 36 mm
Local signalling ON, OFF, fault trip
[Ui] rated insulation voltage 440 V AC 50 Hz
Net weight 125 g
Limitation class 3 conforming to EN/IEC 61009-2-1
9 mm pitches 4
Device location in system outgoer
Mounting support DIN rail
Contact position indicator yes
Network frequency 50 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1
Product certifications RCM, VDE
Standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
Ambient air temperature for operation -25-60 °C
Overvoltage category III conforming to IEC 60364
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 8.500 cm
Package 1 Length 10.000 cm
Package 1 Weight 215.000 g
Unit Type of Package 2 2
Number of Units in Package 2 54
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.860 kg
