Picture of Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A-SI type, 30mA
SKU:

A9D33625

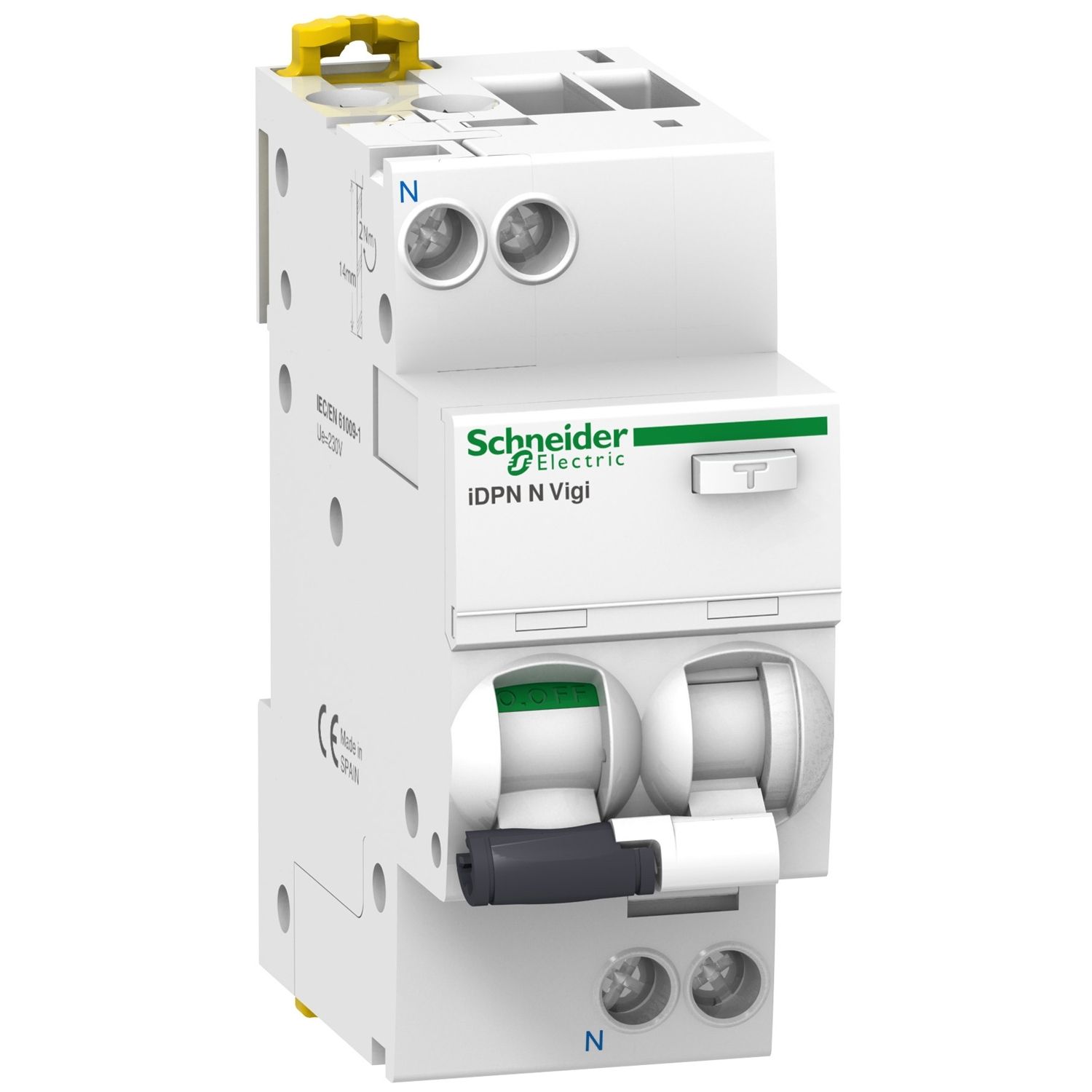

Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A-SI type, 30mA

$132.29
Product Selector
Residual current breaker with overcur. prot. (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A-SI type, 30mA
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It has 2P with 1 protected pole, 25A rated current and C tripping curve. This A-SI type device has 30mA sensibility. Breaking capacity at 230VAC is 6000A according to IEC 61009-1. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It brings safety and reliable solution for commercial and industrial applications. This product is compliant with EN/IEC 61009-2-1 standard. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameiDPN N Vigi
Device applicationdistribution
Suitability for isolationyes conforming to EN/IEC 60947-2
Breaking capacity6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
RangeActi9
Earth-leakage protection classtype A-SI (Super Immunised)
Number of protected poles1
Curve codeC
Range of productiDPN Vigi
Trip unit technologythermal-magnetic
Neutral positionleft
Poles description1P + N
Earth-leakage protection time delayinstantaneous
Product nameActi9 iDPN Vigi
Product or component typeresidual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity30 mA
Network typeAC
[In] rated current25 A
Complementary
Tightening torque2-2 N.m top or bottom
Colourwhite
Connection pitch9 mm between phase and neutral
[Uimp] rated impulse withstand voltage4 kV
Compatibility codeiDPN
Mechanical durability20000 cycles
Rated breaking and making capacityIdm 6000 A at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Electrical durability10000 cycles
Mounting modeclip-on
Residual current tripping technologyvoltage independent
Control typetoggle
Wire stripping length15 mm for top or bottom connection
Comb busbar and distribution block compatibilitytop or bottom: YES
Connections - terminalssingle terminal top or bottom 1-10 mm² flexible with ferrule, single terminal top or bottom 1-10 mm² flexible, single terminal top or bottom 1-16 mm² rigid
Locking options descriptionpadlocking device
Earth-leakage protectionintegrated
Height85 mm
[Ics] rated service breaking capacity6000 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Magnetic tripping limit5...10 x In
[Ue] rated operational voltage230 V AC 50 Hz
Depth73 mm
Market segmentsmall commercial, residential
Width36 mm
Local signallingON, OFF, fault trip
[Ui] rated insulation voltage440 V AC 50 Hz
Net weight125 g
Limitation class3 conforming to EN/IEC 61009-2-1
9 mm pitches4
Device location in systemoutgoer
Mounting supportDIN rail
Contact position indicatoryes
Network frequency50 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-85 °C
Pollution degree3
IP degree of protectionIP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1
Product certificationsRCM, VDE
StandardsEN/IEC 61009-2-1
Tropicalisation2 conforming to IEC 60068-1
Ambient air temperature for operation-25-60 °C
Overvoltage categoryIII conforming to IEC 60364
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.0 cm
Package 1 Width8.0 cm
Package 1 Length9.6 cm
Package 1 Weight218 g
Unit Type of Package 22
Number of Units in Package 254
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight12.213 kg
Unit Type of Package 33
Number of Units in Package 3432
Package 3 Height44.4 cm
Package 3 Width80 cm
Package 3 Length120 cm
Package 3 Weight109.704 kg
