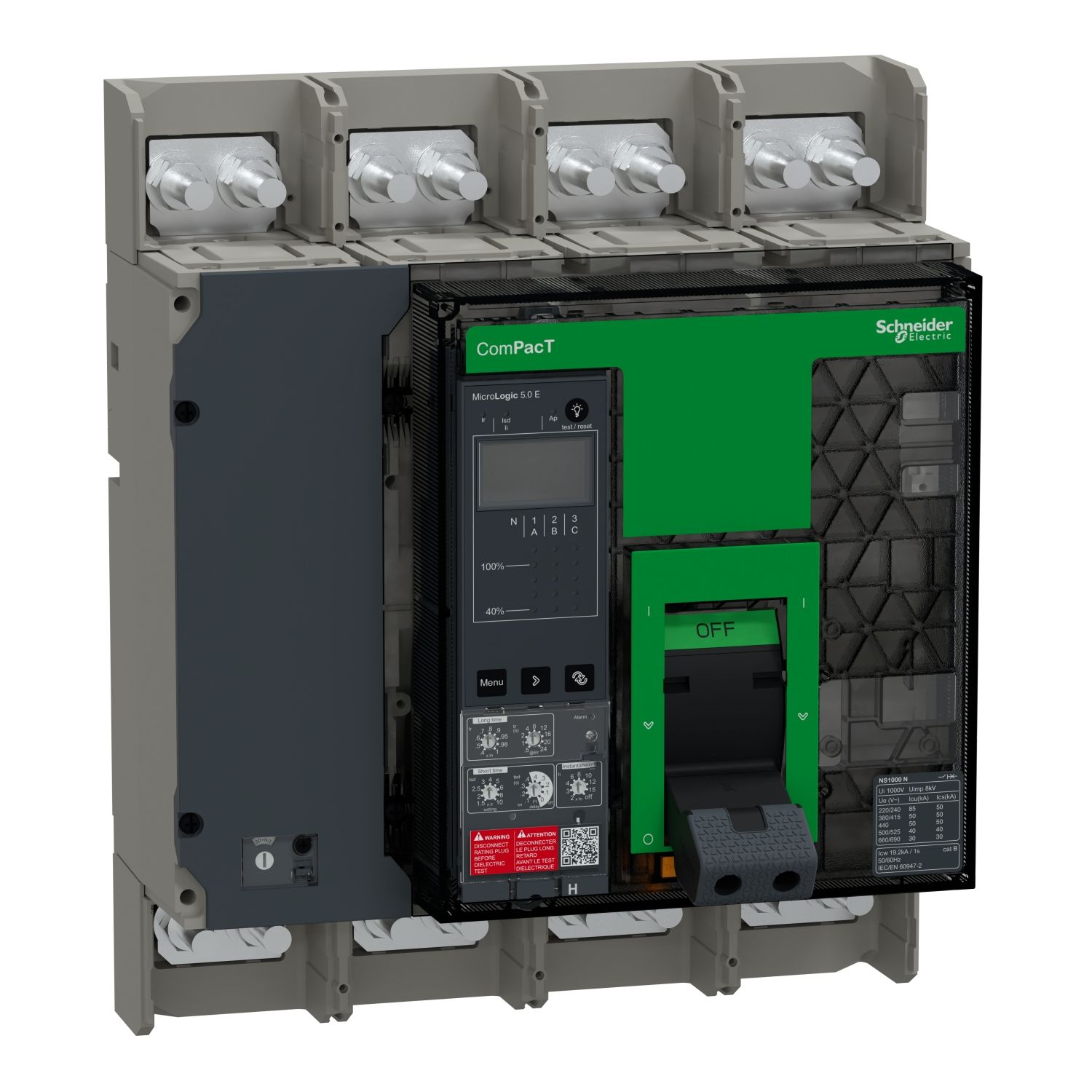

Picture of Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 4P, fixed, manually operated, MicroLogic 5.0E control unit, 1000A
SKU:

C100H45EFM

Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 4P, fixed, manually operated, MicroLogic 5.0E control unit, 1000A

Please Contact Sales to buy this Product. click here
Product Selector
Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 4P, fixed, manually operated, MicroLogic 5.0E control unit, 1000A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Oct-2024
Declaration of conformity
Catalogue
User guide
End of life manual
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performances and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS1000H is a complete 4 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. This product embeds an electronic MicroLogic 5.0E control unit, with 1000A rating. MicroLogic 5.0E control unit provides adjustable long time, short time and instantaneous protections (ANSI codes 49/51/50). MicroLogic 5.0E is equipped with a digital LCD screen and display energy (energy meter), in addition to the ammeter measurement of MicroLogic A. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 280mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Suitability for isolationyes conforming to EN/IEC 60947-2
Trip unit technologyelectronic
Neutral positionleft
Utilisation categorycategory B
Network typeAC
Breaking capacity codeH 70 kA 415 V AC
Breaking capacity42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting modefixed
Control typemanually operated
RangeComPacT
Protected poles description4D
Range of productComPacT NS630b...1600 new generation
Trip unit nameMicroLogic 5.0 E
Poles description4P
Product nameComPacT NS new generation
Product or component typecircuit breaker
Trip unit protection functionsLSI
[Ue] rated operational voltage690 V AC 50/60 Hz
[In] rated current1000 A at 50 °C
Network frequency50/60 Hz
Complementary
Power losses22 W
Short-time pick-up adjustment type Isdadjustable 9 settings
Display typeLCD display
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
Compatibility codeNS1000
Trip unit rating1000-1000 A at 50 °C
Long time pick-up adjustment type Iradjustable 9 settings
Electrical durability6000 cycles at 440 V In/2, 5000 cycles at 440 V In, 4000 cycles at 690 V In/2, 2000 cycles at 690 V In
Zone selective interlocking ZSIwith
Downside connectionfront
Earth-leakage protectionwithout
Thermal memory20 mn
Height327 mm
[Ics] rated service breaking capacity31 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 37 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 48 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 52 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 52 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
[tsd] short-time delay adjustment range0-0.4 s I²t=off, 0.1-0.4 s I²t=on
[tr] long-time delay adjustment range0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight18 kg
Long time delay adjustment typeadjustable 9 settings
Auxiliary contact composition1 NO/NC
[Icw] rated short-time withstand current19.2 kA 1 s conforming to IEC 60947-2
Connection pitch70 mm
Mechanical durability10000 cycles
Upside connectionfront
Long time pick-up adjustment range0.4...1 x In
Neutral protection setting1 x Ir (4D), 0.5 x Ir (3D + N/2), no protection (3D)
Short-time delay adjustment typeadjustable
Protection typeI : for instantaneous short-circuit protection, S : for short time short-circuit protection, L : for overload protection (long time)
Depth147 mm
Width280 mm
[Isd] short-time pick-up adjustment range1.5...10 x Ir
Local signalling1 LED (yellow) for overload, 4 LEDs (red) for fault indication
Instantaneous pick-up adjustment type Iiadjustable
Type of measurementenergy meter
Instantaneous pick-up adjustment range2...15 x In, off
Mounting supportbackplate
Environment
Relative humidity0-95 %
Ambient air temperature for storage-40-85 °C
Operating altitude2000 m...5000 m with derating, 0...2000 m without derating
Product certificationsIECEE CB Scheme
Pollution degree3 conforming to IEC 60947
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to EN 50102
StandardsEN/IEC 60947-2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height37.0 cm
Package 1 Width38.0 cm
Package 1 Length30.0 cm
Package 1 Weight15.97 kg
